InsightMR for High-Field

Designed to monitor reactions, enhance understanding, and build confidence when transferring processes from the lab to the plant.
Unlock
critical information
Reaction yield, conversion and mechanistic insights
Harness NMR data
Improve efficiency and reduce costs
In-line and on-line studies under real reaction conditions
Accelerate process development
Enhancing Reaction Understanding with Online NMR Reaction Monitoring – Application to Chemical Route Development
Download

High-Field NMR for PAT: Real-Time Reaction Monitoring

High-field Nuclear Magnetic Resonance (NMR) serves as an effective Process Analytical Technology (PAT) tool for real-time monitoring, optimization, and control of chemical and bioprocesses. Ideal for both industrial and academic settings, InsightMR empowers scientists to study, optimize, and control reactions with real time, on-line and in-line NMR monitoring under true process conditions. Combining a robust flow unit with dedicated software, InsightMR enables seamless integration into PAT frameworks.

Gathering insights into the mechanism and kinetics of chemical reactions is now at your fingertips!

  • Provides answers to key chemical questions: reaction yield, mechanistic insights and reaction kinetics
  • Harness NMR data to make strategic process chemistry decisions, ultimately leading to cost savings.



Features

InsightMR Flow Unit

Design for on-line and in-line reaction monitoring, InsightMR flow unit is a PAT-ready solution that enables comprehensive analysis and confident decision-making directly under actual operating conditions and captures the start of the reaction.



InsightMR for High Field NMR

  • Temperature controlled transfer lines: -20 to 120 °C capability
  • Tested to withstand pressures over 10 bar
  • Interchangeable glass tube. Proven robustness - industry tested
  • Compatible with all Bruker sample changers
  • 3- or 5-mm (Room Temperature and Cryo) Probes
  • InsightMR 2.0 software.
InsightMR - Workflow video
InsigthMR flow unit

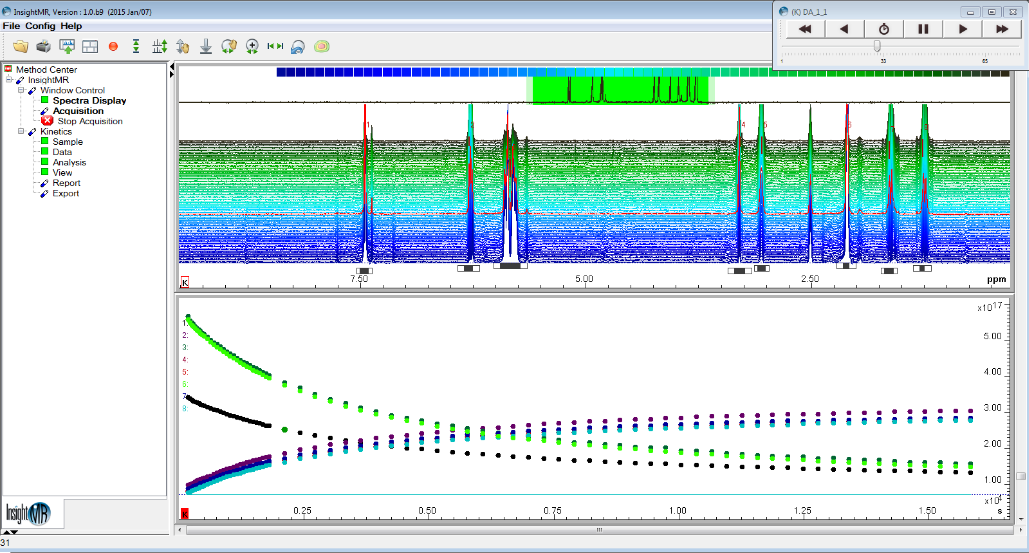

InsightMR 2.0 Software

InsightMR software is a platform designed for the analysis of chemical processes by on-line and in-line NMR. Integrated acquisition control and data processing features enable on-the-fly on-line and in-line acquisition parameter adjustment based on real-time kinetic data.

  • Straightforward data acquisition with on-the –fly visualisation of build-up curves. Default experiments provided for both deuterated and non-deuterated solvents
  • Rapid and effortless handling of hundreds of stacked spectra
  • Supports acquisition, processing and analysis of series of 1Ds (different nuclei), interleaved experiments and multi samples in parallel
  • Automatic seamless transfer of spectra to Mnova reaction monitoring Workstation (e.g. phase, baseline and GSD)
  • Access to database, prediction, assignment and chemometrics tools

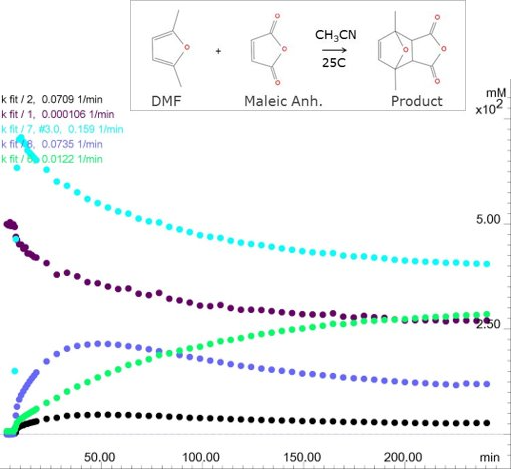

  • Results are delivered as kinetic, and waterfall plots ready to report and/or export.

Benefits

  • On-the-fly quantitative build-up curves without the need of tedious calibration steps
  • Structural information for reagents, (bi)products and intermediates
  • Increased selectivity, resolution and sensitivity compared to vibrational spectroscopy
  • Used also to calibrate other techniques
  • Straightforward installation and operation with minimal learning curve
