Expanding the horizons of single cell research

timsTOF SCP

The timsTOF SCP for quantitative single cell biology research with unbiased, deep single-cell 4D-Proteomics™, immunopeptidomics, epiproteomics and PTM analysis to complement scRNA-seq. Expanding the horizons of single cell research.

Redefining single cell proteomics

Discover true proteome heterogeneity

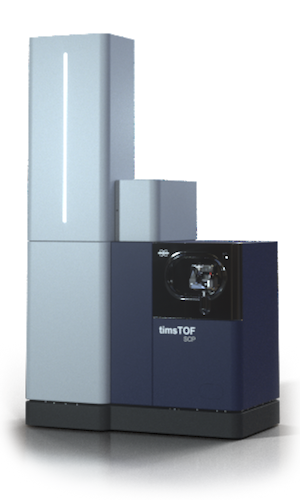

timsof-scp-web-hoch

Highlights

timsTOF SCP

Expanding the horizons of single cell research

Ultra-High Sensitivity
Ground-breaking design of a novel ion source geometry for up to five times higher ion transfer and ultra-high robustness.
Data Completeness
Data independent acquisition–parallel accumulation serial fragmentation (dia-PASEF) pushes the limits of reproducible quantification to pave the way to study cell heterogeneity at scale.
Acquisition Speed
High acquisition speed combined with dia-PASEF sensitivity enables analysis at short liquid chromatography (LC) runs without chromatographic dilution of very low sample amounts.
Robustness
Double orthogonal reflection into trapped ion mobility spectrometry (TIMS) enables routine operation over thousands of samples without instrument cleaning.

Eigenschaften

timsTOF SCP

Redefining single cell proteomics

Advanced ion optics and PASEF to investigate cell heterogeneity and biology from a single cell

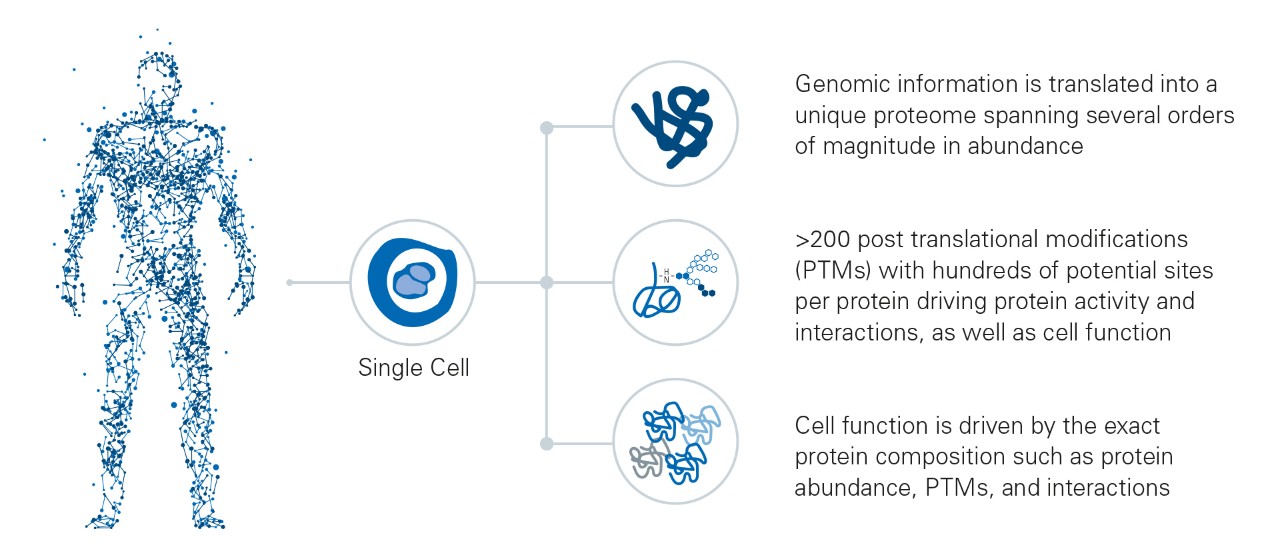

Mass spectrometric proteomics has become a staple of modern research in understanding biological function and disease mechanisms. Healthy or diseased tissues that seem homogenous are composed of cells with a variety of different proteomes. The challenge of deciphering the proteomes in each single cell – the cell heterogeneity – holds the key to fully understanding its function.
The timsTOF SCP offers a radically improved ion source concept. Combined with parallel accumulation serial fragmentation (PASEF®) acquisition methods, it provides extremely high speed and sensitivity to tackle proteomes of single cells or post translational modifications in a few cells that are morphologically or functionally similar.

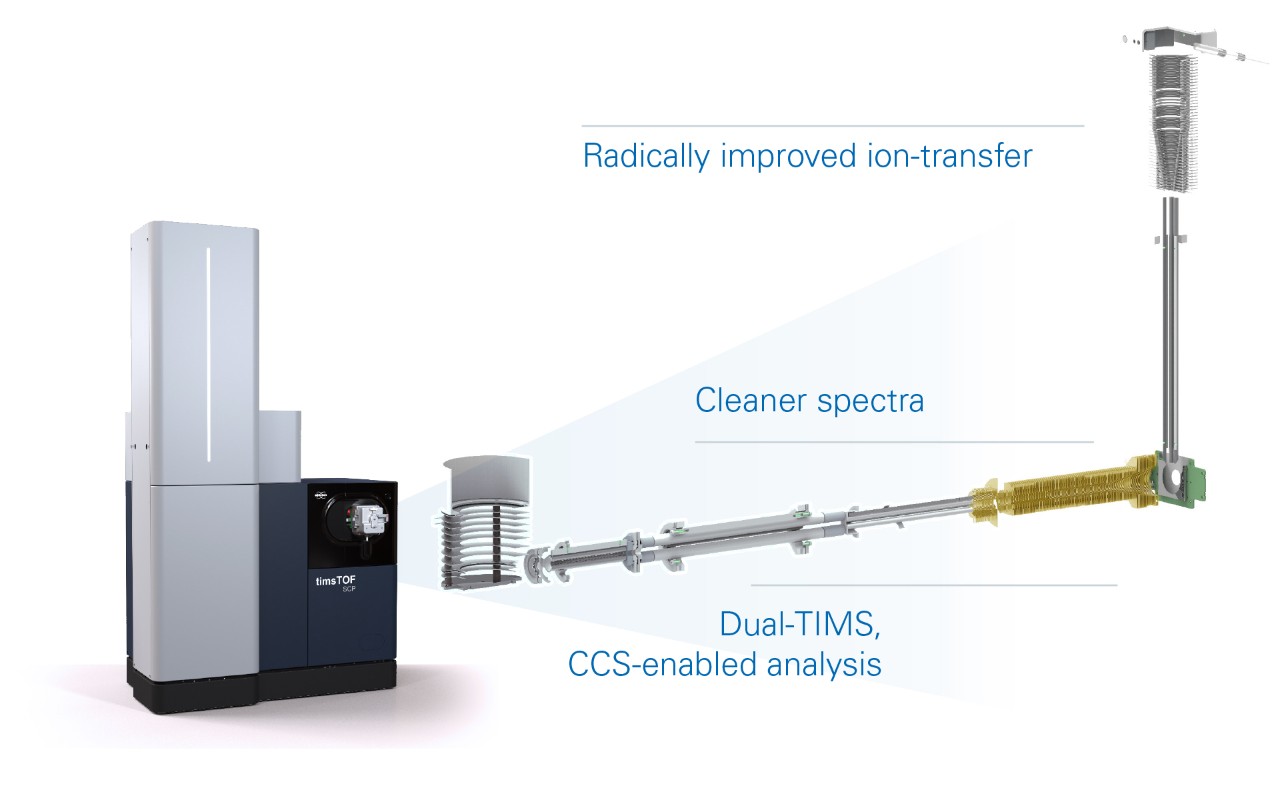

Radically improved ion transfer

The timsTOF SCP features a modified ion source geometry that includes 1 mm capillary identification for five times higher ion transfer into an additional higher pressure stage ion funnel and 8-stage differentially pumped vacuum system.

The larger capillary yields ultra-high sensitivity and the additional orthogonal ion reflection and subsequent funnel offers a separate, differentially pumped stage, maintaining the system robustness expected from the timsTOF instrument series.

Dramatic improvements in proteomics performance

The timsTOF SCP offers improvements in ion transmission into the source while maintaining robustness with an added higher pressure vacuum stage. This results in an almost 5x improvement in ion current. When combined with the Evosep One Whisper method running at 100 nL/min flow rate, and the dia-

PASEF method, sensitivity gains of about 100X over previous high-flow results with the Evosep One are achieved. This enables unbiased proteomics at the true single cell level with good reproducibility, robustness and coverage of about 1500 proteins per cell for the first time.

Dual-TIMS, CCS-enabled analysis

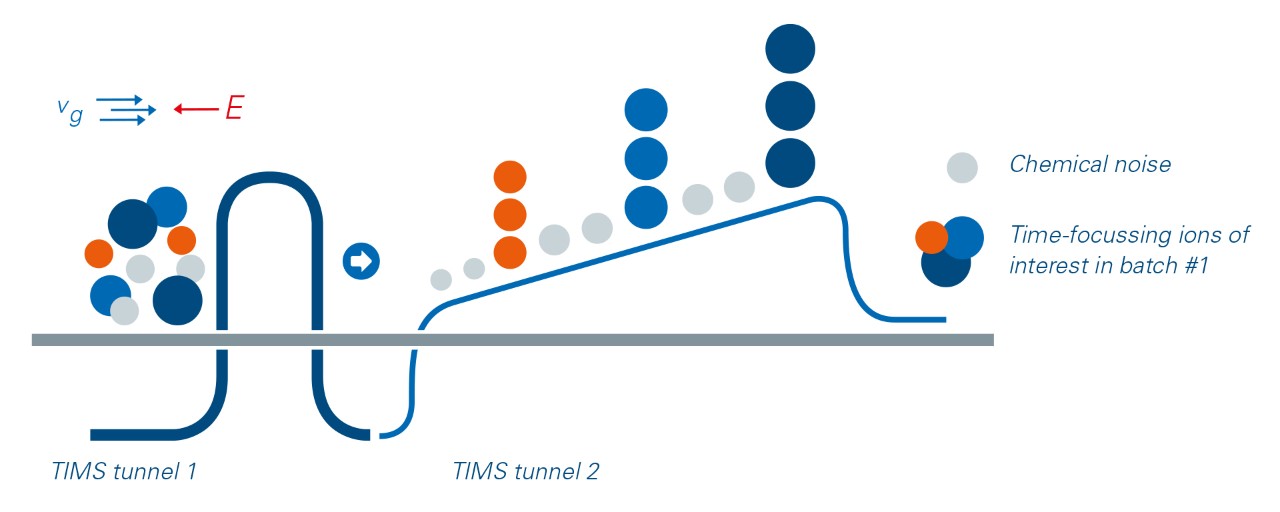

Trapped ion mobility spectrometry (TIMS) is first and foremost a separation technique in the gas phase. This resolves sample complexity through an added dimension of separation in addition to high performance liquid chromatography (HPLC) and mass spectrometry, increasing peak capacity and confidence in compound characterization.

Equally important, the TIMS device also accumulates and concentrates ions of a given mass and mobility, enabling a unique increase in sensitivity and speed.
A near 100% duty cycle can be achieved with the dual-TIMS technology facilitating accumulation in the front section, while ions in the rear section are sequentially released depending on their mobility. This process of parallel accumulation serial fragmentation (PASEF®) enables collisional cross section (CCS) analysis.

CCS-enabled analysis opens up many further analytical possibilities, from greater certainty of compound identification to confident library matching and lower false discovery rates (FDRs) in large datasets.

Ideal for immunopeptidomics and other enrichment workflows

Besides unbiased true single cell proteomics applications, the timsTOF SCP also offers outstanding sensitivity for workflows that involve enrichment of peptides from the proteome. Immunopeptidomics studies start with purification of immunopeptides from plasma or tissue.

Since immunopeptides are present at relatively low abundance in these samples, the timsTOF SCP is ideal for immunpeptidomics for neo-antigen discovery where the available material is limited, as in needle biopsies. The timsTOF SCP also has the sensitivity to revolutionize the use of phosphoproteomics for the study of signaling pathways in cancer.

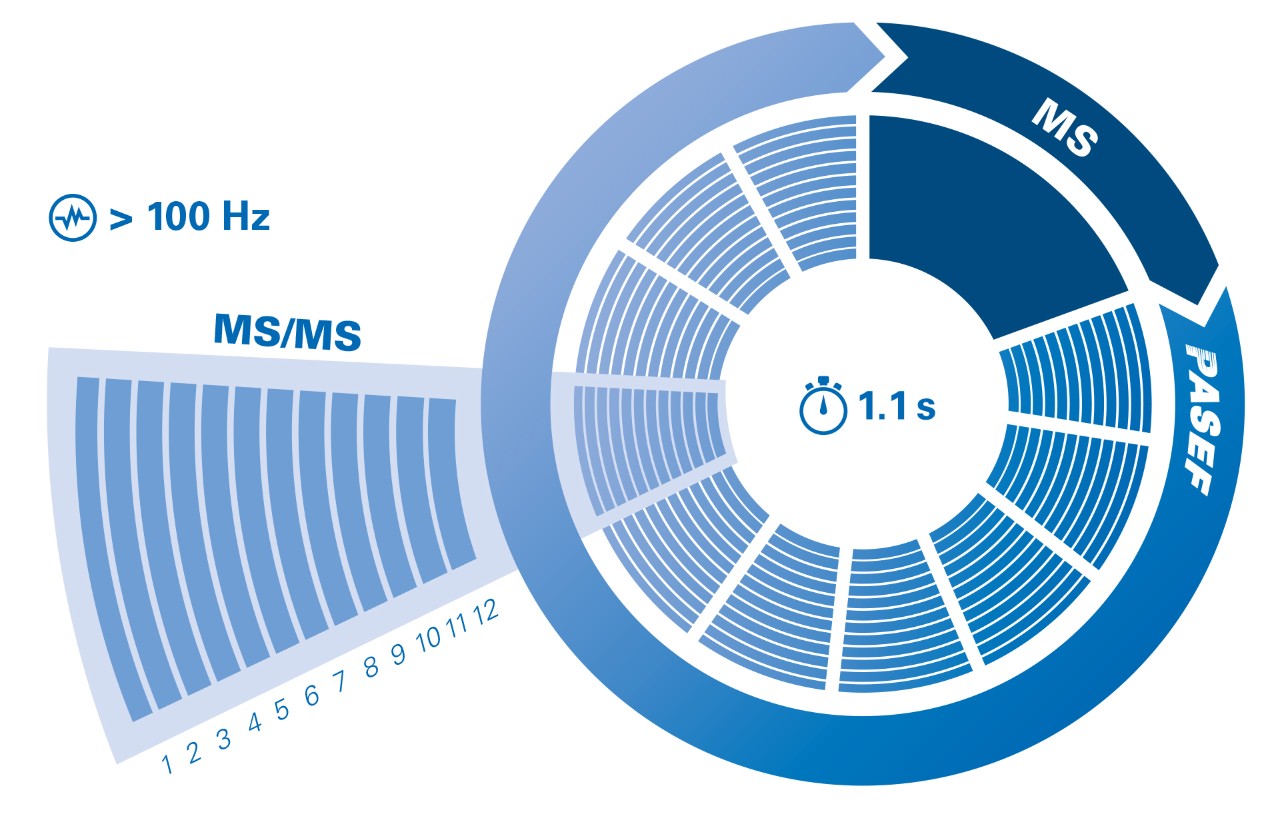

PASEF®

Peptide ions are separated using trapped ion mobility spectrometry (TIMS), eluted (~ 100 ms) and detected in the quadropole time of flight (QTOF), generating the TIMS MS heat map. In the PASEF® method the same TIMS separation is used with the quadrupole isolating a certain ion species during its elution and immediately shifting to the next precursor. Parent and fragment spectra are aligned by mobility values.

The parallel accumulation serial fragmentation (PASEF®) technology achieves a sequencing speed of >100 Hz. Using PASEF® increases the MS/MS spectra quality of the low abundant peptides by selecting them several times.

PASEF®: the perfect fit for shotgun proteomics
The timsTOF SCP powered by PASEF® offers a sequencing speed of >100 Hz without losing sensitivity or resolution. This is achieved by synchronizing the quadrupole isolation mass window with the elution time of the specific peptide packages from the TIMS funnel as well as the collision energy in the collision cell.

Vorteile

PaSER Run & Done – real time quality control for unbiased single cell analysis

The timsTOF SCP allows the analysis of hundreds of samples with minimal sample load (<200 ng) at sequencing speeds exceeding 100 Hz and with uncompromised proteomic depth. This has changed the way proteomics is studied, but the increased data requires a new level of data analysis.


Data analysis is a common bottleneck in many workflows. Modern analytical methods result in hundreds of lines of data generated by the timsTOF SCP. Bruker has introduced real-time database search capabilities - parallel database search engine in real-time (PaSER) which removes this hurdle. Using PaSER, as soon as a LC-MS run is completed, results are available – effectively Run & Done.

MaxQuant/Perseus and PEAKS Studio data processing

An open-file data format allows researchers to work directly with raw data and use industry leading software of their choice.

Bruker’s MaxQuant software has been adapted to manage 4-dimensional (4D) features in the space spanned by retention time, ion mobility, mass, and signal

intensity. This benefits the identification and quantification of peptides, proteins, and posttranslational modifications.

PEAKS Studio combines de novo sequencing with traditional database searches and is optimized for processing timsTOF raw data.

Anwendungen

Ultra-high sensitivity 4D-Proteomics with dia-PASEF

CCS-enabled analysis for confident identifications
timsControl allows customization of the dia-PASEF window scheme to focus on

the ions of interest. Adjusting the mass isolation width, TIMS range and cycle time allows adaptation of dia-PASEF to different chromatography methods.

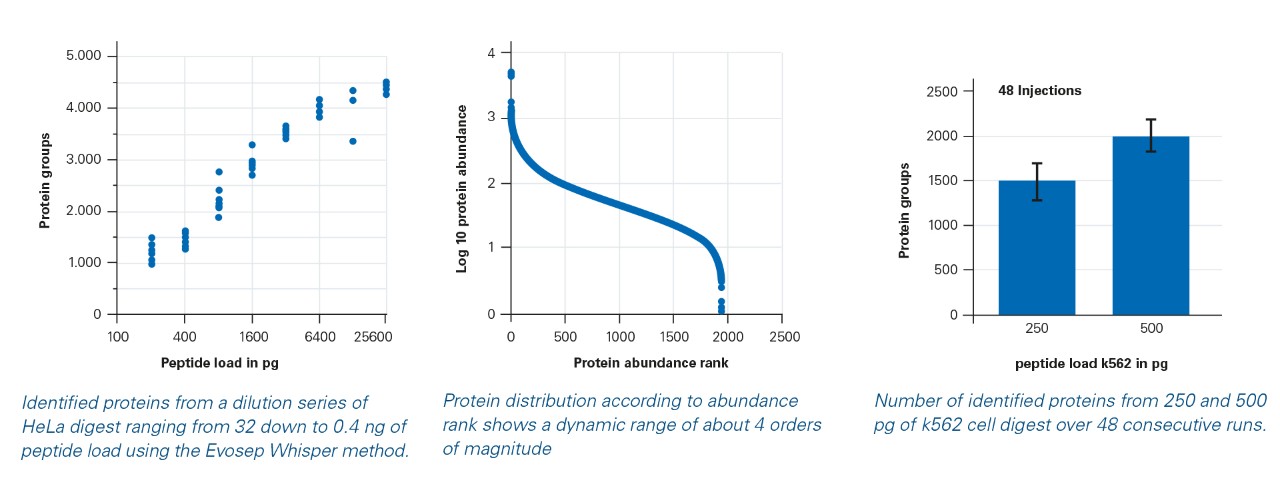

Combining low flow liquid chromatography on the Evosep One system with Whisper with the high sensitivity of dia-PASEF on the timsTOF SCP, over 2000 proteins were identified from 500 pg of cell digest and 1500 proteins were identified from 250 pg, demonstrating the sensitivity needed for true single cell proteomics. The proteins identified from 250 pg covered an abundance range of about 4 orders of magnitude, enabling quantitative proteome analysis at single cell level.

Exploring the Tumor Microenvironment

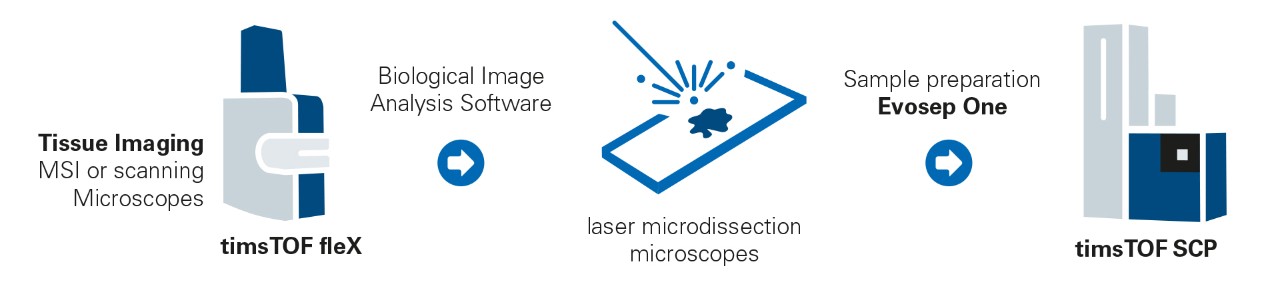

Understanding the TME together with its infiltrating immune cells can be considered a crucial step to influence disease progression, treatment response and patient survival. Due to its high sensitivity the timsTOF SCP enables sufficient proteome depth on cells excised by laser capture microdissection (LMD) from FFPE tissue samples. A typical workflow is shown in the figure on the right.

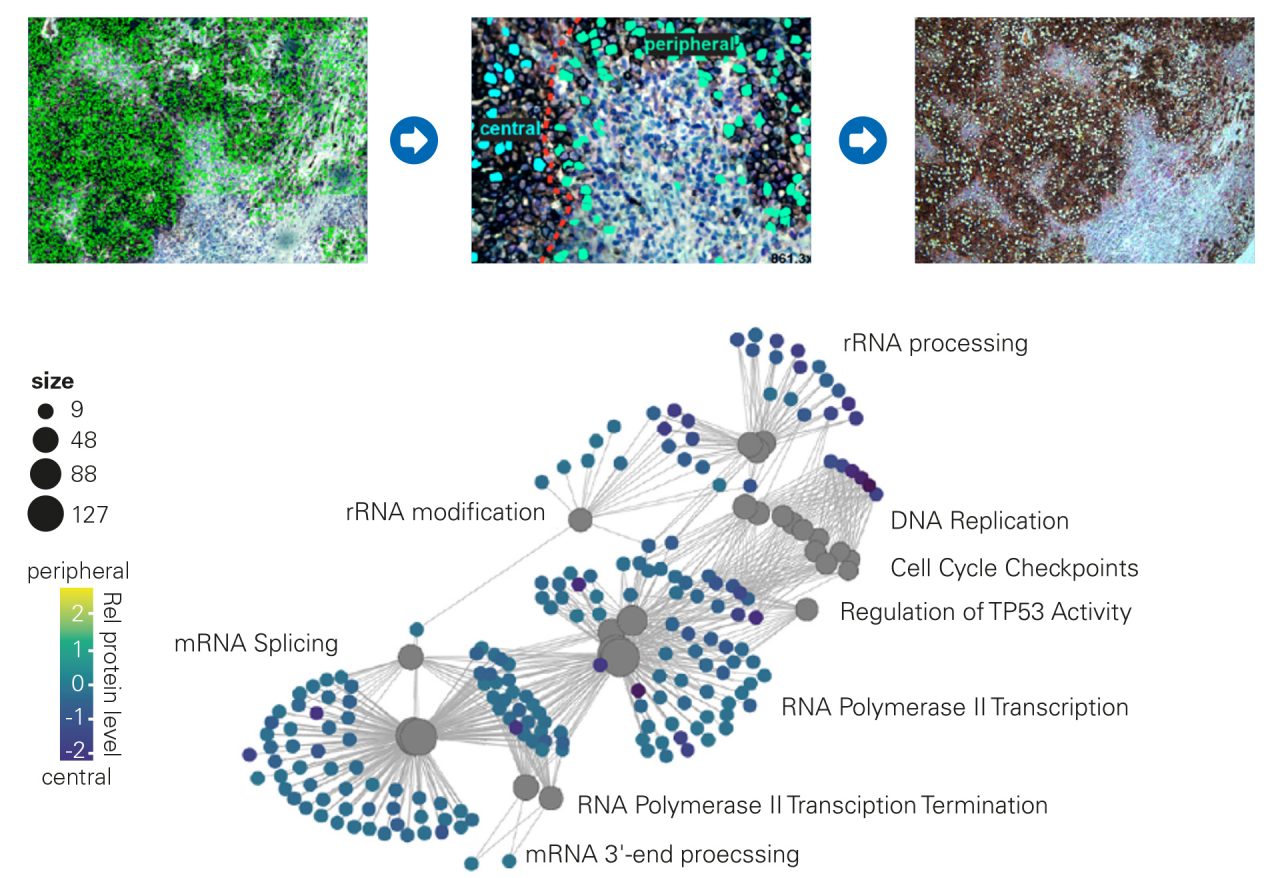

Cellular markers were used to identify melanoma cancer cells in the tumor mass and those closely related to the stroma for subsequent isolation of both populations by LMD and unbiased 4D-Proteomics analysis on a timsTOF SCP instrument.

Key Finding: Enrichment analysis revealed differentially regulated proteins between central and peripheral melanoma cells with potential for disease subtyping to guide clinical decision-making.
Results are provided by courtesy of Prof. Matthias Mann (doi: https://doi.org/10.1101/2020.12.22.423933)

Webinare

Meinungen

"I always said that single cell proteomics would not happen in my lifetime, but I'm happy to have been proven wrong"

Prof. Matthias Mann, Ph.D., Director, Department of Proteomics and Signal Transduction, Max-Planck-Institute of Biochemistry, Martinsried, Germany
