Gas Analysis

MATRIX-MG and OMEGA 5 Gas Analyzers for the fully automated and high precision real-time monitoring of gas compounds.

Gas Analysis

  • Fast, continuous and fully automated identification and quantification of gas compositions
  • No calibration to target gas necessary
  • Compensation of atmospheric gases and interferents
  • Gas cells available with path lengths of 10 cm (MATRIX-MG01), 2 m (MATRIX-MG2) and  5 m (MATRIX-MG5, OMEGA 5)
  • Detects concentrations from a few ppb up to 100%
  • Temperature-controlled gas cell (up to 191°C)
  • Easy-to-use and flexible control software OPUS GA
  • Easy operation and low cost of ownership
  • Long-life components
  • Based on the renowned RockSolid™ interferometer

To cover a very broad range of applications gas cells with path lengths of 10 cm (MATRIX-MG01), 2 m (MATRIX-MG2), respectively 5 m (MATRIX-MG5, OMEGA 5) are available.

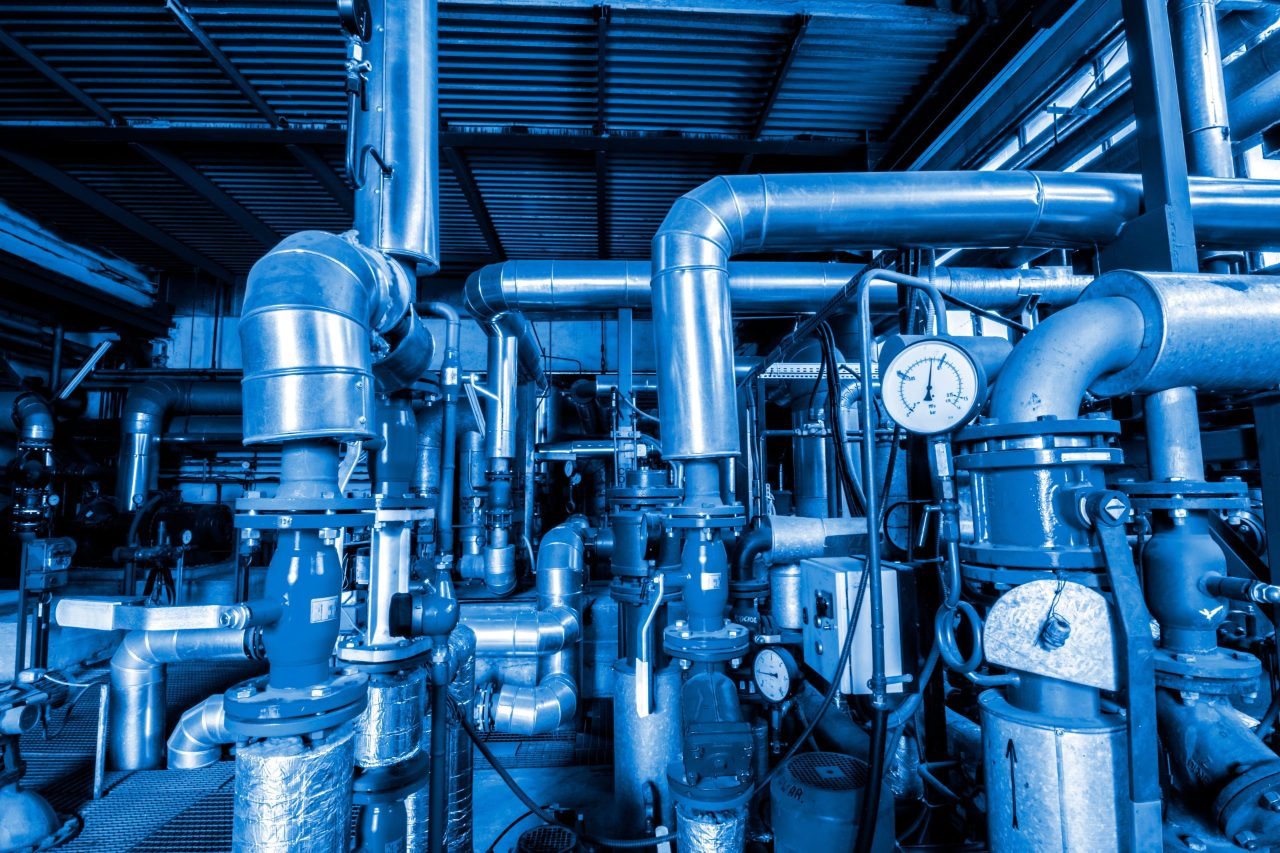

These can be heated up to 191°C to avoid condensation of certain compounds in the target gas. Typical applications are the monitoring of process gases in production lines or exhaust gases, the analysis of motor vehicle exhausts and biogases, the determination of gas impurities in high purity gases, as well as the gas analysis in scientific research.

Our Gas Analyzers in Scientific Research (Selected Publications)

Enhancement and limits of the selective oxidation of methane to formaldehyde over V-SBA-15: Influence of water cofeed and product decomposition, Catalysis Communications, 2021



Catalytic decomposition of NO2 over a copper-decorated metal–organic framework by non-thermal plasma, Cell Reports Physical Science, 2021



Comparing Different Thermal Runaway Triggers for Two Automotive Lithium-Ion Battery Cell Types, Journal of the Electrochemical Society, 2020




Cu-Al Spinel as a Highly Active and Stable Catalyst fort he Reverse Water Gas Shift Reaction, ACS Catalysis, 2019




Combination of Chemo- and Biocatalysis: Conversion of Biomethane to Methanol and Formic Acid, Applied Sciences, 2019

The deactivation of an NH3-SCR Cu-SAPO catalyst upon exposure to non-oxidizing conditions. Applied Catalysis A: General, 2019



Effect of the NH4NO3 Addition on the Low-T NH3-SCR Performances of Individual and Combined Fe- and Cu-Zeolite Catalysts, Emission Control Science and Technology, 2019



Selective synthesis of dimethyl ether on eco-friendly K10 montmorillonite clay
Applied Catalysis A: General, 2018




The Effect of CH4 on NH3-SCR Over Metal-Promoted Zeolite Catalysts for Lean-Burn Natural Gas Vehicles, Topics in Catalysis, 2018
