BioAFM Accessories and Add-Ons

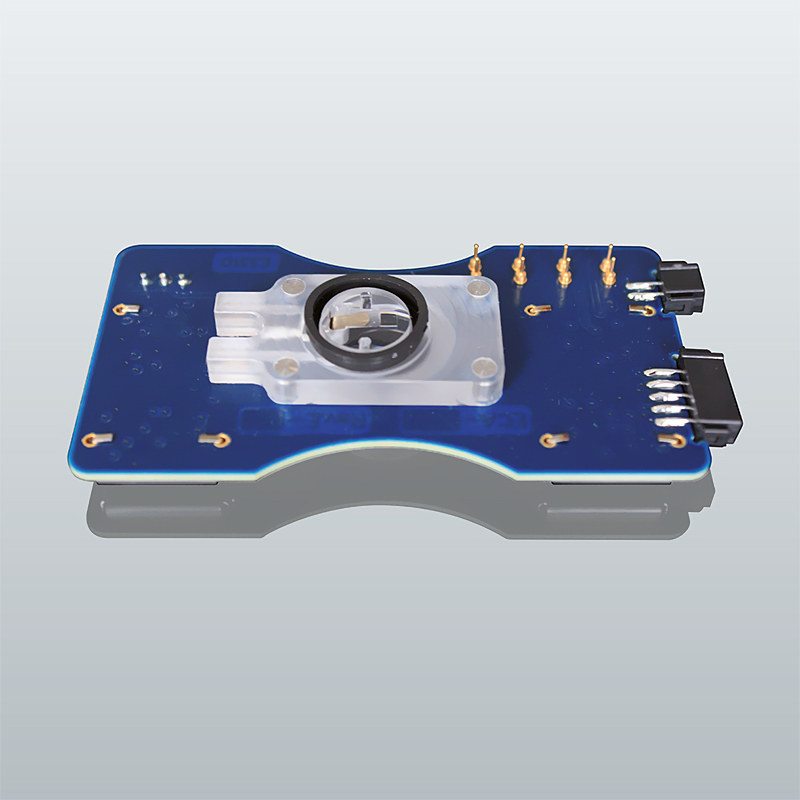

Conductive AFM Module - Enclosed Volume
For high-performance conductivity experiments under controlled environmental conditions.
Tip-bias cantilever holder with integrated current amplifier circuit
SmallCell-based, closed volume cell with <140 µl volume and connections for perfusion/gas flow
Bias Voltage +/-10 V
Current Range: +/-100 nA
Gain: 100 V/µA
Sample holder for conductive samples (optional transparent sample holder)
Optimized cantilever exchange tool
Compatible with all stages except Cryo- and StretchingStage
Download Product Note
Compatible Imaging Systems
NanoWizard 4 XP BioScience
Extreme performance and ease of use for applications in Life Science and Soft Matter research ranging from single molecules to living cells and tissues.
NanoWizard 4 XP NanoScience
Extreme performance and highest flexibility for applications in materials and polymer science ranging from nanomechanics and electrochemistry to electrical and magnetic measurements.
NanoWizard ULTRA Speed 2
High-speed imaging and super-resolution AFM on inverted microscopes, paired with unparalleled flexibility.
Optimized for a broad range of applications ranging from nanoscale optical imaging by aperture and scattering-type SNOM to experiments involving interactions of light with the sample such as absorption, excitation, nonlinear effects and quenching.
The perfect start to AFM, for applications in material and life sciences.
NanoWizard V BioScience
Automated quantitative nano-mechanical imaging for long-term, self-regulating experiment series.
