BioAFM Accessories and Add-Ons

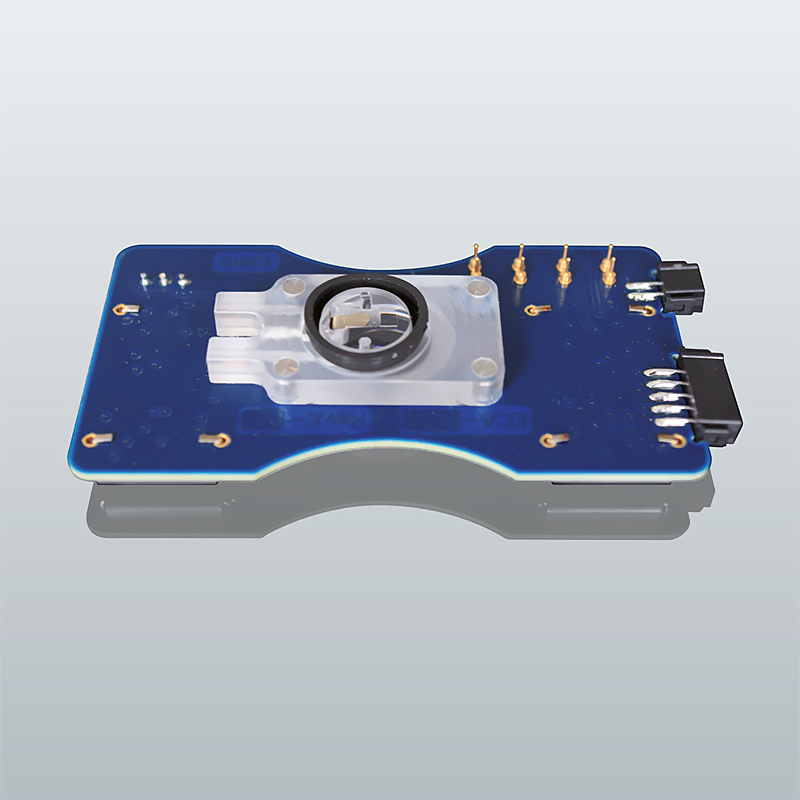

Conductive AFM Module - Enclosed Volume

For high-performance conductivity experiments under controlled environmental conditions.
  • Tip-bias cantilever holder with integrated current amplifier circuit
  • SmallCell-based, closed volume cell with <140 µl volume and connections for perfusion/gas flow
  • Bias Voltage +/-10 V
  • Current Range: +/-100 nA
  • Gain: 100 V/µA
  • Sample holder for conductive samples (optional transparent sample holder)
  • Optimized cantilever exchange tool
  • Software interface
  • Compatible with all stages except Cryo- and StretchingStage
