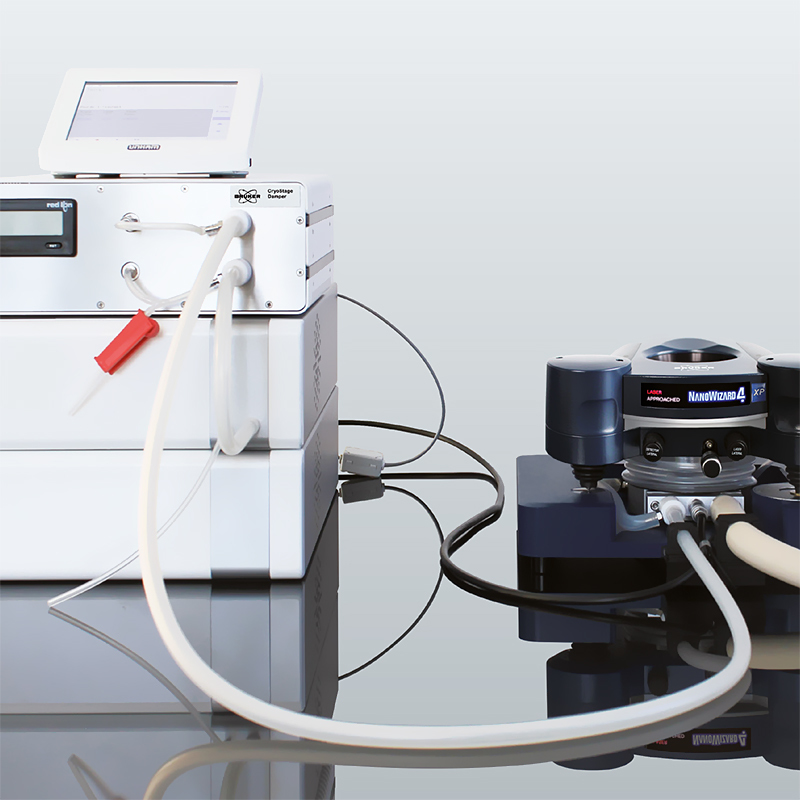

CryoStage
From -120 °C to 220 °C for low temperature applications.
- Temperature range from -120 °C up to 220 °C, temperature stability +/-0.2 °C
- Minimized vibration for high-resolution imaging of samples
- Sealed volume with gas flow connection for dry or inert gas over the complete temperature range
- Rapid cooling rate with liquid nitrogen (>10 °C/min) and nitrogen environment to prevent ice formation while cooling
- Fine motion control for precise positioning of the AFM tip relative to the sample of 10 mm x 5 mm
- Integrated Linkam Scientific Instruments technology
- Ergonomic LCD touch screen control
- Sample size: up to 22 mm x 22 mm
- TopViewOptics illumination, no transmission illumination
- Can be combined with electrical, magnetic, nanomechanical measurement modes
