BioAFM Accessories and Add-Ons

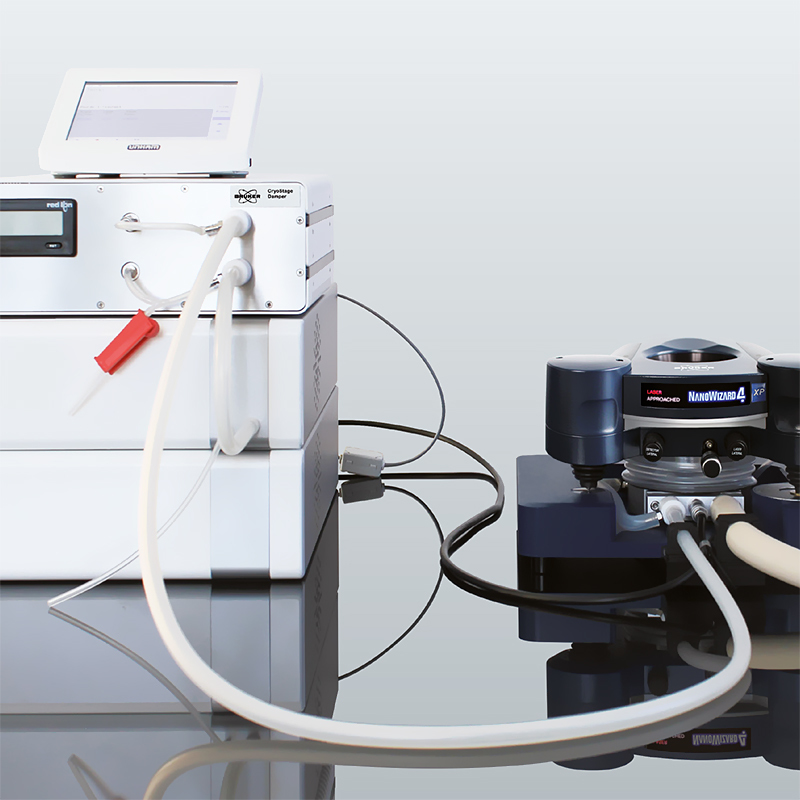

CryoStage
From -120 °C to 220 °C for low temperature applications.
Temperature range from -120 °C up to 220 °C, temperature stability +/-0.2 °C
Minimized vibration for high-resolution imaging of samples
Sealed volume with gas flow connection for dry or inert gas over the complete temperature range
Rapid cooling rate with liquid nitrogen (>10 °C/min) and nitrogen environment to prevent ice formation while cooling
Fine motion control for precise positioning of the AFM tip relative to the sample of 10 mm x 5 mm
Integrated Linkam Scientific Instruments technology
Ergonomic LCD touch screen control
Sample size: up to 22 mm x 22 mm
TopViewOptics illumination, no transmission illumination
Can be combined with electrical, magnetic, nanomechanical measurement modes
Download Product Note
Compatible Imaging Systems
NanoWizard 4 XP BioScience
Extreme performance and ease of use for applications in Life Science and Soft Matter research ranging from single molecules to living cells and tissues.
Read More
DOWNLOAD BROCHURE
NanoWizard 4 XP NanoScience
Extreme performance and highest flexibility for applications in materials and polymer science ranging from nanomechanics and electrochemistry to electrical and magnetic measurements.
Read More
DOWNLOAD BROCHURE
NanoWizard ULTRA Speed 2
High-speed imaging and super-resolution AFM on inverted microscopes, paired with unparalleled flexibility.
Read More
DOWNLOAD BROCHURE
NanoWizard NanoOptics
Optimized for a broad range of applications ranging from nanoscale optical imaging by aperture and scattering-type SNOM to experiments involving interactions of light with the sample such as absorption, excitation, nonlinear effects and quenching.
Read More
DOWNLOAD BROCHURE
NanoWizard Sense+
The perfect start to AFM, for applications in material and life sciences.
Read More
DOWNLOAD BROCHURE
NanoWizard V BioScience
Automated quantitative nano-mechanical imaging for long-term, self-regulating experiment series.
Read More
DOWNLOAD BROCHURE
Return to Accessories Page
