BioAFM Accessories and Add-Ons

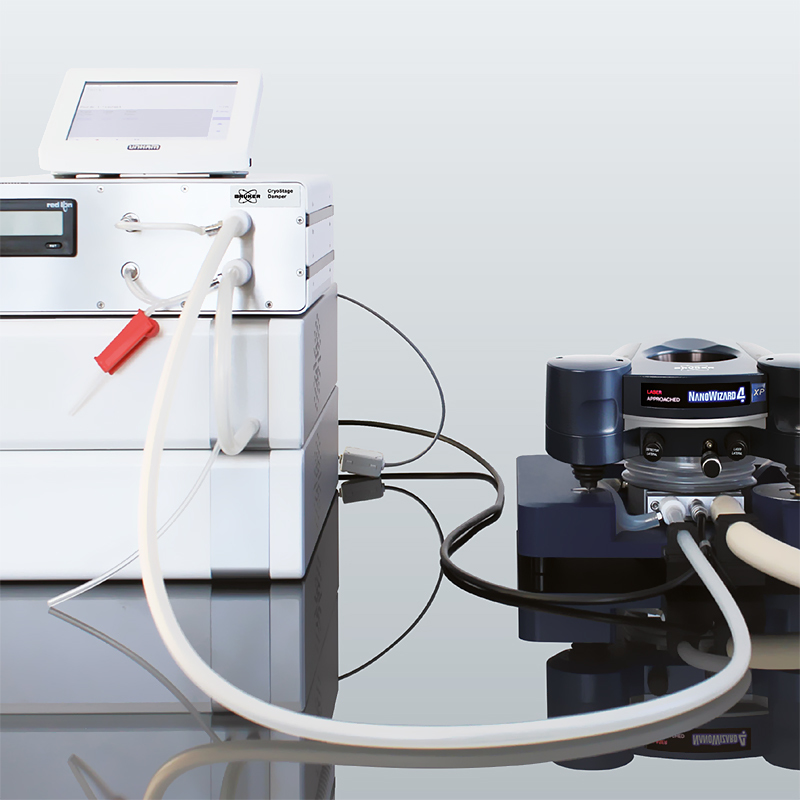

From -120 °C to 220 °C for low temperature applications.
  • Temperature range from -120 °C up to 220 °C, temperature stability +/-0.2 °C
  • Minimized vibration for high-resolution imaging of samples
  • Sealed volume with gas flow connection for dry or inert gas over the complete temperature range
  • Rapid cooling rate with liquid nitrogen (>10 °C/min) and nitrogen environment to prevent ice formation while cooling
  • Fine motion control for precise positioning of the AFM tip relative to the sample of 10 mm x 5 mm
  • Integrated Linkam Scientific Instruments technology
  • Ergonomic LCD touch screen control
  • Sample size: up to 22 mm x 22 mm
  • TopViewOptics illumination, no transmission illumination
  • Can be combined with electrical, magnetic, nanomechanical measurement modes
