Rapid Stage
High-speed Elemental Mapping with Micro-XRF on SEM

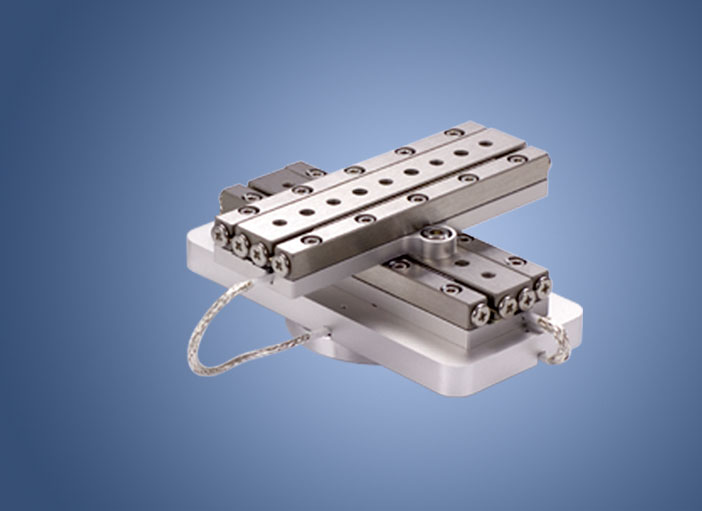

Rapid Stage is a modular piezo-based stage designed to be mounted on top of standard SEM stages to enable high-speed mapping over large areas.
Key facts and benefits
- Can be adapted to most common SEM stages
- Controlled independently from the SEM stage
- Travel speed up to 4 mm/s
- Low levels of trace elements in samples (e.g. grain mounts, rock slabs, thin sections, etc.) in a short time
- Can be used simultaneously with e-beam excitation (for low energy elements)
- Works in VP/LV mode
- Quick stage change

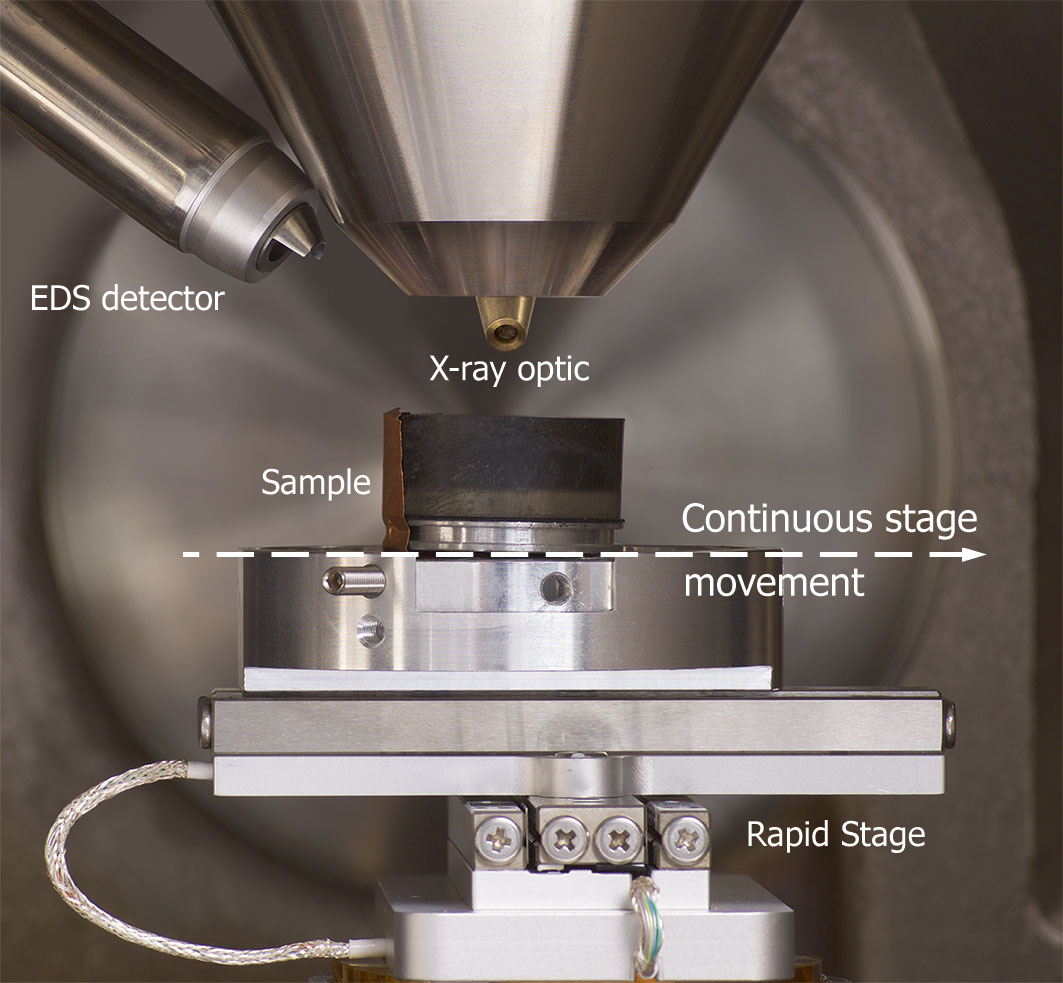

Rapid Stage setup in SEM

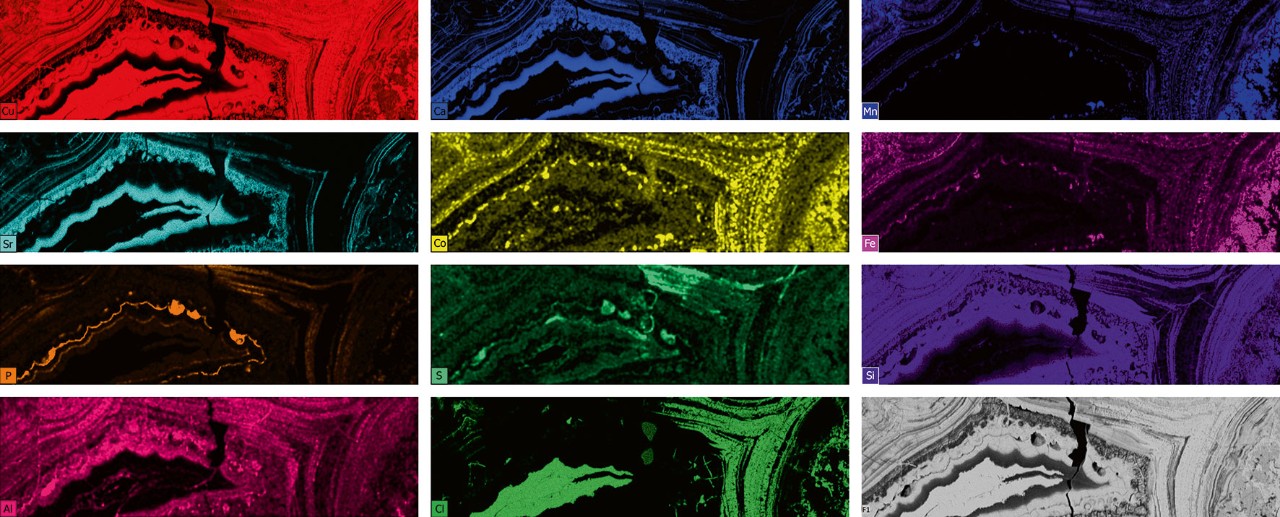

Large area maps of a copper deposit sample

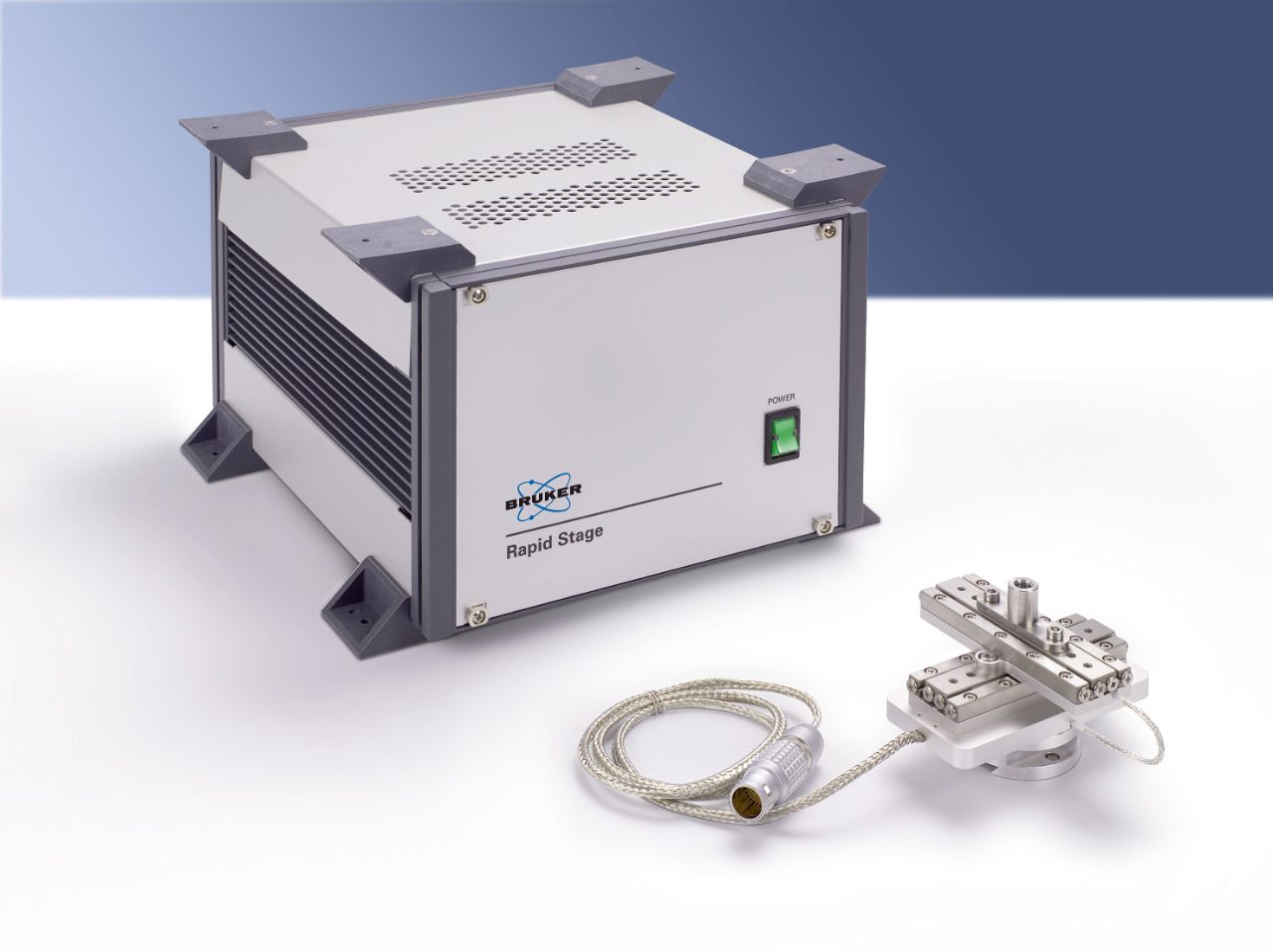

Rapid Stage and SCU
