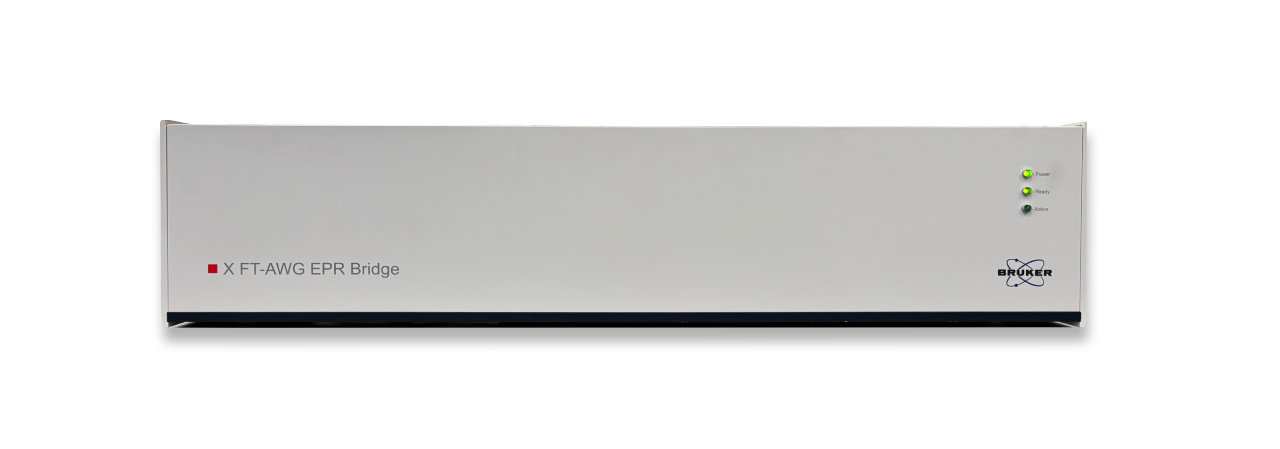

X-FT AWG Bridge
The X FT-AWG Bridge re-imagines the powerful ELEXSYS E580 in a pulse-only configuration, with an integrated AWG II and automated iris control.
Pulse Shaping
The X FT-AWG Bridge contains an integrated
SpinJet AWG-II for advanced pulse shaping capabilities.
SpinJet AWG-II for advanced pulse shaping capabilities.
Flexibility
The X FT-AWG Bridge can be offered as a full system or as an upgrade to an existing system.
Motorized Iris
Automated resonator coupling provides a seamless user experience.
Features
- Full FT-EPR capabilities of E580, including:
- FID detection and Echo-Detected Field Sweeps for detection of EPR signal Measurement of electron spin relaxation times (T1 and T2)
- ESEEM/HYSCORE to probe hyperfine interactions in disordered systems
- Pulse-ENDOR to measure hyperfine couplings and nuclear spin relaxation
- Dipolar spectroscopy experiments like DEER, DQC, RIDME and SIFTER to measure long-range distances between spins
- Advanced pulse shaping for detection of broadband echoes and usage in a variety of pulse experiments
- Integrated SpinJet AWG-II as the sole pulse-forming unit, reducing overall components and footprint while maintaining best-in-class performance
- New MD5 and MD4 probes with motorized iris control for easy, reproducible coupling
Specifications
- 2.0 GS/s, 0.5 ns resolution
- 14-bit amplitude resolution
- 0.5° phase resolution
- 1 GHz bandwidth
- WURST, sech/tanh, and Fourier-series as new pre-defined pulse shapes
- Phase cycling of custom pulse shapes
- Increased memory with optimized usage
- Calibration table for optimized suppression of the carrier frequency
- Compatible with all frequency bands offered by Bruker
