MR Microscopy & High Power Diffusion

MR Microscopy Probes

MR Microscopy probes feature exchangeable rf coils in various diameters for ¹H and X-nuclei available in single or double frequency configuration.

MR Microscopy Probes

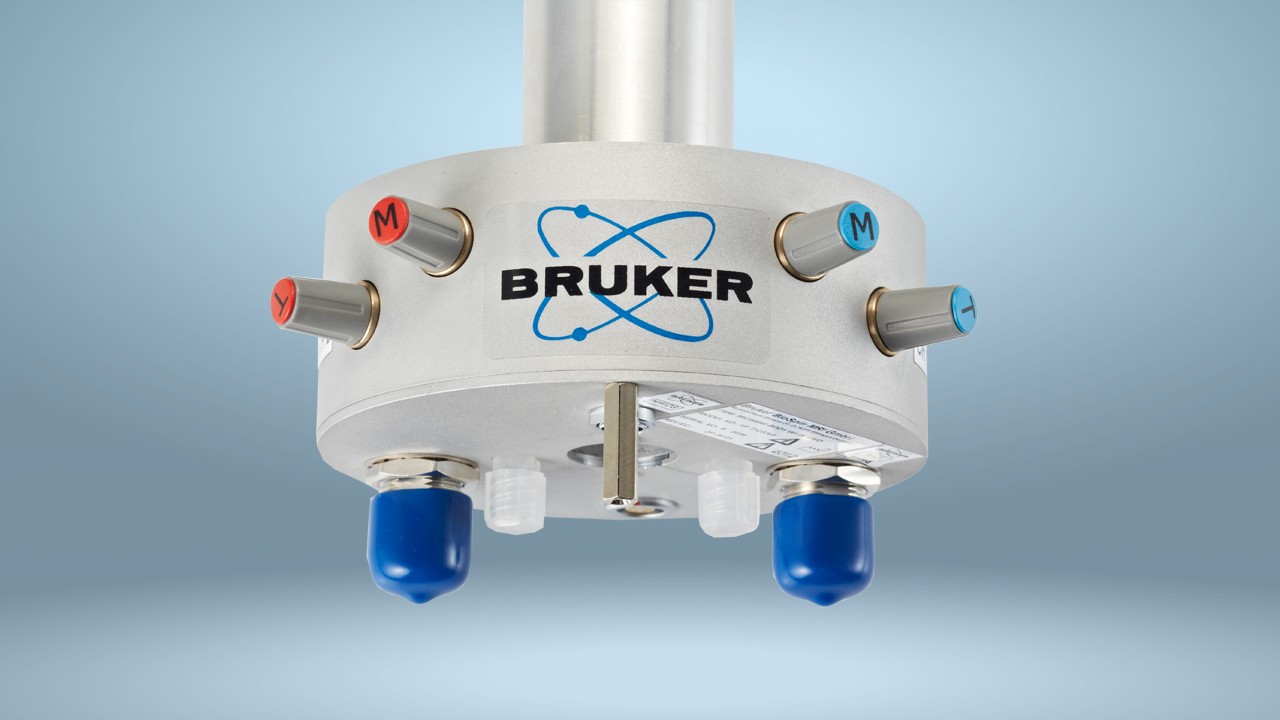

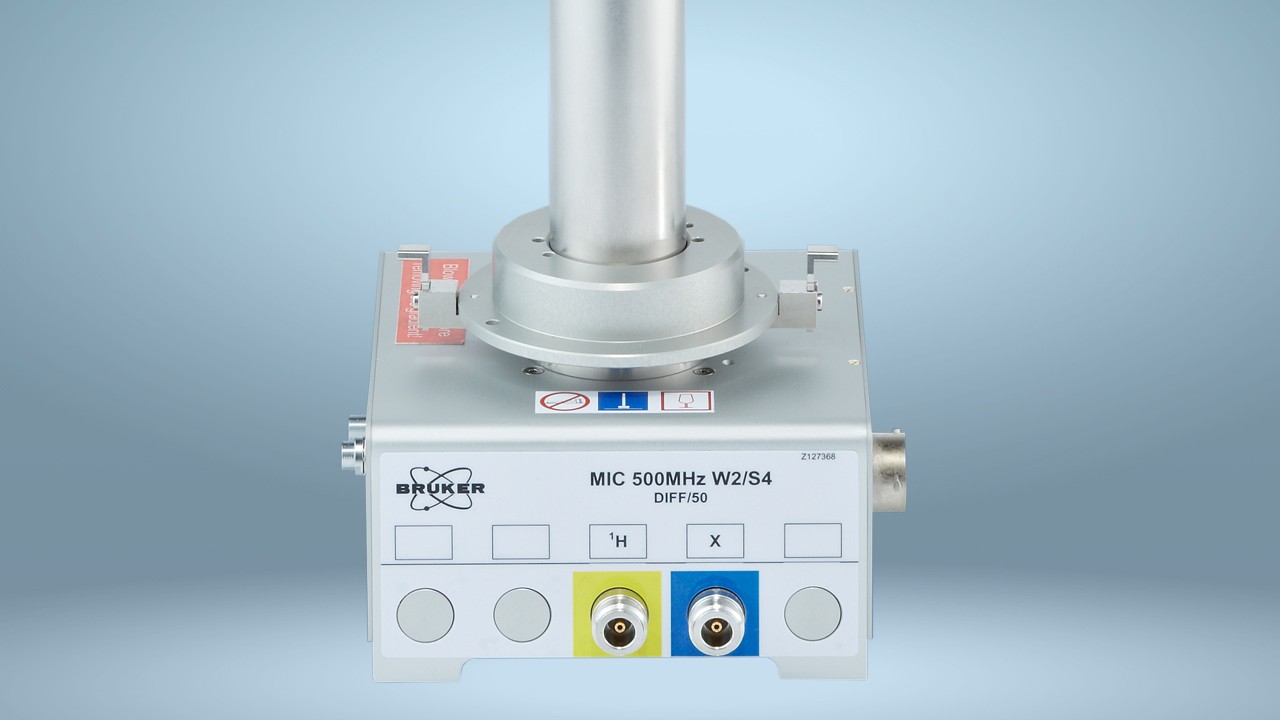

Micro2.5 – MicWB40

Wide Bore Probe with a sample diameter of 5 – 30 mm and a gradient strength of 1.5 T/m per axis. The MicWB40 is the MR Microscopy workhorse -versatile and powerful. Enabling support for an unlimited amount of studies, such as, rock cores, food, or small rodents.

詳細はこちら

Micro2.5 CryoProbe

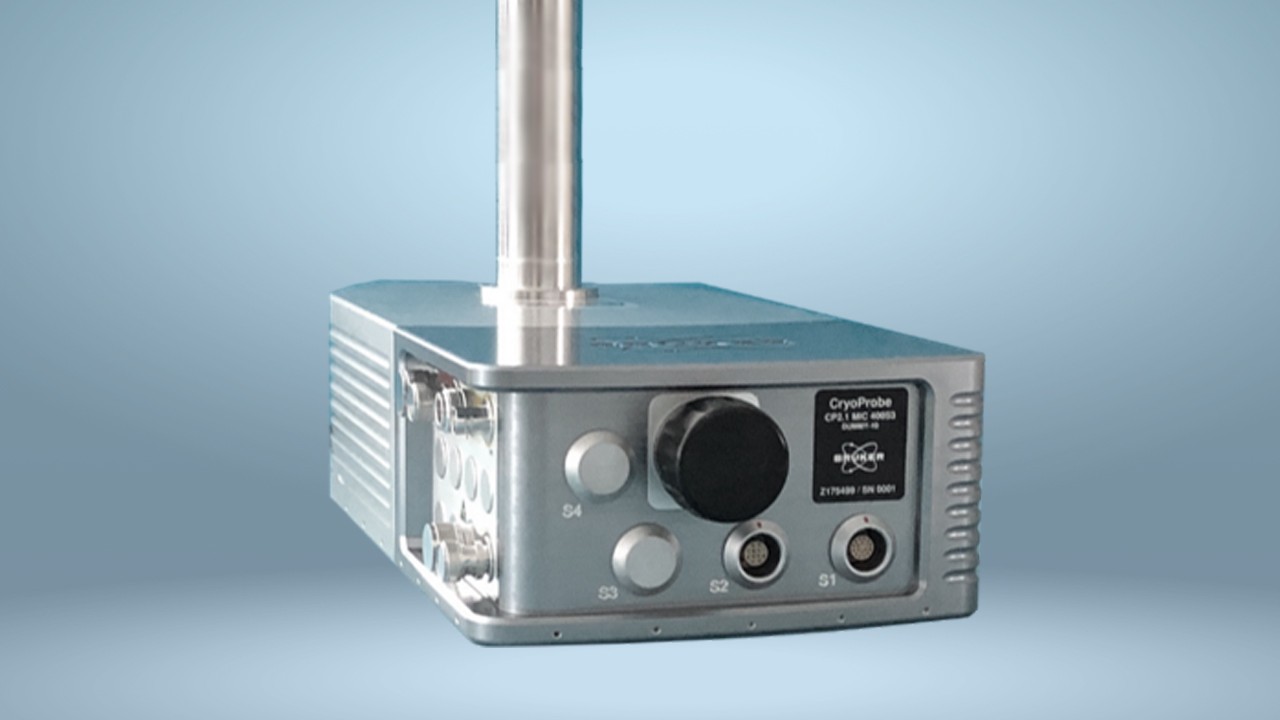

Micro2.5 – CryoProbe

Micro2.5 - CryoProbe with a sample diameter of 10 mm and a gradient strength of 1.5 T/m per axis in combination with the Micro2.5 gradient system. The Cryoprobe takes image quality to the next level. Depending on the application it increases spatial resolution and/or reduces scan times. It is the perfect solution for the investigations of plants, small animals, porous and inhomogeneous objects, study fast dynamic processes or microliter spectroscopy.

詳細はこちら

teaser2.5_magic_angle_spinning

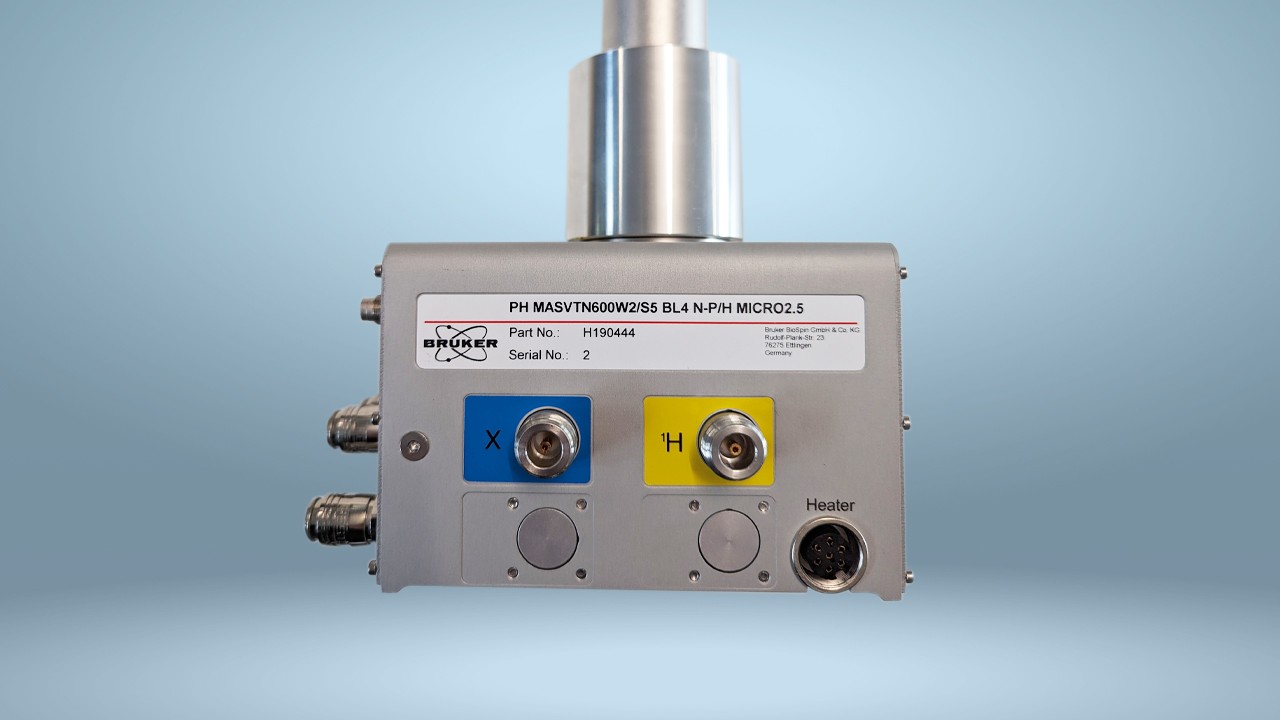

Micro2.5 – Magic Angle Spinning

The Micro2.5 Magic Angle Spinning Probe in combination with the Micro2.5 gradient system combines the powerful MAS technology with the unique MR Microscopy gradient technology. It enables the acquisition of spatially resolved NMR data of (semi)solid materials as well as the measurement of diffusion.

詳細はこちら

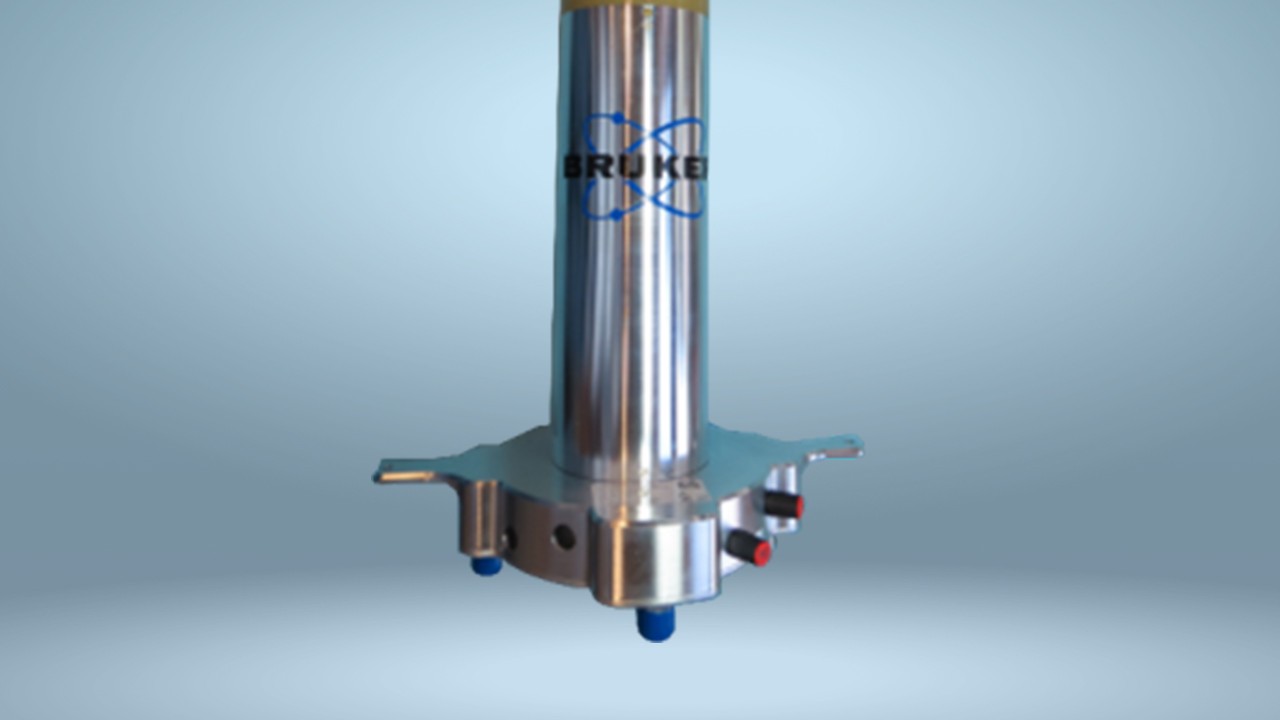

Micro5

Bruker's standard bore imaging probe for samples with diameters of 0.5 – 10 mm delivers a gradient strength of up to 3 T/m per axis. The Micro5 probe utilizes Bruker’s strongest imaging gradient and is typically used to study mineral or geologic samples, polymers, tablet dissolution kinetics, plants and seeds, bone or tissue biopsy.

詳細はこちら

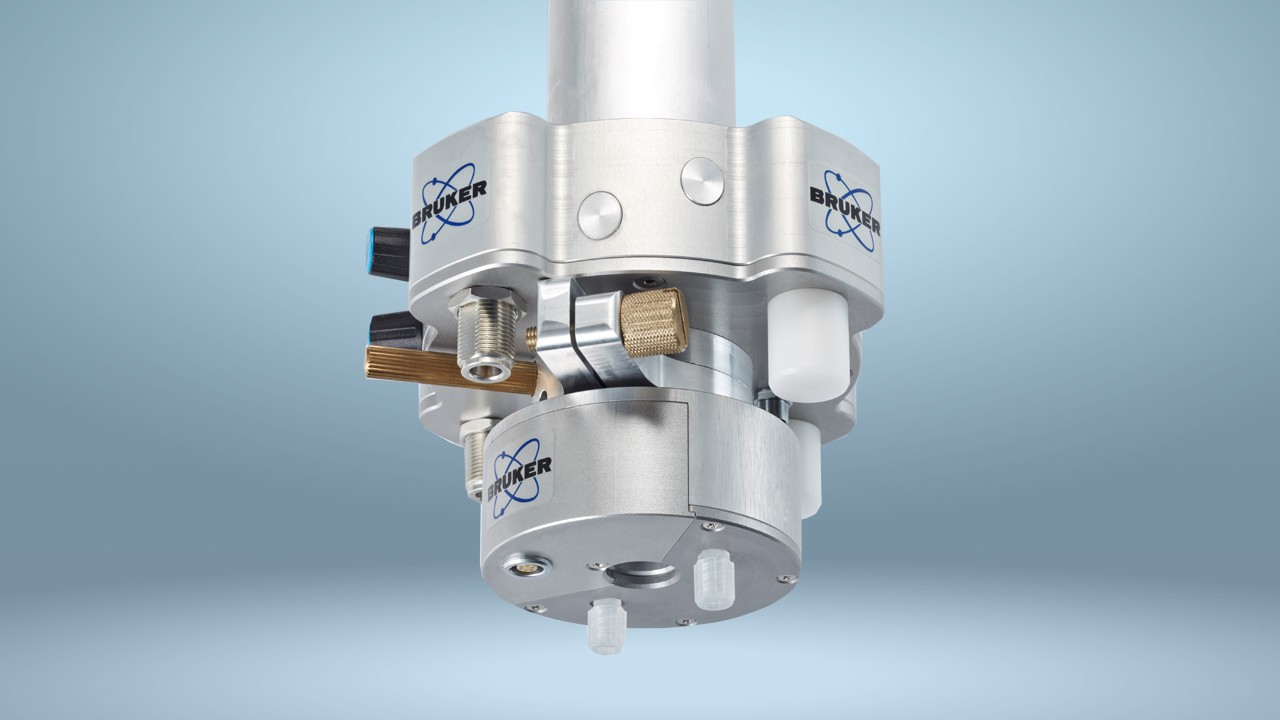

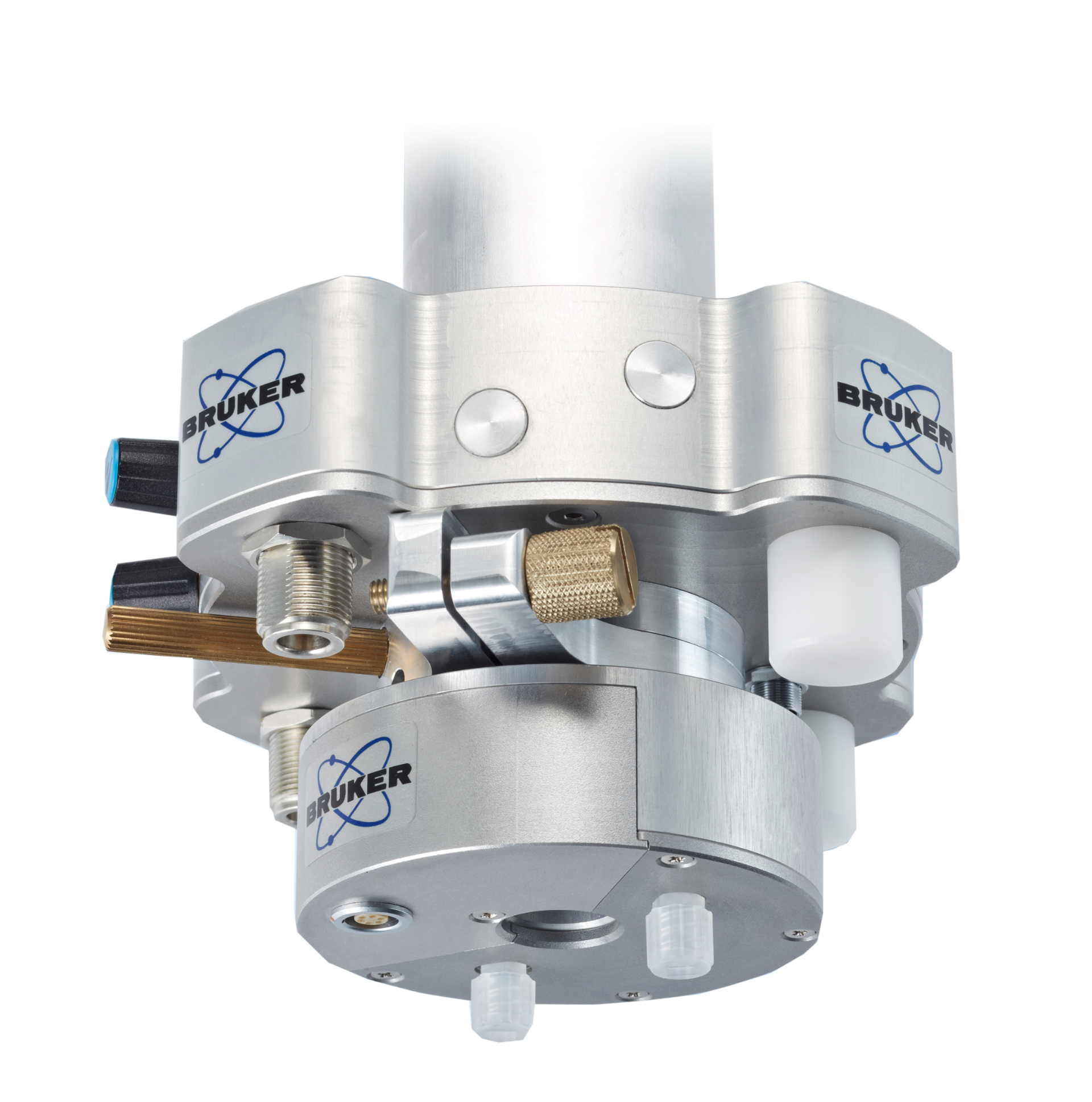

Mini0.75 – MiniWB57R

The Wide Bore Probe with a Sample Diameter of 20 – 40 mm and a Gradient strength of 470 mT/m. The Mini0.75 gradient probe in conjunction the MiniWB57R rf probe allows the investigation of larger samples in a WB magnet but supplies a lower gradient amplitude compared to the Micro2.5. The probe is ideal for in vivo studies with larger mice or young rats as well as for all other types of samples that require a larger sample space.

詳細はこちら

SWB Probes – MiniSWB90

Super Wide Bore Probe for sample diameters from 40 – 66 mm and a Gradient strength of 780 mT/m. The MiniSWB90 SWB probe is optimized for material research and the investigation of process parameters. Offering a sample space of up to 66 mm OD it is the largest probe for Bruker vertical bore magnets.

詳細はこちら

Book a Demo

Discover the full potential of our MR Microscopy Probes by scheduling a customer demonstration at our Ettlingen location in Germany. Our team of experienced Application specialists will guide you through NMR measurements on our equipment, showcasing all features in action. If you are unable to visit us in person, remote demos and sample submissions are available to ensure you have access to our innovative technology from anywhere in the world. Schedule your demo today and experience the power of Bruker NMR.

Book a Demo
