The Most Advanced Software for Preclinical Imaging Research

AVANCE NEO Electronics

The introduction of AVANCE NEO electronics makes dynamic shimming possible, leading to even greater geometric fidelity in fast EPI imaging and improving metabolite quantification in multi-slice CSI.
AVANCE NEO electronics provide crispest images and make dynamic shimming possible

ParaVision 360 with AVANCE NEO

Fast Precision

Greatest Accuracy

The introduction of AVANCE NEO electronics makes dynamic shimming possible, leading to even greater geometric fidelity in fast EPI imaging and improving metabolite quantification in multi-slice CSI.

Fastest Preparations

The improved wobble procedure makes tuning and matching faster and more accurate and automatic. No wobble adapter or re-plugging of coils for wobble is required. Automatic B1 mapping and optimization leads to greatest homogeneity.

ns Pulse Generation

Complex rf wave forms are generated more precisely with 4x faster synchronization than before.

Next Level Fast Imaging

The faster and highly syncronized gradient chain with a greater dynamic range leads to, for example, improved EPI image quality.

Full Flexibility

Entering the World of Seamless Multimodal Imaging

AVANCE NEO electronics enable the extension of ParaVision‘s imaging platform to fully integrate PET/MR instruments. Integrated single and multimodal workflows provide optimal clarity during scanning and simple and uniform operation across the range of instrumentation.

Scalable Transceiver Architecture

Novel transceiver architecture combines transmit, receive, and pulse programmer functionalities in a single compact transceiver board. This allows for a flexible configuration of up 24 transmit-receive channels.

More Compact Footprint

Higher integration of the system console architecture leads to a more compact footprint and more flexible siting options, since the basic instrument configuration requires only one cabinet.

Innovative New Features

  • Fully integrated PET and MR instrumentation and workflows
  • Novel transceiver architecture
  • More flexible siting options
  • Dynamic Shimming
  • Faster shimming with automatic B1 optimization
  • 12.5 ns synchronization of all transceivers
  • 1 µs gradient resolution possible

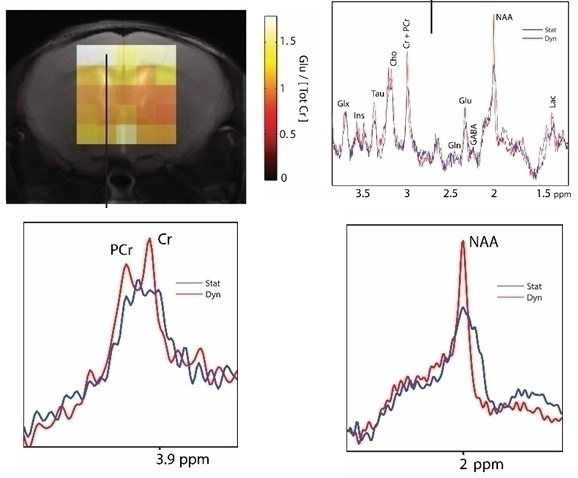

Dynamic Shimming in Multislice CSI

Dynamic shimming leads to decreased line widths, which in turn lead to greater SNR and and better separation of metabolites. Courtesy: A. Seuwen, M. Rudin, ETH Zurich, Zurich, Switzerland

Dynamic shimming leads to decreased line widths, which in turn lead to greater SNR and and better separation of metabolites.
Courtesy: A. Seuwen, M. Rudin, ETH Zurich, Zurich, Switzerland

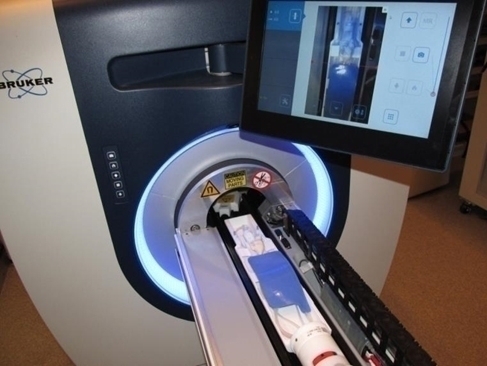

Animal Transport System

AVANCE NEO MRI animal transport system

The Animal Transport System (ATS) enables easy positioning both from the console and at the touchscreen at the system. Moving table acquisitions and definition of Volume of Interests based on video stream are possible.

Support

Service and Life Cycle Support

Bruker’s commitment to provide customers with unparalleled help throughout the buying cycle, from initial inquiry to evaluation, installation, and the lifetime of the instrument is now characterized by the LabScape service concept.

LabScape Maintenance Agreements, On-Site On-Demand and Enhance Your Lab are designed to offer a new approach to maintenance and service for the modern laboratory
