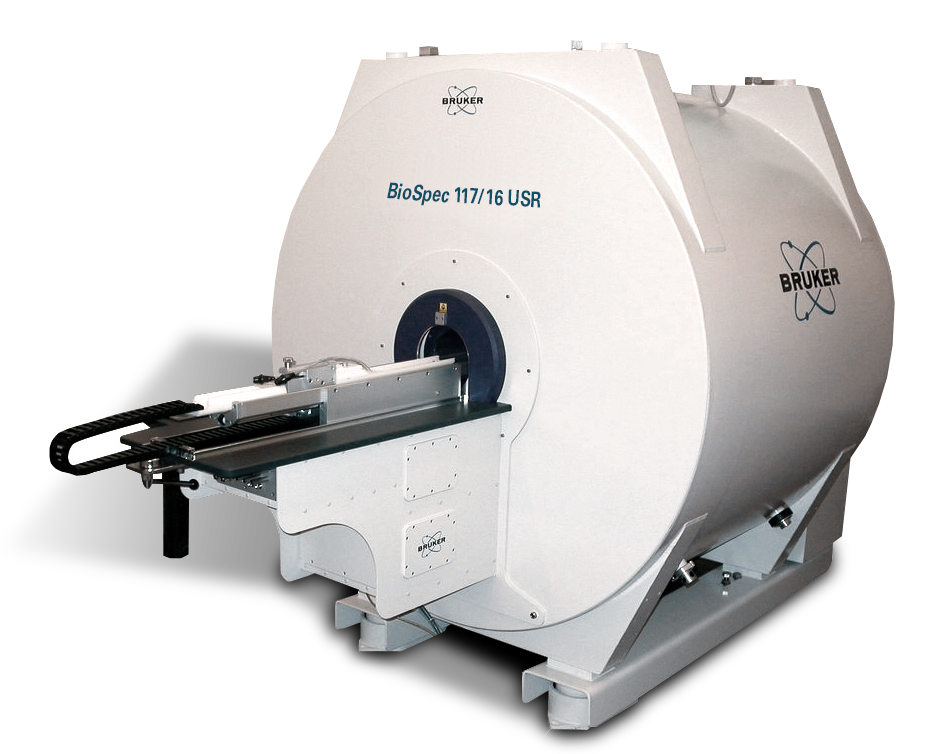

BioSpec 117/16

Combines Ultra-High Field with a large bore for studies of mice and rats



USR Magnet
Zero helium boil-off technology
Versatility at Ultra High Field
The advantages of ultra-high field combined with an expansive range of RF Coils for mice and rats
Accurate animal positioning with the optional motorized animal handling system
BioSpec Brochure


  • Zero helium boil-off technology, nitrogen-free, Ultra Shielded and Refrigerated (USR) magnet technology for reduced maintenance costs and longer service intervals
  • Accurate animal positioning with the optional motorized animal handling system
  • Full second and third order high power shim channels guarantee optimal performance for spectroscopy and imaging

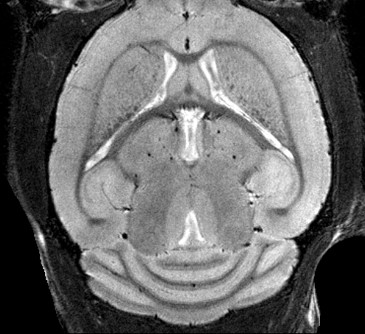

  • Crisp and highly resolved images with a gradient strength of up to 760 mT/m

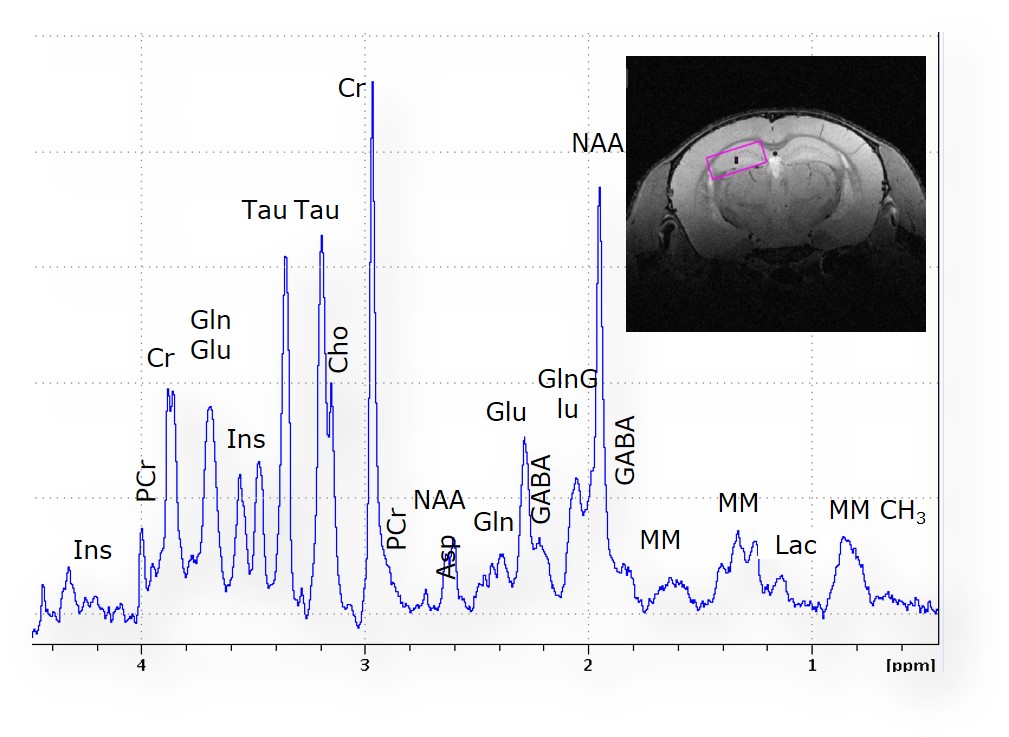

  • Scalable AVANCE NEO electronics enabling both MRI and MRS applications
  • Real-time spectrometer control for optimization of acquisition parameters during scan

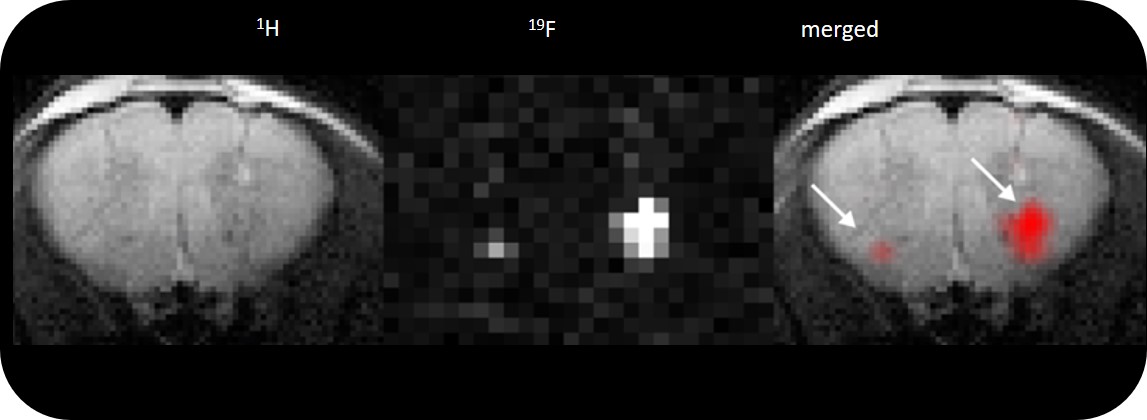

  • Complete RF coil portfolio for mice and rats available, including coils for head, brain, cardiac, spine, body, multi-channel array coils with up to 8 channels, and x-nuclei

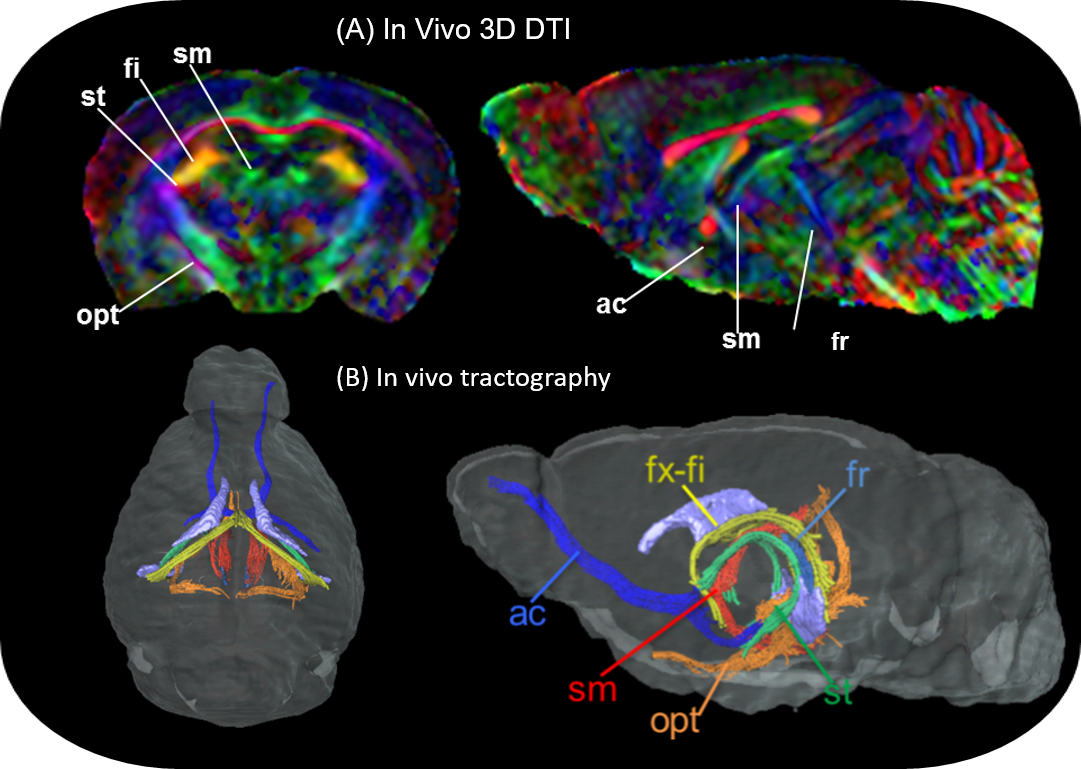

  • MRI CryoProbe for exceptional increase in sensitivity
  • ParaVision® 360 software package, for multi-dimensional MRI/MRS data acquisition, visualization, reconstruction, and analysis
  • Over 100 validated and ready to use in vivo protocols and scan programs for mice and rats

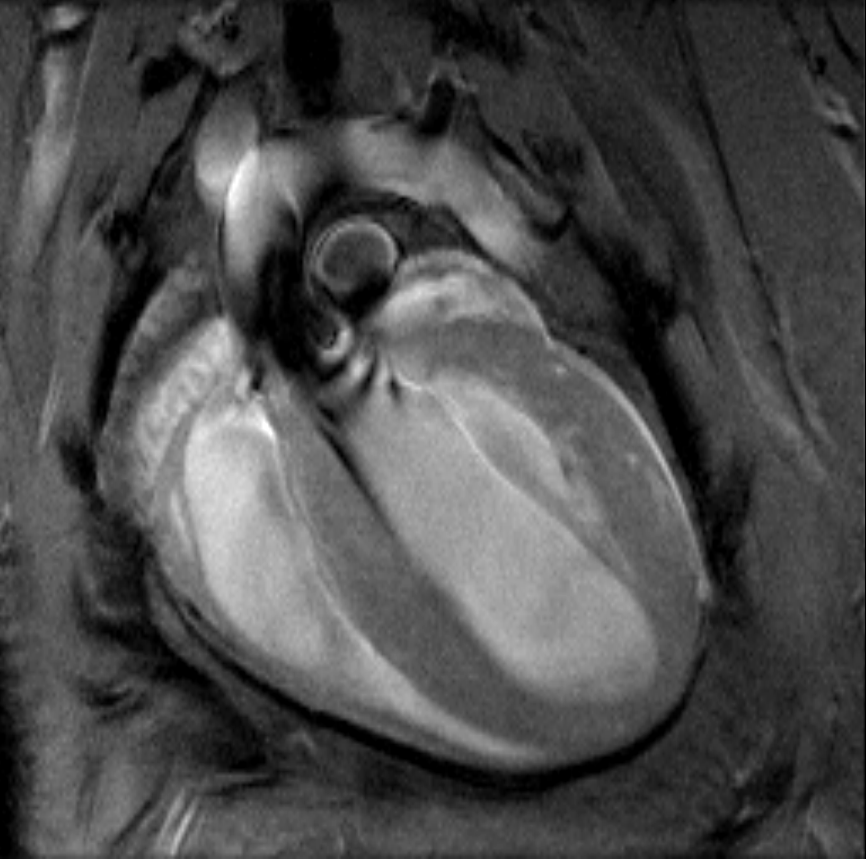

  • MRI sequence portfolio of more than 1,000 sequence variations, including wireless cardiac imaging using navigator based IntraGate methods with cartesian or radial readout, as well as short echo time imaging, such as UTE and ZTE
  • In-house development and production of all key components (software, magnet, gradient, spectrometer, RF coils) ensures the best performance
