Preclinical MRI

ParaVision 360

Most advanced preclinical imaging software

Consistent Quantification

Intuitive Use


Log4j critical issue

The discovery of vulnerability of the Log4J library (CVE-2021-44228) prompted our software teams to investigate the problem and its impact on our software and also on our customers. Our investigation shows, that the ParaVision software does not use the log4j library, but Topspin 4 versions needed for ParaVision 360 operation of MR systems use the affected versions of the log4j library. However, we do not believe at this time that the Log4J gap can affect the safety of the MR spectrometer (or processing workstation) in any way. Logging is done entirely internally without involving user input, so we do not currently see any way in which the issue could be exploited.

The latest version of Bruker Log4j patch is available here. The evaluation of the Log4j issue continues. We recommend to regularly check this page for updates.

Consistent Quantification
Highest accuracy in all research stages, from set-up to quantification, from day to day, and from subject to subject leads to the most consistent, reliable data
Greatest Imaging Power
Extensive and innovative range of methods combined with sophisticated viewing, reconstruction, and analysis tools provide the most information from imaging subjects
Seamless Multimodal Imaging
Uniformity across MRI, PET, and µCT for intuitive use
ParaVision 360 Brochure

Focusing on consistent quantification, ParaVision 360 makes scanning even more intuitive, while maintaining the full flexibility that Bruker users praise. The enlarged MRI sequence portfolio, which is exclusive to Bruker, and the powerful image data evaluation functions lead to maximum proficiency in scanning and analysis, while the simplicity and uniformity across the range of instrumentation allows operators to put their focus on their research.

ParaVision 360 3.2 is now available

MRI Highlights of ParaVision 360 3.2

  • An Acceleration Suite including Compressed Sensing1, Simultaneous Multislice Imaging, Partial Fourier with homodyne reconstruction, and 3D GRAPPA with CAIPIRINHA
  • Simplified x-nuclei imaging
  • Wooble control on magnet front touchscreen display2
  • SLASER single voxel spectroscopy that is robust against B1 inhomogeneities and provides less chemical shift displacement
  • Stacked Region Of Interest Analysis
  • Magnet status display in ParaVision and remote instrument monitoring option

1Compressed sensing is work in progress
2For instruments with Animal Transport System

Magnet status displayed in ParaVision

Stacked Region Of Interest Analysis for temporal segmentation of dynamic images and spatial segmentation and quantification of volumes of three-dimensional structures


Compressed Sensing image acquisition at a fraction of the original acquisition time

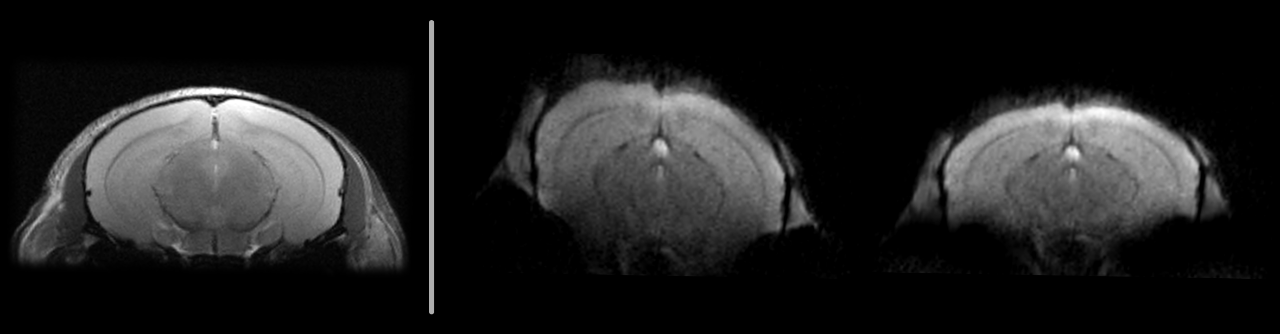

Simultaneous Multi-Slice (SMS) imaging in EPI and FLASH for higher temporal resolution and more slices with less duty cycle

Partial Fourier (shortened echo train) with homodyne reconstruction for higher resolution

3D GRAPPA with CAIPIRINHA for significantly reduced measurement time of high quality (isotropic) 3D data



Cross-modality Highlights

  • Common terminology between instruments, common integrated multimodal workflows, and common image processing, viewing, and analysis tools and functionalities for optimal clarity
  • Animal Transport System control via touchscreen1
  • Multi-station image acquisition and imaging stitching1
  • Simple selection of prone or supine viewing
  • Automatic 3D image fusion
  • MR Method development framework
  • Drag and drop image processing
  • Advanced intensity based image registration
  • ROIs with thresholding, seeded region growing, and freehand definition

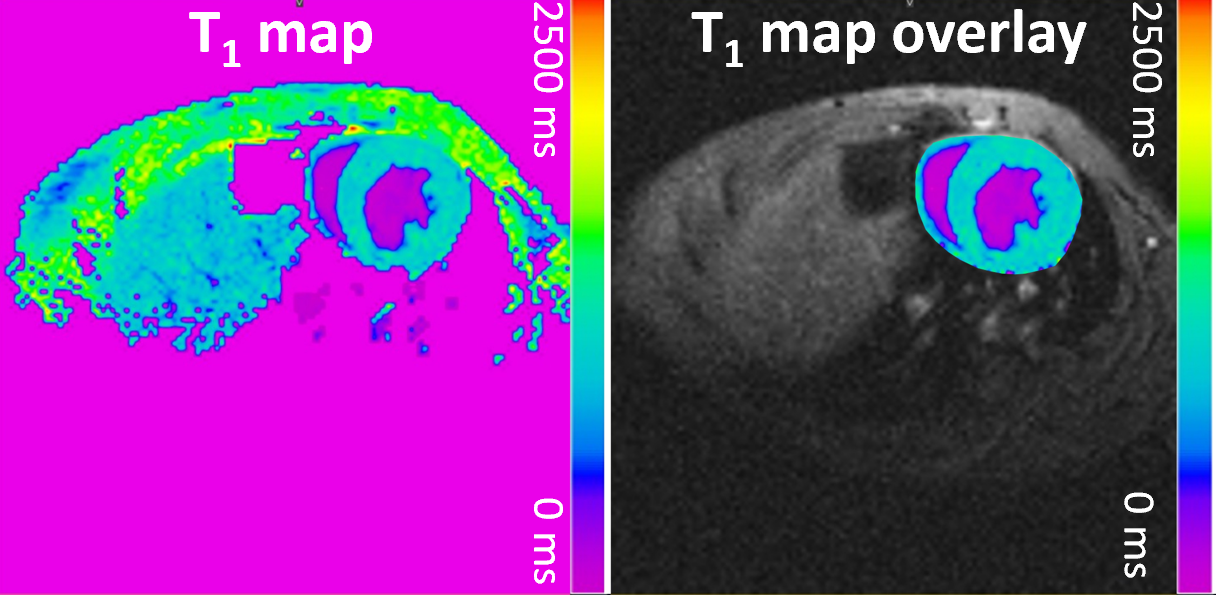

  • On-the-fly quantitative image mapping

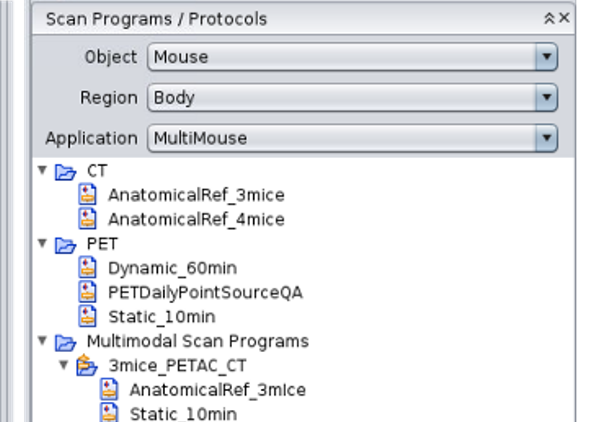

  • Data browser with simple search functions for accessing stored protocols and recorded data
  • Database and archiving and report creation

1Available for BioSpec 3T, Inline PET/MR, and PET/CT Si78

Highlights for MRI

  • Over 100 validated and ready-to-use in vivo protocols and scan programs for mice and rats with integrated examination guide for optimal scanning navigation and reproducibility
  • MRI CASL workflow package for optimal scanning and consistency
  • IntraGateUTE for virtually flow-artifact free cardiac scanning
  • Dynamic shimming capability1
  • B1 optimization and mapping
  • Fat-water separation imaging
  • Fat chemical shift corrected images
  • 3D GRAPPA and Compressed Sensing2
  • Fast online decisions and real-time calculations on all channels
  • MRI pulse program display

1 Work in progress research feature. Outcomes depend on the available shim hardware

2 Compressed Sensing is work in progress

Highlights for PET

  • MRI or CT based attenuation corrections with automatic loading of animal cradle and MRI coil and individual calculation of subject
  • Static, multi-stage, dynamic imaging
  • Wireless cardiac PET/MR imaging
  • Kinetic time course image reconstruction and segmentation
  • TAC display with Patlak fit for kinetic modeling
  • Advanced DOI
  • Scatter, randoms, isotope decay, and dead-time corrections
  • Custom isotope profiles

Highlights for µCT

  • Static, multi-stage, dynamic imaging
  • 3D/2D
  • Step & shoot or continuous
  • Ultrafast low dose protocols
  • Cardiac & respiratory gating
  • Real-time adjustments preview
  • Smoothing, beam hardening & ring corrections
  • Hounsfield scaling
