Volume Coils
As a basis for imaging experiments, transmit volume coils are designed to provide optimal homogeneity in combination with highest SNR. For experiments requiring homogenous signal reception throughout a larger area of the animal or material to be investigated, Bruker provides circularly polarized 1H volume coils. These come with inner diameters ranging from 23 mm for studies on mouse head to 154 mm for studies on larger preclinical species. Coils with larger inner diameters can also be used when peripheral instrumentation is required for the experiment procedure.
Many of the larger coils have active detuning capabilities to facilitate cross-coil configurations. These coils, which are ideally used for transmission only, are optimized to avoid any residual RF coupling between the coils of the configuration. Phased array volume coils allow for acceleration in time- sensitive experiments. For PET/MRI studies, PET-optimized volume coils are available. Additionally, linearly polarized X-nuclei volume coils come in a wide range of nuclei and diameter combinations.
Volume Coils
Volume Coils with Active Detuning
- ¹H transmit-receive volume coil with active detuning with inner diameter 72 mm
- ¹H transmit-receive volume coil with active detuning with inner diameter 82 mm
- ¹H transmit-receive volume coil with active detuning with inner diameter 86 mm
- ¹H transmit-receive volume coil with active detuning with inner diameter 154 mm
PET-optimized Volume Coils
- ¹H transmit-receive PET-optimized volume coil with inner diameter 23 mm for mouse head
- ¹H transmit-receive PET-optimized volume coil with inner diameter 35 mm for mouse body
- ¹H transmit-receive PET-optimized volume coil with inner diameter 35 mm for mouse cardiac
- ¹H transmit-receive PET-optimized volume coil with inner diameter 40 mm for rat head
- ¹H transmit-receive PET-optimized volume coil with inner diameter 72 mm for rat body
- ¹H transmit-receive PET-optimized volume coil with inner diameter 86 mm for rat body
Volume Array Coils
X-nuclei Volume Coils

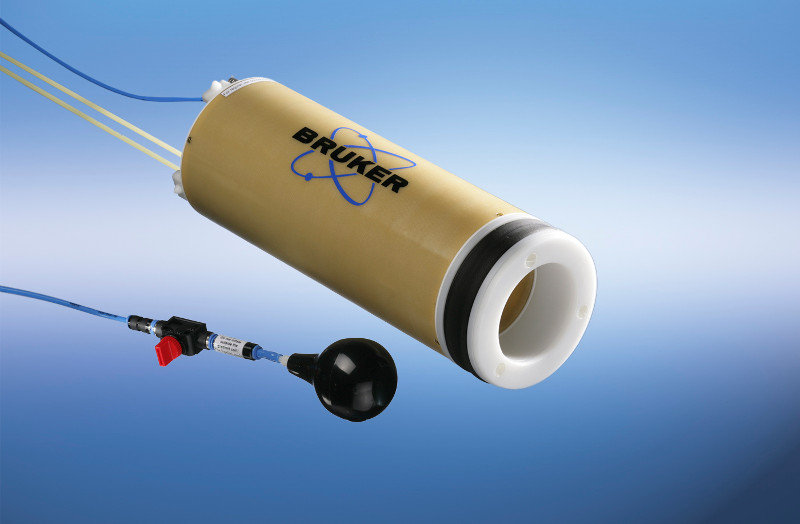

- ¹H transmit-receive volume coil with inner diameter 15 mm
- ¹H transmit-receive volume coil with inner diameter 23 mm
- ¹H/²H transmit-receive volume coil with inner diameter 40 mm
- ¹H/²H transmit-receive volume coil with inner diameter 72 mm
- ¹H/¹³C transmit-receive volume coil with inner diameter 40 mm
- ¹H/¹³C transmit-receive volume coil with inner diameter 72 mm
- ¹H/¹⁹F transmit-receive volume coil with inner diameter 23 mm
- ¹H/¹⁹F transmit-receive volume coil with inner diameter 40 mm
- ¹H/¹⁹F transmit-receive volume coil with inner diameter 72 mm
- ¹H/²³Na transmit-receive volume coil with inner diameter 23 mm
- ¹H/²³Na transmit-receive volume coil with inner diameter 40 mm
- ¹H/²³Na transmit-receive volume coil with inner diameter 72 mm
- ¹H/³¹P transmit-receive volume coil with inner diameter 40 mm
- ¹H/³¹1P transmit-receive volume coil with inner diameter 72 mm
