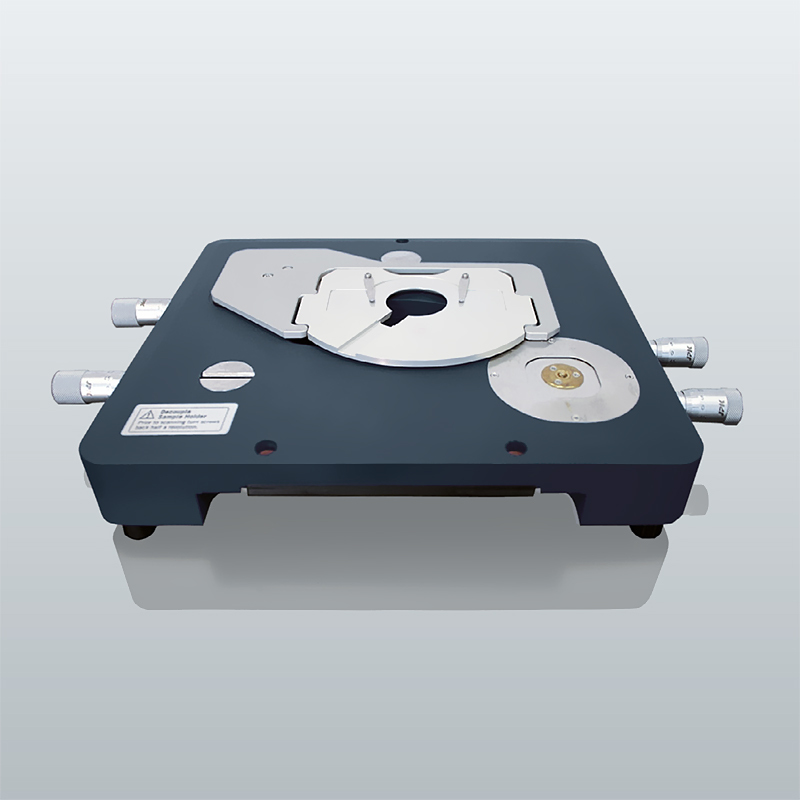

Manual Precision Stage
Offers sub-micron resolution & fine motion control for precise positioning of the AFM tip relative to optical axis and the sample.
- Transmission illumination capability for inverted optical microscopes like
- Olympus IX line
- Zeiss Axio Observer/Axiovert 100/135/200
- Nikon TE 2000 or Ti series
- Leica DMi lines
- Please specify model upon order
- Travel range of the sample 20×20mm2
- Precise positioning of the sample holder with thermally decoupled, magnetic fixation
- Flexible design for fluid cells, temperature control options, and customized sample holders Detachable from optical microscope for stand alone operation
- Drift compensated design
- Compatible with NanoWizard, ForceRobot 300 and CellHesion 200 heads
