Polymer Chemistry

Polymer research in academia has long benefitted from NMR spectroscopy. Many of the samples that need to be investigated can be submitted to NMR analysis with minimal preparation which might affect structure or composition.

One characteristic that makes NMR suitable for polymer analysis is its highly linear response over a very large dynamic range. It is crucial in this field to be able to characterize an end-group of a polymer in the presence of near one million monomer repeats. As a primary quantitative ratio method NMR can provide an easy way to give the researchers not only a qualitative but also highly accurate quantitative view into their materials.

When analyzing polymers, researchers are interested in structural features of a polymer such as chain length, tacticity, branching or cross-linking. Tacticity describes how monomer units are arranged in the polymerchain, which could be head to head, head to tail, tail to tail or in irregular patterns. Chainlength can for example be established by careful quantitation of backbone versus endgroup signals.

Properties of polymers are additionally influenced by the use of co-polymers, modifiers, plasticizers and more. These can both affect whether a plastic is resistant to heat, resistant to chemicals, and whether it has the right amount of flexibility for its purpose, as well as other characteristics such as plasticity. Since NMR can give information about the dynamics of a molecule the effects on the flexibility of a molecule in solution as a function of modifications can be studied.

Valuable tools developed by Bruker that aid in this type of blended material analysis include their high temperature probes, and large volume, cryogenically cooled probes. The latter being important as polymer samples are often highly viscous and hard to get into small diameter tubes. Additionally the large amounts of sample will allow more easily the detection of small amounts of impurities.

A heated sample changer allows that polymer samples can be kept at elevated temperatures and thus a liquid state from preparation to measurement.  Bruker has also developed a series of probes that are optimal for the analysis of fluorinated materials. These include conventional and cryogenically cooled probes that allow the simultaneous observation and decoupling of protons, carbon and fluorine.

The scientists at Bruker have also collaborated with scientists in the field of polymer research to newly develop and further improve experiments and measurement techniques to lead to better and more insightful results.

Relevant Products

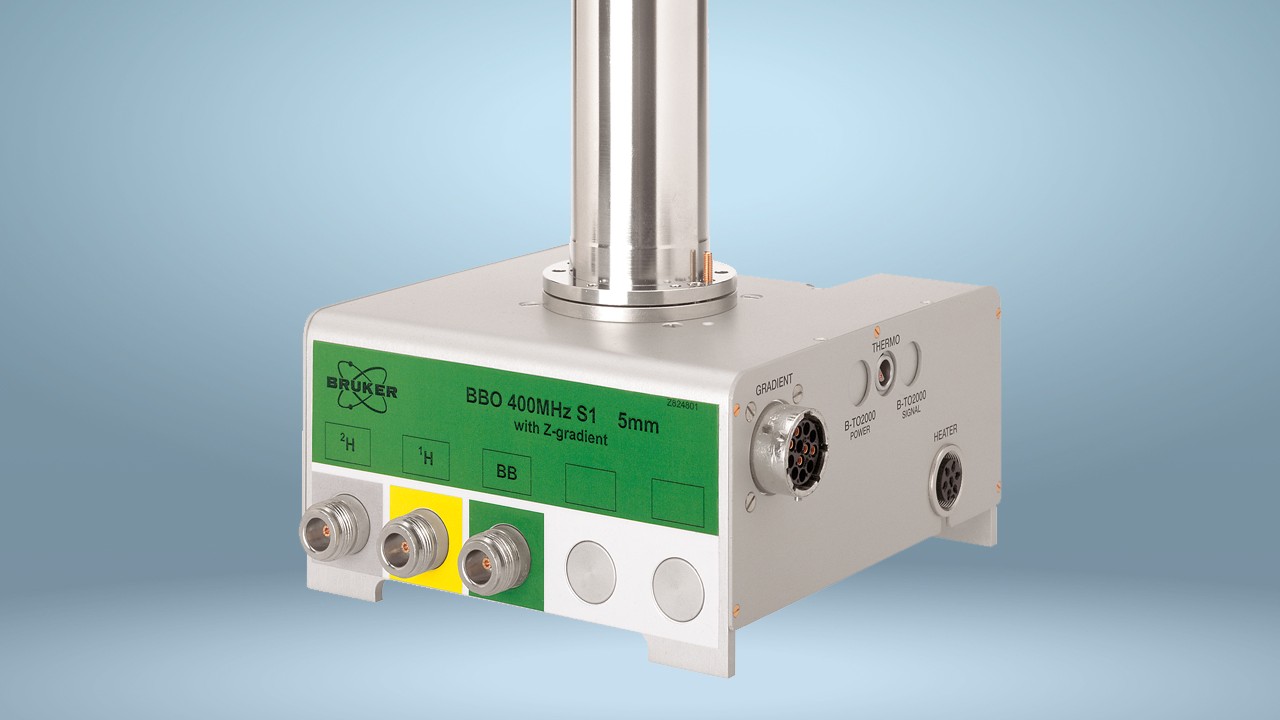

Double Resonance Probes

The Bruker Dual Probes offer an ideal combination of outstanding sensitivity, lineshape and pulse widths.
Ascend 400

NMR Instruments

NMR é uma técnica analítica rica em informações e não destrutiva. Esta fornece informações detalhadas sobre a estrutura molecular, processos dinâmicos e permite a observação direta de reações químicas.
ELEXSYS E780

EPR Instruments

O portfólio de instrumentos de EPR de alto desempenho da Bruker oferece uma técnica analítica não destrutiva para a deteção direta de espécies paramagnéticas. Os radicais livres e iões metálicos de transição podem ser identificados e quantificados em sólidos, líquidos, gases, células e in vivo. Os conhecimentos estruturais desde a estrutura química até às interações intermoleculares são obtidos tanto a partir de técnicas de onda contínua como de EPR de pulso.
AvanceCore

AvanceCore

The AvanceCore solution offers premium high-resolution NMR at a more affordable price, making NMR more accessible than ever before.
Avance Neo Console

AVANCE NEO Consoles

The AVANCE NEO consoles for NMR feature even faster control, improved dynamic range and greater flexibility and scalability than ever before.
Avance Neo 400

Ascend NMR Magnets

Our Ascend line of magnets combines several of Bruker’s proprietary, innovative magnet technologies for best performance and cost efficiency.
DiffBB

DiffBB

The DiffBB is a broadband gradient probe optimized for very strong gradient pulses made for samples in 5 mm sample tubes. Its broadband capability supports 1H and 19F, and a broadband X nucleus range

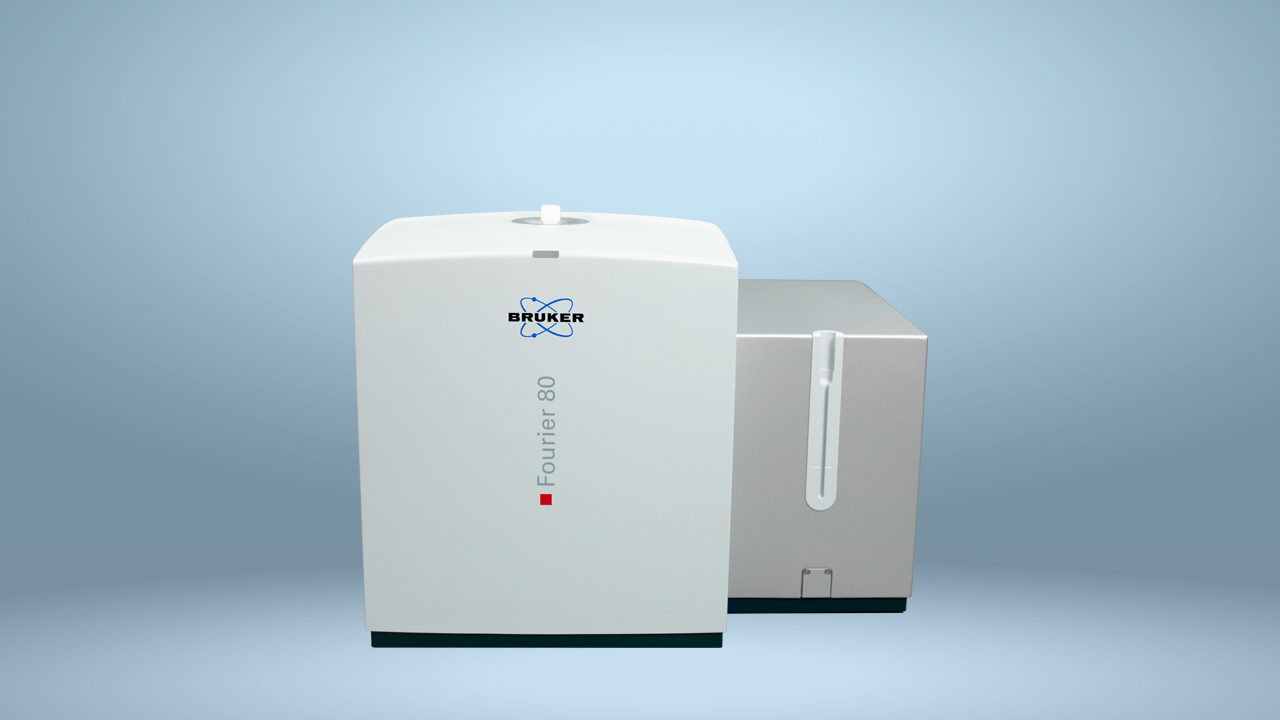

Fourier 80

Fourier 80

Building on decades of experience creating top-quality NMR instruments, Bruker has reimagined high-performance NMR spectroscopy in a compact, cost-efficient form

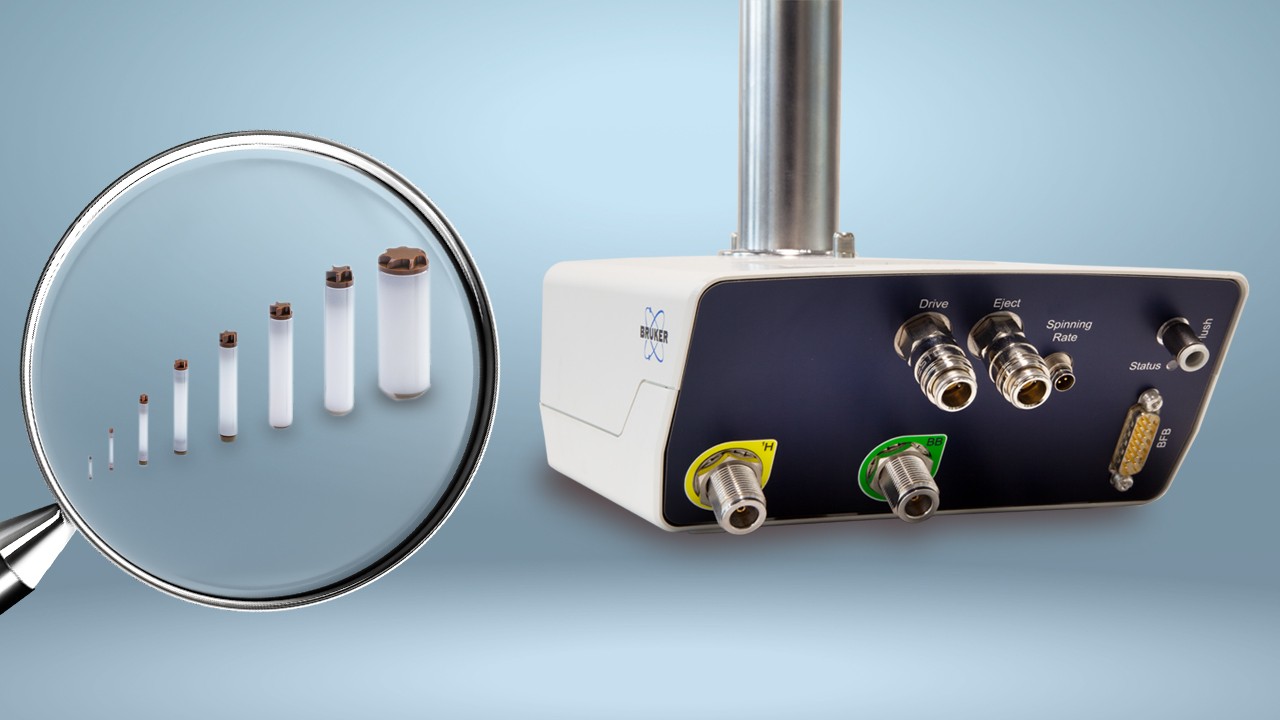

Solid State Probe
