Advanced WLI profilers provide robust metrology-based inspection for advanced packaging applications

Advanced White Light Interferometry (WLI) Technology

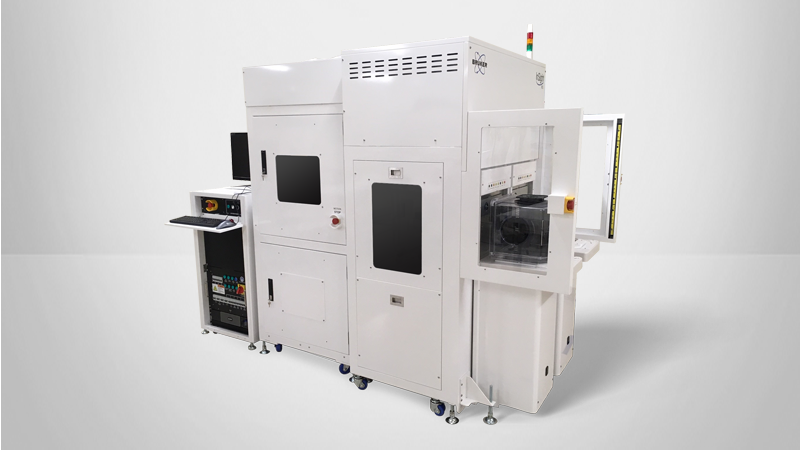

Today’s most advanced WLI profilers provide robust metrology-based inspection for advanced packaging, covering within one measurement all the key applications. When integrated with an automated wafer handler, metrology control and SEC-GEM compatibility, a WLI profiler will boost yield and drive process optimization, all with a minimized footprint in cleanroom-constrained spaces.

Besides covering a wide range of topology using a single measurement head with a unique optical column, Bruker's WLI profilers provide another unique capability: vertical resolution that is both independent from the magnification/objective used and operates at sub-nanometer-levels. Advanced packaging characterization benefits greatly from these characteristics. WLI opens up the opportunity for defect review on interconnect layers with dense bump arrays or bump recesses, capturing large fields of view while maintaining vertical resolution.

The same applies for depth measurements of through silicon vias (TSV) before filling, where 0.1% precision is required to match stringent tolerances but for which low magnifications are required to collect the light reflected on the bottom of the vias. High confidence in vertical resolution also boosts performances of regular planar CD metrology, such as width and spacing of the redistribution layer (RDL) or offset calculations for overlays (OVL) between successive layers in 3D integration structures. In die stacking or die-to-wafer hybrid bonding, PSI mode, together with stitching, helps to accurately capture the full die flatness with micrometer lateral resolution and nanometer reproducibility. Thus, chemical mechanical polishing (CMP) can be optimized upon specific die layouts.
