3D X-ray Microscopy (XRM)

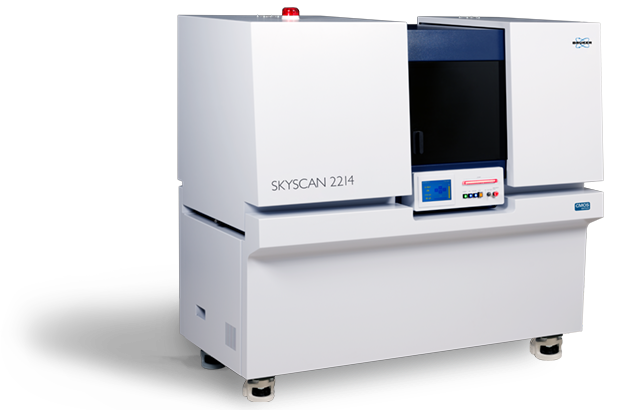

SKYSCAN 2214 CMOS Edition

3D X-ray Microscopy at the Nanoscale

Bigger. Brighter. Bolder.

Field of View, Resolution, Power

16 Mp
large format sCMOS detector
the latest generation of scientific CMOS detectors provide excellent resolution and cover a massive 3D field of view
160 keV
penetrating power
Quick change filament for switching between W for highest penetration or LaB₆ for highest resolution
<500 nm
true 3D spatial resolution
There are many ways to define resolution, but the most important is the ability to resolve 2 features in the resulting 3D model.

Watch the videos to get more insight

SKYSCAN 2214 CMOS – Nanoscale X-ray Microscopy

The MULTISCALE X-ray microscope SKYSCAN 2214 CMOS covers the widest range of object sizes and spatial resolutions in a single instrument, enabling advanced 3D imaging and exact modeling of geological materials in oil and gas exploration, composite materials, Li batteries, fuel cells, electronic assemblies, as well as ex-vivo preclinical applications like in lung imaging or tumor vascularization.



The instrument allows scanning and 3D non-destructive reconstruction of the internal microstructure of objects as large as >300mm in diameter as well as submicron resolution for small samples.



The system is equipped with an "open type" transmission X-ray source with <0.5 micron spot size and a diamond window. It can accommodate up to four X-ray detectors for maximum flexibility. Automatic variable acquisition geometry and phase-contrast enhancement allows best possible quality in relatively short scanning time.



SKYSCAN 2214 is complemented by 3D.SUITE. This comprehensive software suite covers GPU-accelerated reconstruction, 2D/ 3D morphological analysis, as well as surface and volume rendering visualization.

Key Features

SKYSCAN 2214 Features

Source

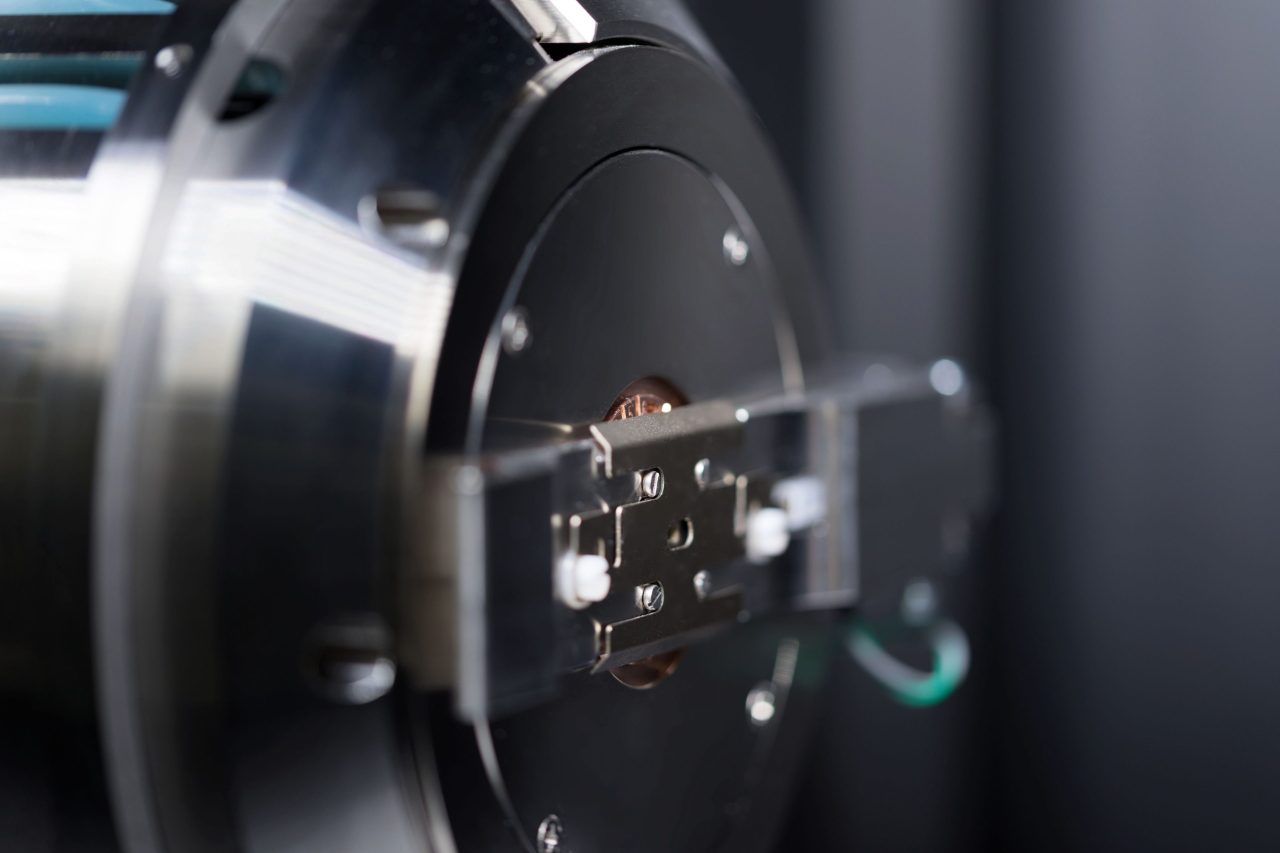

The SKYSCAN 2214 uses a latest generation open-type X-ray source. The source offers true spatial resolution below 500 nm, an X-ray energy up to 160 keV and source power up to 16 W. The source is practically maintenance-free with an extremely easy pre-aligned filament replacement procedure.

The SKYSCAN 2214 has an open-type (pumped) nanofocus X-ray source with diamond window. It produces an X-ray beam with peak energy from 20 kV to 160 keV and is supplied with two types of cathodes. The tungsten (W) cathodes operate in the full range of accelerating voltages up to 160 kV and provide a spot size down to 800 nm. The lanthanum hexaboride (LaB6) cathodes can be used for accelerating voltages from 20 kV to 100 kV and provide a spot size of the X-ray beam smaller than 500 nm to achieve the highest resolution in imaging and 3D reconstruction. The JIMA resolution pattern indicates that 500 nm structures can be easily resolved.

For long-term stability of the focal spot size and position of the emission point, the X-ray source is equipped with a liquid cooling system which contains a re-circulator providing precise temperature stability of the cooling fluid.

SKYSCAN 2214 Features

Detectors

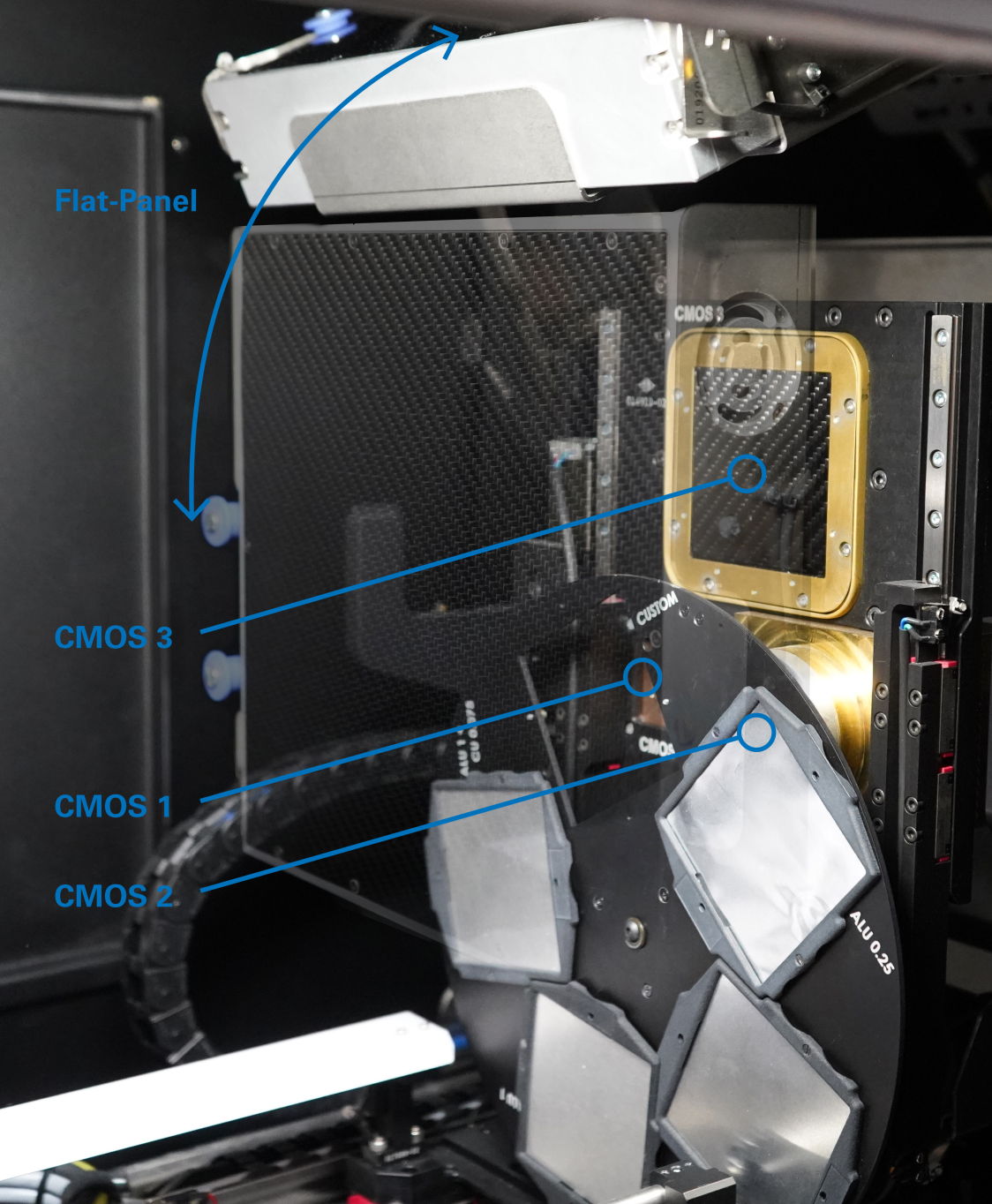

The SKYSCAN 2214 can be equipped with up to four X-ray cameras for ultimate flexibility: three CMOS cameras with different resolution and field of view balance, and one flat panel detector to cover an XL field of view. All cameras can be selected with just a single mouse click.

Using large-format CMOS detectors with small pixel size allows extension of high-resolution 3D imaging to large objects. The built-in detector flexibility enables adjusting the field of view and spatial resolution according to the object size and density. An advanced reconstruction from a volume of interest provides scanning of a selected part of a large object with high resolution without compromising image quality.

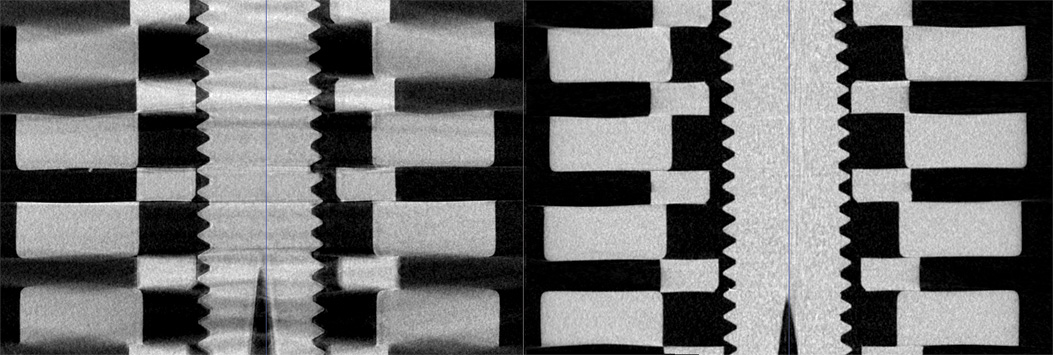

Additionally, the field of view can be increased horizontally and vertically by using offset camera positions and vertical object movement. The 3D.SUITE software automatically stitches the different images together with compensation of the shifts and possible intensity differences

As research topics and analytical needs evolve, cameras can be retro-fitted at any point of time during the system’s lifetime.

SKYSCAN 2214 Features

In-situ stages

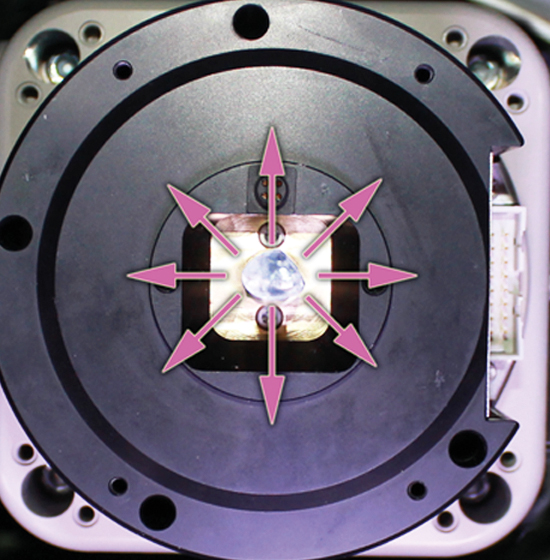

The high-precision object stage of the SKYSCAN 2214 supports objects up to 300 mm diameter and 20 kg in weight. The air-bearing rotation motor allows precise rotation of objects at very high accuracy, and the integrated micro-positioning stage guarantees a perfect sample alignment.
The SKYSCAN 2214 has a large and easily accessible sample chamber to allow scanning of big objects as well as mounting of optional stages. On top plenty of space is available for peripheral equipment.

The Bruker material testing stages are designed to perform compression experiments up to 4400 N and tensile experiments up to 440 N. All stages automatically communicate through the system’s rotation stage, without the need of any cable connections. Using the supplied software, scheduled scanning experiments can be set up.

Bruker's heating & cooling stages can reach temperatures of up to +80 °C or 30 °C below ambient temperature. Just like the other stages, no extra connections are needed, and there is an automatic recognition of the stage. Using the heating & cooling stages, samples can be examined under non-ambient conditions, to evaluate the effect of temperature on the sample’s microstructure.

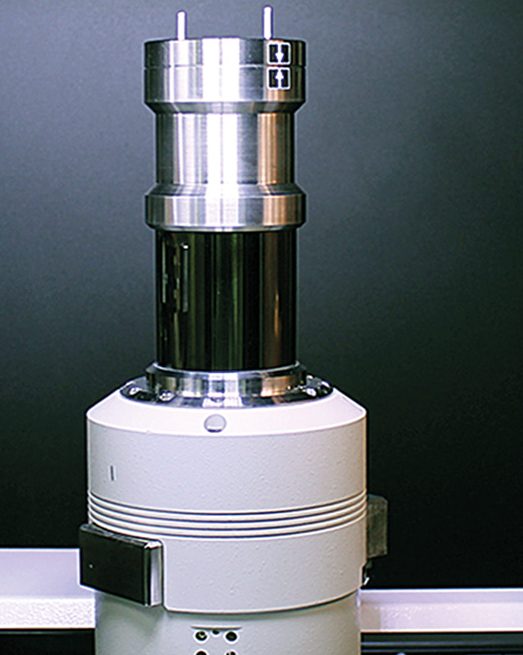

The SKYSCAN 2214 is fully compatible with stages from DEBEN. With the included adapter, the DEBEN stage can be simply placed onto the rotation stage of the SKYSCAN 2214.

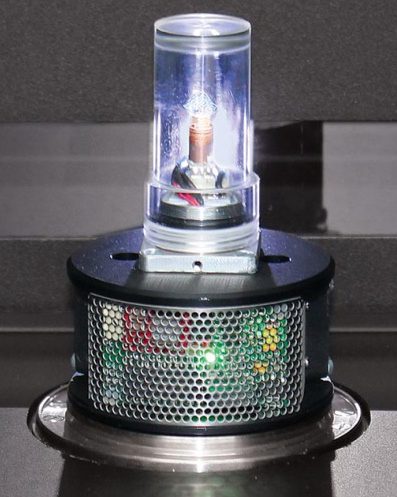

Cooling Stage

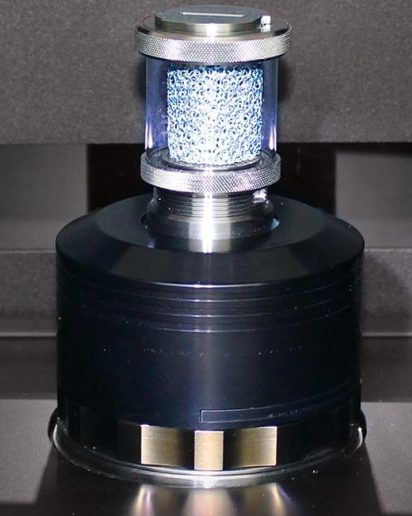

Material Testing Stage
Deben Stage

Highlighted Applications

SKYSCAN 2214 Applications

Additive manufacturing

Additive manufacturing, also commonly called 3D printing, allows the creation of components with complex external and internal structure. Unlike classic techniques which require special molding or tooling, additive manufacturing allows the economical production of both one piece prototypes and large batch production parts. Once completed, confirmation of both the internal and exterior structure is important in ensuring that the component will perform as intended. XRM allows this inspection in a non-destructive manner, giving confidence that a component will meet or exceed specifications.

  • Inspection of internal voids for trapped powder
  • Validation of external and internal dimensions
  • Direct comparison with CAD models
  • Analysis of single and multi-material components
SKYSCAN 2214 Applications

Fibers and composites

By combining materials into a composite the resulting component can have increased strength while significantly decreasing weight. Further optimization comes from ensuring the orientation of the subcomponents is optimized. One of the classic components used are fibers ranging from steel rebar in concrete to carbon nanotubes in aviation materials. XRM allows inspection of fibers and composites without the need for cross-sectioning, ensuring the condition of the sample is not affected by sample preparation.

  • Orientation of embedded objects
  • Quantification of layer thickness and fiber sizes
  • In-situ temperature and physical properties testing with accessory stages
SKYSCAN 2214 Applications

Geology

The study of geological specimens, whether it is a core sample from deep below the surface or a rock laying on the ground, offers a wealth of information into the formation of the world around us. Analysis often requires destruction of the pristine sample, removing important provenance of the internal structures. XRM gives a view into the sample without sectioning, allowing faster time to result and the possibility of future analysis.

  • Density dependent 3D visualization of the specimen interior
  • Pore network visualization
  • Digital sectioning allowing application standard geological methods

SKYSCAN 2214 Specifications

Feature

Specification

Benefit

 X-ray source

20-160 kV

16 W max.

User exchangeable filament

Optimize for max power (W) or max resolution (LaB6)

Rotatable diamond window for maximum lifetime

X-ray detector

6 Mp active pixel flat-panel

16 Mp large-format CMOS

16 Mp Mid-format CMOS

15 Mp High-res CMOS

Variety of pixel and detector sizes allow balance between detector resolution, coverage and counting statistics

Available with 1, 2, 3 or 4 detectors

Field upgradable to add detectors

Image Formats

Up to 8000 x 8000 x 2300 pixels after a single scan

User selectable image size allows balance of dataset size and needed resolution

Software allows downsizing after data collection

Resolution

60 nm smallest pixel size
<500 nm low-contrast resolution (10% MTF)

Simple graphics control for optimizing experiment resolution based on selected detector, sample and detector distance

Adjustable source focus size to balance maximum power and resolution

Positioning Accuracy

<50 nm for rotation
Anti-vibration granite platform with pneumatic leveling

Air bearing sample stage provides smooth rotation

Simple chuck style mounting of sample posts

Mechanical and electrical interface for advanced materials research stages

Maximum Object Size

300 mm in diameter (140 mm scanning size)

400 mm in length

Maximum object weight 20 kg

Both the power and room to scan large samples

Precise positioning of small samples near the source to maximize magnification

Dimensions W 1800 mm x D 950 mm x H 1680 mm

Weight: 1500 kg

Efficiently designed to optimize use of lab space

Source maintenance access via interlocked large sliding door

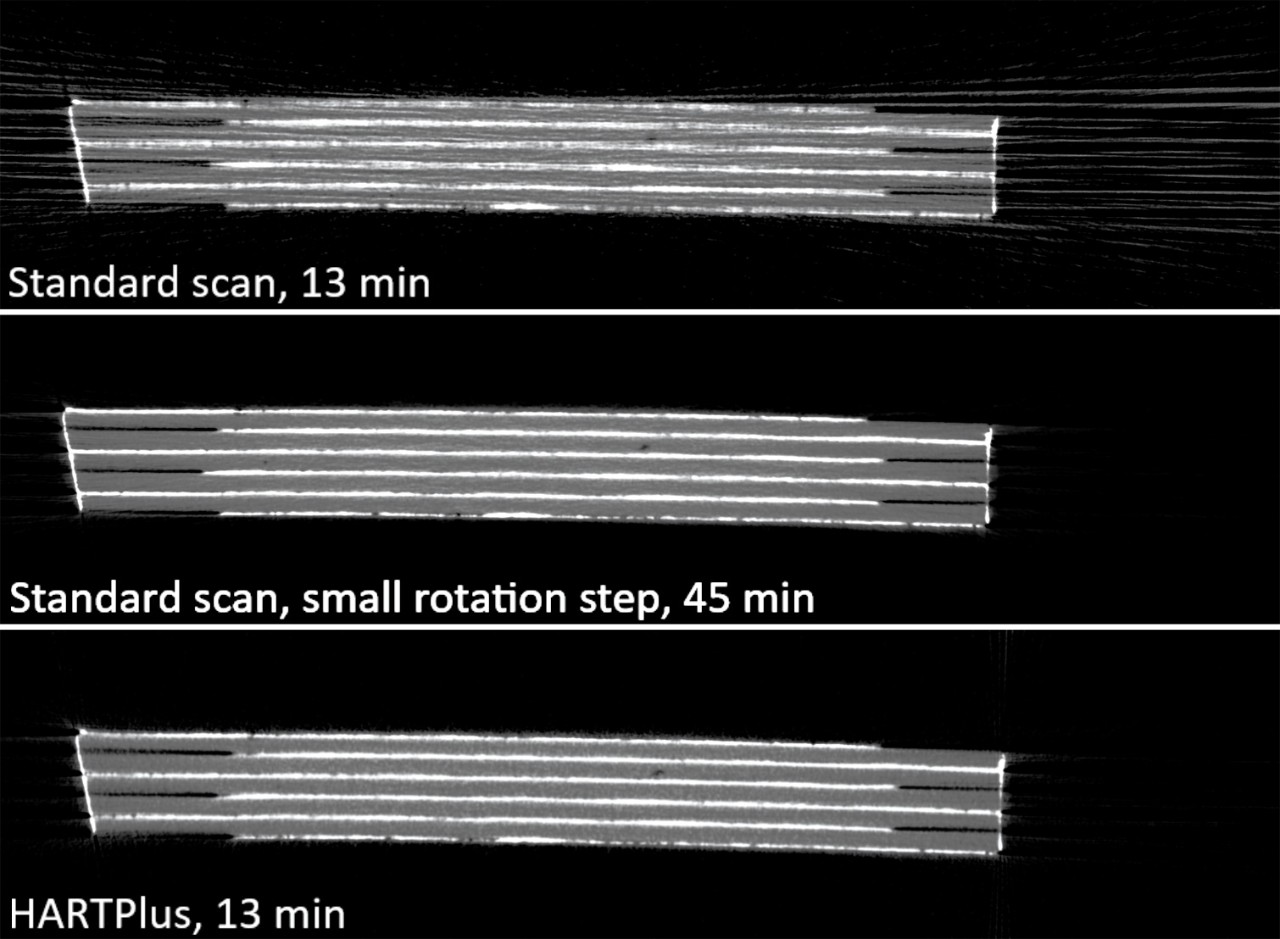

POSITION, SCAN, RECONSTRUCT and ANALYZE

Bruker XRM solutions include all software needed to collect and analyze data. An intuitive graphical user interface with user guided parameter optimization support both expert and novice users. By using the latest GPU powered algorithms, reconstruction time is substantially reduced. CTVOX, CTAN and CTVOL combine to forma powerful suite of software for both qualitative and quantitative analysis of models.

Measurement Software:
SKYSCAN 2214 – Instrument control, measurement planning and collection

Reconstruction Software:
NRECON – Transforms the 2D projection images into 3D volumes

Analysis Software:
DATAVIEWER – Slice-by-slice inspection of 3D volumes and 2D/3D image registration
CTVOX – Realistic visualization by volume rendering
CTAN – 2D/3D image analysis & processing
CTVOL – Visualization of surface models to export for CAD or 3D printing
