Ellipsometers and Reflectometers

Spectroscopic Ellipsometry

Precise, repeatable thin and ultra-thin film measurement

Characterize Thin Film Thickness and Dielectric Properties

Spectroscopic ellipsometry is a powerful technique for measuring thin and ultra-thin films (down to <1 Å) with a single or small number of discrete layers. This technique is exceptionally sensitive to film thickness and uniformity and can be used to investigate nearly any transparent thin film. It is particularly useful for ultra-thin film applications (<100 nm) and can measure layers thinner than the wavelength of the probing light itself, down to less than a single atomic layer, surpassing the thickness limits of comparable ellipsometry- and reflectometry-based techniques. In addition to film thickness, spectroscopic ellipsometry delivers highly precise, repeatable measurements of the dielectric properties (complex refractive index and dielectric function tensor) and optical constants of a sample with an achievable refractive index resolution of 2 x 10-3 on some samples.


FilmTek spectroscopic ellipsometers use an advanced rotating compensator design that provides best-in-class repeatability and comparatively better ellipsometric performance than other designs – namely rotating polarizer and analyzer ellipsometers. Additionally, FilmTek spectroscopic ellipsometer ("SE") product line ranges from single-technique, budget-friendly to advanced multimodal systems. The multimodal tools combine spectroscopic ellipsometry with other film metrology methods and proprietary FilmTek technology to meet the needs of users working with challenging materials and measurement requirements outside the refractive index resolution, layer structure, and material/substrate restrictions of other spectroscopic ellipsometers.



Collecting ellipsometric data with FilmTek SE-model instruments is simple, efficient, and intuitive. Equipped with our proprietary FilmTek software and optimization algorithms and capable of complete automation, these systems minimize the operational downtime and high potential for human-caused error that are inherent to manual measurement calibration, data acquisition, and data analysis processes and, unlike comparable ellipsometers, requires no manual sample alignment.

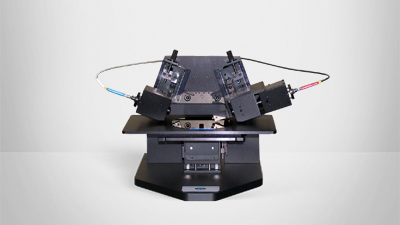

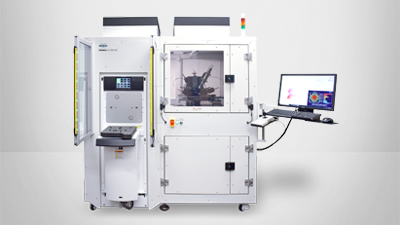

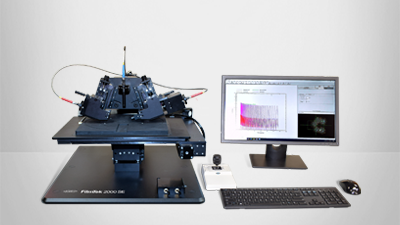

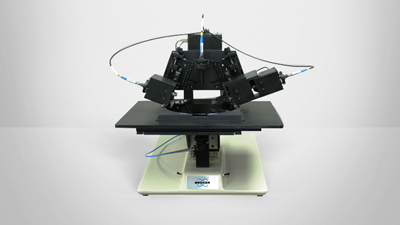

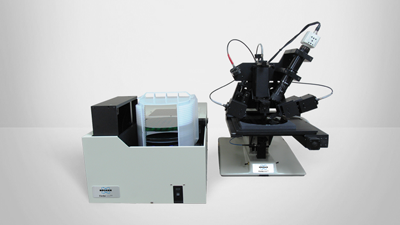

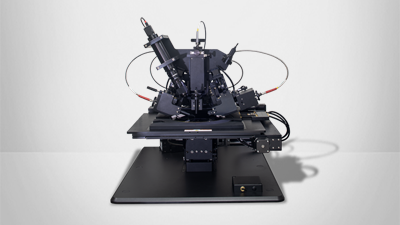

Products

Find the Best Spectroscopic Ellipsometer for You
