Nanomechanical Testing

iTF - Intrinsic Thin Film Mechanical Property Solution

Substrate effect-free thin film measurements

Film Thickness Independent Modulus Characterization

iTF is Bruker’s new analytical software package that provides the most versatile solution to thin film systems. From hard on soft to soft on hard, from 2nm to 2mm, iTF generates accurate intrinsic thin film modulus within minutes. iTF is based on a patented elastic-plastic contact model developed by a research group from Harvard University and optimized for the wide range of Hysitron’s nanomechanical instruments. Since commercialization, iTF has been widely used in microelectronic, automobile, aerospace, and coating industries.

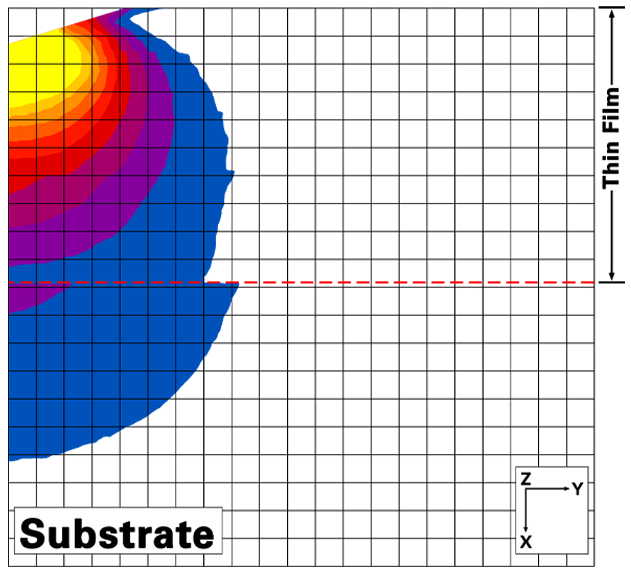

Substrate effect free thin film measurements.

Accurately Account for the Substrate Effect

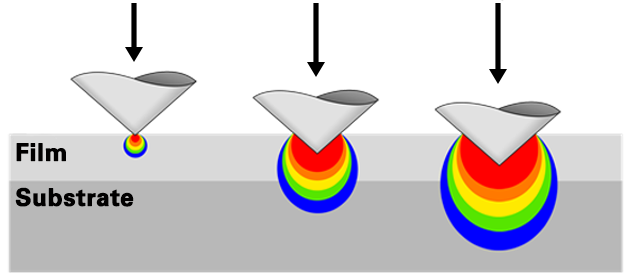

Traditional nanoindentation analysis utilizes the initial unloading segment to represent a pure elastic response. However, when the instrument probes onto a thin film system, the elastic response is a the material’s response comprised of that much deeper than the actual contact. Using the traditional nanoindentation analysis will result in a deviation from the thin film mechanical response. This substrate effect makes it difficult to understand the film’s own mechanical properties using nanoindentation. iTF calls for pressure distribution with layer material structure in mind, and numerically calculates the intrinsic film modulus. Thus no more substrate effect in nanoindentation analysis, no matter how deep you go.

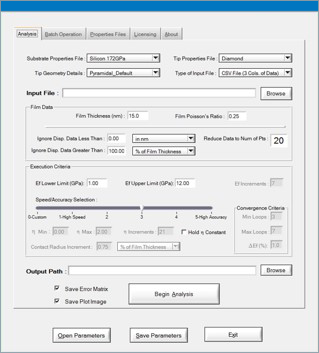

iTF software.

Simple Operation

Simply put the sample in, 300mm wafer or 3mm chip, perform a depth profile indentation, query the iTF software, and thin film modulus is readily available. iTF software recognizes all file formats from Hysitron nanoindenter, and capable of automating multiple sample analysis. Simple slider bar allows high speed or high accuracy analysis.

Classic Contact Mechanics Model Core

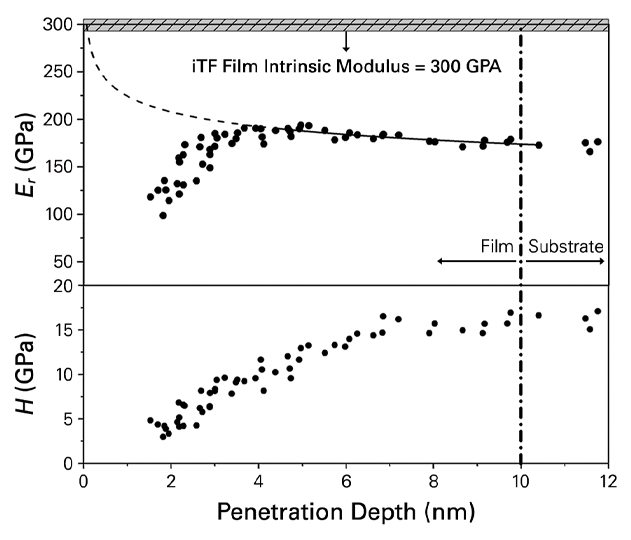

Reduced elastic modulus and hardness are plotted in terms of nanoindentation penetration depth. The interface between the film and substrate can be seen in the graph shown as the dash-dotline. The estimated film modulus analyzed by iTF analysis is marked in the shadowed area (300 GPa). The approximation of the reduced elastic modulus of the whole system is marked as the dash-line.

iTF’s core is the classic contact mechanics based on layered materials contact solutions. By reconstructing pressure distribution and boundary conditions with a variety of indent geometries, stiffness, indentation load and displacement become the fingerprint of each thin film system. Matching nanoindentation data with the large library of indentation behaviors of thin films in iTF software, intrinsic thin film modulus is easily pinpointed. The use of classical contact mechanics also enables the large range of elastic mismatch between the film and the substrate.
