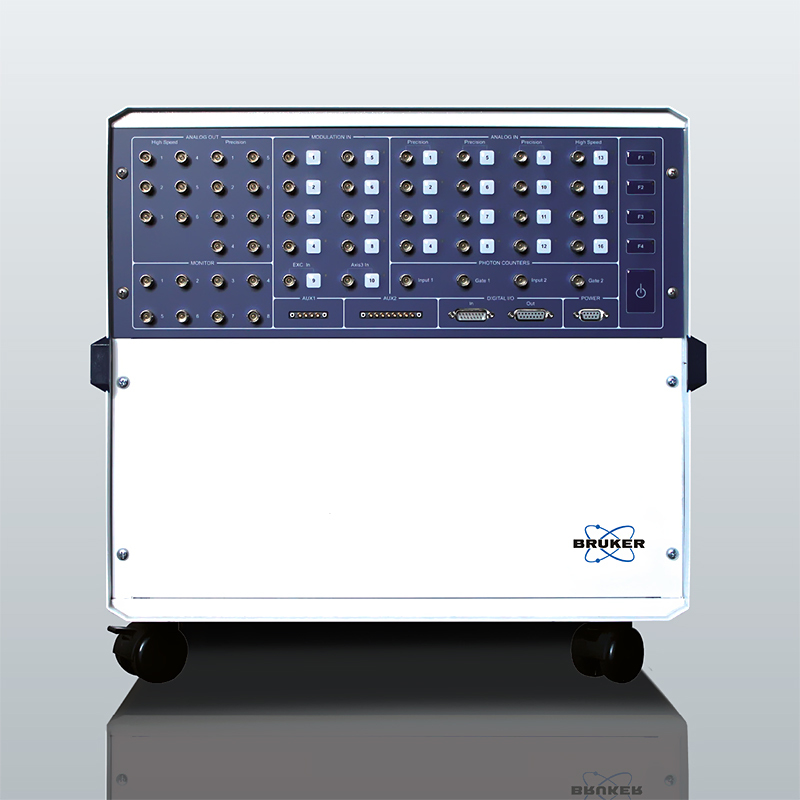

Vortis 2 Advanced SPMControl Station
Most advanced and flexible high-performance digial SPM controller.
Access to external and internal signals for flexible research and easy combining of additional advanced optical instrumentation (e.g. SuperResolution, FLIM)
High-speed data capture with maximum data pixel rate of up to 800.000 pixels/sec
Modular, hybrid, analog/digital design with latest FPGA/PPC technology (dual core PowerPC @ 1,4 GHz). Overcomes limitations of conventional DSP designs
4×high-speed 16 bit ADC channels with 60 MHz sample rate
12×18 bit ADC channels with 800 kHz sample rate 6×high-speed 14 bit DAC channel with 120 MHz sample rate
8×20 bit DAC channels with 800 kHz sample rate 2×high-speed lock-in amplifiers for precise amplitude and phase detection
6 channel, low noise, capacitive distance sensor interface
Two channel, gated photon counting (2+2 inputs, 32 bit TTL counters, up to 20 Mcounts/s, 20 ns min pulse width, 40 ns pulse separation)
Thermal noise cantilever calibration up to 7.5 MHz
Low voltage output for electronics modules and pre-amplifiers with +/- 15 V and +/- 5 V
Digital input: 6 channels (Sub-D) Digital output: 10 channels (Sub-D) e.g. for pixel and line clock
Easy connection of accessories at the front panel
Compatible Imaging Systems
NanoWizard 4 XP BioScience
Extreme performance and ease of use for applications in Life Science and Soft Matter research ranging from single molecules to living cells and tissues.
NanoWizard 4 XP NanoScience
Extreme performance meets utmost flexibility
NanoWizard ULTRA Speed 2
High-speed imaging and super-resolution AFM on inverted microscopes, paired with unparalleled flexibility.
AFM optimized for seamless integration with optical techniques enables wide range of nanoscale optical imaging applications
NanoWizard V BioScience
Automated quantitative nano-mechanical imaging for long-term, self-regulating experiment series.
