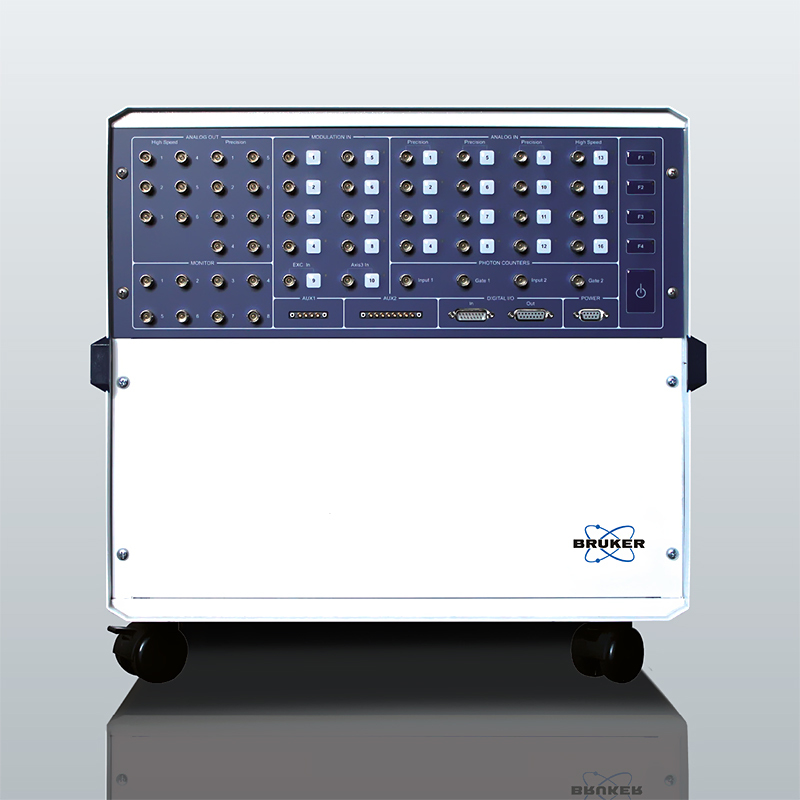

Vortis 2 Advanced SPMControl Station
Most advanced and flexible high-performance digial SPM controller.
- Access to external and internal signals for flexible research and easy combining of additional advanced optical instrumentation (e.g. SuperResolution, FLIM)
- High-speed data capture with maximum data pixel rate of up to 800.000 pixels/sec
- Modular, hybrid, analog/digital design with latest FPGA/PPC technology (dual core PowerPC @ 1,4 GHz). Overcomes limitations of conventional DSP designs
- 4×high-speed 16 bit ADC channels with 60 MHz sample rate
- 12×18 bit ADC channels with 800 kHz sample rate 6×high-speed 14 bit DAC channel with 120 MHz sample rate
- 8×20 bit DAC channels with 800 kHz sample rate 2×high-speed lock-in amplifiers for precise amplitude and phase detection
- 6 channel, low noise, capacitive distance sensor interface
- Two channel, gated photon counting (2+2 inputs, 32 bit TTL counters, up to 20 Mcounts/s, 20 ns min pulse width, 40 ns pulse separation)
- Thermal noise cantilever calibration up to 7.5 MHz
- Low voltage output for electronics modules and pre-amplifiers with +/- 15 V and +/- 5 V
- Digital input: 6 channels (Sub-D) Digital output: 10 channels (Sub-D) e.g. for pixel and line clock
- Easy connection of accessories at the front panel
