X-Ray Metrology For Silicon Semiconductors

SIRIUS-RF

Fourth generation system to provide industry standard reliability

SEMI standard compliance

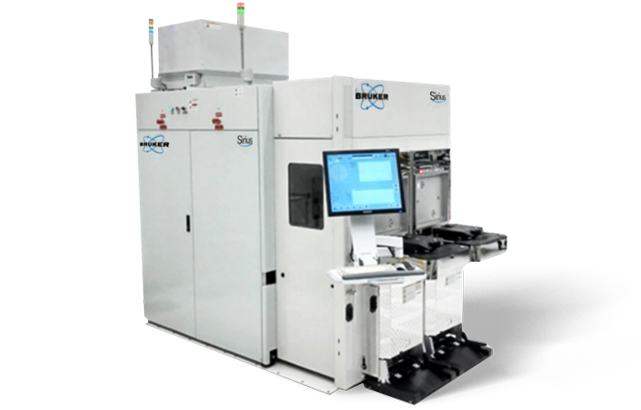

Sirius-RF

The Sirius-RF is the fourth generation system in a mature platform to provide industry standard reliability, ease-of-use, fab automation, and SEMI standard compliance.

Convergent Beam
XRR
Offers fast, first-principle thickness and density measurements on scribe-lines
Dual Source
µXRF configuration
Delivers flexibility and best performance for a variety of layers per device
Multi-Stack
measurement capability
Composition and thickness measurements on metrology pads or directly on-device in a non-destructive manner
Features

Sirius-RF Features

  • Convergent beam XRR for fast, first-principle thickness and density measurements on scribe-lines

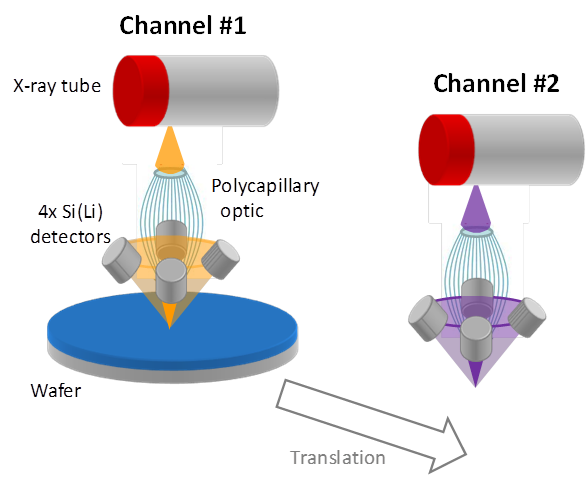

  • Dual source µXRF configuration for flexibility and best performance for variety of layers per device
  • For advanced memory (DRAM, PCRAM, 3D-NAND, MRAM), Logic, power devices and packaging
  • Composition and thickness measurement
  • On metrology pads or directly on-device (non-destructive manner)
  • Multi-stack measurement capability
Applications

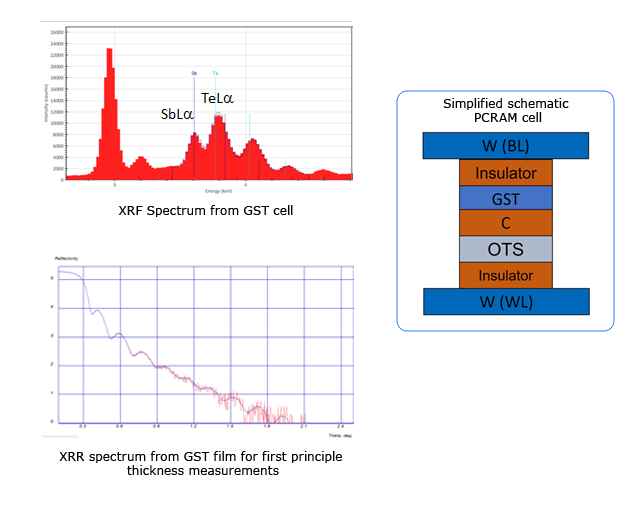

Application Example: PCRAM

  • Composition and thickness of the memory element (GeSbTe - GST) and Ovonic Threshold Switch (OTS, GeAsSe) are critical parameters
  • Sirius-RF µXRF allows in-line composition monitoring on metrology pads or device areas
  • Fast convergent beam XRR allows thickness measurement at 1-2 seconds per point.
