XFlash 6T-30

The Mid-Size SDD for Conventional and Aberration Corrected TEM

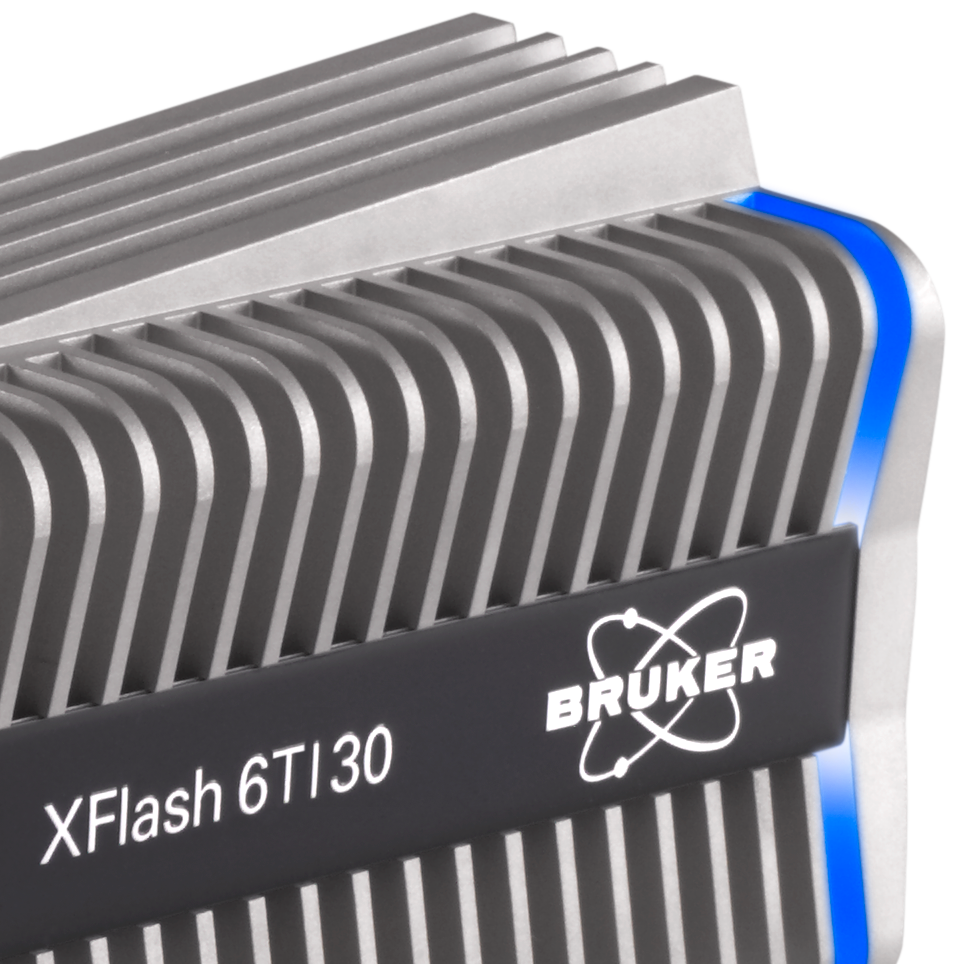

The XFlash 6T-30 detector

The XFlash® 6T-30 is the detector for S/TEM with the best energy resolution. Due to its small diameter (slim-line design) it is particularly well suited for situations where little space is available for an EDS detector, especially also for EDS retrofits on older TEMs. The versatile XFlash® 6T-30 meets all analysts needs, from excellent geometric conditions (optimum take-off and best possible solid angle) to analytical performance (light element or high count rate analysis).

In summary, the XFlash® 6T-30 offers the following advantages:

  • Excellent energy resolution (126 eV at Mn Kα, 51 eV at C Kα and 60 eV at F Kα available)
  • Other available resolution is 129 eV at Mn Kα
  • Extremely high pulse loading capability
  • Excellent light element and low energy performance (element range Be - Am)
  • Welded bellows as standard
  • No vibration-generating cooling systems
  • Immediately available after power on
  • Maintenance-free operation
  • Low operating cost
  • Small dimensions, including slim-line technology finger
  • Low weight
  • Windowless version available on request

Suggested areas of application for the XFlash® 6T-30 are:

  • All types of EDS anlyses on TEM and STEM, including aberration corrected electron microscopy
