BioAFM Accessories and Add-Ons

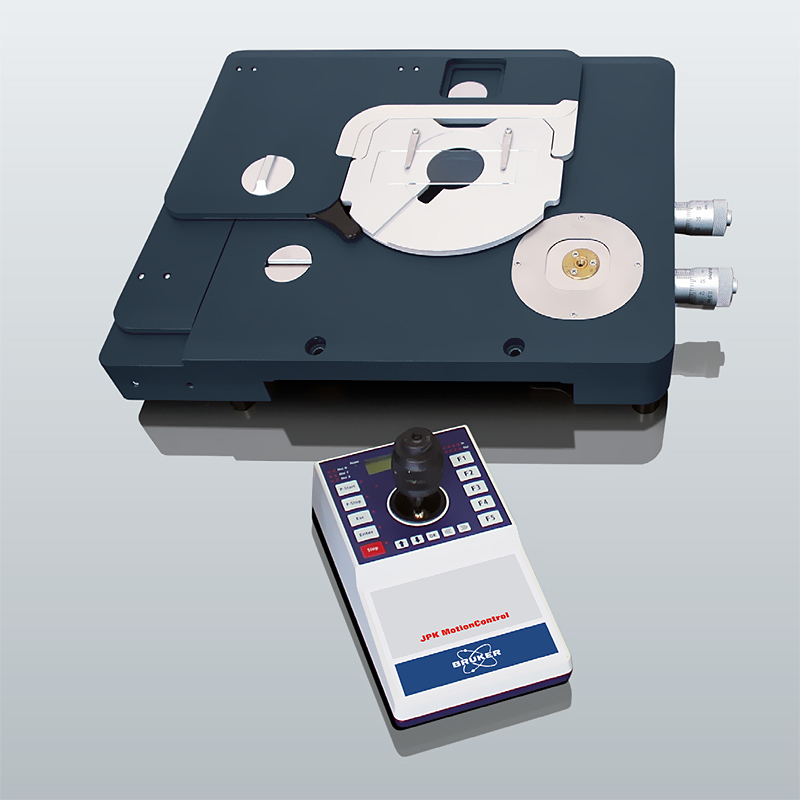

Motorized Precision Stage

Offers automatic motion control for precise positioning of the sample relative to optical axis and AFM probe.
  • Transmission illumination capability for inverted optical microscopes like
    • Olympus IX line
    • Zeiss Axio Observer/Axiovert 100/135/200
    • Nikon TE 2000 or Ti series
    • Leica DMi lines
    • Please specify model upon order
  • Travel range of the sample 20×20mm 2
  • Step size (Resolution): ≤1µm
  • Repeatability (unidirectional): ≤2µm
  • Maximum velocity: 1mm/s
  • With joystick or software control
  • For automated tiling or mapping applications
  • Manual precision positioning of the AFM tip
  • Stand alone use or for inverted optical microscopes
  • Compatible with all JPK add-ons, glass slides, Petri dishes etc.
  • Compatible with NanoWizard, ForceRobot 300 and CellHesion 200 heads
