Bruker
BioAFM Accessories and Add-Ons

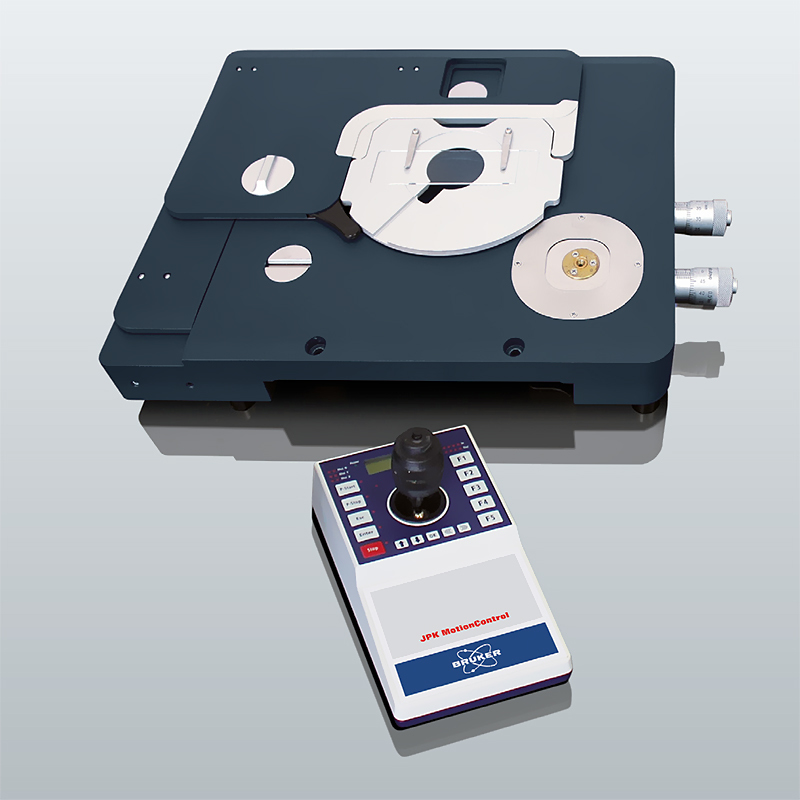

Motorized Precision Stage

Offers automatic motion control for precise positioning of the sample relative to the optical axis and the AFM probe

Transmission illumination capability for inverted optical microscopes, including:

  • Olympus IX line
  • Zeiss Axio Observer/Axiovert 100/135/200
  • Nikon TE 2000 or Ti series
  • Leica DMi lines

Please specify the model when ordering.

  • Sample travel range: 20 × 20 mm²
  • Step size (resolution): ≤1 µm
  • Repeatability (unidirectional): ≤2 µm
  • Maximum velocity: 1 mm/s
  • With joystick or software control
  • For automated tiling or mapping applications
  • Manual precision positioning of the AFM tip
  • Stand-alone use or for inverted optical microscopes
  • Compatible with all JPK add-ons, glass slides, Petri dishes, etc.
  • Compatible with NanoWizard, ForceRobot 300 and CellHesion 200 heads
