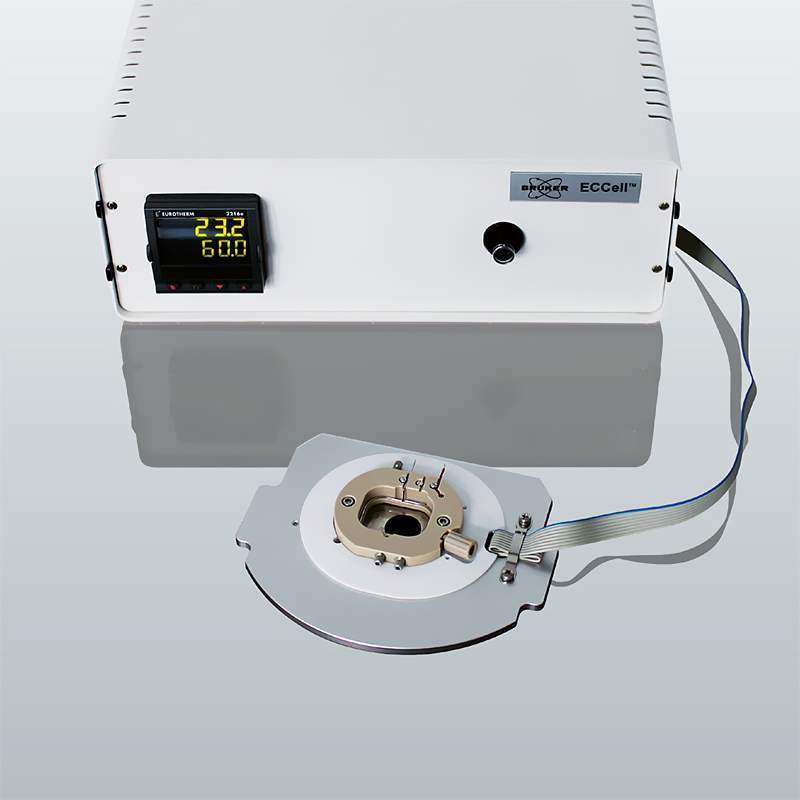

ECCell Electrochemistry Cell
For electrochemistry with temperature control and transmission optics such as phase
contrast, DIC or fluorescence together with AFM; ideal for combined studies of temperature and potential-sensitive biomolecules.
- Works with transparent or non-transparent substrates
- Accommodates standard coverslips, metal or silicon chips or other substrates
- Temperature range from ambient to 60°C
- max. 1350µL liquid volume with perfusion capability
- Sealed design for inert gas filling
- Wire electrodes and miniature reference electrode
- Suitable for conductive films or substrates (e.g., ITO coated glass)
- Compatible with common potentiostats
- Allows the use of high numerical aperture lenses for optimum fluorescence performance
- Unrestricted high resolution AFM imaging
