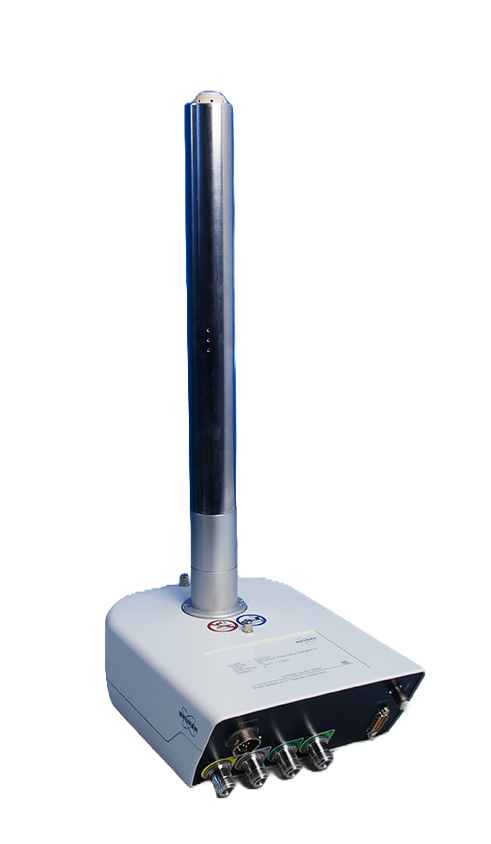

iProbe TXI
The TXI iProbe HCN is an inverse triple resonance NMR probe designed for high sensitivity 1H detected experiments with simultaneous 13C and 15N decoupling. It combines the well established TXI triple resonance architecture - optimized for biological macromolecules - with the automation and performance enhancements of the iProbe platform.
TXI probes feature an inner coil optimized for 1H observation and outer coils dedicated to decoupling two heteronuclei, such as 13C and 15N, enabling efficient triple-resonance pulse sequences.
The iProbe family contributes enhanced SNR, fast automatic tuning/matching (ATMA) and streamlined workflows for routine and advanced NMR applications.
Technical Details
- Available for 500 and 600 MHz
- Inner coil optimized for 1H observation
- Four fully independent channels
- Simultaneous decoupling of 2H, 13C and 15N nuclei
- Sample diameter: 5 mm
- Z-Gradient
- Equipped with automated tuning and matching device (ATM)
- Standard sample temperature range -100°C – 150°C (5mm)
