Juice-Profiling (NMR)

Juice Profiling™ is an NMR-based screening method for fruit and vegetable juices which has been developed in a joint effort by Bruker BioSpin GmbH and SGF International e.V.

The method for Juice Profiling was recently recognized as an official method by the International Fruit and Vegetable Juice Association (IFU).  IFU Official Method No. 87 (released 2026) is a chemical analysis procedure utilizing 1H Nuclear Magnetic Resonance (NMR) spectroscopy for comprehensive authenticity parameters in fruit juices, purées, and concentrates. It enables rapid, simultaneous quantification of key compounds like sugars and organic acids without prior separation from a single data set acquired within a few minutes.

Traditional Juice Authenticity and Quality Control Analysis is time-consuming and involves various analytical instruments and methods. However, the NMR Juice-Profiling method streamlines this process.

The significantly updated NMR Juice-Profiling 4.0 method helps to save considerable time and cost by replacing many conventional methods within one single analysis.

It allows robust and simultaneous quantitative analysis of the parameters pertaining to authenticity, including evaluation according to the limits established by AIJN (European Fruit Juice Association). HMF, arbutin, fumaric acid, phlorin, sucrose, glucose, fructose, galacturonic acid, citric acid, malic acid, alanine, lactic acid and ethanol.

Additionally, it provides valuable authenticity insights and confirmation thanks to the statistical evaluation of the NMR profiles and the comprehensive database of nearly 50000 reference samples.

Juice Profiling 4.0 boasts a routine, straightforward workflow, automatically analyzing over 60 samples in one run, with minimal sample preparation and without the use of toxic solvents.

Versatile and cost-effective, this method with its high specificity, high resolution, and fast, automated workflows for routine laboratory use, discerns the authenticity of both fruit and vegetable juices, in a comprehensive and unique way.

• Improved quantitative analysis for IFU-relevant (International Fruit and Vegetable Juice Association) parameters: HMF, arbutin, fumaric acid, phlorin, sucrose, glucose, fructose, galacturonic acid, citric acid, malic acid, alanine, lactic acid and ethanol. Implementation of formol number quantification
• Update of the AIJN (European Fruit Juice Association) reference guidelines for the quantitative analysis
• Database expansion by 50%, featuring now more than 49,000 reference juice samples from all over the world
• 27 fruit type models
• 17 new country models, to check the country of origin of the juices
• Number of models to differentiate not from concentrate vs from concentrate juices have doubled
• New Fruit Content Models
• Indication of possible molecules in cause of deviations, in case of the detection of atypical profiles
• Quantile plots provided with the results
• Updated Analytical Report

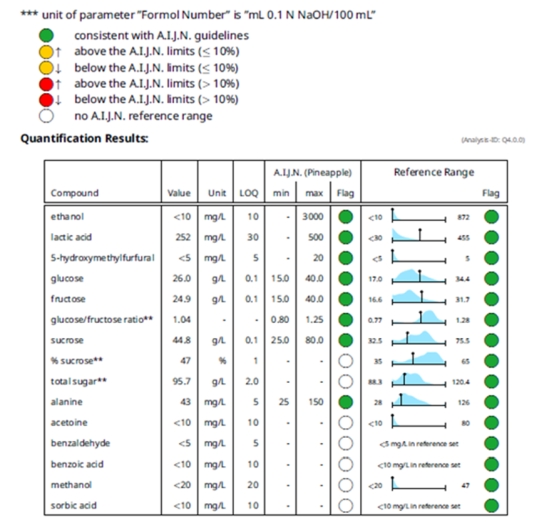

• Quantitative analysis of multiple parameters pertaining to authenticity, including IFU-relevant parameters
    - Results comparison with the AIJN reference guidelines
    - Results comparison with the values of the reference samples

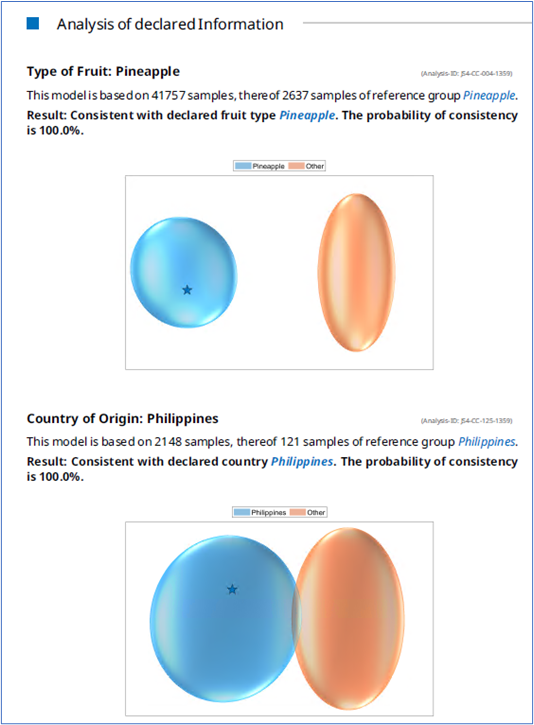

• Statistical analysis of authenticity:
    - Verification of fruit type
    - Verification of country of origin
    - Verification of product type: From Concentrate vs Not From Concentrate
    - Verification of fruit content
    - Detection of blends
    - Detection of atypical profiles: deviations to reference samples
