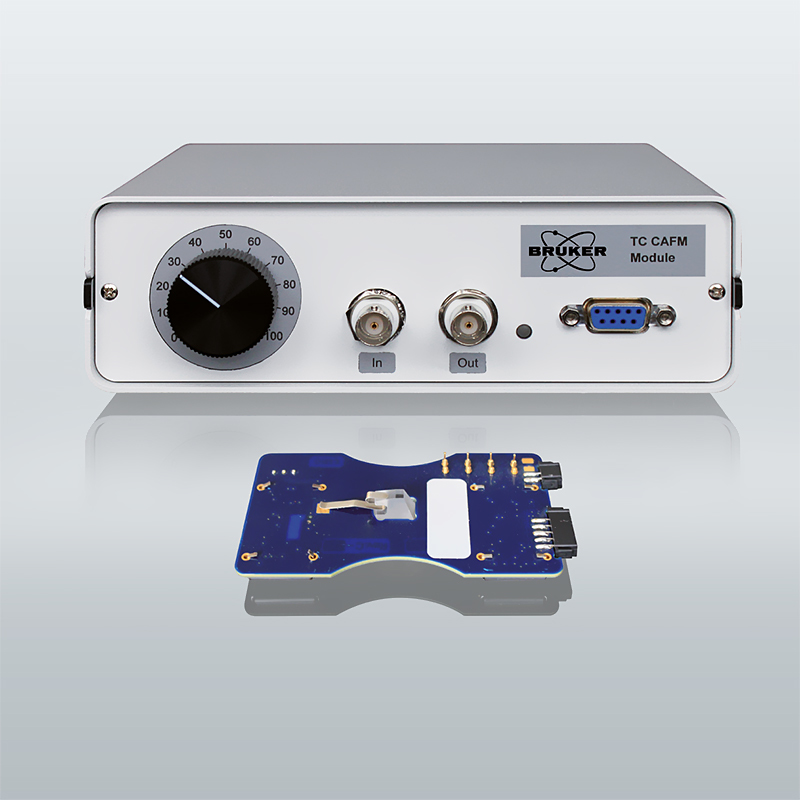

Tunneling Current Conductive AFM (TC-CAFM) Module
For low-conducting samples.
- Tip-bias cantilever holder with integrated current amplifier circuit and automatic sample grounding
- Sample holder for conductive samples (optional transparent sample holder)
- Optimized cantilever exchange tool
- Bias Voltage +/-10 V
- Current Range: +/-10 nA
- Gain: 1000 V/µA
- Noise limit 100 fA RMS
- Software interface
- Compatible with all stages except Cryo- and StretchingStage
Accessories to extend your BioAFM capabilities
Bruker offers an extensive range of BioAFM system add-ons, accessories, and modes to deliver maximum experimental and sample control, superior versatility, and enhanced useability. These options extend the range of applications and experiments supported by Bruker BioAFMs far beyond what is possible with any other BioAFM system on the market today.
Available options include optical systems/accessories, electrochemistry solutions, electrical sample characterization, environmental control options, software modules, temperature control, acoustic and vibration isolation solutions, and more.
Download our accessories handbook to learn more.
