Probes

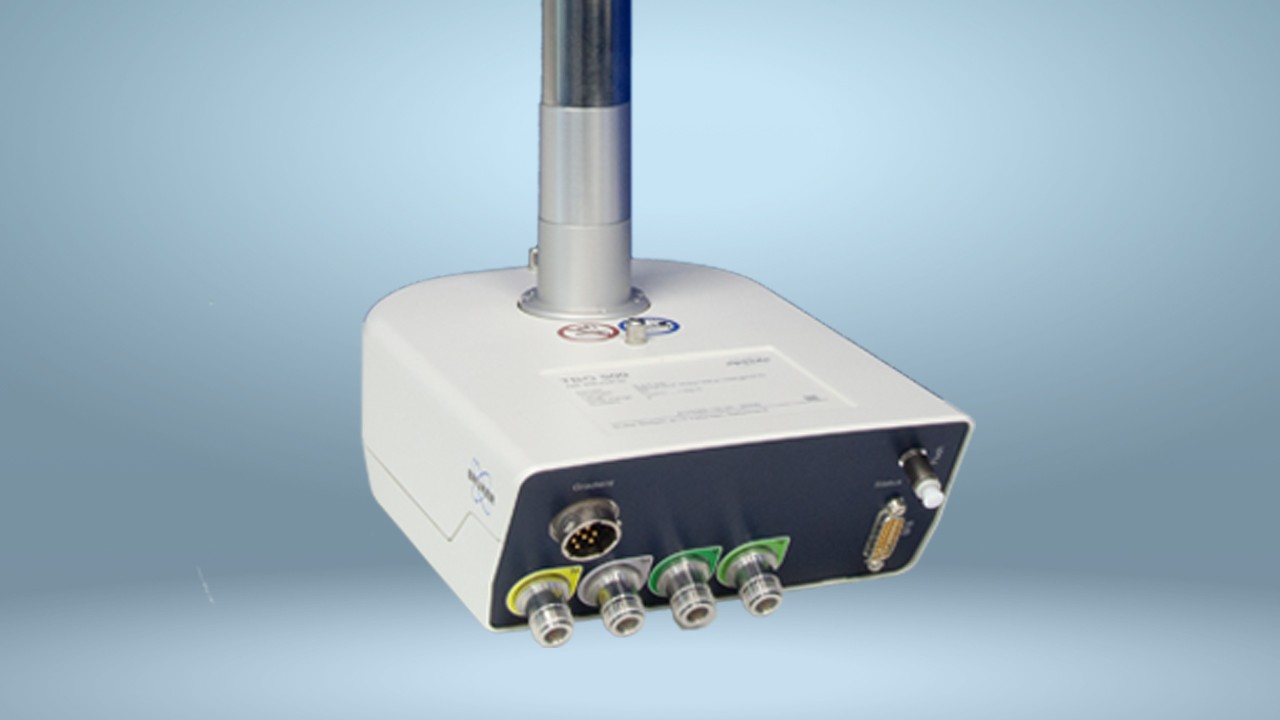

iProbes

The Next Generation of NMR Probes - The successful iProbe series has set the standard for routine chemistry NMR applications. The series is now extended with two new family members (CPMAS & HRMAS).

iProbe Series Features:

The new generation Bruker iProbe is setting again the NMR standard:

  •  Common look & feel for all variants of probes, independent from HR / HRMAS & CPMAS
  • Increased performance for signal-to-noise & pulse width performance
  • Automated Magic Angle adjustment for solid state NMR
  • Many probes require no external RF filters with AVANCE NEO
  • Pulsed field gradients of >50 G/cm @10A
  • Fast automatic tuning & matching with 2G ATMA
  • Automatic probe recognition (ID, nuclei, RF power, T-range, ...)
  • Improved ergonomic design with quick and easy probe exchange
  • Integrated VT adapter

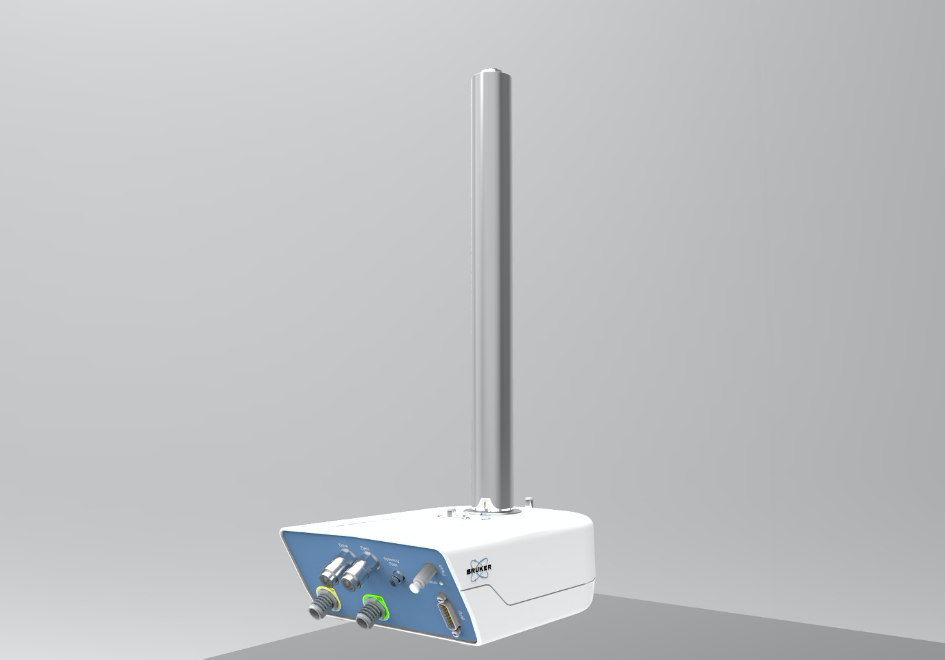

iProbe CPMAS

Designed to bring automated workflows into solid state NMR, the iProbe CPMAS features an automated magic angle calibration, auto tuning and matching for solid-state magic angle spinning (MAS) experiments as well as sample changer support.

The iProbe CPMAS offers true, optimized results in automation. It is available for 400,500 and 600 MHz systems in HX channel configurations with a tuning range of (1H-19F) for the first channel and (15N to 31P) for the 2nd.

With an optional WB adapter kit the probe can also be used in WB systems.

For operation a MAS3 unit and minimum AVIIIHD with TS3.6.2 is needed.

iProbe TBO

The series is further expanded by the iProbe TBO, a triple resonance broadband NMR probe specificially designed for the detection of fluorinated compounds in pharma, polymer and biological sciences. The iProbe TBO can observe any nucleus in the range from 31P to 15N with simultaneous decoupling on 1H and 19F and therefore reduces the need for probe changes and eliminates the need for multiple probes. The addition of 19F to the successful iProbe platform results in no compromise for heteronuclei and virtually no loss on proton sensitivity. Auto tuning and matching capability on all channels allows full automation.
