TXRF Spectrometers


High Performance TXRF Spectrometer for Ultra-Trace Element Analysis

Rapid and Cost-Efficient

Versatile Direct Analysis

Limit of detection
Outstanding microanalytical performance
Process time
No digestion, no calibration required, direct analysis with results on the spot
Samples capacity
Designed for multi-user operation and 24/7 routine with guaranteed data quality

Rapid and Cost-Efficient TXRF - An Alternative to ICP

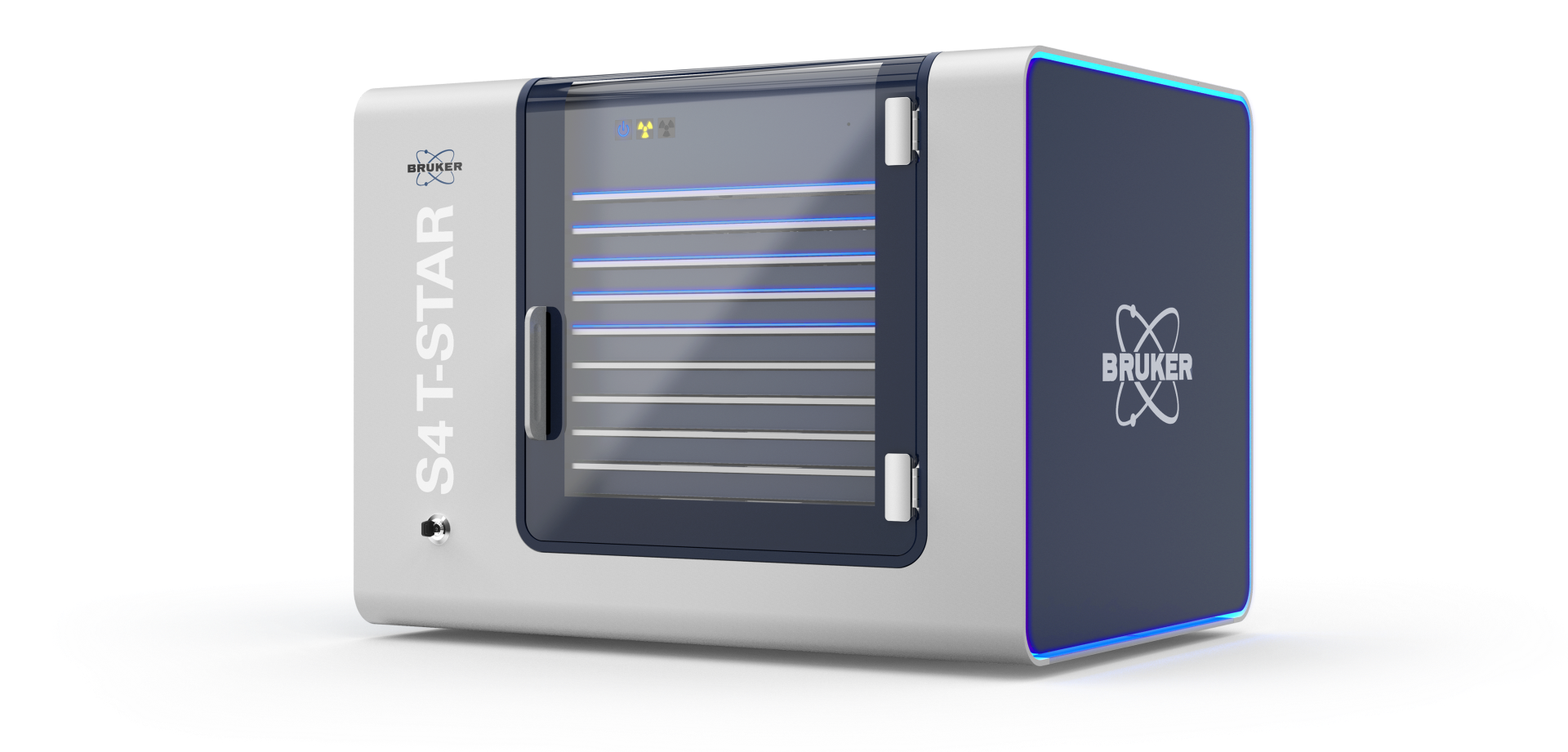

The S4 T-STAR® is a versatile tool for the analysis of a broad range of sample types including suspensions, powders, nanoparticles or films. This puts it ahead of ICP, which requires fully dissolved liquid samples.

  • The  TXRF spectrometer S4 T-STAR® offers lowest detection limits in the sub-ppb range.
  •  TXRF offers lowest operation costs and does not require, gases, media or sophisticated lab infrastructures.
  • The automatic quality control feature provides confidence in data and instrument quality.
  • The system is optimized for 24/7 operation in industrial routine analysis.
  • Bruker's wide selection of sample trays and tools accelerates sample preparation and minimizes errors and contamination risks.
S4 T-STAR - New Standards in TXRF Benchtop Spectrometry

NEW! S4 T-STAR - GIXRF Option: Advanced Materials Characterization

The GIXRF Option for the S4 T-STAR allows users to undertake advanced materials characterization via GIXRF (Grazing Incidence X-Ray Fluoresence). GIXRF is particulary suited for the analysis of nanoparticles, monolayers and systems with stratified layers. Find out more by downloading the flyer.

Analytical Challenges in Pharma, Medical and Environmental Research?

  • The S4 T-STAR® provides a powerful solution for water, effluent, air and soil analysis for the recovery of a healthy environment; for example, environmental monitoring by direct measurement of contaminants in wastewater, slurries and effluents in the low ppb range.
  • The TXRF spectrometer accelerates biomedical research for tomorrow’s healthy society. New insights into the development of cancer, Alzheimer’s disease or dementia are based on a deeper knowledge of the function of essential and toxic metals.
  • The S4 T-STAR® measures catalyzer elements in pharmaceutical research according to the values given by US and EU Pharmacopeia guidelines; for example, detection of sub-ppm catalyzer elements in active pharmaceutical ingredients (API) and additives.
  • TXRF is a powerful technology for food fraud prevention in globalized supply chains; for example, food safety according to FAO/WHO standards.

Technical details

Automatic QC Procedure


  • S4 T-STAR starts QC routines automatically.
  • Integrated QA samples allow stability and sensitivity checks.
Easyload™ Sample Station
  • Dedicated trays for different sample types are available
  • Trays are automatically recognized when inserted

High Sample Capacity

  • The S4 T-STAR offers a high capacity of up to 90 sample discs.
  • Supports automated batch processing for efficient measurements overnight
  • Designed for multi-user operation, can be loaded with up to 10 sample trays
  • Loading and unloading while the instrument is measuring another sample
Well-Designed Storage Solution
  • Trays can be stored in stackable boxes
  • Contamination prevention of the sample carriers

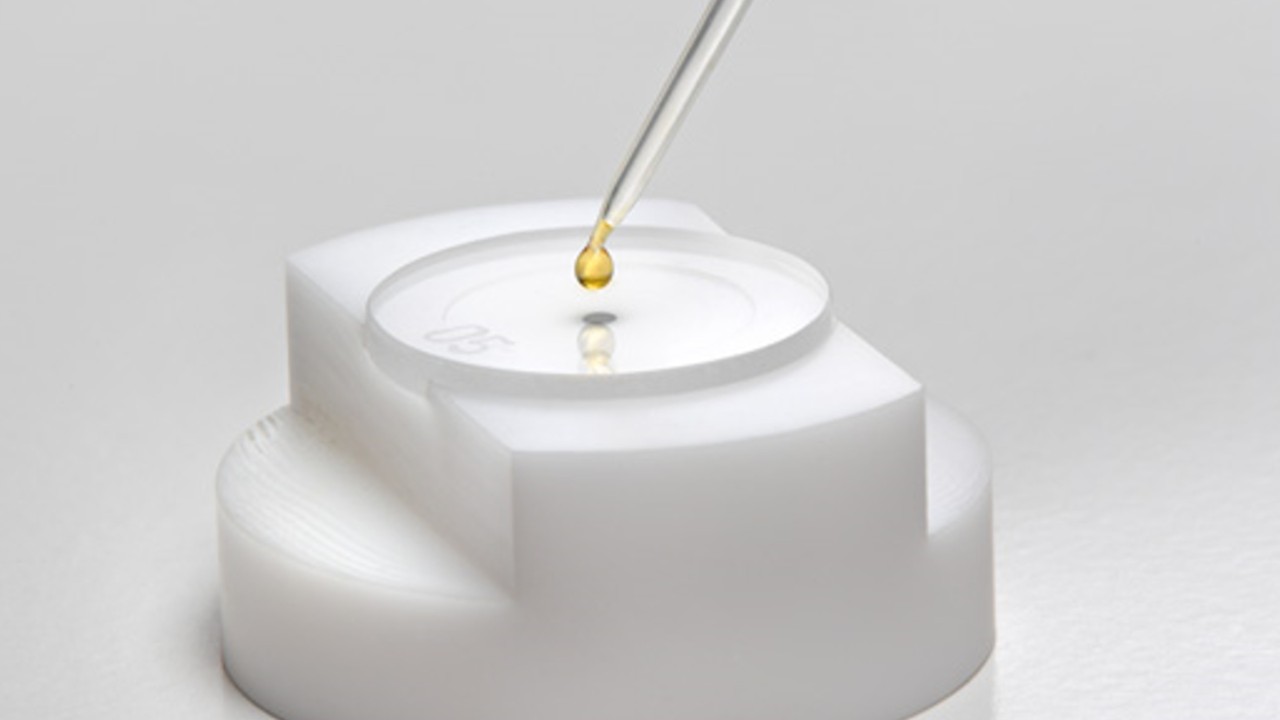

  • The bottom plate includes center markings for direct sample pipetting

Convenient Sample Control and Archiving


  • Control the quality of your sample with a CCD camera.
  • Sample images are automatically archived for subsequent review.

Accessories to Help Avoid Contamination during TXRF Sample Preparation

When detecting samples at ultra-low ppb limits contamination avoidance is of the highest priority – when working with a pure sample the key to this is excellent sample preparation.

Bruker provides a range of accessories alongside their S2 PICOFOX and S4 T-STAR systems.

These include a T-BOX to help achieve contamination-free and accurate sample pipetting and the T-DRY for the vacuum desiccation of samples; with both being designed to help users avoid making any contact with the sample carrier.

Following the collection of measurements, the sample disks can be efficiently and effectively cleaned for later use using Bruker’s chemically resistant washing cassette before clean storage in the T-BOX.

Find out more by dowloading our TXRF Accessories Brochure and watching our video on sample preparation during TXRF.
