MR Microscopy & High Power Diffusion

Probes

MR Microscopy probes feature exchangeable rf coils in various diameters for 1H and X-nuclei available as single or double tuned.
MiniWB57

Основные моменты

MR Microscopy Probes

MICWB40

Micro2.5 -MicWB40

Wide Bore Probe with a sample diameter of 5-30 mm and a gradient strength of 1.5 T/m. The MicWB40 is the MR microscopy workhorse -versatile and powerful. Enabling support for an unlimited amount of studies, such as, rock cores, food, or small rodents.

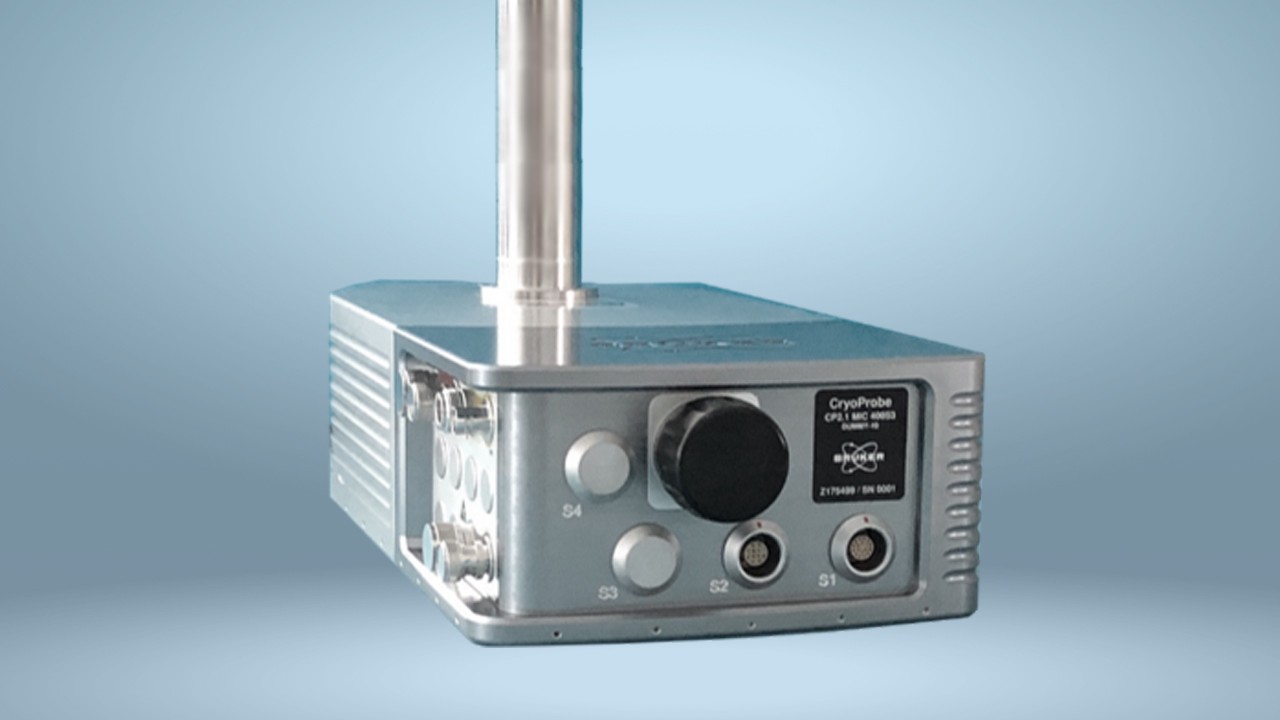

Micro2.5 CryoProbe

Micro2.5 - CryoProbe

Bruker’s CyroProbe expertise into the field MR microscopy is leading to new, exciting opportunities. MR Microscopy techniques for small samples with dedicated diameters 5 and 10 mm benefit from CryoProbe technology and a factor of up to 4 improvement in sensitivity on non-polar samples.

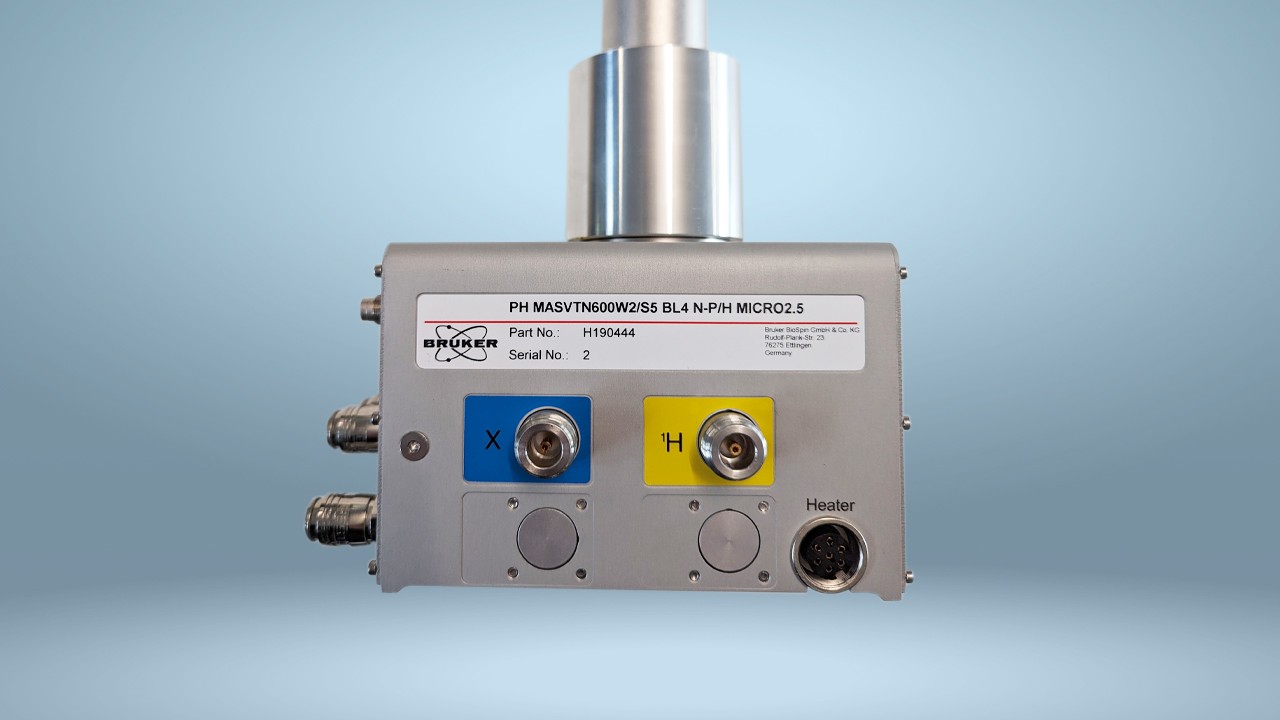

MicroMAS

Micro2.5 - Magic Angle Spinning

Fusing Magic Angle Spinning (MAS) technology with the MR Microscopy gradient technology enables to acquire images and localized spectra of semi-solid objects due to the combination of reduced signal linewidth with a high and very linear gradient field. Rotors with a 3.2 or 4 mm diameter are offered, further on request. Besides imaging applications very slow diffusion processes can be investigated applying the strong gradient fields.
Microscopy

Micro5

MR microscopy standard bore probe with exchangeable coils and integrated gradients for samples up to 10mm diamater.

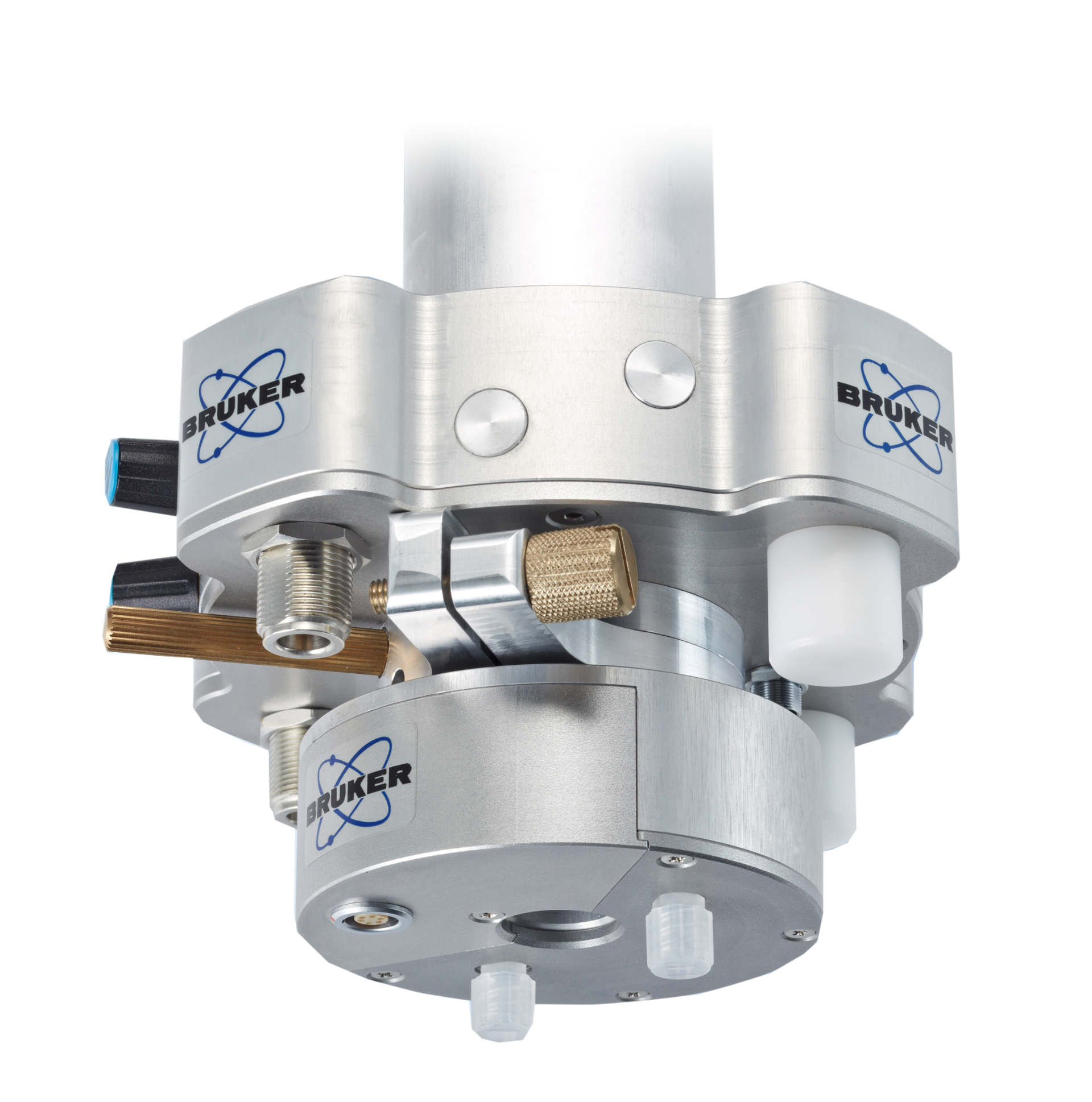

MINIWB57

Mini0.75 – MiniWB57R

The MiniWB57R rf probe offers the max. available sample space in a WB magnet - a perfect compromise between space and gradient strength. Its main application field is in in-vivo studies of rodents, such as, large mice or small rats. Combined with it‘s exchangable rf coils it can be adapted to perfeclty match your application.
MiniSWB

SWB Probes – MiniSWB90

Bruker’s vertical super wide bore (SWB) magnets provide a space for samples up to a diameter of 66 mm. Therefore it is Bruker’s largest vertical magnet system with a room temperature bore diameter of 154 mm. The MiniSWB90 super wide bore rf probe is optimized for material research and the investigation of process parameters.
