磁気共鳴顕微鏡・高出力拡散測定

磁気共鳴顕微鏡プローブ

磁気共鳴顕微鏡のプローブは、様々な直径の交換可能なRFコイルを特徴としており、シングルまたはダブルチューンで1Hおよび多核分析が可能です。

MR Microscopy Probes

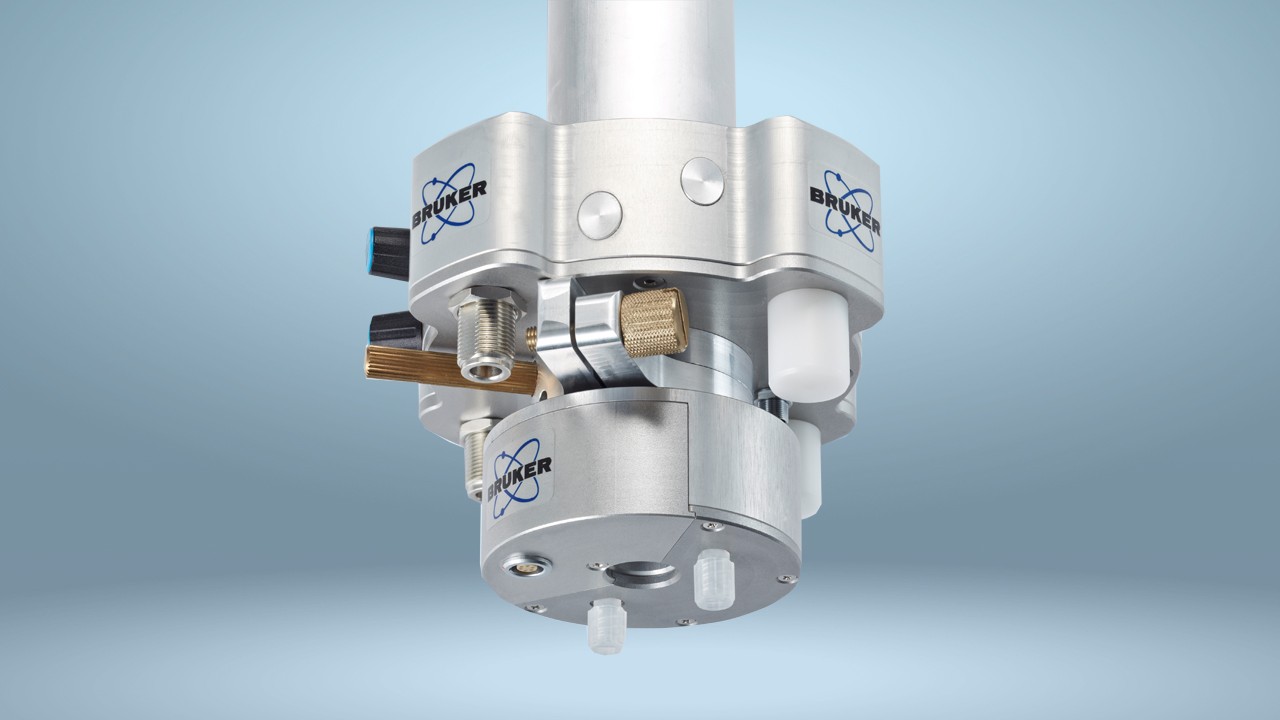

MICWB40

Micro2.5 -MicWB40

Wide Bore Probe with a sample diameter of 5-30 mm and a gradient strength of 1.5 T/m. The MicWB40 is the MR microscopy workhorse -versatile and powerful. Enabling support for an unlimited amount of studies, such as, rock cores, food, or small rodents.

詳細はこちら

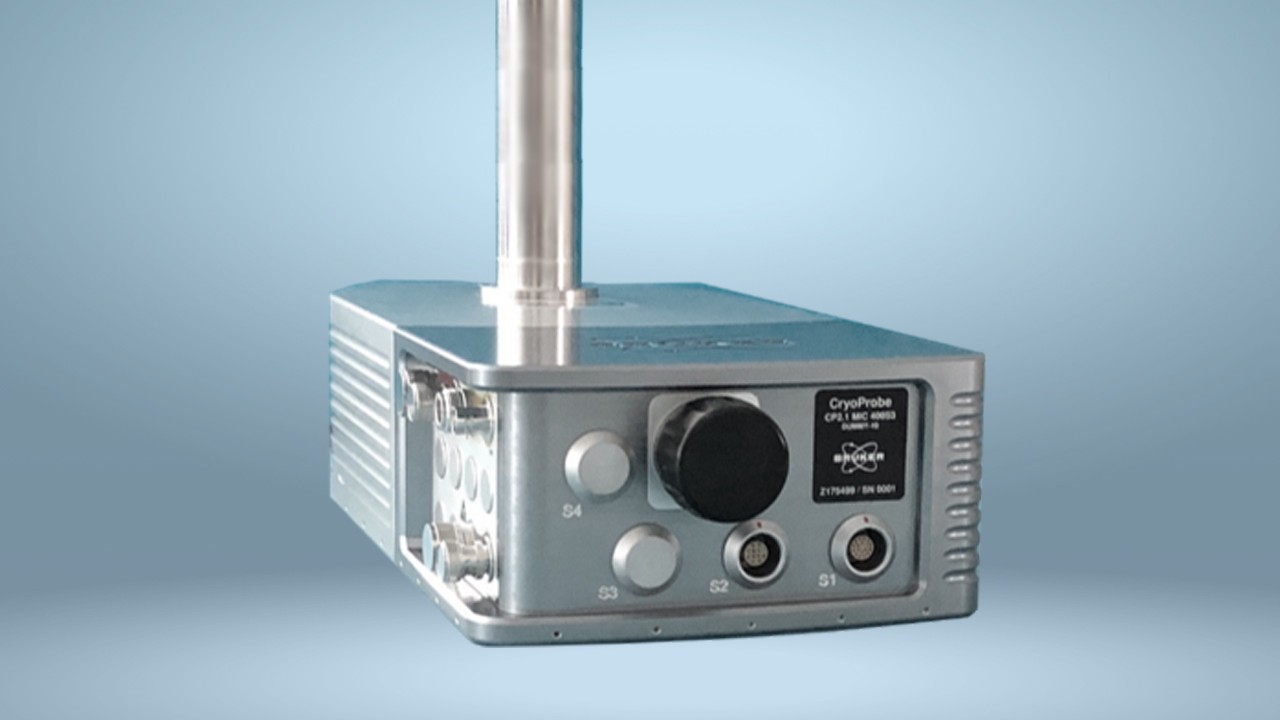

Micro2.5 CryoProbe

Micro2.5 - CryoProbe

Micro2.5 - CryoProbe with a sample diameter of 5 or 10 mm and a gradient strength of 1.5 T/m. Requires Micro2.5 gradient probe. The Cryoprobe takes image quality to the next level. Depending on the application it increases spatial resolution and/or reduces scan times. It is the perfect solution for the investigations of plants, small animals, porous and inhomogeneous objects, study fast dynamic processes or microliter spectroscopy.

詳細はこちら

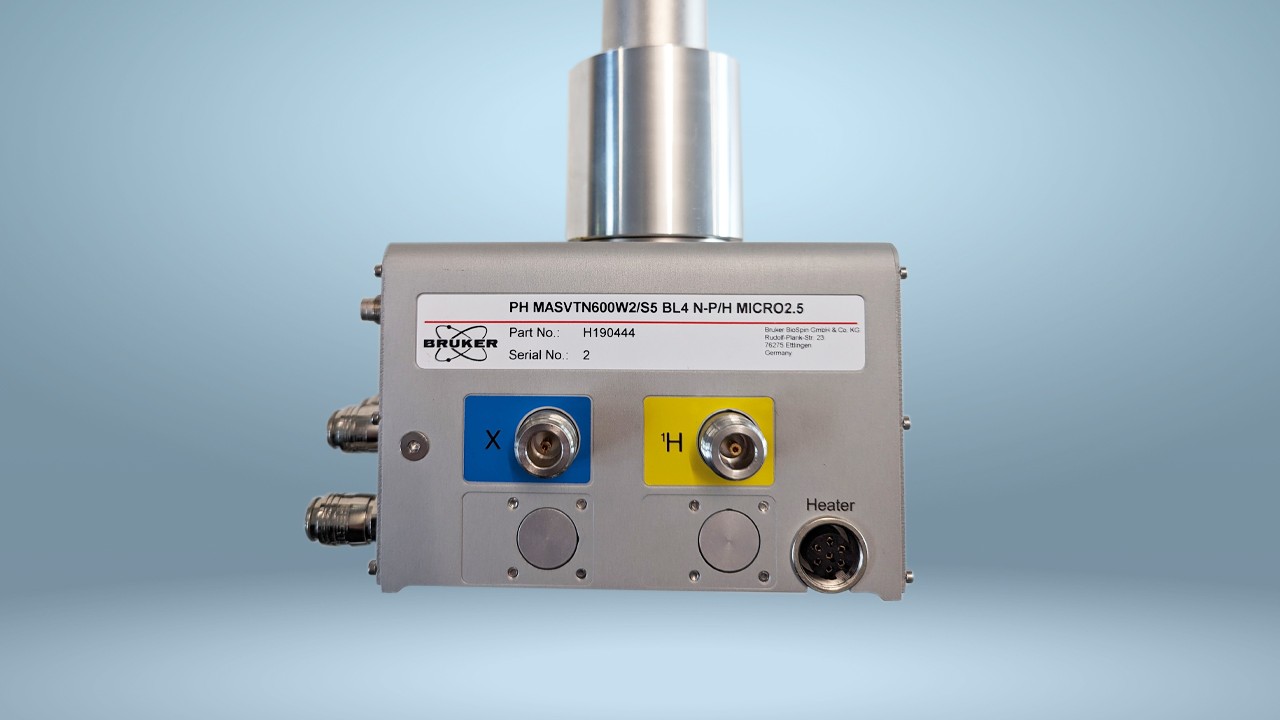

MicroMAS

Micro2.5 - Magic Angle Spinning

Wide Bore Probe, requires Micro2.5 gradient probe. The Micro2.5 Magic Angle Spinning Probe combines powerful MAS technology with the unique MR microscopy gradient technology and enables to acquire stunning images and localized spectra of semi-solid objects.

詳細はこちら

Microscopy

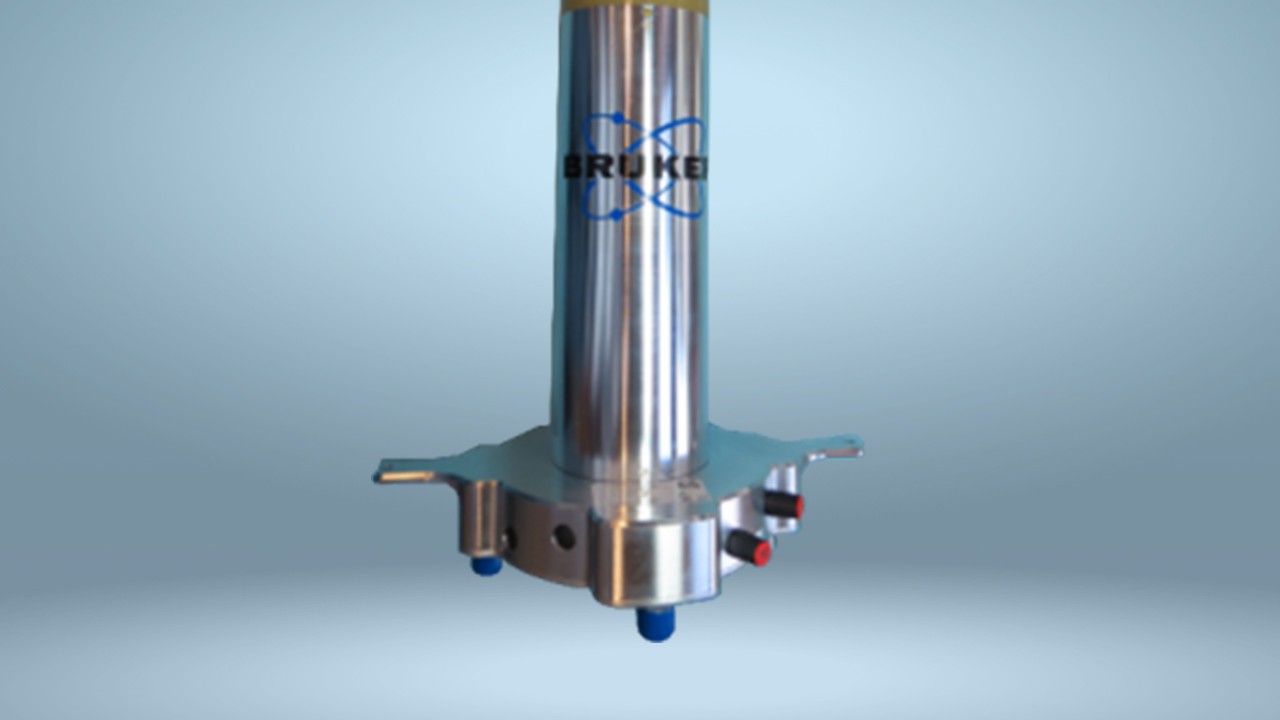

Micro5

Standard Bore Probe with a Sample Diameter of 0.5 -10 mm and aGradient strength of 3 T/m. The Micro5 probe utilizes Bruker’s strongest imaging gradient and is typically used to study mineral or geologic samples, polymers, tablet dissolution kinetics, plants and seeds, bone or tissue biopsy.

詳細はこちら

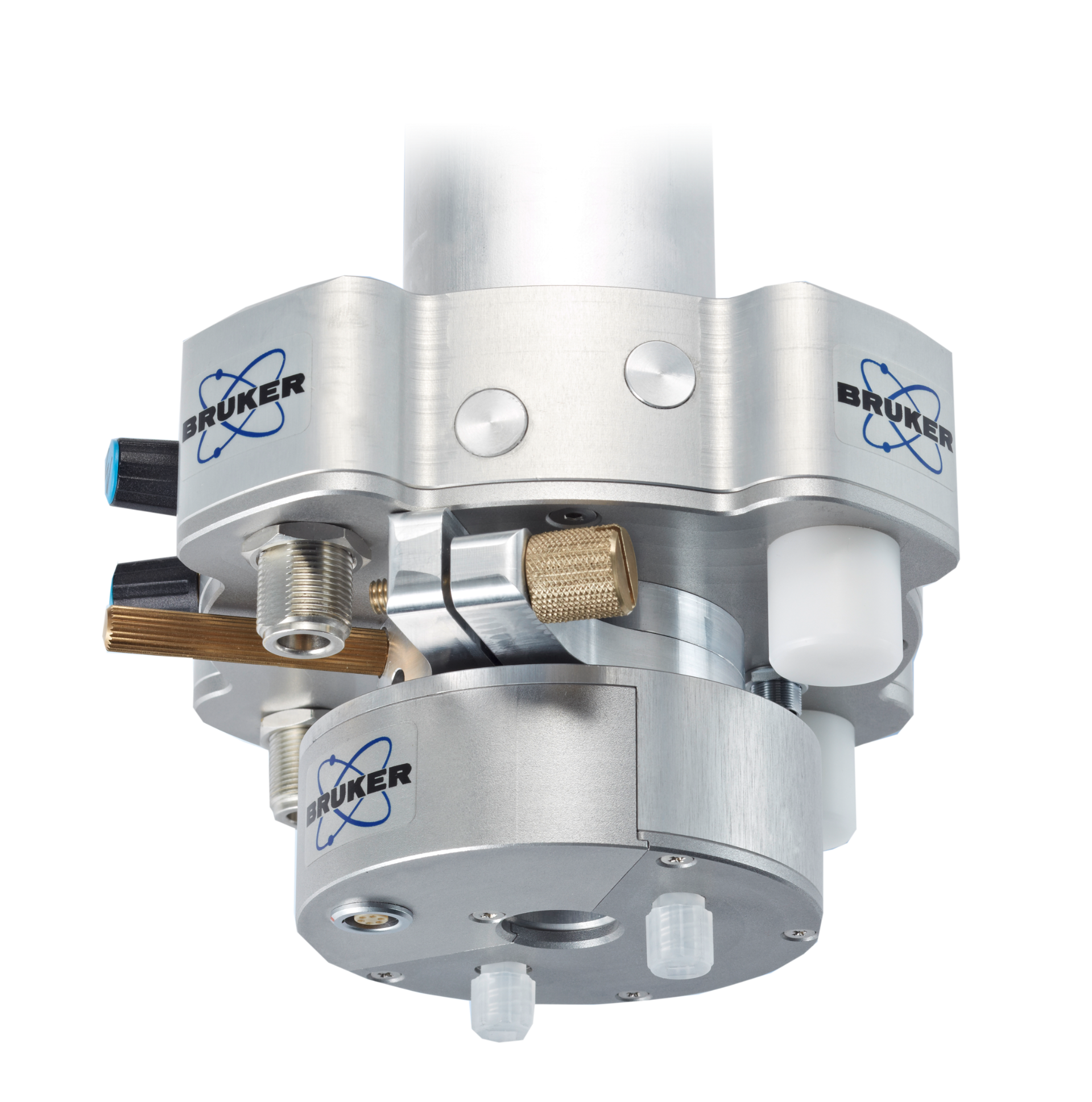

MINIWB57

Mini0.75 – MiniWB57R

Wide Bore Probe with a Sample Diameter of 20 -40 mm and a Gradient strength of 470 mT/m. The Mini0.75 gradient probe in conjunction the MiniWB57R rf probe allows the investigation of larger samples in a WB magnet but supplies a lower gradient amplitude compared to the Micro 2.5. The probe excels at in vivo studies with larger mice or young rats, or all other kind of samples, where larger sample space is required

詳細はこちら

MiniSWB

SWB Probes – MiniSWB90

Super Wide Bore Probe with a Sample Diameter 20 -66 mm and a Gradient strength of 780 mT/m. The MiniSWB90 super wide bore probe is optimized for material research and the investigation of process parameters. Offering a stunning sample space of up to 66 mm OD it is the largest probe for Bruker vertical bore magnets

詳細はこちら

MR Diffusion Probes

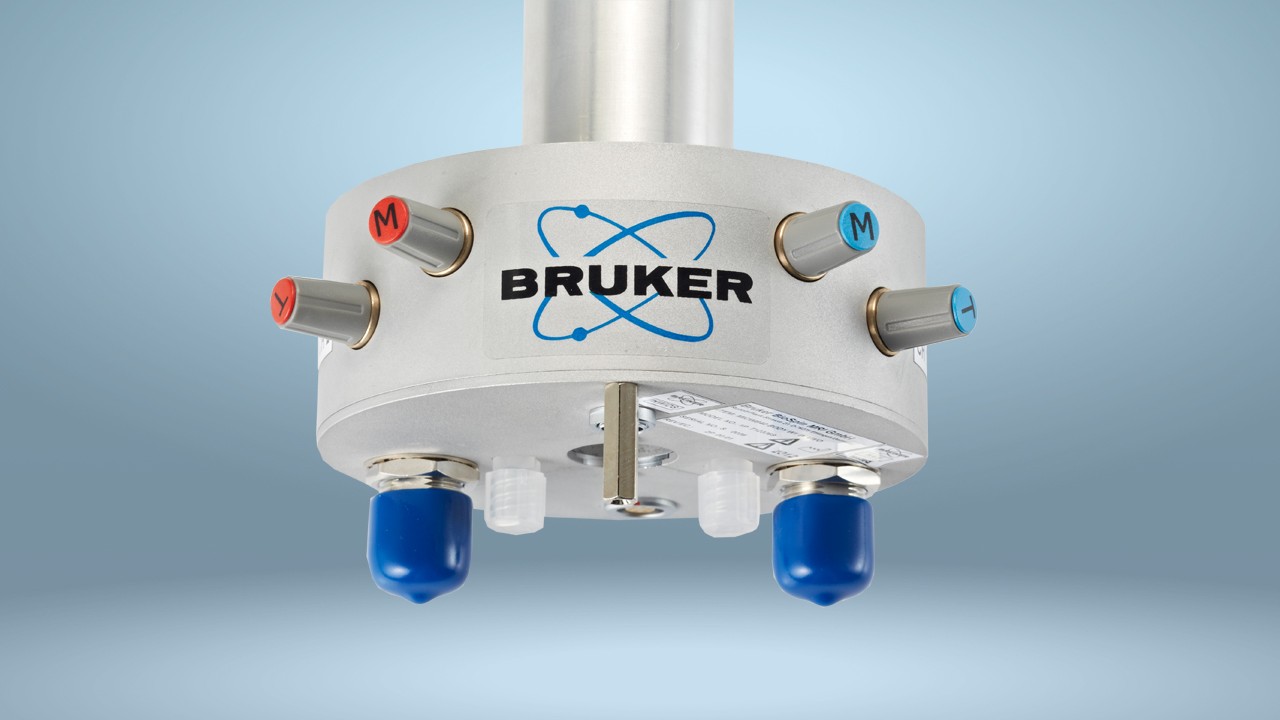

DiffBB

DiffBB

The DiffBB is a broadband gradient probe optimized for very strong gradient pulses made for samples in 5 mm sample tubes. Its broadband capability supports 1H and 19F, and a broadband X nucleus range

詳細はこちら

Microscopy

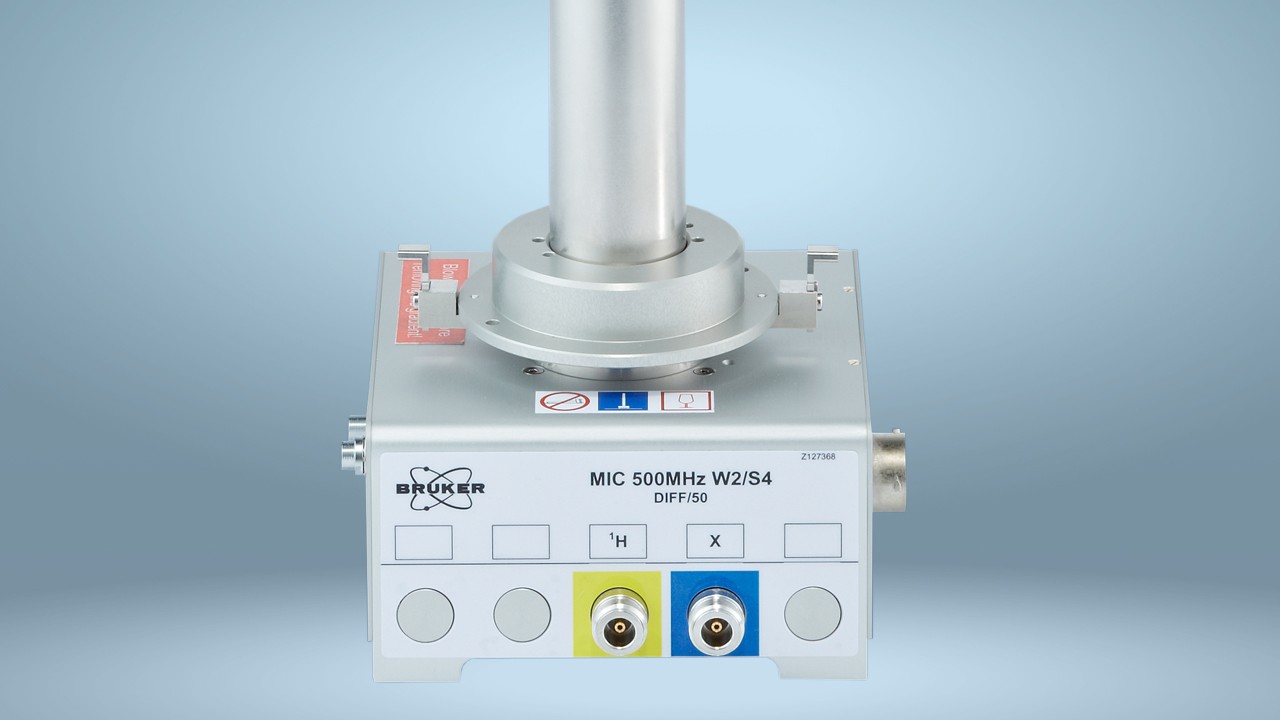

Diff50

The Diff50 gradient system is a high-power gradient system for diffusion applications in wide bore magnets, optimized for very strong gradient pulses and fast switching times.

詳細はこちら

Microscopy

Micro5

Standard Bore Probe with a Sample Diameter of 0.5 -10 mm and aGradient strength of 3 T/m. The Micro5 probe utilizes Bruker’s strongest imaging gradient and is typically used to study mineral or geologic samples, polymers, tablet dissolution kinetics, plants and seeds, bone or tissue biopsy.

詳細はこちら

LabScape

磁気共鳴および前臨床イメージング向けのサービスとライフサイクルサポート

ブルカーは、最初のお問い合わせから評価、据え付け、その後装置が寿命を迎えるまでの購入サイクル全体を通して、お客様に比類のないサポートを提供することをお約束します。

LabScapeの保守契約、On-Site、On-DemandおよびEnhance Your Labは、現在の実験室に適した保守とサービスを行うために、新しいアプローチを提供するよう設計されています。
