MR Microscopy & High Power Diffusion

Probes

MR microscopy probes feature exchangeable rf coils in various diameters for 1H and X-nucleus available as single or double tuned.

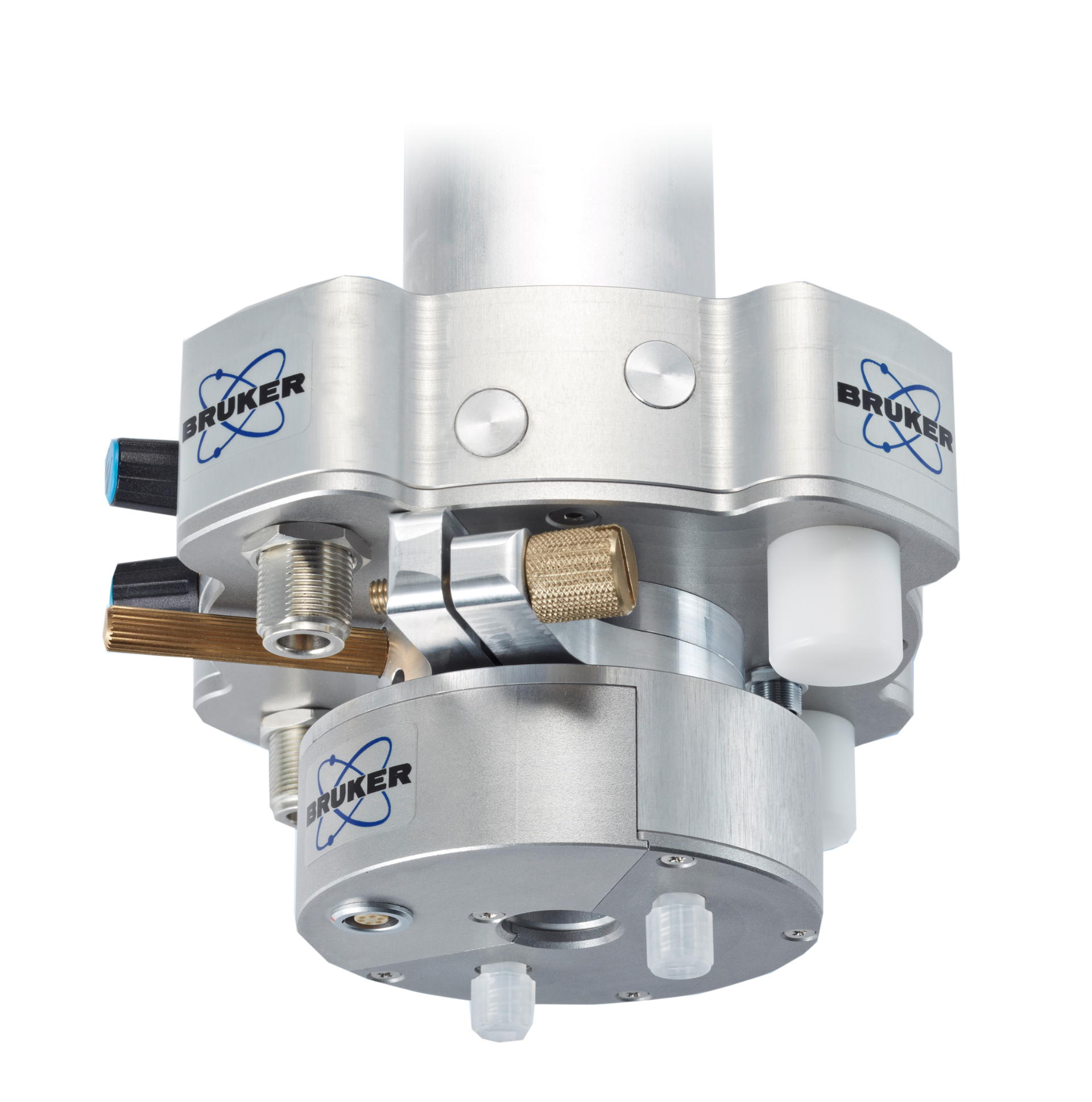

MiniWB57

Najważniejsze informacje

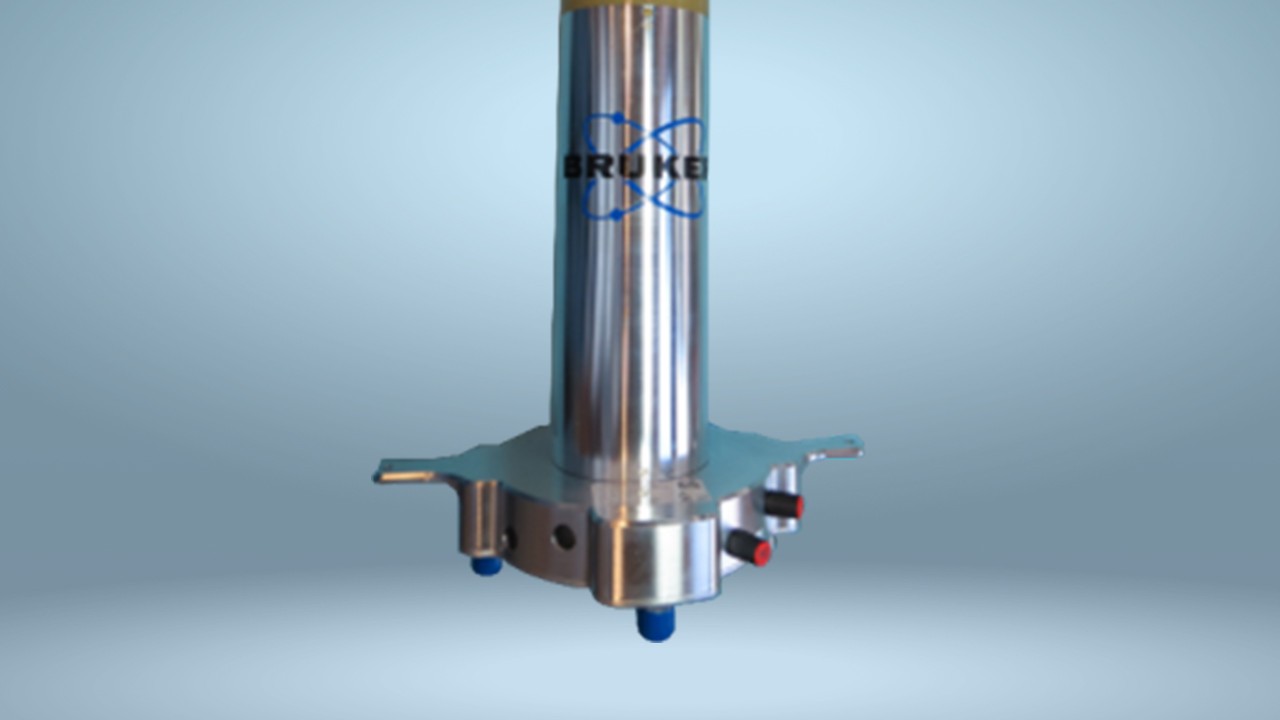

Micro5

MR microscopy standard bore probe with exchangeable coils and integrated gradients for samples up to 10mm diamater.

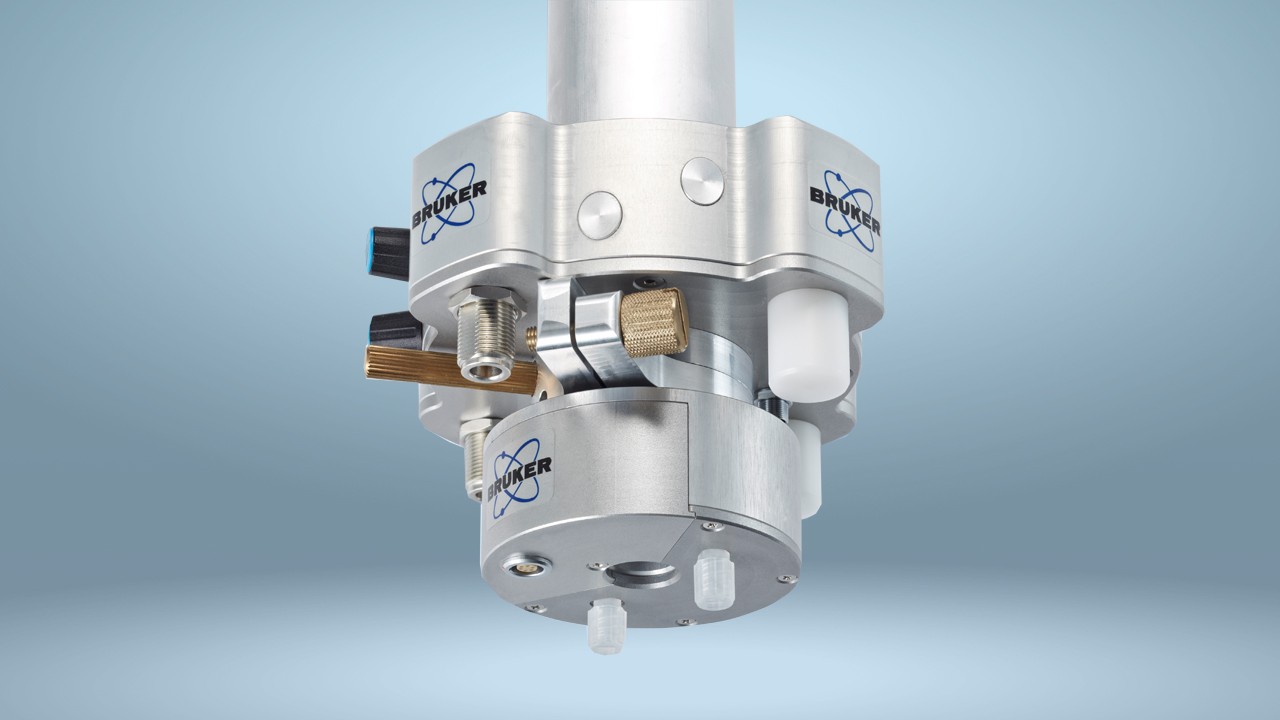

Mini0.75 – MiniWB57R

The MiniWB57R rf probe offers the max. available sample space in a WB magnet - a perfect compromise between space and gradient strength. Its main application field is in in-vivo studies of rodents, such as, large mice or small rats. Combined with it‘s exchangable rf coils it can be adapted to perfeclty match your application.

SWB Probes – MiniSWB90

Bruker’s vertical super wide bore (SWB) magnets provide a space for samples up to a diameter of 66 mm. Therefore it is Bruker’s largest vertical magnet system with a room temperature bore diameter of 154 mm. The MiniSWB90 super wide bore rf probe is optimized for material research and the investigation of process parameters.

DiffBB

The DiffBB is a broadband gradient probe with the Automatic Tuning Module (ATM) for NMR diffusion investigations of a wide range of diffusivities. 10-8 to 10-13 m2/s (10-15 m2/s under favorable sample conditions).

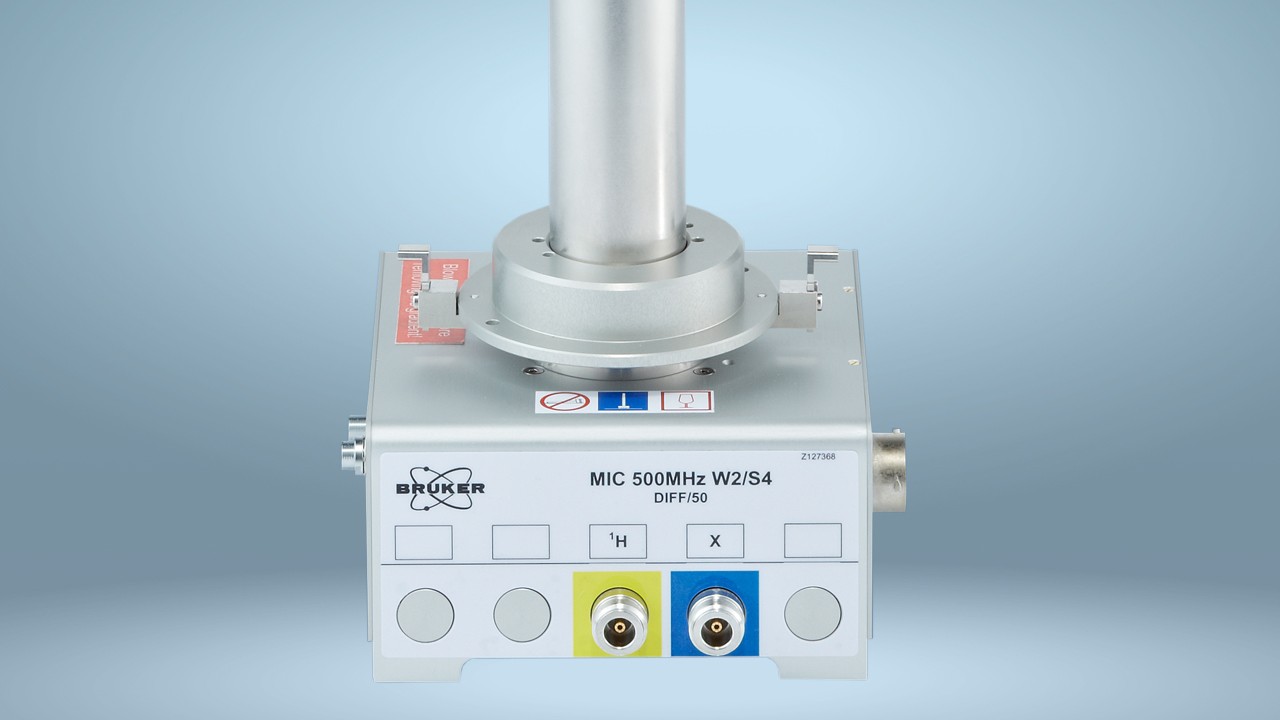

Diff50

The Diff50 gradient system is a high-power gradient system for diffusion applications in wide bore magnets, optimized for very strong gradient pulses and fast switching times.

old pages

Micro5

MR microscopy standard bore probe with exchangeable coils and integrated gradients for samples up to 10mm diamater.

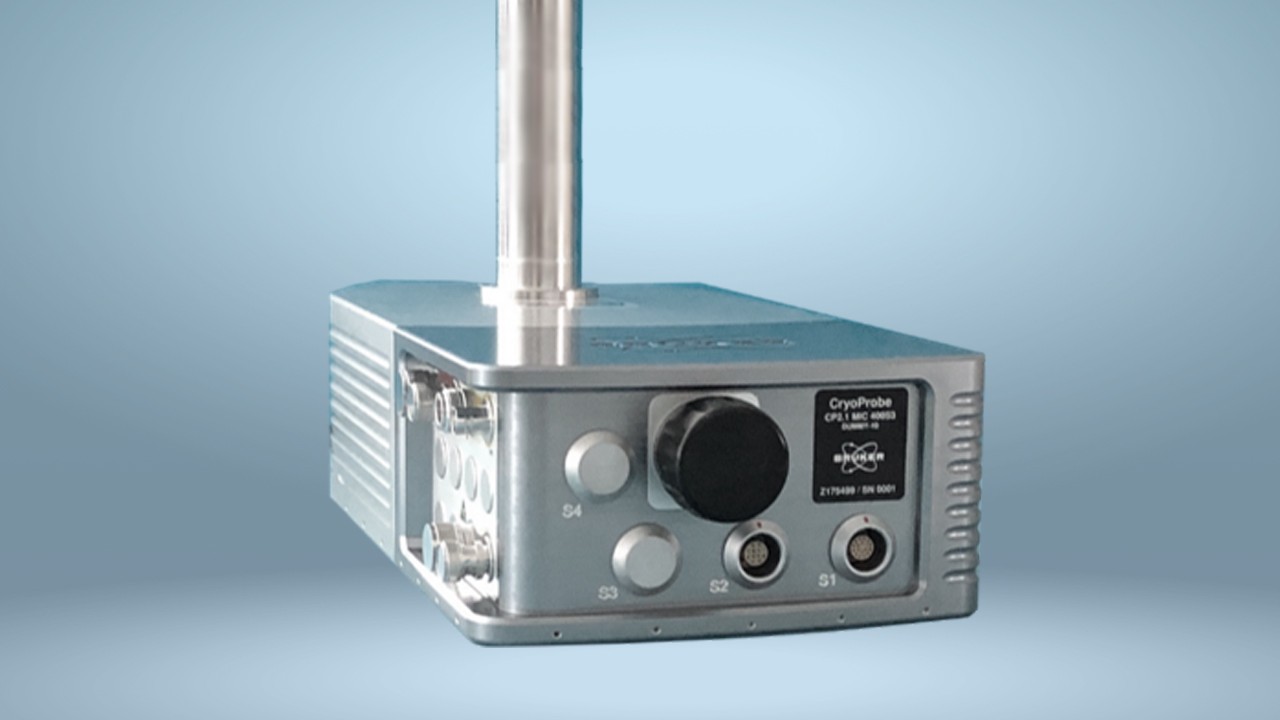

Micro2.5 - CryoProbe

Bruker’s CyroProbe expertise into the field MR microscopy is leading to new, exciting opportunities. MR Microscopy techniques for small samples with dedicated diameters 5 and 10 mm benefit from CryoProbe technology and a factor of up to 4 improvement in sensitivity on non-polar samples.

Micro2.5 - MicWB40

The Micro2.5 is Bruker‘s most versatile MR Microscopy probe. In combination with the MicWB40 rf probe system it offeres an optimized sample size / resolution ratio. Combined with it‘s exchangable rf coils (2.5-30 mm) it can be adapted to perfeclty match your application.

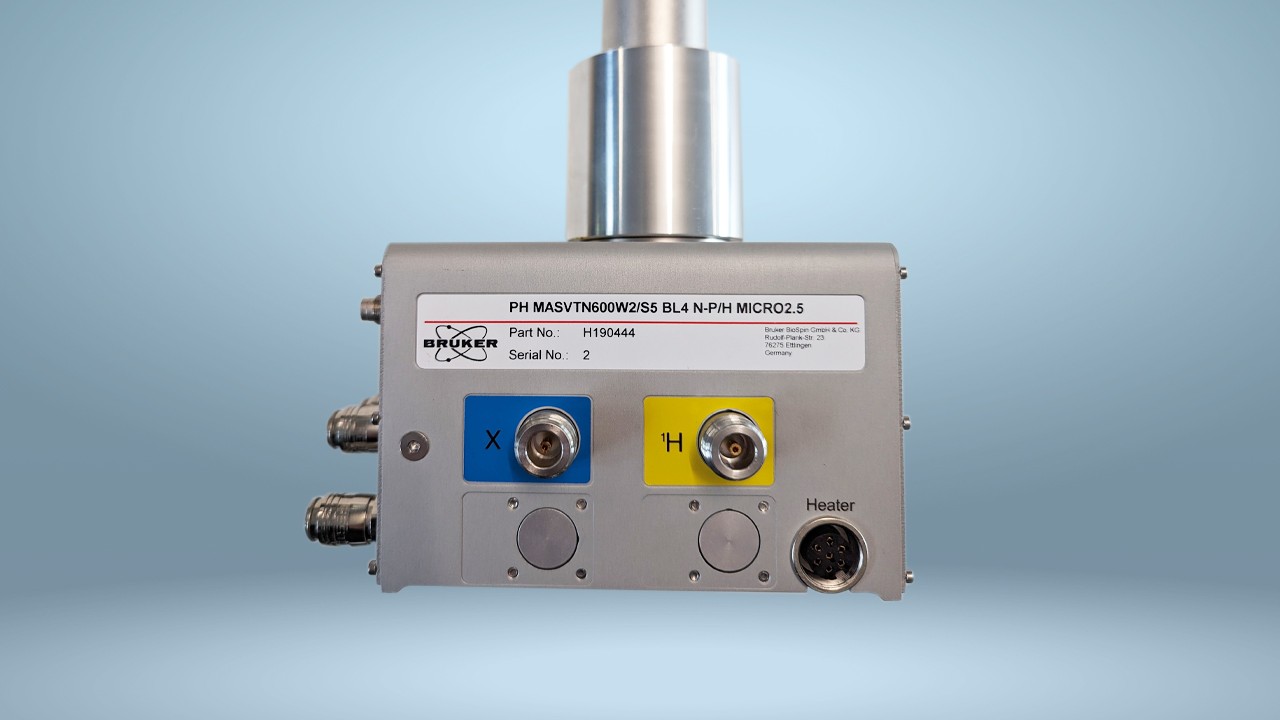

Micro2.5 - Magic Angle Spinning

Fusing Magic Angle Spinning (MAS) technology with the MR Microscopy gradient technology enables to acquire images and localized spectra of semi-solid objects due to the combination of reduced signal linewidth with a high and very linear gradient field. Rotors with a 3.2 or 4 mm diameter are offered, further on request. Besides imaging applications very slow diffusion processes can be investigated applying the strong gradient fields.

Mini0.75 – MiniWB57R

The MiniWB57R rf probe offers the max. available sample space in a WB magnet - a perfect compromise between space and gradient strength. Its main application field is in in-vivo studies of rodents, such as, large mice or small rats. Combined with it‘s exchangable rf coils it can be adapted to perfeclty match your application.

SWB Probes – MiniSWB90

The MR Microscopy product line from standard bore (SB) and wide bore (WB) magnets is expanded by super wide bore (SWB) magnets and by imaging racks with stronger high power gradient and shim amplifiers compared to the usual Grewat60 amplifiers..

DiffBB

The DiffBB is a broadband gradient probe with the Automatic Tuning Module (ATM) for NMR diffusion investigations of a wide range of diffusivities. 10-8 to 10-13 m2/s (10-15 m2/s under favorable sample conditions).

Diff50

The Diff50 gradient system is a high-power gradient system for diffusion applications in wide bore magnets, optimized for very strong gradient pulses and fast switching times.
