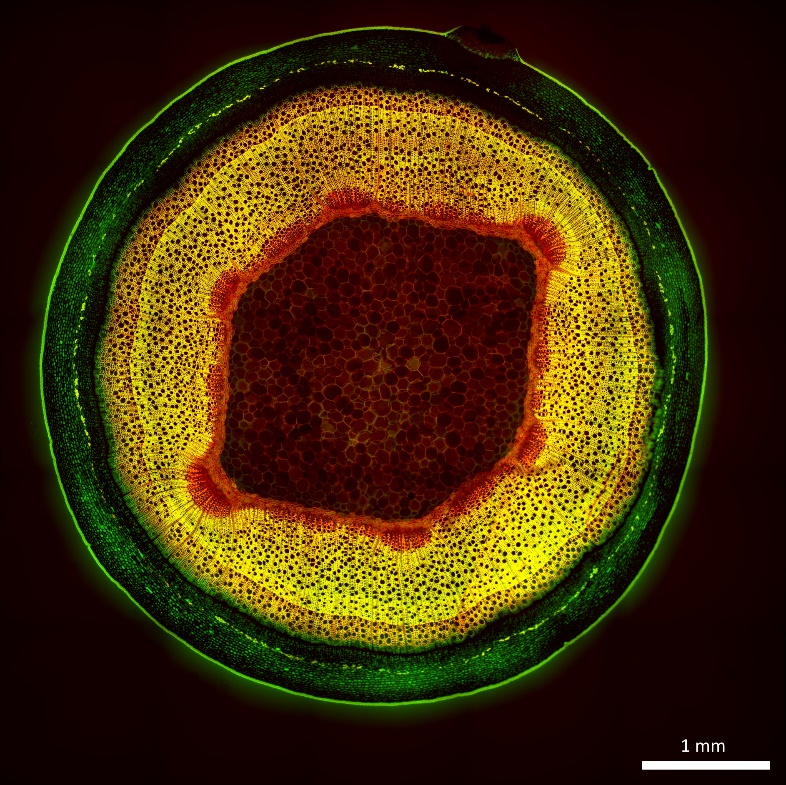

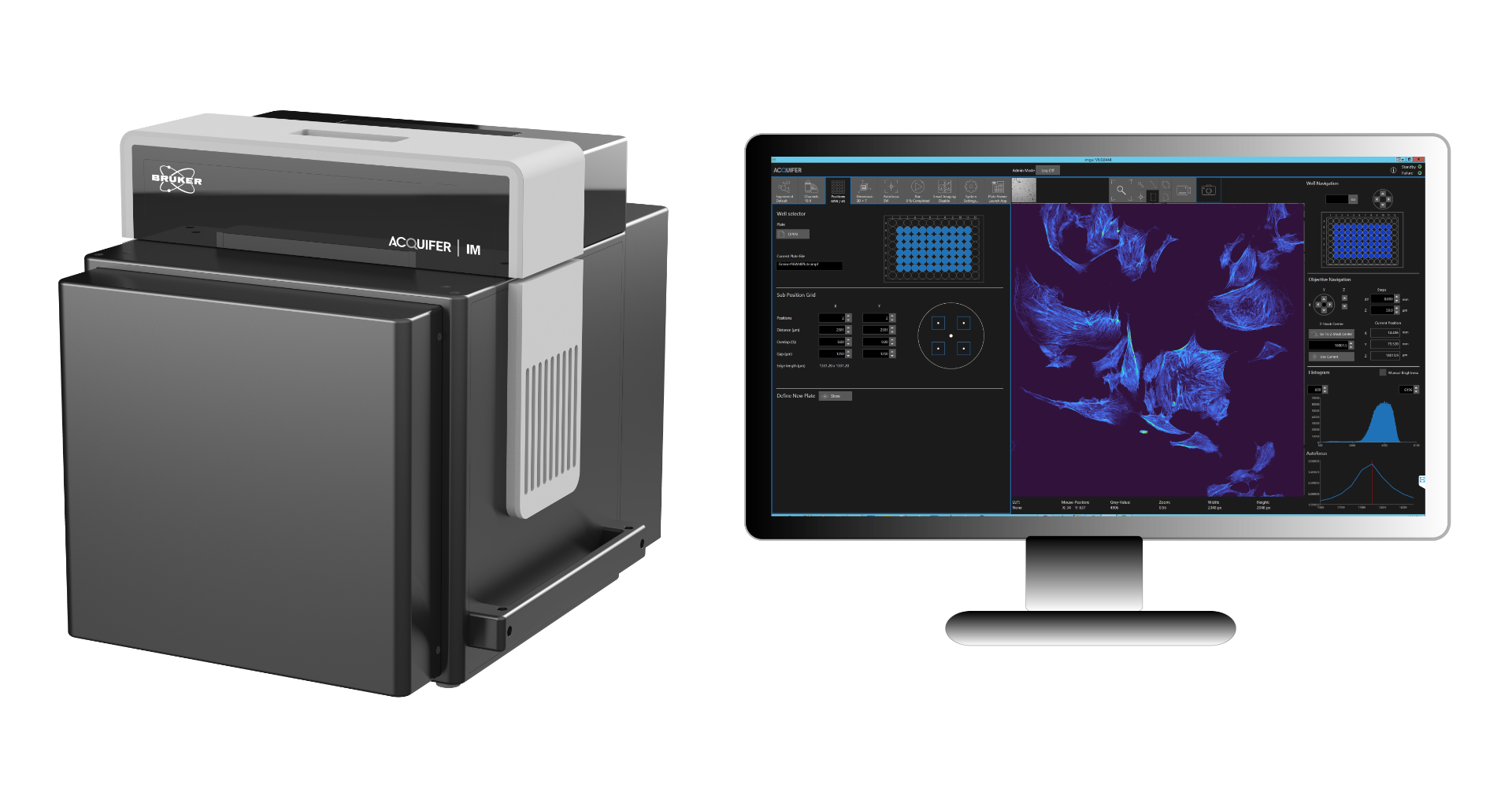

Acquifer IM (Imaging Machine) is a fully automated widefield microscope with data storage and processing capabilities ideal for high-content screening assays and phenotypic screening for small-model organisms. Its static sample holder with a mobile optical unit ensures sample stability during imaging, making it ideal for imaging motion-sensitive samples, such as non-adherent cell cultures or embryos.
High-Content Screening

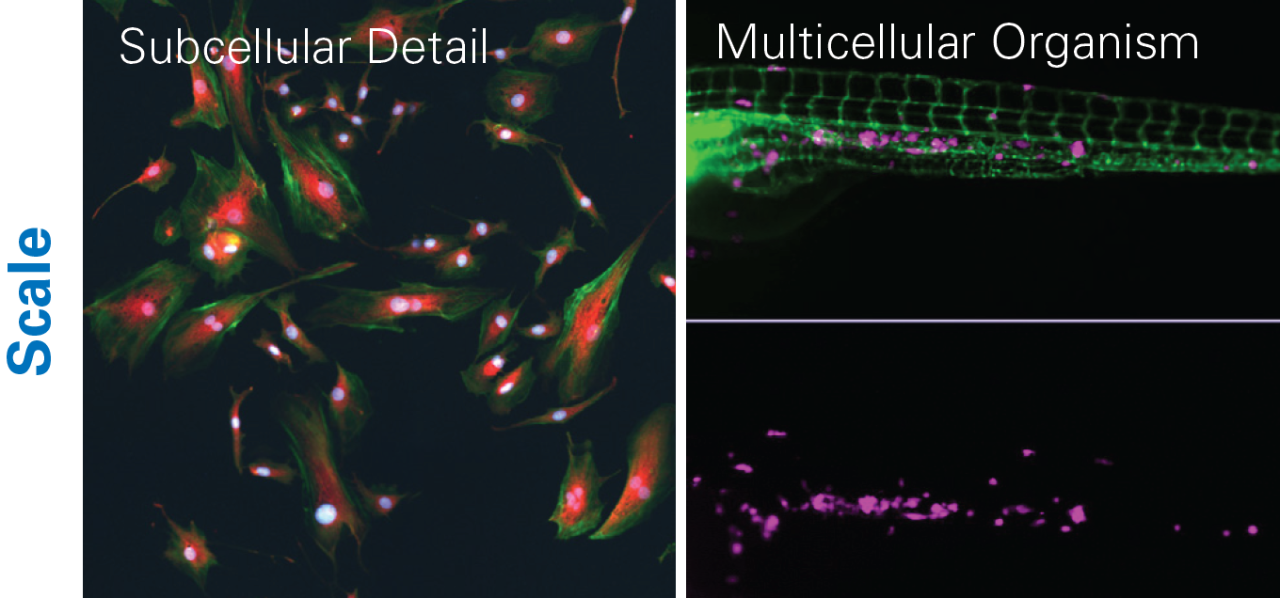

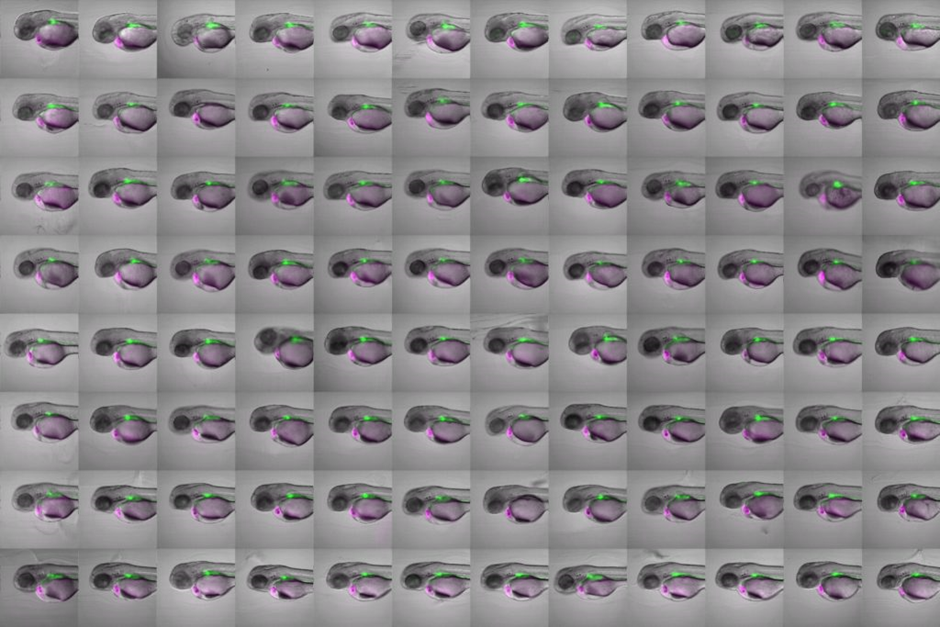

The Acquifer IM is a high-performance solution for screening and high-throughput imaging assays and is compatible with all commonly available multi-well plates (adaptions possible). A host of unique features include built-in temperature regulation, a robotic lid, and an open interface for seamless integration into automated workflows. Its comprehensive data storage and processing integrations are ideal for researchers performing high-content or phenotypic screening.
The software and workflow enable low-magnification pre-screen data of a full microtiter plate to be readily visualized in the Plate-Viewer software on the Acquifer IM high-throughput screening microscope. Different tools and matching algorithms enable the selection of regions of interest (ROIs) for each well and robust autolocalization of target structures for feedback microscopy.
Acquifer IM is optimized for your high-throughput experiments with:
- Optimal imaging conditions for sensitive specimens and long-term observations
- Uniblock optical design moves to your sample while your sample remains stationary
- Built-in temperature control (20 to 40°C) ± 0.5°C homogeneity over whole plate and over time
Zebrafish Imaging

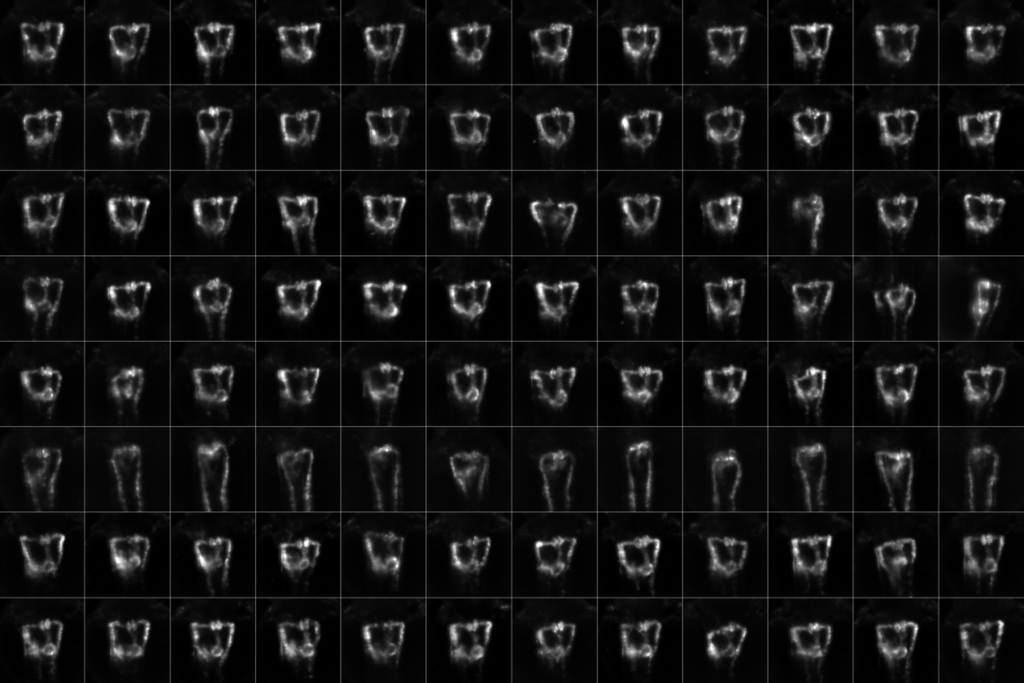

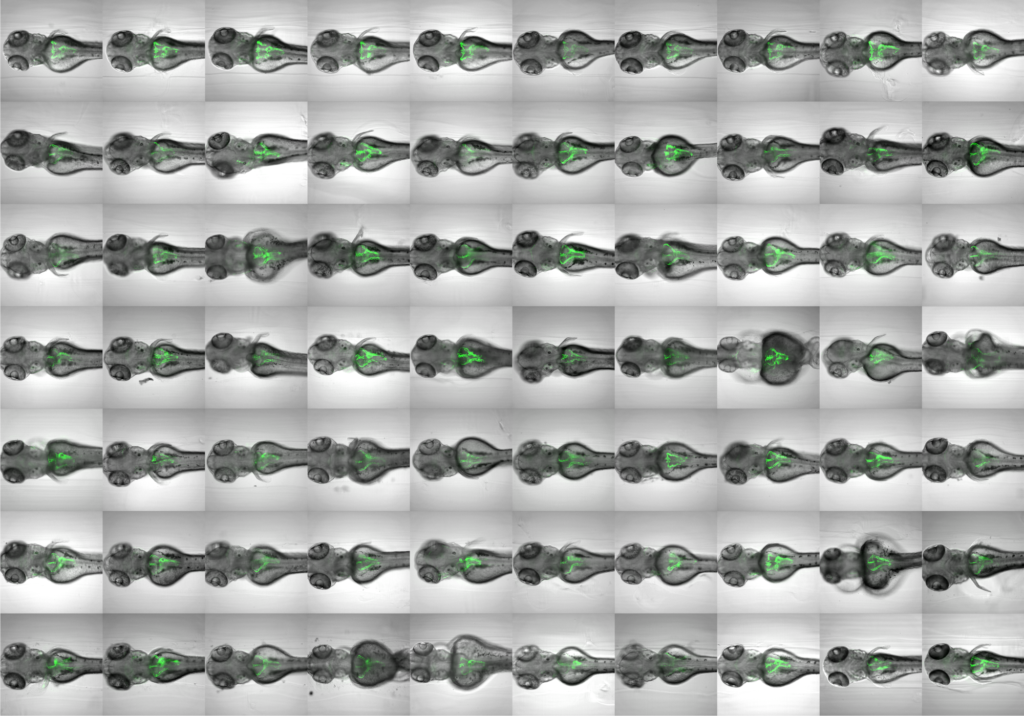

The Acquifer IM is ideally suited for high-throughput screening of zebrafish, an important preclinical model to study development, disease, and molecular and drug screening. The combination of a static sample holder, a mobile optical unit, and built-in temperature regulation ensures specimen stability during imaging.
Organoid Imaging

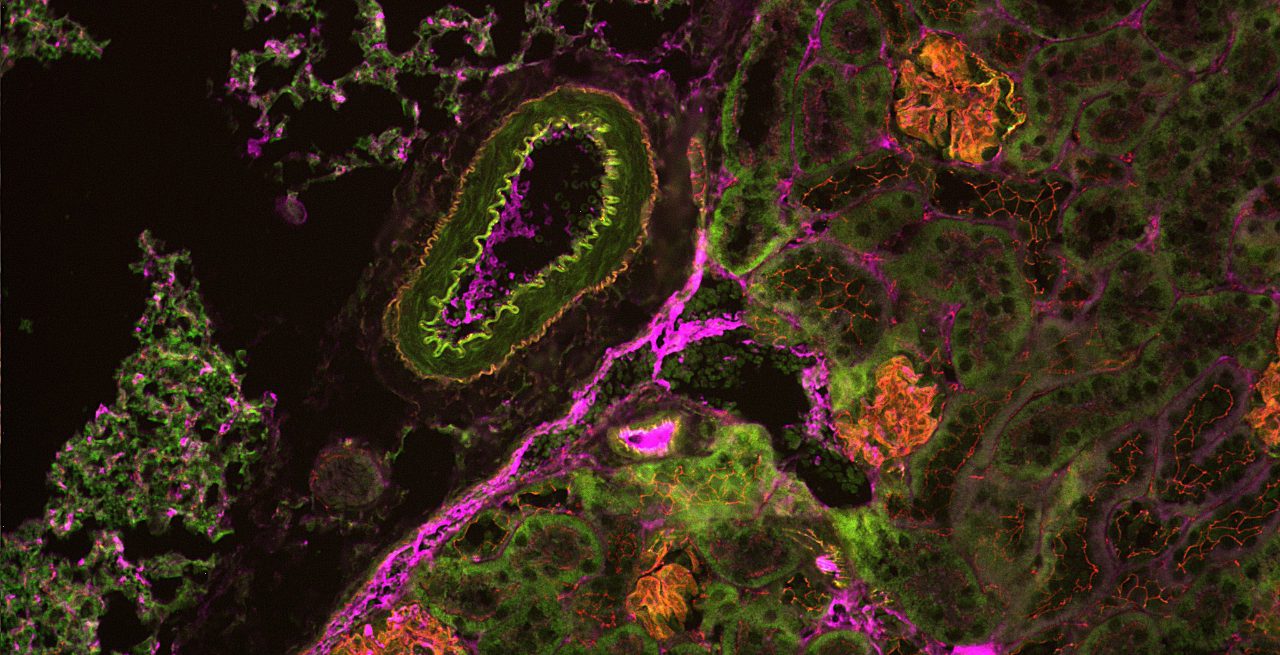

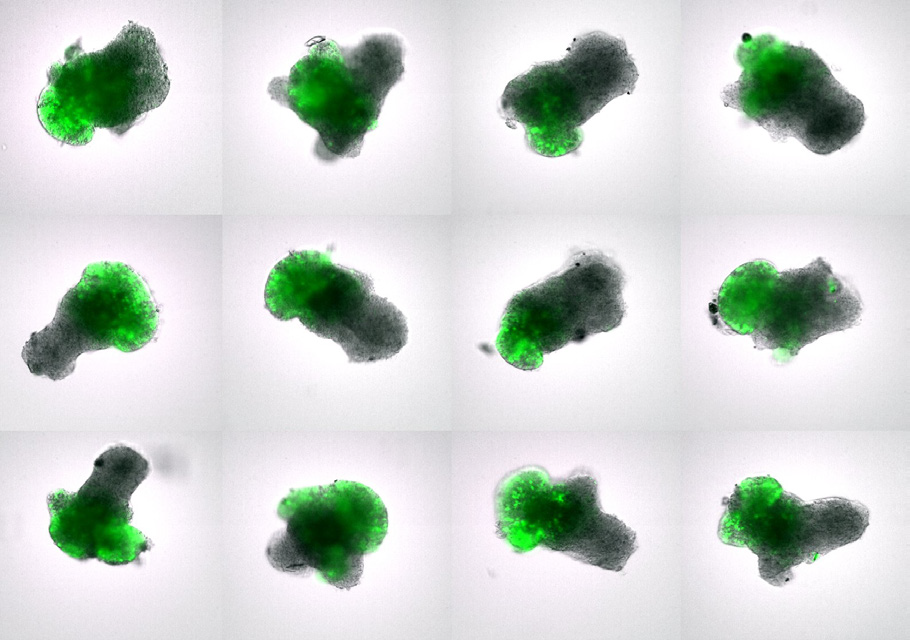

Acquifer IM provides invaluable insights into cellular structures and dynamic processes, such as tissue morphogenesis, differentiation, and biophysics. With the ability to conduct high-throughput screenings, it supports the study of developing organoids in combination with advanced genome editing techniques and tissue sections.

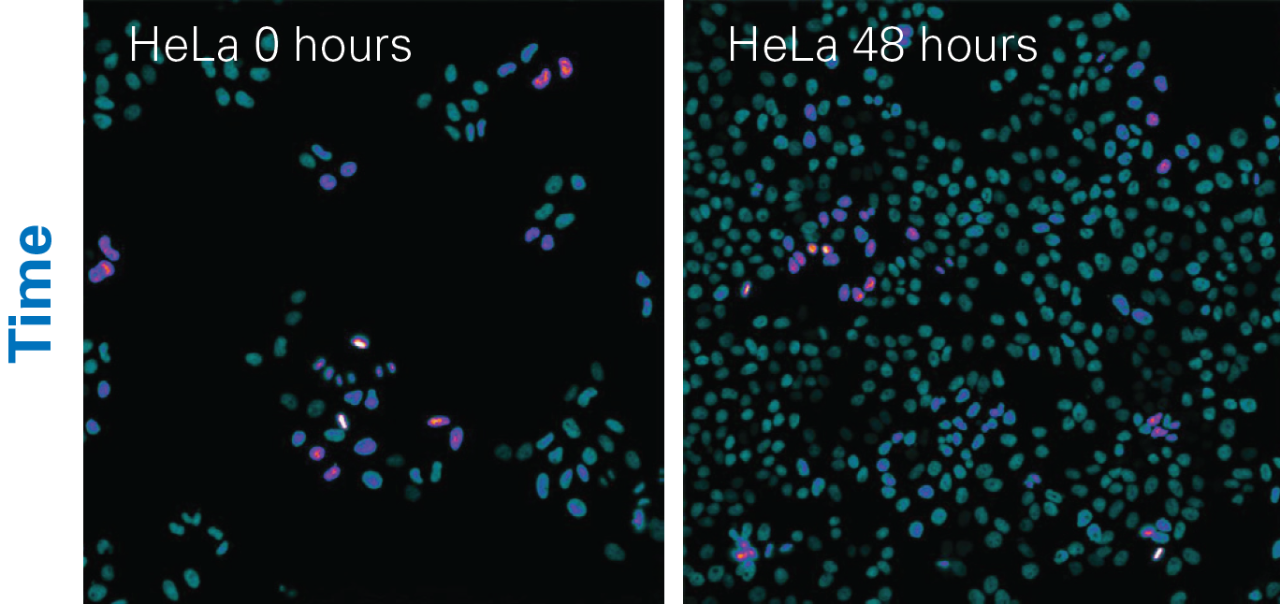

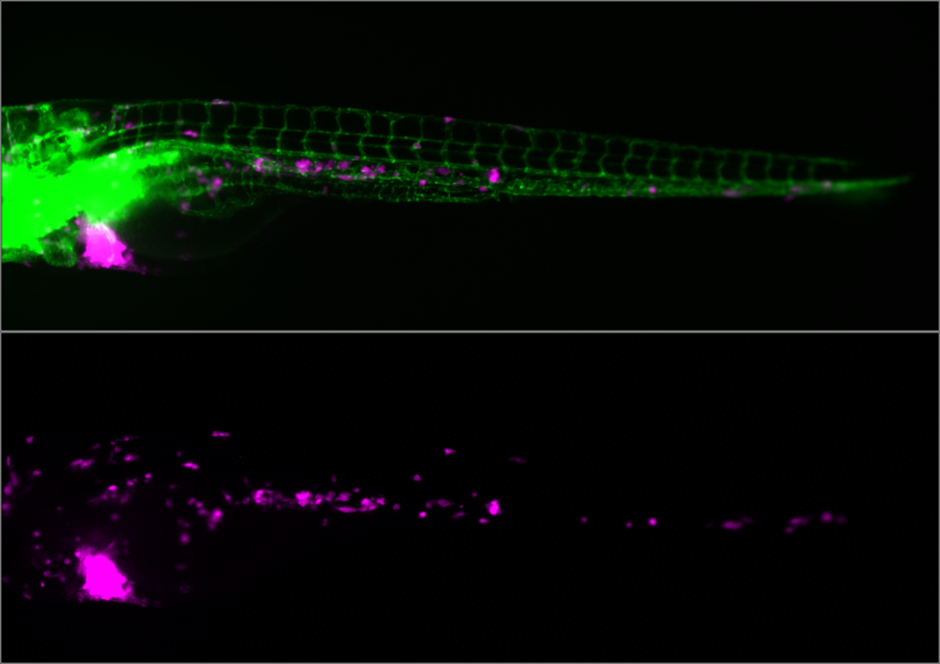

Other Applications
In-vivo Image-Based Large-Scale Phenotyping
Recent work by Welz et al. 1 demonstrates how live imaging of medaka embryos can be scaled to systematically study phenotype–genotype relationships in a developing vertebrate. The work combines high-content microscopy to capture embryonic heart rates at large scale with downstream genomic analysis and computational modelling. Together, this work links insights between genotype, dynamic phenotype, and developmental outcome.
This study contributes to a larger body of work by the research groups of Joachim Wittbrodt (COS, Heidelberg) and Ewan Birney (EMBL). Their earlier work established the feasibility of high throughput imaging of heart rates in small vertebrate models under tightly controlled environmental conditions 2. While more recent publications integrated imaging data with automated quantification, machine learning, and scalable bioinformatics pipelines 3. This was complemented by a large-cohort study 4 that demonstrated how these approaches can be applied to identify heart-disease associated genomic features.
The Bruker Acquifer IM provides the technical foundation required for this class of experiments. Its moving optics architecture enables rapid, repeatable imaging of short time series across multiwell plates while eliminating motion artefacts. The latter is key to robustly and automatically extract embryonic heart rates from acquired datasets. Equally critical, precise and stable temperature regulation ensures robust conditions for studying physiological responses at different environmental parameters.
Together, these capabilities support the generation of high-quality, time-resolved image datasets that integrate seamlessly with modern image analysis, machine learning, and genomics workflows. As illustrated by the work by Welz et al. 1 and related methodology papers, the Acquifer IM enables scalable, physiologically insightful, image-based assays that bridge microscopy and functional genomics.
References
- B. Welz et al., “Discovery and characterization of gene-by-environment and epistatic genetic effects in a vertebrate model,” Cell Genomics, p. 101164, Feb. 2026, doi: 10.1016/j.xgen.2026.101164.
- J. Gierten et al., “Automated high-throughput heartbeat quantification in medaka and zebrafish embryos under physiological conditions,” Sci Rep, vol. 10, no. 1, p. 2046, Feb. 2020, doi: 10.1038/s41598-020-58563-w.
- M. S. Ferreira et al., “FEHAT: efficient, large scale and automated heartbeat detection in Medaka fish embryos,” Bioinformatics, vol. 40, no. 12, p. btae664, Dec. 2024, doi: 10.1093/bioinformatics/btae664.
- J. Gierten et al., “Natural genetic variation quantitatively regulates heart rate and dimension,” Nat Commun, vol. 16, no. 1, p. 4062, Apr. 2025, doi: 10.1038/s41467-025-59425-7.
Specifications
| Objective | Magnification | Numerical Aperture | Working Distance |
| CFI P-Achromat UW2X | 2x | 0.06 | 7.5 |
| CFI Plan Fluor4X | 4x | 0.13 | 17.2 |
| CFI Plan Fluor10X | 10x | 0.3 | 16.0 |
| CFI S P-Fluor ELWD20xC | 20x | 0.45 | 8.2-6.9 |
| CFI S P-Fluor ELWD40xC | 40x | 0.6 | 3.6-2.8 |
IM Dimensions: 553mm (21.77") H x 528mm (20.79") W x 555mm (21.85") D
Photomanipulation
The photomanipulation module was developed in collaboration with Rapp Optoelectronic, Wedel, Germany, who has over 20 years of experience in high-performance photomanipulation and advanced light microscopy techniques.

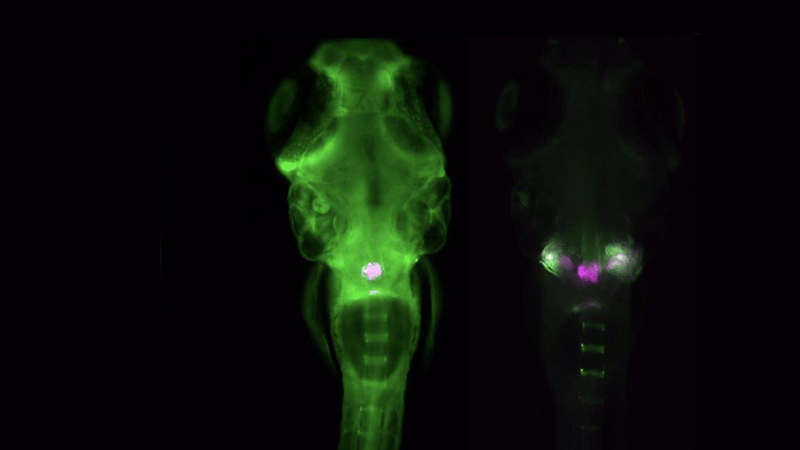

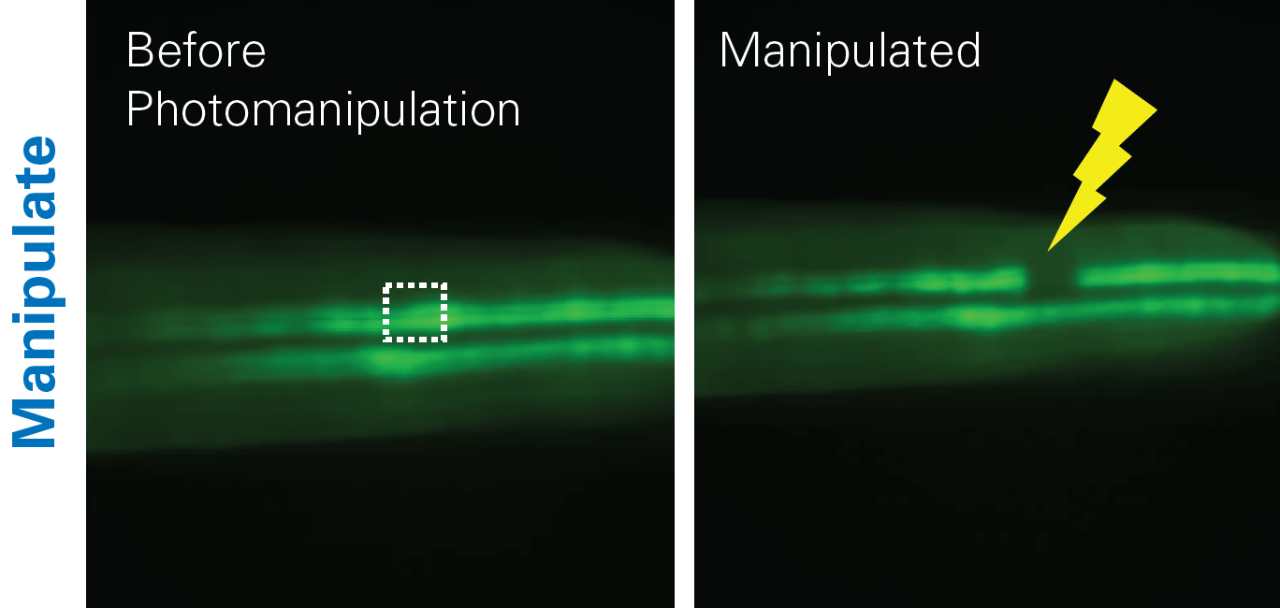

Its robust design enables researchers to perform advanced experiments with ease. Full datasets of entire microplates can be annotated and subsequently automatically photomanipulated without further user interaction. This enables large scale photomanipulation for various biomedical assays.
The module is an optional hardware upgrade allowing researchers to easily scale-up complex photomanipulation experiments such as photodamaging of cells and tissues, switch convertible fluorophores, uncage compounds or perform optogenetic activation.

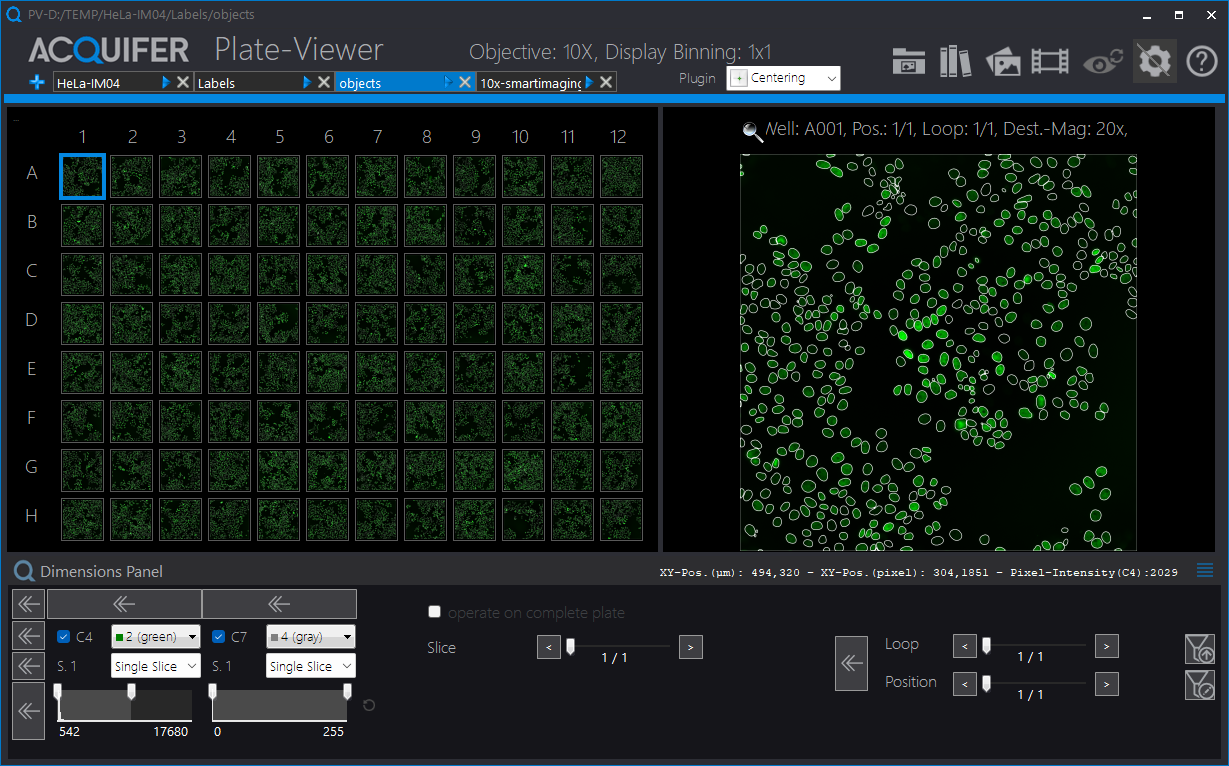

The Plate-Viewer Software on the Acquifer IM High-Throughput Screening Microscope

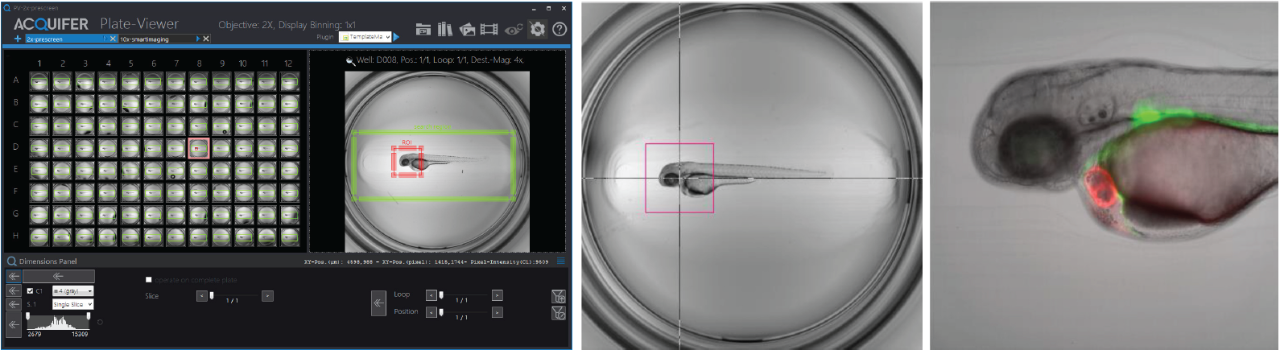

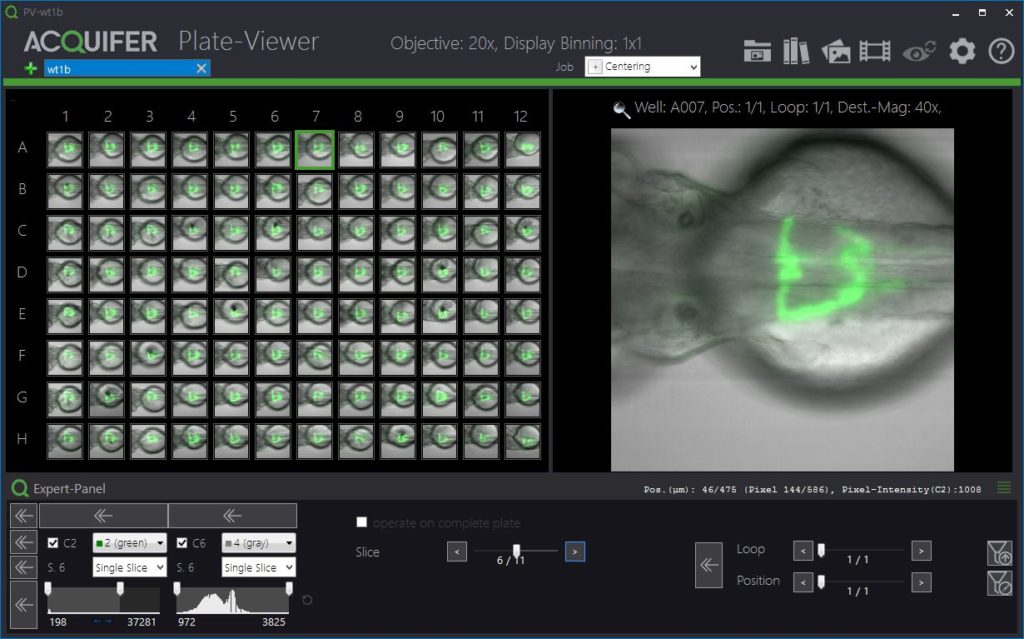

The Plate-Viewer visualization software utilizes data acquired with the Acquifer IM high-throughput screening microscope. The user interface and design allow for intuitive working with datasets, such as overviews of screening data, inspection of individual images and functionalities to adjust channels-display, save data visualizations or time-lapse movies.
Both the system and Plate-Viewer have an open interface that enables automated workflows and feedback-microscopy functionalities.

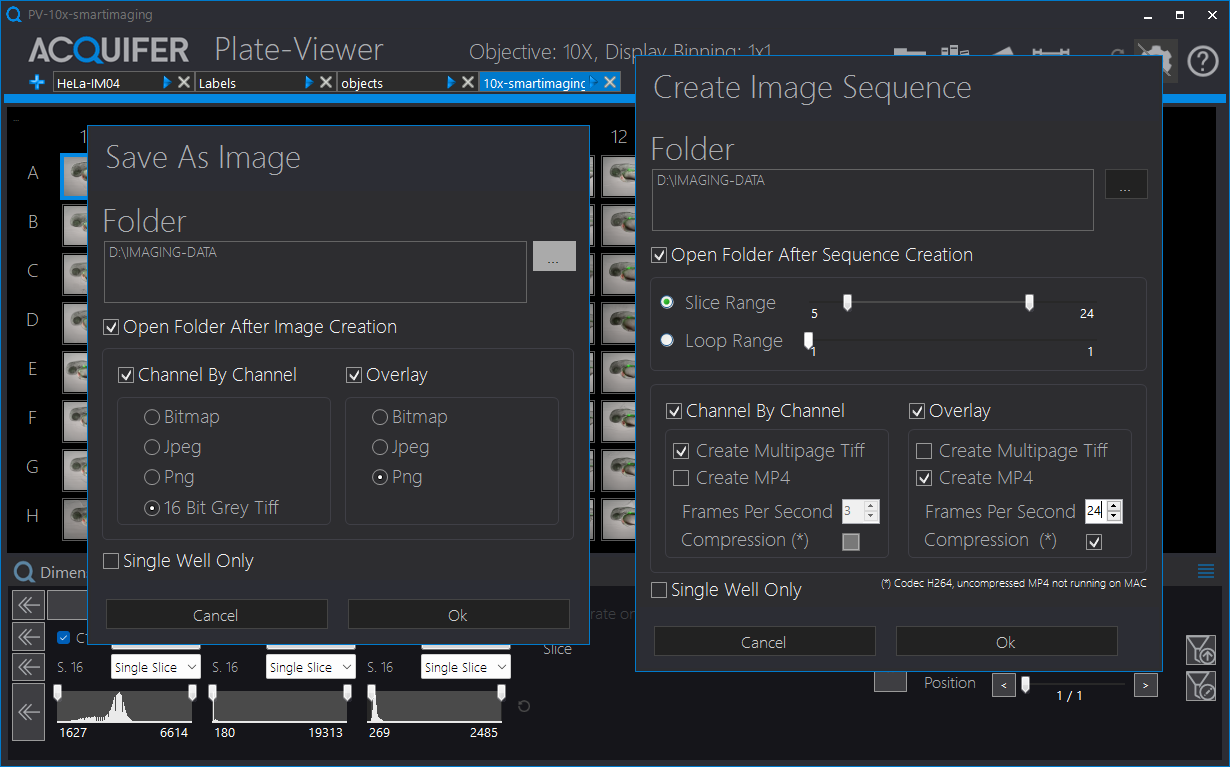

- Conversion and export of images: Export of single z-planes, z-projections, z-stacks or time-series allows for versatility in data analysis. Also, batch export and various file formats (tif, jpeg, png, bmp, mp4) are available.
- Feedback Microscopy: Features, such as automated object-detection algorithm and pre-scan ROI-selection enable feedback microscopy.
- Plugin Interface: Data processing with external software utilizes a plugin interface. Advanced users can generate their own plugins.
Publications
| Year | Journal | Title | Author(s) | Subject | Methodology |
|---|---|---|---|---|---|
