Nanomechanical Testing Webinars

In-Situ SEM and TEM NanoTribology with Hysitron PicoIndenter

presented by Sanjit Bhowmick, Ph.D. (Bruker), Prof. Min Zou, Ph.D. (Univ. of Arkansas), and Prof. Tevis Jacobs, Ph.D. (Univ. of Pittsburgh)

Submit the Form for Instant, Full-Length Access

Submit the form for instant, full-length access to this webinar and related resources. This webinar includes three expert-led, exclusive presentations.

Learn about the applications of high-resolution in-situ tribology testing.

  • Dr. Sanjit Bhowmick will introduce nanoTribological modules of PI 89 SEM and PI 95 TEM PicoIndenter and briefly highlight various examples of interesting applications.
  • Prof. Min Zou will present an in-situ SEM tribology study of surfaces with 3D textures fabricated by additive manufacturing techniques.
  • Prof. Tevis Jacobs will showcase how TEM studies can deepen the understanding of deformation mechanisms at nanoscale sliding contacts.
Please enter your first name
Please enter your last name
Please enter your e-mail address
Please enter a valid phone number
Please enter your Company/Institution
What best describes your current interest?
Please add me to your email subscription list so I can receive webinar invitations, product announcements and events near me.
Please accept the Terms and Conditions

             Privacy Notice   Terms of Use



* Please fill out the mandatory fields.

Note: You will be redirected to view the webinar after form submission.
After a few moments, you should also receive an email at the address provided that contains a link to re-access the webinar viewing window.

Diese Website ist durch reCAPTCHA geschützt und es gelten die Google Datenschutzbestimmungen und Nutzungsbedingungen .

Thank you. Your on-demand video is now available.

DNA-PAINT is a localization-based super-resolution method offering molecular resolution (< 5 nm) combined with unlimited multiplexing capabilities. DNA-PAINT reagents from Massive Photonics are a perfect match for the Bruker Vutara VXL microscope. In combination with the Bruker fluidic system, automated, multiplexed cellular imaging in 3D is now accessible out of the box.

Watch the webinar for practical guidance for DNA-PAINT sample preparation, image acquisition, and data analysis, as well as an introduction to:

  • The Vutara VXL super-resolution microscope and integrated fluidics unit;
  • The theoretical background of DNA-PAINT; and
  • The products available from Massive Photonics for DNA-PAINT experiments.


If you have any questions about these or any of our other products or services, please contact us. Follow @BrukerFM on Twitter for event, product, and webinar updates.

Learn from leading experts about in-situ nanomechanical and tribological characterization — including how to quantify friction, adhesion, wear, and more

Why Seek to Understand Nanoscale Surface Changes

Tribological measurements benefit directly from in-situ techniques which shed light on deformation processes occurring at the sliding interface. In addition to enabling direct observation of wear evolution, in-situ tribology can also be used for studies of friction, tribochemical reactions, interfacial adhesion, abrasion resistance, and nanoparticle rolling.

Applications of in-situ tribology testing can include quantifying (among others):

  • Scratch resistance, coefficient of friction, interfacial shear strength and adhesion of films and coatings;
  • Shear forces to pillars, solder bumps, beams, MEMS devices, and oriented crystalline materials;
  • Particle-substrate Interaction, friction between a single micro- or nanoparticle and the supporting substrate.


How Hysitron Picoindenter Instruments Help

Despite being applicable across a wide range of sample types and industries, until recently, in-situ nanoscale mechanical testing has been limited to the application of purely normal forces. That is, quantitative nanoindentation, compression, bending, and tensile loading coupled with direct SEM observation are accomplished by varying the tip and sample geometry. Often, however, testing in more than one dimension is required to fully understand the performance of a material system, especially when dealing with the tribological properties of a material.

In support of engineers' and researchers' growing need for increased multi-directional functionality, the nanoTribology module for Bruker's Hysitron PI 95 TEM PicoIndenter and Hysitron PI 89 SEM PicoIndenter instruments enables high-resolution measurements with simultaneous normal and lateral force/displacement sensing.

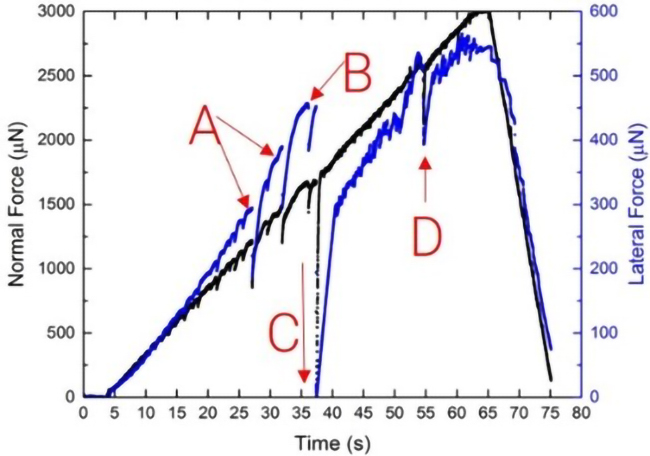

Plot of normal and lateral force data recorded during a ramped normal load scratch test.

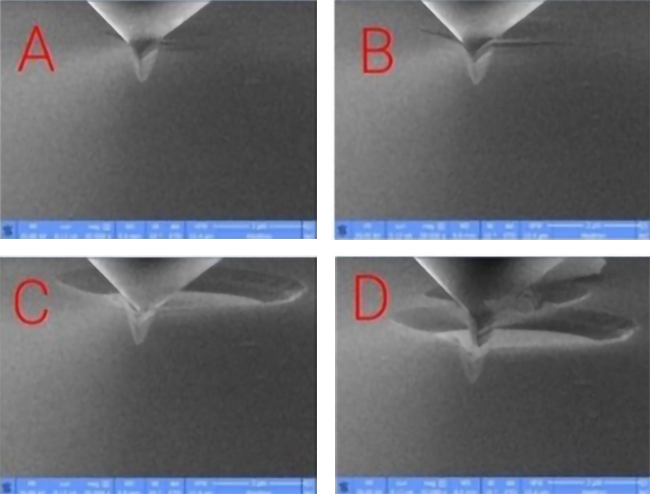

Frames captured from the synchronized SEM video corresponding to the graphed data above, showing the various stages of deformation and failure, , where the labels indicate: (A) Two pairs of cracks form perpendicular to the scratch path; (B) Delamination event and visible buckling ahead of probe; (C) Spallation/ejection of delaminated region; and (D) Second spallation/delamination event once the probe reaches the far rim of the first spalled region.


Sanjit Bhowmick, Ph.D.

Senior Staff Scientist, Bruker

Dr. Sanjit Bhowmick is a Senior Staff Scientist at Bruker. His research interest includes understanding microstructure and mechanical property correlation of advance nanostructured materials using in-situ SEM and TEM nanomechanical techniques. He has published more than 80 papers in peer-reviewed journals.

Min Zou, Ph.D., Professor, Mechanical Engineering, University of Arkansas

Tevis Jacobs, Ph.D., Professor, Swanson School of Engineering, University of Pittsburgh
