Nanomechanical Testing Webinars

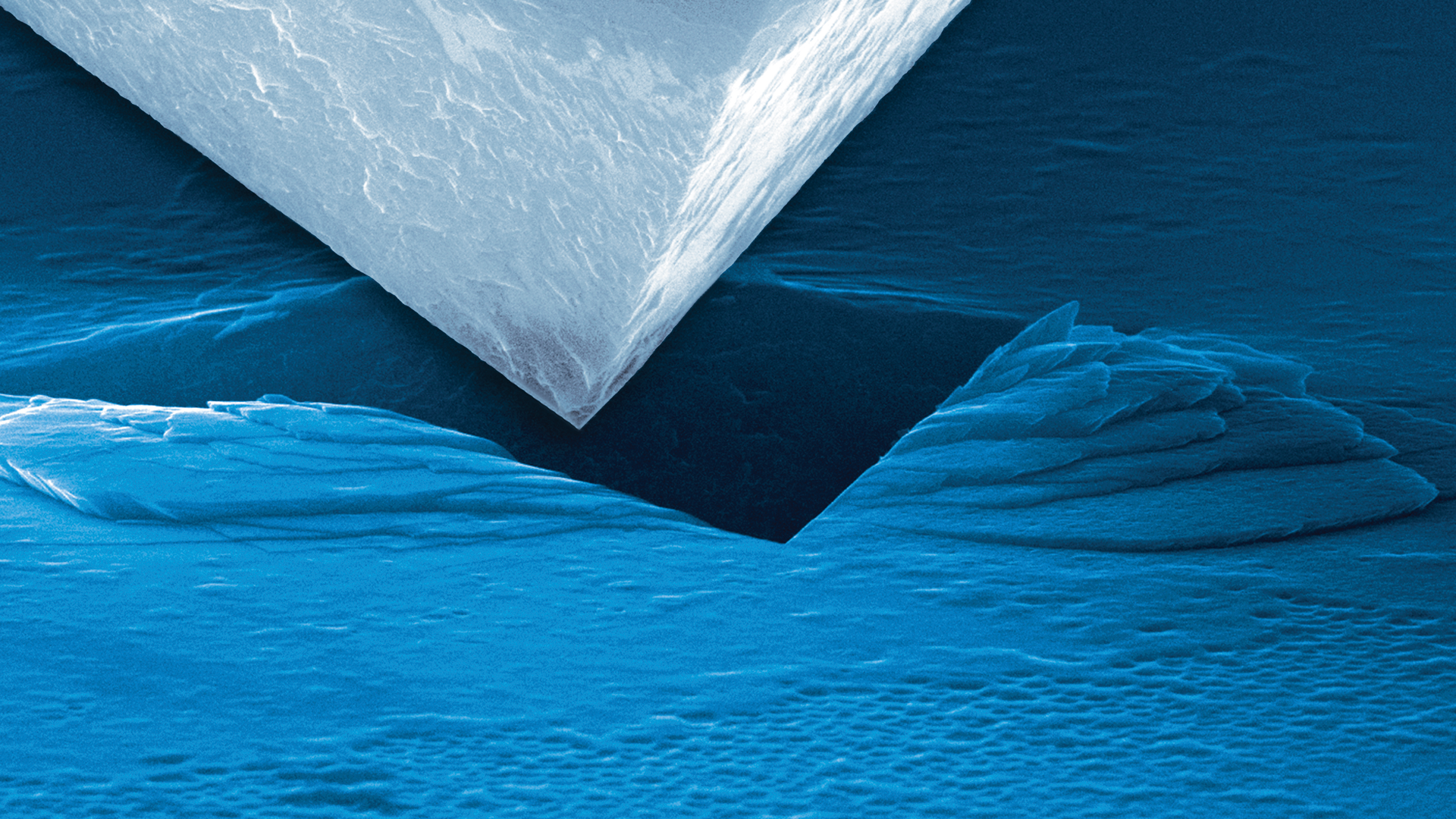

In-Situ SEM and TEM NanoTribology with Hysitron PicoIndenter

presented by Sanjit Bhowmick, Ph.D. (Bruker), Prof. Min Zou, Ph.D. (Univ. of Arkansas), and Prof. Tevis Jacobs, Ph.D. (Univ. of Pittsburgh)

Learn about the applications of high-resolution in-situ tribology testing.

Learn from leading experts about in-situ nanomechanical and tribological characterization — including how to quantify friction, adhesion, wear, and more.

Webinar Summary

In this webinar:

  • Dr. Sanjit Bhowmick introduces nanoTribological modules of PI 89 SEM and PI 95 TEM PicoIndenter and briefly highlights various examples of interesting applications.
  • Prof. Min Zou presents an in-situ SEM tribology study of surfaces with 3D textures fabricated by additive manufacturing techniques.
  • Prof. Tevis Jacobs showcases how TEM studies can deepen the understanding of deformation mechanisms at nanoscale sliding contacts.

Find out more about the technology featured in this webinar or our other solutions for In-Situ SEM and TEM NanoTribology:

Input value is invalid.

The full-length recording of this presentation is available for on-demand viewing.


Please enter your first name
Please enter your last name
Please enter your e-mail address
Please enter a valid phone number
Please enter your Company/Institution
What best describes your current interest?
Please add me to your email subscription list so I can receive webinar invitations, product announcements and events near me.
Please accept the Terms and Conditions

             Privacy Notice   Terms of Use

Note: Page will refresh upon submission; afterward, you may need to scroll down to see the video access link.

* Please fill out the mandatory fields.

Webinar Recording is Now Available.

If you close or exit this page, you will not be able to reopen this confirmation window without re-submitting the form. Please save this access link to bypass the form in future visits.

Additional Information

Why Seek to Understand Nanoscale Surface Changes

Tribological measurements benefit directly from in-situ techniques which shed light on deformation processes occurring at the sliding interface. In addition to enabling direct observation of wear evolution, in-situ tribology can also be used for studies of friction, tribochemical reactions, interfacial adhesion, abrasion resistance, and nanoparticle rolling.

Applications of in-situ tribology testing can include quantifying (among others):

  • Scratch resistance, coefficient of friction, interfacial shear strength and adhesion of films and coatings;
  • Shear forces to pillars, solder bumps, beams, MEMS devices, and oriented crystalline materials;
  • Particle-substrate Interaction, friction between a single micro- or nanoparticle and the supporting substrate.


How Hysitron Picoindenter Instruments Help

Despite being applicable across a wide range of sample types and industries, until recently, in-situ nanoscale mechanical testing has been limited to the application of purely normal forces. That is, quantitative nanoindentation, compression, bending, and tensile loading coupled with direct SEM observation are accomplished by varying the tip and sample geometry. Often, however, testing in more than one dimension is required to fully understand the performance of a material system, especially when dealing with the tribological properties of a material.

In support of engineers' and researchers' growing need for increased multi-directional functionality, the nanoTribology module for Bruker's Hysitron PI 95 TEM PicoIndenter and Hysitron PI 89 SEM PicoIndenter instruments enables high-resolution measurements with simultaneous normal and lateral force/displacement sensing.

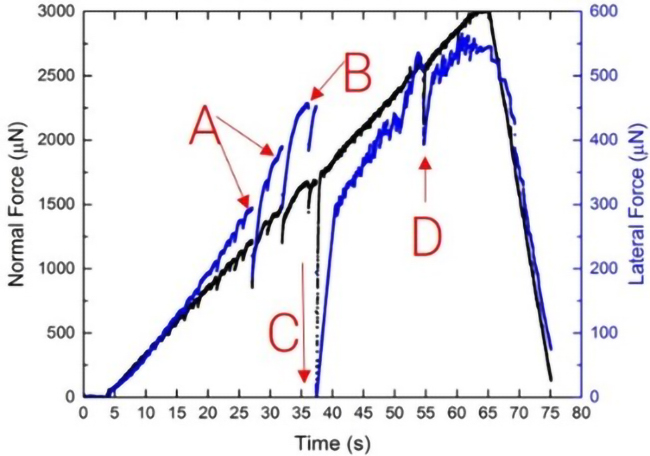

Plot of normal and lateral force data recorded during a ramped normal load scratch test.

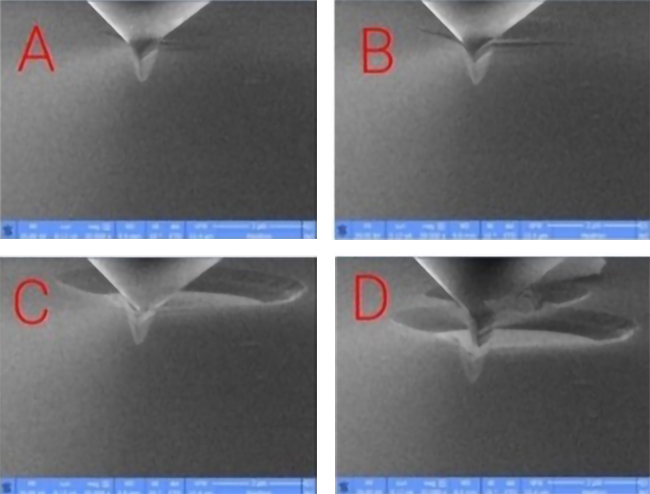

Frames captured from the synchronized SEM video corresponding to the graphed data above, showing the various stages of deformation and failure, , where the labels indicate: (A) Two pairs of cracks form perpendicular to the scratch path; (B) Delamination event and visible buckling ahead of probe; (C) Spallation/ejection of delaminated region; and (D) Second spallation/delamination event once the probe reaches the far rim of the first spalled region.
