Mechanical Tester

UMT TriboLab

The most versatile tribology system ever designed

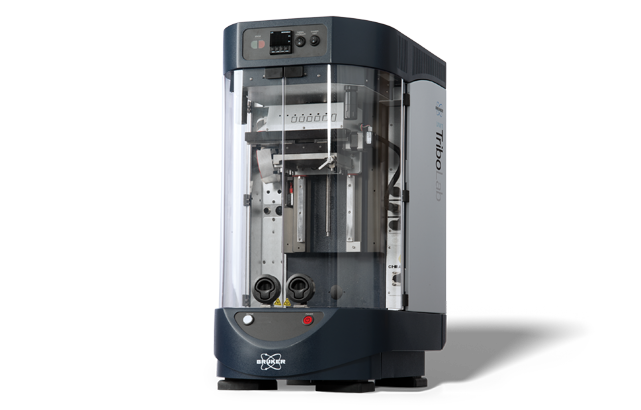

UMT TriboLab

Bruker’s Universal Mechanical Tester (UMT) platform has been the most versatile and widely used tribometer on the market since the first model debuted in 2000. Now, newly designed from the ground up, the UMT TriboLab™ builds on that legacy of versatility with a unique modular concept that harnesses more functionality than ever before—all without any compromise in performance. In fact, the UMT TriboLab offers higher speeds, more torque, and better force measurement than any of its competitors, plus it introduces powerful new features for improved efficiency and ease-of-use.

Exceptional
modularity
Accommodates the full range of speeds and torques to perform nearly every possible tribology test.
Broadest
capabilities
Enable an unprecedented breadth of testing under widest range of environments.
Unmatched
ease of use
Removes the need to learn complex scripting languages or conventions.
Features

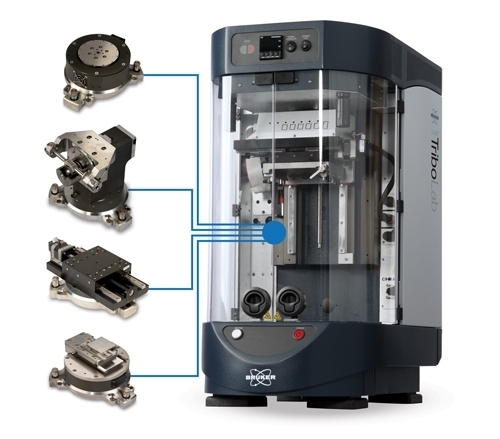

Modular Drives for Maximum Versatility

Quick changeover of drives using tool-less clamping allows the user to position the drive easily, then lock it into place in seconds. No cable connections are required for standard drives, and blind-mate connectors on the mounting ring automatically connect fans, sensors, and other electronics. Each hardware component includes a Tribo ID chip. Software interrogates the system, interprets the chip and “understands” the configuration without operator-entered commands.

High-Load, High-Performance Sensors

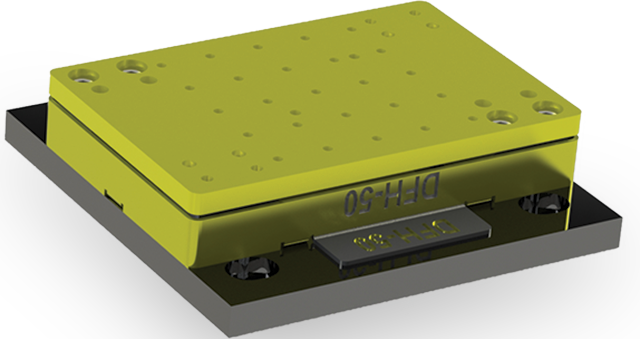

Gold Series linear-force sensor.

The UMT TriboLab excels at producing highly accurate and repeatable test data by utilizing the latest developments in sensor technology from Bruker. These new “Gold Series” sensors offer noise levels at an industry-leading 0.02% of full scale values, with circuitry completely redesigned to reduce noise to an absolute minimum. The range of sensors also has been extended to eleven sensors, spanning forces from 1 milliNewton up to 2 kiloNewtons.

Industry-Specific Solutions for Specialized Performance

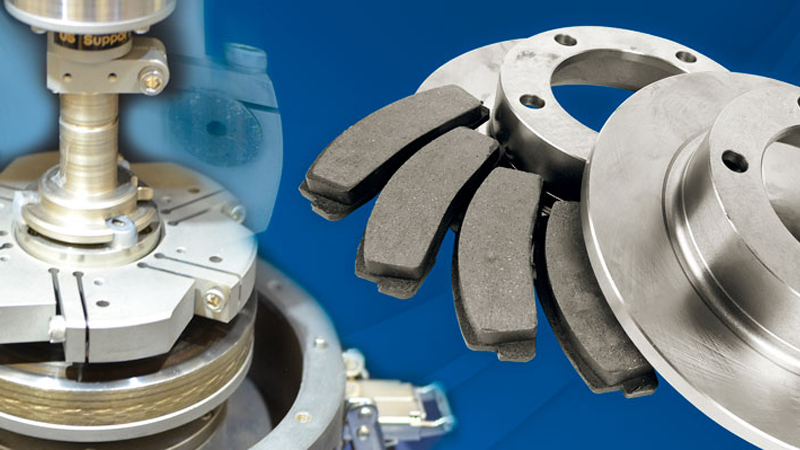

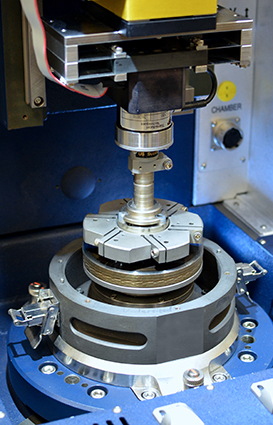

Bruker has utilized the versatility and modular architecture of the TriboLab platform to create turn-key kits for specific applications and industries. In addition to tailored hardware components, these modules feature software developed in conjunction with industry-leading manufacturers to address targeted standards. Bruker’s industry-specific solutions include Brake Material Screening, Clutch Friction Material Screening, HFRR Test, 3-Point-Bend Testing, and Hot-Hardness Testing.
