X-Ray Metrology for Compound Semiconductors

JV-DX

Latest generation of X-ray metrology system for semiconductor thin film analysis

Designed for a variety of thin-film applications

JV-DX

Highlights

JV-DX

The Bruker JV-DX is the latest generation of X-ray metrology system for semiconductor thin film analysis for materials’ research, process development and quality control. Featuring fully automated source optics, the system can switch between standard XRD, High-Resolution XRD (HRXRD) and X-ray reflectivity modes without user intervention. Measurements are fully automated within recipes with the ability to also perform more esoteric measurements in semi-manual mode. An additional XRF module is available as an option for sub-100µm beam size measurements on metal films.



Robust 5-axis
Eulerian cradle
Comes with full 300 mm wafer mapping and capacity for both large and small samples
Multi-Application
materials research tool
Supports thin-film R&D for current and future design demands
Leading Edge
data analysis packages
Providing expert data presentation and interpretation with our well-known JV-RADS and JV-REFS software

Features

Features

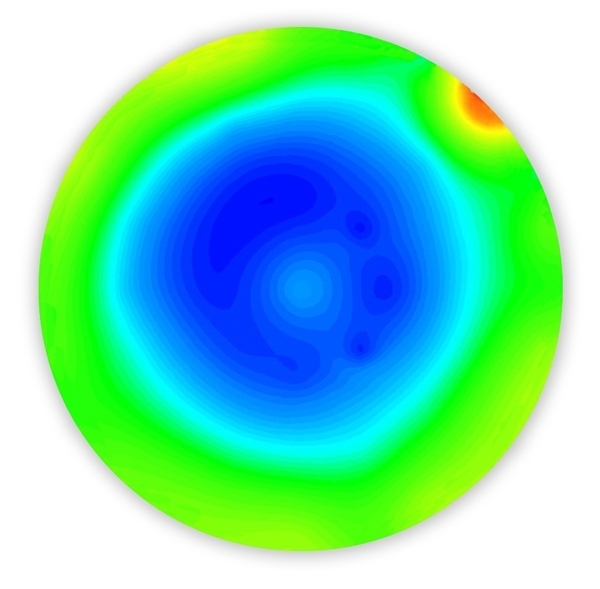

Full 300mm Wafer Mapping

The instrument is designed for a variety of thin-film applications, including high resolution rocking curves, reciprocal space mapping, X-ray reflectivity, Grazing Incidence XRD, Phase ID, residual stress, film texture and grain size analysis, and XRF.

The sample stage consists of a robust 5-axis Eulerian cradle, with full 300 mm wafer mapping, and capacity for both large and small samples. Multiple sample locations for smaller samples are provided to enable multiple measurements across multiple samples to be queued and performed automatically, even of different measurement types.
