Minerals: Exploration and Discovery

Core Scanning for Mineral Exploration

Analysis of diamond drill core and RC chips are at the heart of the mineral exploration and target assessment process. New technologies for core analysis has transformed drilling programs into data-rich toolsets for vectoring, assessing perspectivity, and delineating domains of mineralization.

Elemental and Mineral Scanning

Core Scanning

Exploration drilling turns the unknown into the known. This “core” activity is perhaps one of the most valuable assets in the mineral exploration workflow. Core extracted during diamond drilling is typically described by skilled geologists and along with geotechnical characterization is subjected to additional geochemical and mineral analysis.

Bruker is pioneering new technologies and methods to extract more useful and scalable information from core, aiding geologists on the ground and in the exploration office. As a critical link to the subsurface, core analysis is the best opportunity to characterize the products of mineralization and alteration, from the ore body scale to the sub-grain scale, allowing development of refined ore system process models. Non-destructive and minimally destructive tools can characterize elemental concentration, mineralogy, and texture to construct 3D subsurface deposit models and constrain predictive exploration strategies.

Non-destructive Continuous Core Analysis for Minerals and Elements

Non-destructive elemental and mineral logging of core provides objective high-resolution analytical data to identify sweet spots, mineralization, and alteration. Bruker portable and handheld analyzers are used to collect depth-registered geochemical and mineralogic data in the field or the core shack. The high-resolution nature of this data means that even small prospective zones of mineralization or alteration can be identified without dilution, improving distal identification of ore systems. Field collection of data provides near-instantaneous geochemistry that can be used for:

  • Objective and quick identification of minerals and mineral associations
  • Identifying trends in primary target and indicator elements
  • Delineating target zones based on mineralization or alteration
  • Geochemical referencing of core improving correlation to other holes
  • Real-time directing of drilling programs, optimizing drill hole placement and reducing the number of holes required to find and fully characterize a deposit
  • High-resolution preliminary grade identification, reducing the number of barren of samples sent to the assay lab

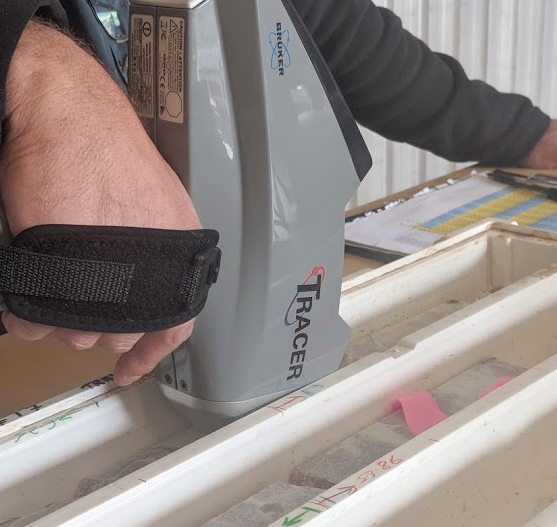

A Bruker TRACER used in core scanning of a Cs/Li Pegmatite. Photo courtesy of Portable Spectral Services in Perth, WA

Spatial Geochemistry

Micro-XRF for Fast Visual Elemental and Mineral Mapping of Drill Cores

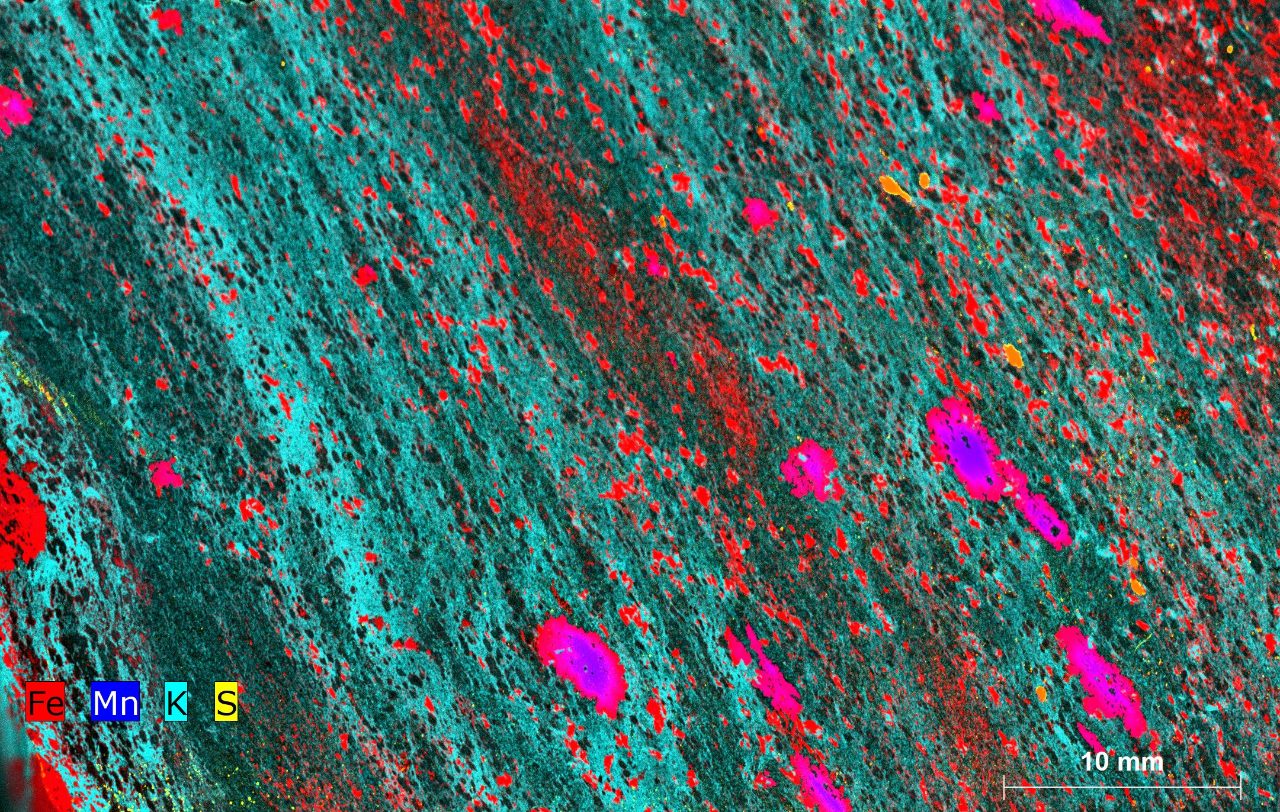

Micro-XRF elemental map of potassium (K), iron (Fe), manganese (Mn) and sulfur (S) from the altered footwall of a metamorphosed VMS deposit

Visualization of the spatial distribution of major, minor and trace elements in core feeds an understanding of the processes of mineralization and alteration. Micro-XRF provides large-sample geochemical mapping at resolutions less than <20µm that can contextualize features within a geologic process framework. The addition of automated mineralogy to micro-XRF is an emerging field that promises to add the new dimension of rapid and repeatable petrologic characterization. For core analysis Bruker’s M4 TORNADO series of instruments can be set for rapid data collection on-site or in the core shack:

  • Rapid-scanning of sample material of minimally prepared surfaces, no need for sample coating or polishing
  • Enables a data-based approach to selecting sampling locations for methods requiring more costly sample preparation
  • Quick-look assessment of mineralization and alteration to constrain ongoing near-real time iteration of conceptual exploration models
  • Provide “ground truth” and complementary data to hyperspectral technology by measuring elemental concentrations at comparable scales

Large-Scale Compositional Mapping of Drill Cores and Geological Samples

Geology happens over a large scale. Small inclusions and thin veins can be measured to determine a rock's scientific value or which mining-relevant elements are present. It is however the bigger picture of gradual changes in minerology over meters, if not kilometers, that tells the tale of the rock’s formation and geological history.

Differences in the elemental composition of drill cores and other geological samples can be used to determine information about a samples value, geological history and the processes by which it was formed.

Elemental mapping allows for the identification of different types of minerals within a sample as well as the location and measurement of phenomena such as veins, which can be used to establish the sample's value and the different geological conditions that the sample experienced over its lifetime.

Micro-XRF allows for the high-resolution elemental mapping of drill cores and geological samples. The use of the M6 JETSTREAM, which has a sampling area of 800 x 600 mm², facilitates the non-destructive analysis of many pieces of drill cores at once or for the full scanning of large samples - allowing geologists to access rich information about a samples composition or history without having to destroy or damage it.

The following Lab Report describes the use of the M6 JETSTREAM for the compositional analysis of a large granite sample from the Vredefort Dome, a 300km wide impact crater in South Africa.

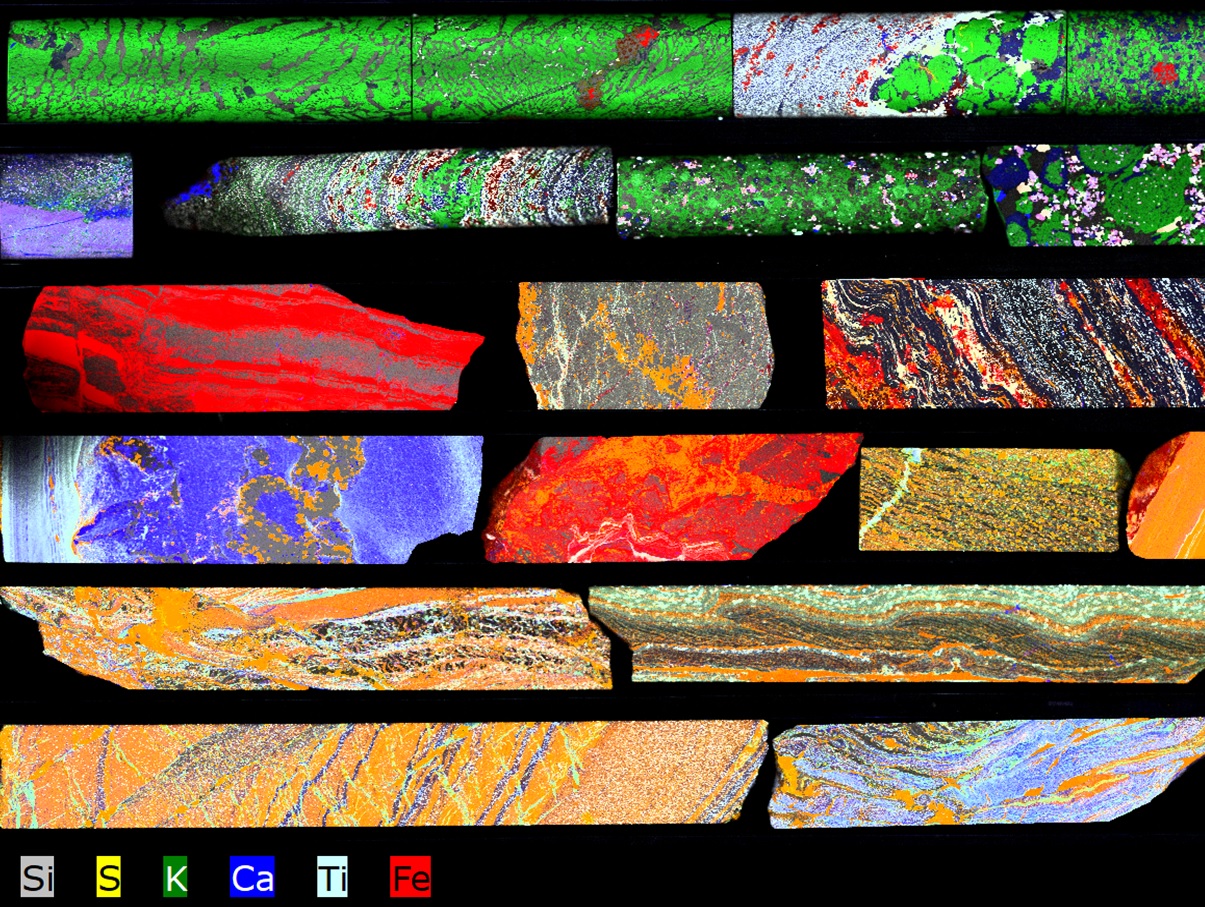

The M6 JETSTREAM can be used to produce elemental maps of multiple drill cores at once. This image shows several drill cores of differing compositions .

Detailed Rock Characterization

Mineral and Textural Characterization by Microanalysis and Automated Mineralogy

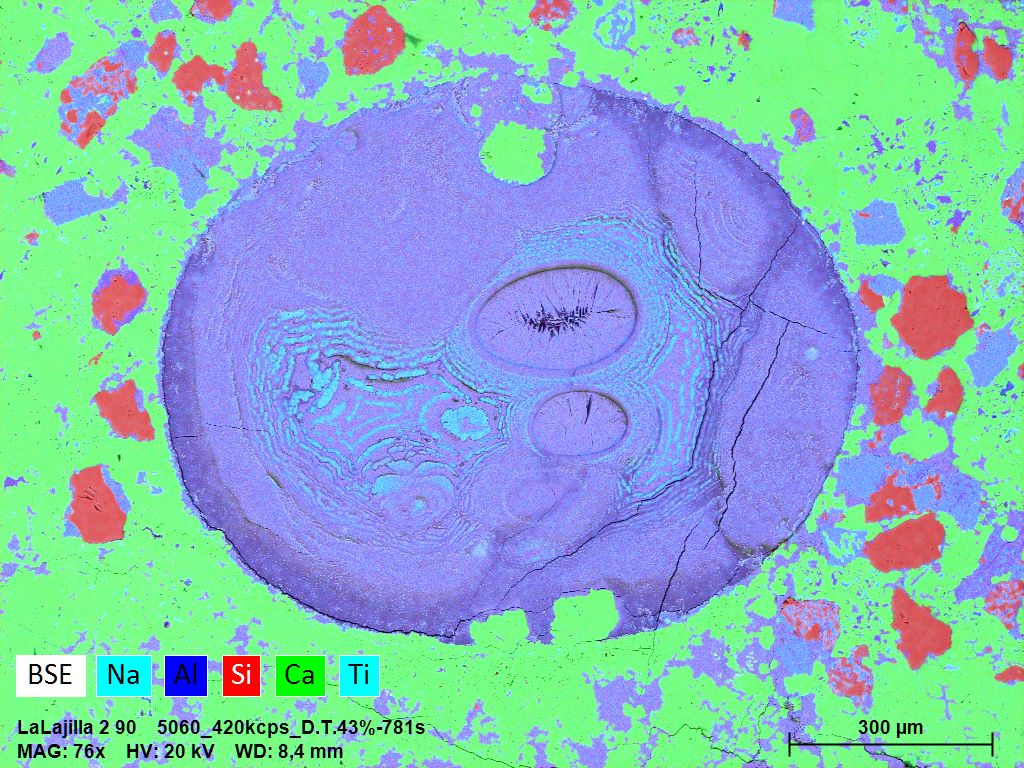

rock characterization for exploration with microanalysis

Many mineralization processes leave a record at the micron scale. Scanning electron microscopy (SEM) characterization is the most accurate method available to visualize and analyze processes at this scale. Bruker’s automated mineralogy and large area elemental mapping solutions by automated EDS X-ray mapping with backscatter election (BSE) imaging, provides detailed analysis at resolutions down to ~1 µm. Click here to learn more about rock characterization for exploration with microanalysis.

3D Structure

Three-dimensional Mineral Relationships with High-Resolution 3D X-ray Microscopy

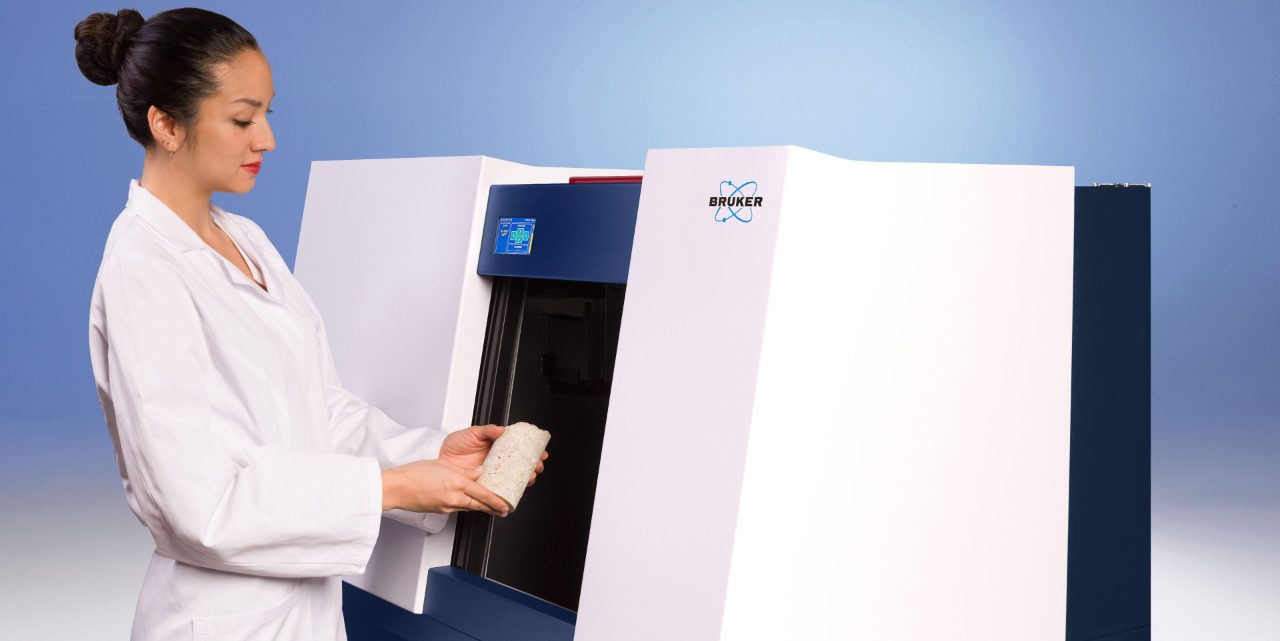

SKYSCAN 1273 being loaded with a core sample

Traditional mineral analysis of rocks views a 3D world in 2D. Analysis of thin sections and core slabs in optical microscopes, SEMs and micro-XRF all require extrapolation from a single plane to understand a 3D object. High-resolution 3D X-ray Microscopy studies on core allow for non-destructive observations of the third dimension. Bruker’s SKYSCAN series of X-ray microscopes works with other methods to produce detailed information on the shape, size and inter-relationships of geologic features. When combined with automated mineralogy from SEM or micro-XRF the possibility opens to develop fully comprehensive models of ore distribution at the micron-scale, better defining mineralization processes and predict comminution and other processing behaviors.

Más información

Webinars on Core Scanning for Mineral Exploration

Mineral distribution and texture

Geochemical visualization in the geologist's toolkit

Rapid and reliable decision making in mineral exploration requires robust characterization of mineral and lithogeochemical trends.
Multiscale in-situ non-destructive micro-XRF scanning analysis

Multiscale in-situ non-destructive micro-XRF scanning analysis

The micro-analysis of geological samples is common practice to obtain valuable information, for example in mineral exploration and process mineralogy.
Tips and Tricks for Making Your Own Secondary Standards for XRF
July 28, 2020

Tips and Tricks for Making Your Own Secondary Standards for XRF

Bruker and FLUXANA join forces.
Analytical SEM Solutions for Geology - Part I

Analytical SEM Solutions for Geology - Part I

Join us for a webinar in two parts covering various aspects of scanning electron microscopy techniques (EDS, EBSD, CL) for geological applications.
The techniques are surface sensitive

Analytical SEM Solutions for Geology - Part II

Join the second part of this free webinar dealing with scanning electron microscopy techniques (EBSD, CL) for geological applications.
Bruker's M4 TORNADO is a tabletop Micro-XRF spectrometer.

Explore Micro-XRF in the Geosciences

Explore the exciting world of micro-XRF for Geology and get questions on the method answered by leading Micro-XRF experts.

Advanced Element Analysis of Geological Samples using QUANTAX WDS for SEM

Advantages of WDS for SEM for the analyses of geological samples.

Large Area High Resolution Maps of Geological Samples

In this webinar we present Hypermap analyses of geological samples relevant to various applications, e.g. economic geology, mineralogy etc.
Infrared and Raman Analysis of Geological Samples
November 9, 2018

Infrared and Raman Analysis of Geological Samples


Latest advances in identifying mineral composition variation by the M4 TORNADO AMICS

The new M4 TORNADOAMICS spectrometer allows the creation of mineral maps from spatially resolved X-ray Fluorescence (XRF) signals.

AMICS — The Latest Software Package for Automated Identification and Quantification of Minerals and Synthetic Phases

The Advanced Mineral Identification and Characterization System (AMICS) is the latest software package for automated identification and quantification of minerals and synthetic phases. The key of this package lies in its innovative imaging and analysis software capabilities.
