Minerals: Exploration and Discovery

Core Scanning for Mineral Exploration

Analysis of diamond drill core and RC chips are at the heart of the mineral exploration and target assessment process. New technologies for core analysis has transformed drilling programs into data-rich toolsets for vectoring, assessing perspectivity, and delineating domains of mineralization.

Elemental and Mineral Scanning

Core Scanning

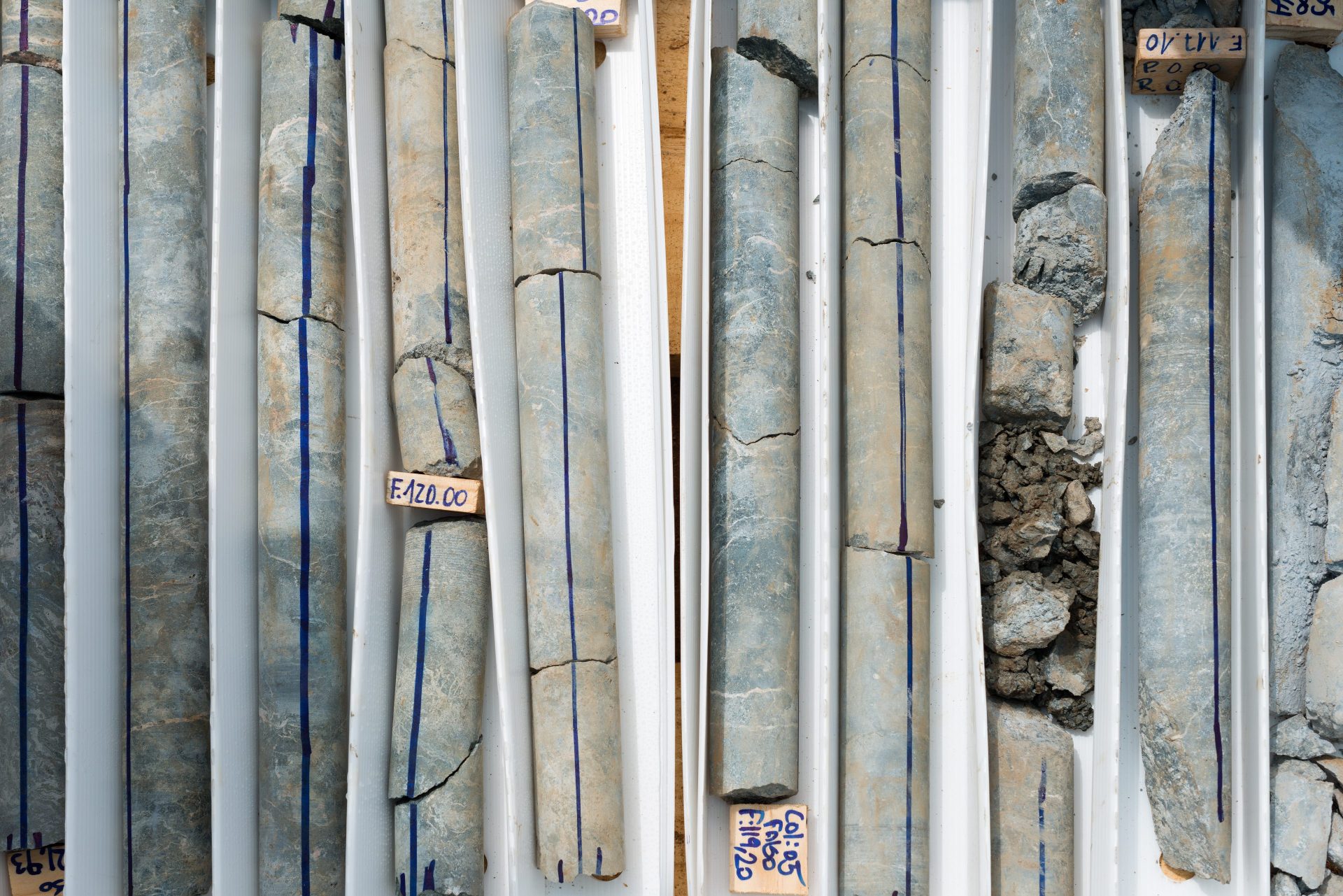

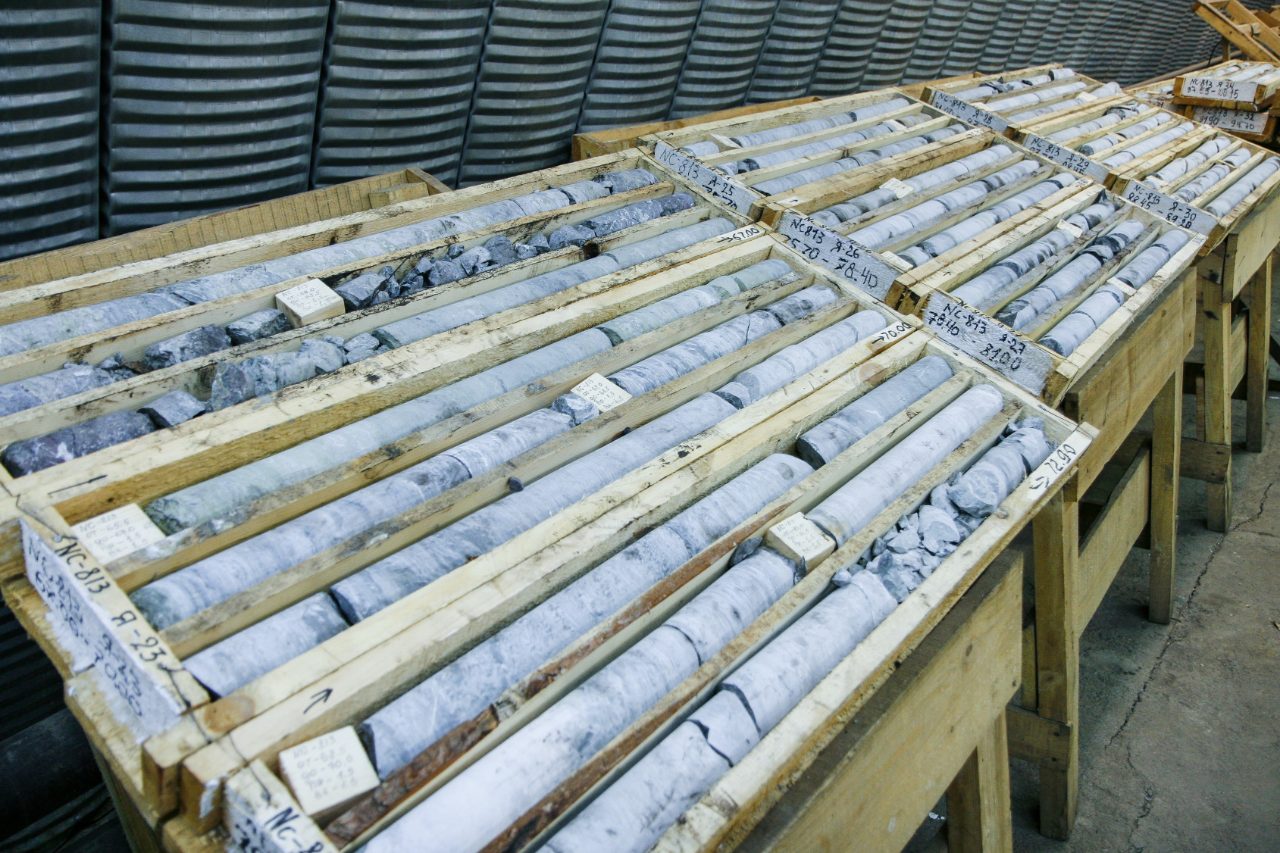

Exploration drilling turns the unknown into the known. This “core” activity is perhaps one of the most valuable assets in the mineral exploration workflow. Core extracted during diamond drilling is typically described by skilled geologists and along with geotechnical characterization is subjected to additional geochemical and mineral analysis.

Bruker is pioneering new technologies and methods to extract more useful and scalable information from core, aiding geologists on the ground and in the exploration office. As a critical link to the subsurface, core analysis is the best opportunity to characterize the products of mineralization and alteration, from the ore body scale to the sub-grain scale, allowing development of refined ore system process models. Non-destructive and minimally destructive tools can characterize elemental concentration, mineralogy, and texture to construct 3D subsurface deposit models and constrain predictive exploration strategies.

Non-destructive Continuous Core Analysis for Minerals and Elements

Non-destructive elemental and mineral logging of core provides objective high-resolution analytical data to identify sweet spots, mineralization, and alteration. Bruker portable and handheld analyzers are used to collect depth-registered geochemical and mineralogic data in the field or the core shack. The high-resolution nature of this data means that even small prospective zones of mineralization or alteration can be identified without dilution, improving distal identification of ore systems. Field collection of data provides near-instantaneous geochemistry that can be used for:

  • Objective and quick identification of minerals and mineral associations
  • Identifying trends in primary target and indicator elements
  • Delineating target zones based on mineralization or alteration
  • Geochemical referencing of core improving correlation to other holes
  • Real-time directing of drilling programs, optimizing drill hole placement and reducing the number of holes required to find and fully characterize a deposit
  • High-resolution preliminary grade identification, reducing the number of barren of samples sent to the assay lab

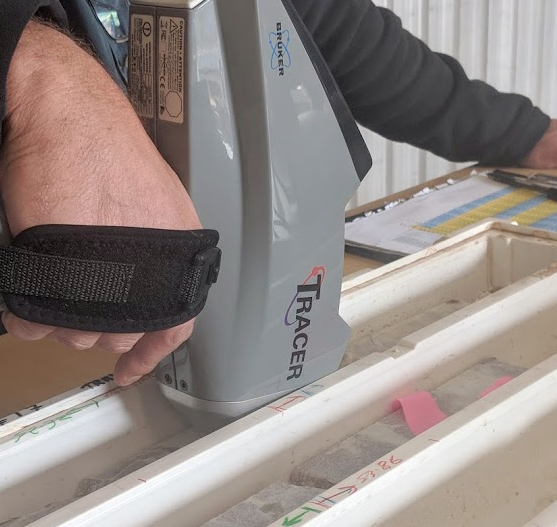

A Bruker TRACER used in core scanning of a Cs/Li Pegmatite. Photo courtesy of Portable Spectral Services in Perth, WA

Quick-look Spatial Geochemistry

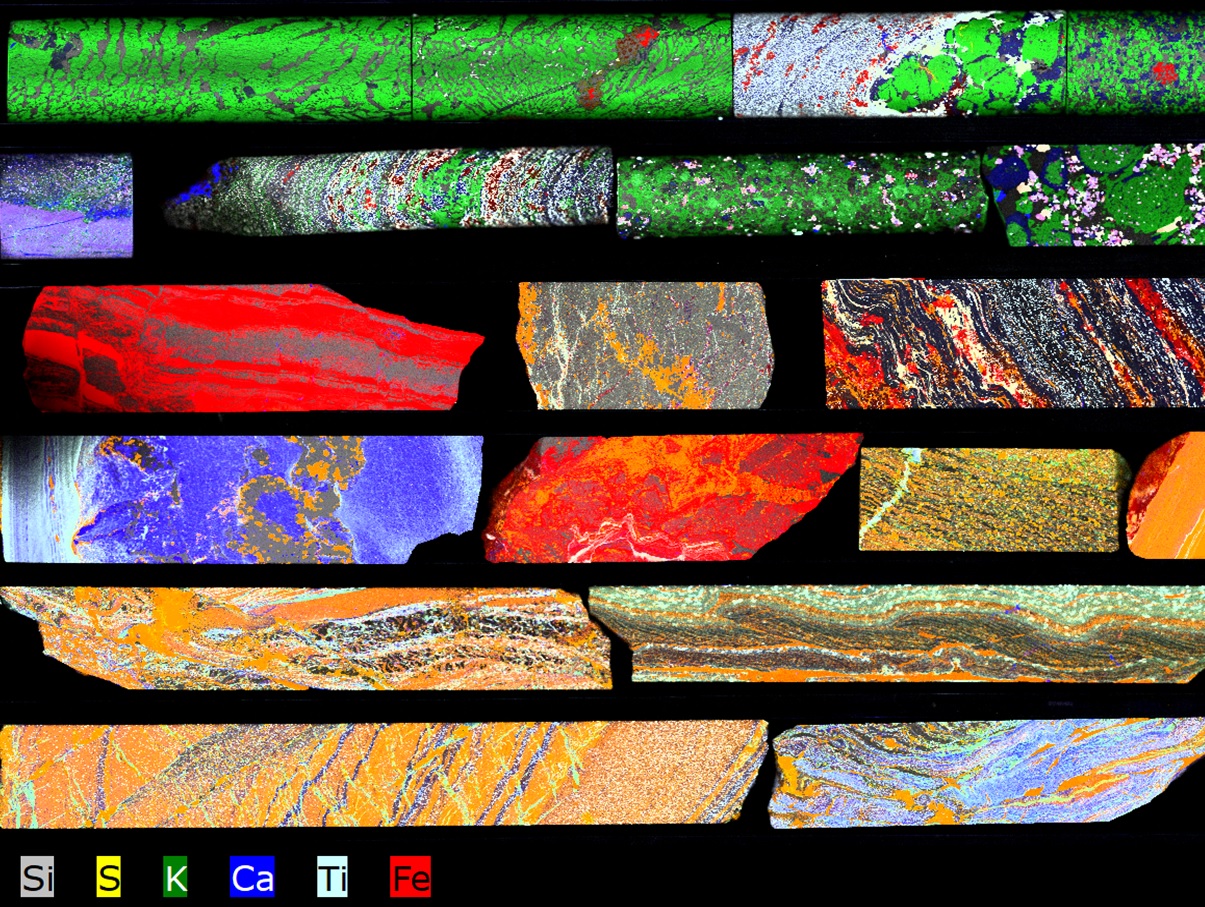

Micro-XRF Mapping for Quick-look Visual Elemental and Mineral Mapping of Drill Core

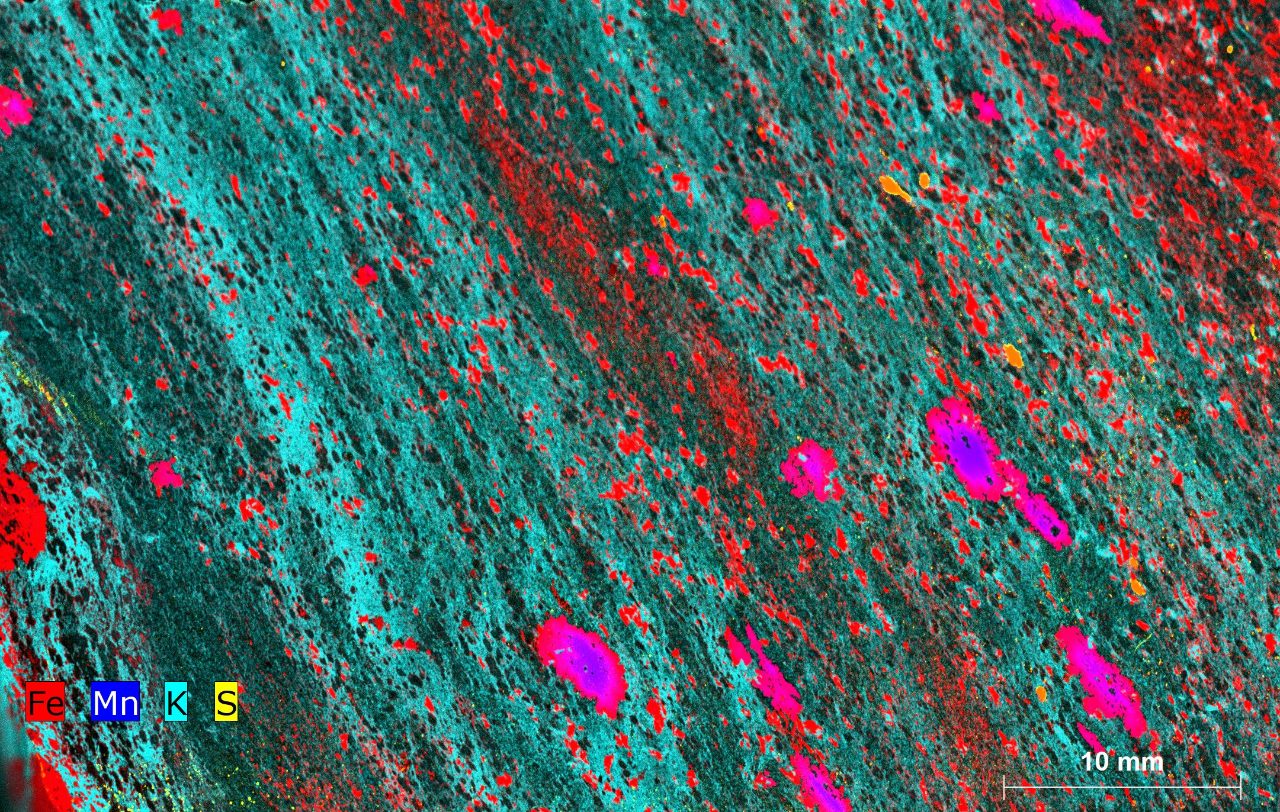

Micro-XRF elemental map of potassium (K), iron (Fe), manganese (Mn) and sulfur (S) from the altered footwall of a metamorphosed VMS deposit

Visualization of the spatial distribution of major, minor and trace elements in core feeds an understanding of the processes of mineralization and alteration. Micro-XRF provides large-sample geochemical mapping at resolutions less than <20µm that can contextualize features within a geologic process framework. The addition of automated mineralogy to micro-XRF is an emerging field that promises to add the new dimension of rapid and repeatable petrologic characterization. For core analysis Bruker’s M4 TORNADO series of instruments can be set for rapid data collection on-site or in the core shack:

  • Rapid-scanning of sample material of minimally prepared surfaces, no need for sample coating or polishing
  • Enables a data-based approach to selecting sampling locations for methods requiring more costly sample preparation
  • Quick-look assessment of mineralization and alteration to constrain ongoing near-real time iteration of conceptual exploration models
  • Provide “ground truth” and complementary data to hyperspectral technology by measuring elemental concentrations at comparable scales

Detailed Rock Characterization

Mineral and Textural Characterization by Microanalysis and Automated Mineralogy

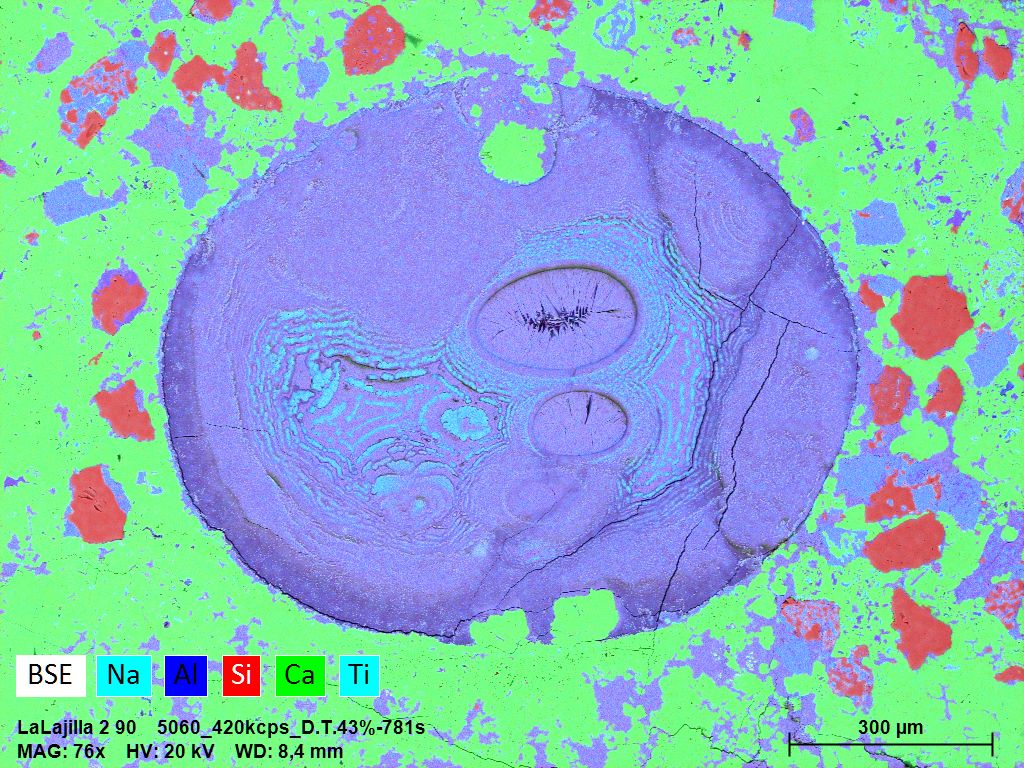

Many mineralization processes leave a record at the micron scale. Scanning electron microscopy (SEM) characterization is the most accurate method available to visualize and analyze processes at this scale. Bruker’s automated mineralogy and large area elemental mapping solutions by automated EDS X-ray mapping with backscatter election (BSE) imaging, provides detailed analysis at resolutions down to ~1 µm. Click here to learn more about rock characterization for exploration with microanalysis.

3D Structure

Three-dimensional Mineral Relationships with High-Resolution 3D X-ray Microscopy

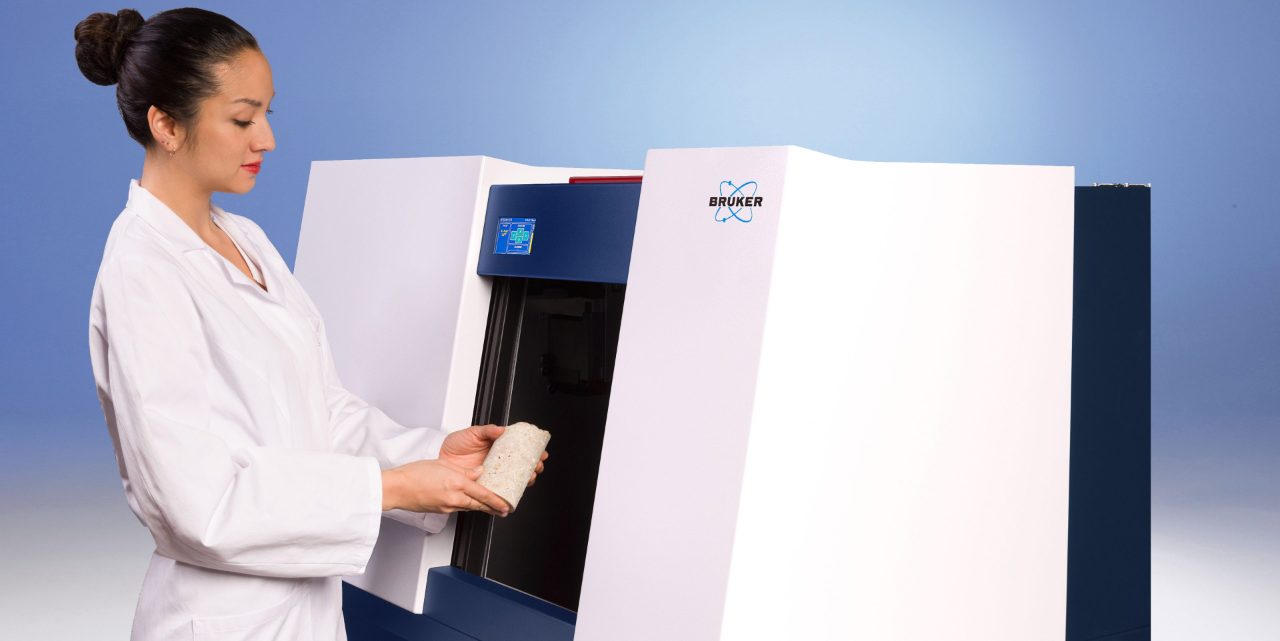

SKYSCAN 1273 being loaded with a core sample

Traditional mineral analysis of rocks views a 3D world in 2D. Analysis of thin sections and core slabs in optical microscopes, SEMs and micro-XRF all require extrapolation from a single plane to understand a 3D object. High-resolution 3D X-ray Microscopy studies on core allow for non-destructive observations of the third dimension. Bruker’s SKYSCAN series of X-ray microscopes works with other methods to produce detailed information on the shape, size and inter-relationships of geologic features. When combined with automated mineralogy from SEM or micro-XRF the possibility opens to develop fully comprehensive models of ore distribution at the micron-scale, better defining mineralization processes and predict comminution and other processing behaviors.
