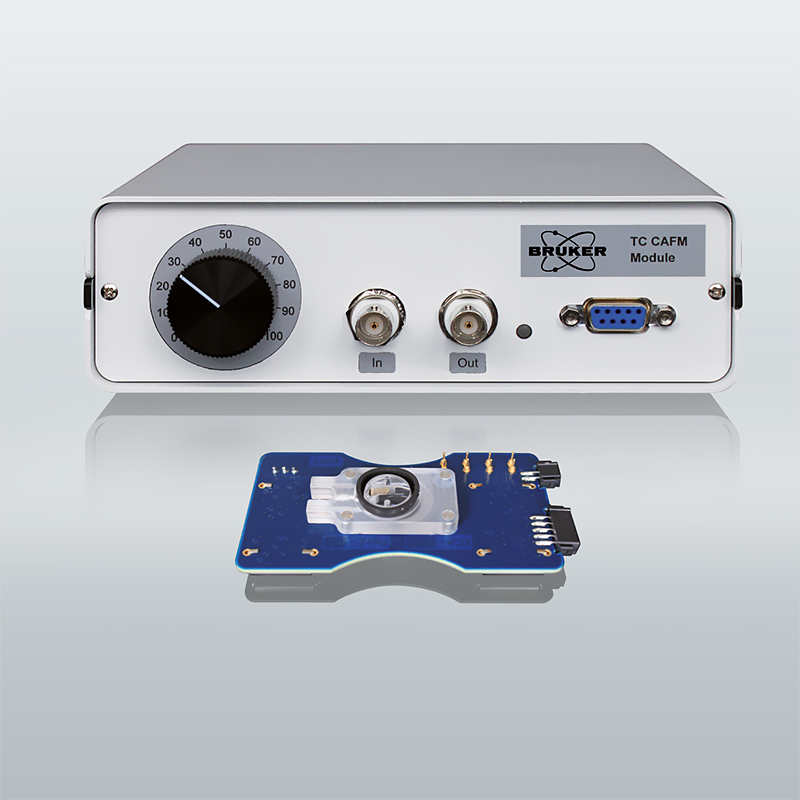

Tunneling Current Conductive AFM (TC-CAFM) Module – Enclosed Volume
For low-conducting sample experiments under controlled environmental conditions.
- Tip-bias cantilever holder with integrated current amplifier circuit
- SmallCell-based, based closed volume cell with <140 µl volume and connections for perfusion/gas flow
- Sample holder for conductive samples (optional transparent sample holder)
- Optimized cantilever exchange tool
- Software interface
- Bias Voltage +/-10 V
- Current Range: +/-10 nA
- Gain: 1000 V/µA
- Noise limit 100 fA RMS Compatible with all stages except Cryo- and StretchingStage
