Protective Windows

Protective Windows for Handheld and Portable XRF Analyzers

Protective windows, also known as "thin film",  is commonly used to protect the detector and other internal parts of a handheld XRF analyzer from dust and debris. Typical window materials include Ultralene™ and Kapton™. If an analyzer has vacuum capability, then gridded windows are offered to add strength to the windows so that the vacuum does not rupture the the window film.

S1 TITAN protective windows:

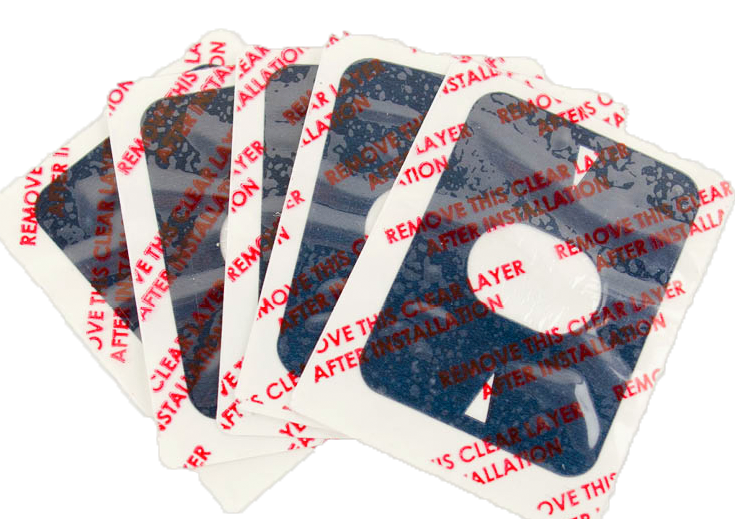

P/N 200.0061 Ultralene™ windows
For sample temperatures < 150 °C. Compatible with:
S1 TITAN 500S, 800. Quantity: Set of 5

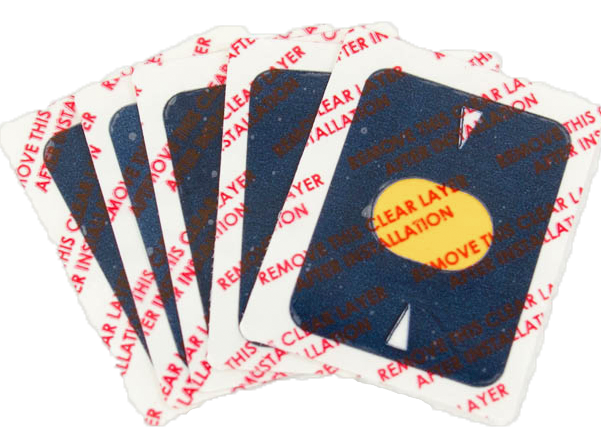

P/N 200.0064 Kapton™ windows
For sample temperatures < 350 °C. Compatible with:
S1 TITAN 500. Quantity: Set of 5

TRACER 5 protective windows

P/N 200.0087 Ultralene™ non-vacuum windows
For sample temperatures < 150C. Compatible with: TRACER 5. Quantity: Set of 5

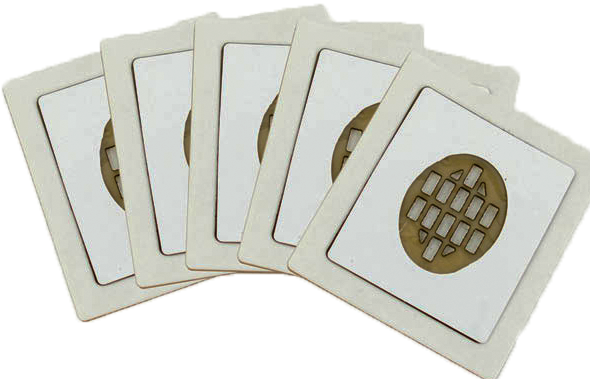

P/N 200.0088 Ultralene™ gridded windows
For sample temperatures < 150C. Compatible with: TRACER 5. Quantity: Set of 5
