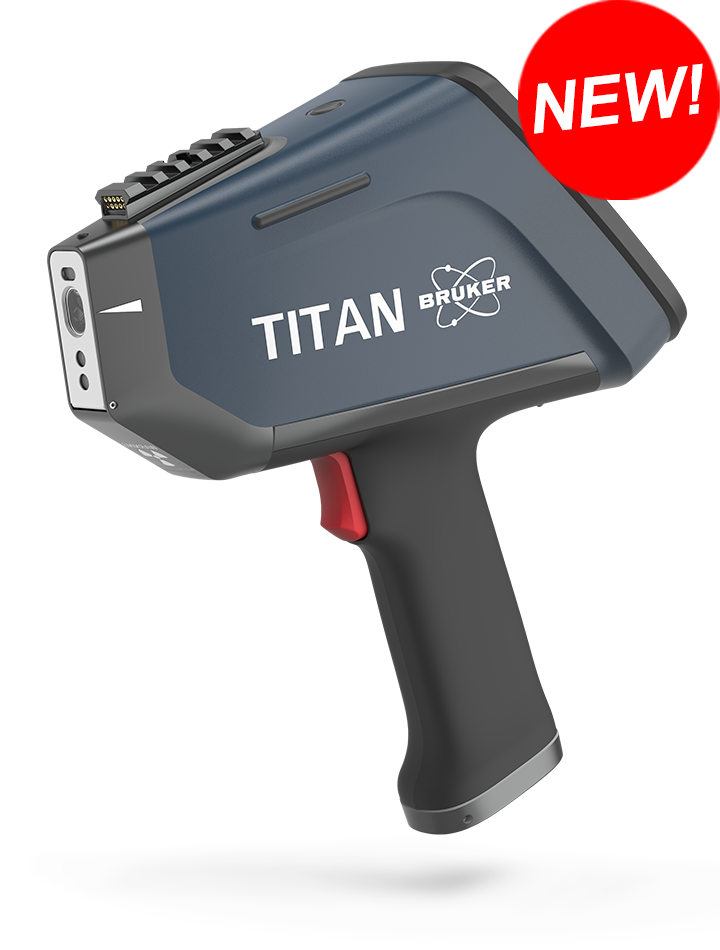

TITAN Handheld XRF Analyzer

TITAN: Power Over the Elements

This high-performance handheld X-ray Fluorescence (XRF) gun makes ultra-fast, highly-accurate elemental analysis possible everyday, by anyone, and even in difficult conditions.

Engineered for Rough Realities

TITAN is built for all-day use in challenging environments with rugged housing and puncture protection by the patented TITAN Detector Shield™.

Optimized for Rapid Results

TITAN delivers reliable data quickly thanks to advanced detector technology, rapid electronic processing and application-optimized calibrations.

Made for Every Operator

TITAN was created with usability in mind including smart workflows, intuitive-touchscreen operation and camera-assisted point-and-shoot measurements.

このビデオを再生するには Cookie を受け入れる必要があります

Discover TITAN - the next-generation handheld XRF gun that delivers rapid reliable results, even in challenging conditions.

Get a Quote Download Brochure

2

倍の速さ

グラフェンSDD検出器を開発、軽元素の測定が2倍高速化

50

ニュートン

ブルカー独自の検出器シールドは、ダーツチップの先端にかかる50ニュートン以上の力に耐え、検出器の保護を保証します

軽量・高精度なハンドヘルド蛍光X線元素分析装置

S1 TITANは、軽量（1.5 kg、バッテリーを含む）かつ堅牢なハンドヘルド型蛍光X線元素分析装置です。高速な分析スピードと卓越した精度は、S1 TITANを定義する2つの重要な特性です。

その他の革新的な機能は以下の通り:

50kV X線管
最新のグラフェン・ウィンドウ検出器技術
TITAN検出器シールド - 検出器の保護を保証
SMART Gradeタイミングによる迅速な合金グレードID
Wi-FiおよびUSB接続
湿度や埃の多い環境にも耐える堅牢な筐体

お問い合わせパンフレットをダウンロード (EN)

S1 TITANの構成

S1 TITANの製品ラインアップは、すべて最新の検出器技術に基づいています。S1 TITANのすべてのモデルには、高性能のグラフェン・ウィンドウ・シリコンドリフト検出器（SDD）が搭載されています。その結果、S1 TITANのどのモデルを選択しても、高速かつ高精度な分析が期待できます。

S1 TITANには、同じ検出器技術を採用したS1 TITAN 500、500S、および800の3種類の高性能モデルがあります。

S1 TITAN 500モデルは、軽元素の分析が必要ない場合に、優れたコストパフォーマンスを発揮するモデルです。硫黄から始まる重元素の分析を簡単かつ迅速に行うために設計されています。
S1 TITAN 500Sは、軽元素と重元素を同時に測定できる、使いやすい分析装置です。
S1 TITAN 800は、最も幅広いアプリケーションに対応し、Mg、Al、Siなどの軽元素の測定に最も適した性能を持つプレミアムモデルです。

Rugged Design for Reliable Operation, in Any Environment

TITAN's strong, robust design means it can be relied upon in even the harshest environments - whether that is a factory floor, a scrap yard exposed to the elements, or a remote and dusty mining camp.

Handheld XRF You Can Always Depend On

Puncture Protection with the TITAN Detector Shield™

TITAN's XRF detector is protected from punctures by Bruker's patented TITAN detector shield - reducing the need for repairs and maximizing uptime.

Learn more about the TITAN detector shield

Built for Harsh Conditions with Water, Dust and Chemical Resistance

Advanced ingress protection means TITAN excels even in environments with high levels of dust, moisture and chemical exposure.

Rugged Housing for Industrial Handling

TITAN's robust design helps it withstand drops and rough handling in industrial environments, supporting reliable day-to-day use.

The TITAN XRF gun is built for daily use in challenging environments with a tough water, dust and chemical resistant housing and a detector shield to protect against accidental punctures.

Get a Quote Download Brochure

Fast and Accurate Elemental Analysis

Thanks to its advanced detector technology and software TITAN delivers accurate and reliable compositional data even when working with complex samples and light elements.

High-Performance Handheld XRF

Graphene Window Detector for Enhanced Light Element Sensitivity

TITAN's Silicon Drift Detector (SDD) uses a graphene window to enhance the transmission of low-energy X-rays.

The result: An increased sensitivity towards light elements such as magnesium, silicon and aluminum.

Optimized Detector Geometry for Fast and Precise Measurements

TITAN uses SharpBeam™ optimized geometry to increase count rates. This enables the collection of highly accurate and precise elemental data within short measurement times.

Matrix-Matched Application-Specific Calibrations for High-Quality Data

TITAN is equipped with matrix‑matched calibrations optimized for a range of different handheld XRF applications.

These turn-key calibrations make it easy for non-experts to analyze even complex materials. Each calibration can be customized so that it perfectly fits your specific application.

Aiming and View Cameras for Precise Targeting and Efficient Reporting

TITAN's dual camera system supports both accurate measurement positioning and sample documentation for reporting.

Get a Quote Download Brochure

TITAN's detector head with a graphene-window SDD, SharpBeam detector geometry, TITAN detector shield and cameras for assisted measuring and reporting.

Calibration curve of Nickel in Stainless Steel. TITAN offers matrix-matched calibrations for accurate determination of valuable elements.

User-Friendly Interface for Easy Operation

XRF analysis does not have to be difficult. With an ergonomic well-balanced design and intuitive touchscreen controls TITAN is designed for easy and productive use.

Handheld XRF for Everyone

Smart Workflows for Straightforward Analysis

TITAN's intuitive touchscreen user interface guides operators through measurement and data review with structured workflows.

The easy-to-follow navigation and clear, digestible data presentation supports confident use, even with just minimal training.

Seamless Documentation and Connectivity for Effortless Reporting

TITAN's integrated connectivity and reporting features ensure the effortless collection and transfer of analysis data for streamlined automated data sharing.

The touchscreen interface of the TITAN XRF gun. The device's clear navigation and data presentation makes XRF analysis simple for non-experts.

Get a Quote Download Brochure

マグネシウムからウランまでの元素分析

S1 TITANのメリット:

合金、金・貴金属、触媒コンバーター、土壌、鉱業、規制物質、金属コーティング、顧客固有のものなど、幅広い検量線オプションが利用可能です。
最新のグラフェン・ウィンドウSDD検出器技術
優れたカウントレートと分解能
前世代より高速化
より低い検出限界
マグネシウム、アルミニウム、シリコンなどの軽元素を、真空やヘリウム雰囲気なしで簡単に分析（S1 TITAN 800および500S)

Power Over the Elements, In Your Application:

TITAN's ease-of-use, rugged design and matrix-matched calibrations put power over the elements in your hands, whatever the application.

Learn more about the benefits of using TITAN in your application below or, if you have any application-specific questions, contact one of Bruker's handheld XRF experts.

Alloy Analysis

Positive Material Identification

Alloy verfication is fast and seamless thanks to TITAN's guided measurement workflows and easy operation.

Alloy‑specific calibrations and a state‑of‑the‑art XRF engine support rapid confident alloy grade identification on the factory floor.

Learn more

Alloy Analysis

Scrap Metal Sorting

Ferrous and non‑ferrous scrap is accelerated with TITAN thanks to optimized workflows and Unambiguous data for every operator.

A tough industrial design, with water and dust protection, protects the XRF gun in the scrap yard whilst its graphene‑window SDD delivers strong light‑element performance, facilitating the confident sorting of aluminum alloys.

Consumer goods

RHoS: Testing for Heavy Metals

RoHS compliance is accelerated using TITAN handheld XRF, enabling the fast, non‑destructive screening for toxic heavy metals using application‑optimized calibrations.

Stable measurement performance and streamlined workflows ensure reliable operation for quality control, incoming goods inspection and customs checks.

Mining

Mineral Exploration

TITAN supports fast, consistent mineral analysis in the field using application‑specific calibrations for accurate geochemical quantification.

Designed for rough realities, its sealed, shock‑resistant construction and dust protection ensure high reliability and maximum uptime in harsh outdoor environments.

Learn more

Geoscience & Environmental science

Soil Analysis

Rapid in-the-field soil analysis with screening for nutrients and potentially harmful elements is possible using TITAN's matrix‑matched calibrations.

The handheld XRF Analyzer's strong light‑element sensitivity and rugged, dust‑ and moisture‑resistant design support consistent results in outdoor and agricultural environments with minimal sample preparation.

Precious Metals

Gold, Silver and Platinum Analysis

TITAN handheld XRF delivers fast, accurate precious metal analysis with dedicated calibrations for the reliable identification of gold, silver, platinum, and common jewelry alloys.

Precise measurements enable confident verification directly at the point of purchase, recycling, or appraisal - without damaging valuable items.

TITAN Specifications

Detection	Silicon drift detector (SDD) with graphene window, 20 mm² detector area, typical resolution < 140 eV at 800,000 cps
Excitation	Rhodium (Rh) thin window X-ray tube, X-ray generator 5–50 kV with 5–200 μA, max. 5 W output, operator adjustable current and voltage
Collimators	Automated collimator changer, user selectable small and large measurement spot
Filters	Operator controlled, motorized 5‑position primary beam filter wheel
Elemental Range (detection)	Magnesium (Mg) to uranium (U)
Cameras	View camera 1 MP, 20 FPS, auto zoom; aiming camera 320 × 320 px, 20 FPS, fixed zoom
Dimensions	27.3 cm × 9.4 cm × 29.5 cm (10.75 in × 3.7 in × 11.6 in)
Weight	1.7 kg (3.7 lbs) with battery, 1.5 kg (3.3 lbs) without battery
Display	10.9 cm (4.3 in) LCD, 800 × 480 pixels, capacitive touchscreen
Software	Full control OS on analyzer and PC software, control of all excitation parameters, live spectra displayed on analyzer
Data Storage & Transfer	Direct storage on USB thumb drive or μSD card, data transfer to PC via USB or Wi‑Fi, Bluetooth connectivity for accessories
Power	Li‑ion battery (14.4 V nominal) incl. charger, AC adapter (24 V DC @ 2.7 A), hot‑swap for up to 30 s, battery charging in device
System Safety	Password protection, sample proximity sensor, low count rate (backscatter) shutoff
Operating Environment	−10 °C to 50 °C (14 °F to 122 °F), 10% to 90% relative humidity non‑condensing, IP64 dust and splash resistant
Optional Accessories	Desktop stand, radiation shield

Accessories: Stands, Screens and More

A range of accessories are available for TITAN including:

Stands for hands-free measurements
Additional lithium-ion batteries to take full advantage of TITAN's hot battery swap capabilities.
Replacement protective screens
