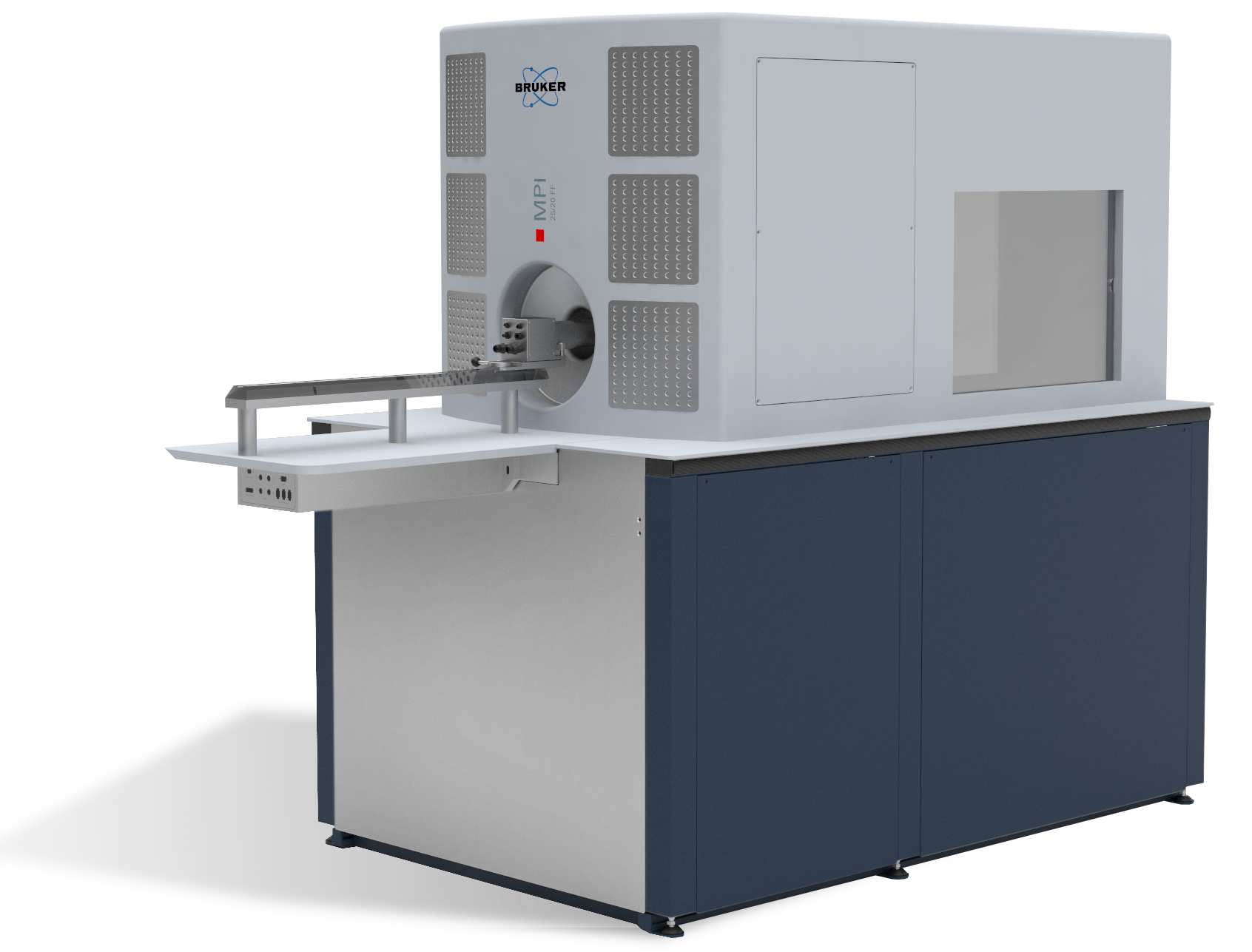

前臨床磁気粒子イメージング(MPI)スキャナー

前臨床 MPI

MPIでは、ミリ秒単位の切り替え時間で三次元画像を取得することが出来るため、in vivoのリアルタイム 3Dイメージングが可能です。

ハイライト

革命
世界初の市販のMPIシステムをご覧ください。
革新
最も幅広い前臨床イメージングシステムを提供します。
MPI is a tomographic imaging technique that detects the magnetic properties of iron-oxide nanoparticles injected into the bloodstream to produce three-dimensional images.
Download now

革新のためのパートナーシップ

MPIシステムは、ブルカーが誇る分析用磁気共鳴装置と前臨床用磁気共鳴イメージング(MRI)の専門知識と、フィリップス社が保有する独自のメディカルイメージングの強みを融合させたものです。

MPIは、臓器、細胞、分子レベルでの疾患プロセスについての新たな洞察を提供する可能性を秘めた、全く新しい前臨床イメージング技術です。新しいMPIシステムにより、ブルカーはMRI、PET、SPECT、マイクロCT、X線を含む前臨床イメージング製品群をさらに充実させます。

特長

  • 強力なドライブ、選択、磁場フォーカス技術
  • DICOM エクスポートおよびインポートも可能な、データ取り込みおよび処理用のParaVision® プラットフォーム
  • 完全な 3D イメージングとセグメント化された取得機能
  • ParaVision®を介したBolus注入のトリガー
  • ブルカーのマルチモダル動物ハンドリングシステム
  • マウス、ラット、モルモット、ウサギのイメージング用に12 cmの自由なアクセス
  • Bruker AVANCE™ III / MPI テクノロジー
  • 推奨される形態学のリファレンス : Desktop MRI ICON™

利点

ミリ秒間隔で三次元画像を撮影でき、in vivo リアルタイム三次元イメージングの可能性を提供

MPIは、血中に注入された酸化鉄ナノ粒子の磁気特性を検出することで三次元画像を生成する、断層撮影技術です。フィリップス社が発明し、2005年のNature論文で初めて紹介されたこの新技術は、生物学的イメージングの新時代への高い期待をもたらしました。

ブルカーは、技術革新における専門知識と理解の限界を押し広げる情熱によって、イメージングの世界にかつてない可能性を打ち出しました。

PETの1,000倍の速度
MPIでは、毎秒46ボリュームまでのイメージングを実行することができ、PETと同等または、PETよりも高い空間分解能で生物学的プロセスのリアルタイムイメージングが可能です。

動物を100% 可視化
MPIは、25 kHzのRF信号を用いて、注入された酸化鉄ナノ粒子の3D分布を測定します。この信号は動物の任意の深さから容易に記録することができ、柔軟に関心のある領域を選択することができます。

100% ユーザーフレンドリー
ブルカーのMPIシステムにはParaVision® 6が組み込まれており、ブルカーのマルチモダルベッドにも対応しているため、ブルカーのMRIシステムとのシームレスな動物の移動が可能です。

想像を上回る時間分解能
数ミリ秒で高い時間分解能の画像を取得できるため、時間分解能が鍵を握る新しいアプリケーションが可能になります。

アプリケーション

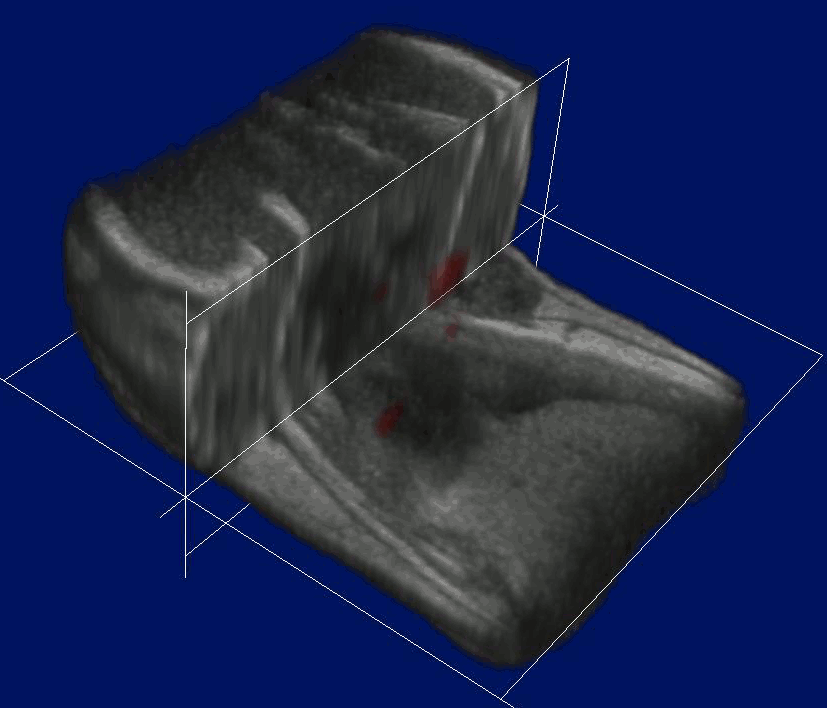

Cardio-vascular 3D+t MPI bolus tracking (redscale) superimposed with a static 3D MRI dataset (grayscale) for morphological guidance. DOI: 10.1109/TMI.2020.3017160

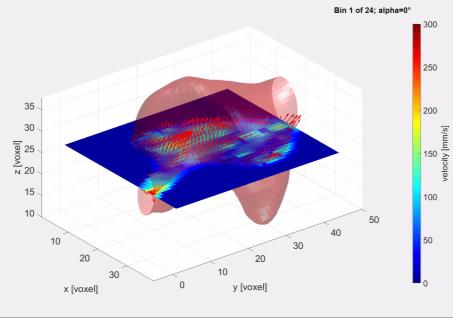

MPI-based 3D+t flow velocity estimation represented as color-coded streamlines superimposed with MR-based morphological information. DOI: 10.1109/TMI.2020.3017160

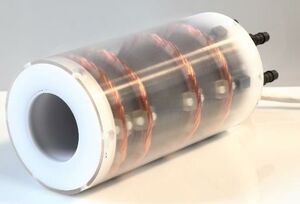

Oncology

  • Spatially selective tumor therapy
  • in situ hyperthermia therapy (MFH)
  • Temperature monitoring
  • Tumor therapy assessment
  • Cancer staging

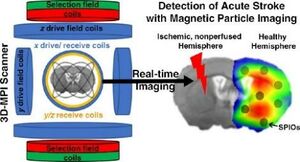

Neurology

  • fMPI, Neurodegeneration
  • Acute stroke detection
  • Local and reversible Blood Brain Barrier opening
  • Direct brain cancer treatment
  • Drug delivery
  • Localized MFH

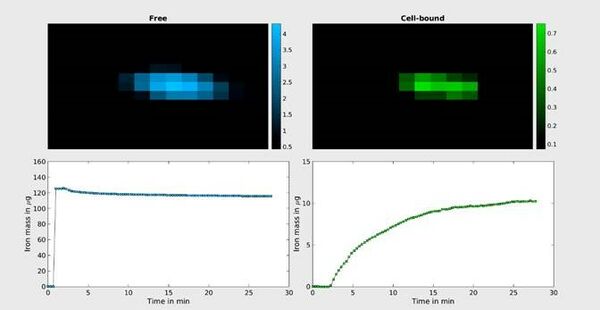

Molecular Imaging

  • Stem cell tracking
  • Cell quantification
  • Cell viability
  • Functionalized tracer
  • Specific targeting
  • Cell-labeling
  • Inflammation

Cardiovascular

  • Stenosis staging
  • Plaque detection
  • Plaque staging

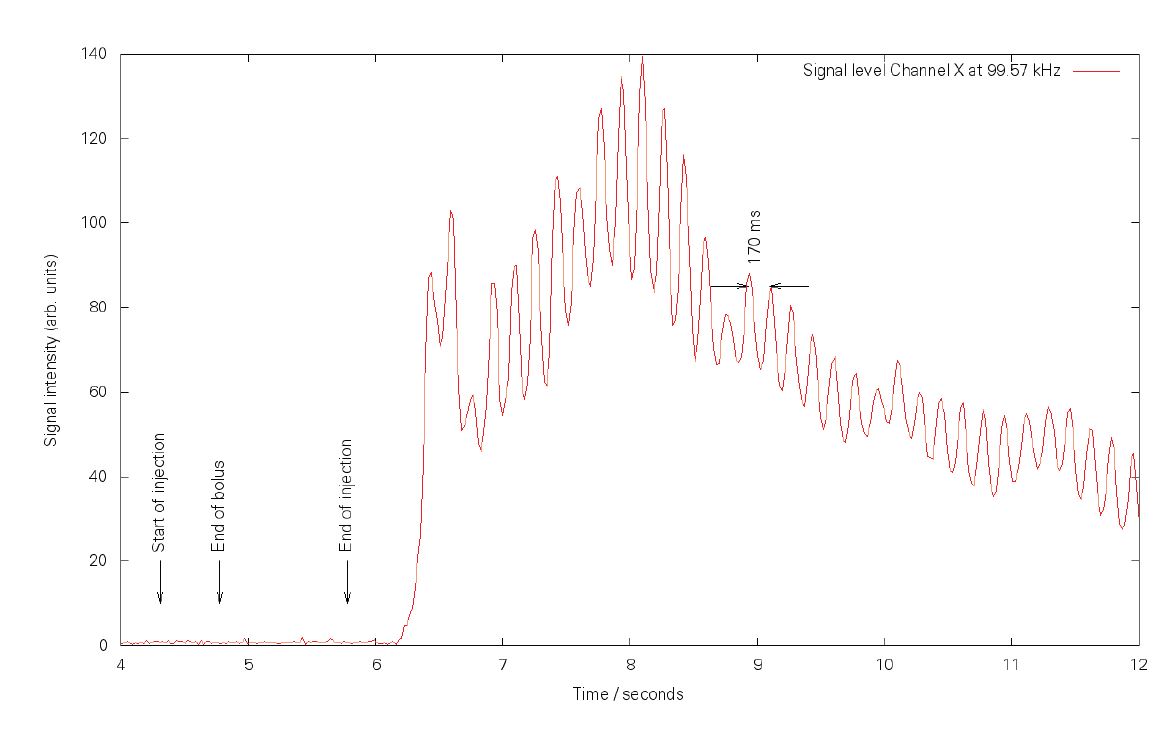

  • Real-time bolus tracking
  • Velocity reconstruction
  • Output fraction
  • Functional parameter

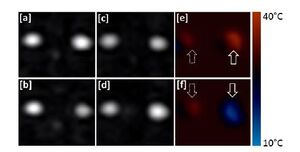

Theranostics

  • in situ diagnostic and therapy system
  • Morphology
  • Therapy planning and monitoring
  • Spatially selective therapy
  • Spatially selective hyperthermia (MFH)
  • Image-based thermometry

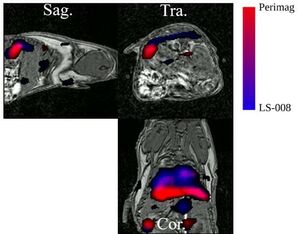

Personalized Medicine

  • Pharmacokinetics
  • Targeted drug delivery
  • Spatially selective drug activation

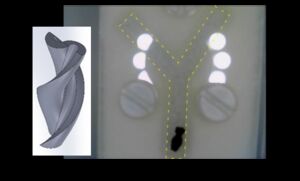

Interventions

  • Device actuation/steering
  • Spatially selective actuation
  • (Nano-)bot steering

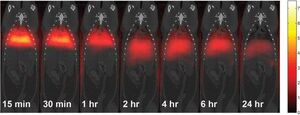

Lung Diagnosis

  • Perfusion
  • Ventilation
