NMR & EPR Biopharma Solutions

Biologics Higher Order Structure

The latest generation of NMR instrumentation, combined with newly developed NMR acquisition methods, means that intact antibodies (MW 150 kDa), can be characterized at natural abundance, in formulation buffer or other physiologically relevant conditions. Differences between batches are detected by comparing the spectra of a new batch with a reference, thus allowing pass/fail decisions to be made.
True HOS
Evaluates all aspects (primary, secondary, tertiary, and quaternary) of HOS.
Atomic Resolution
Small but relevant changes in the HOS can be detected using 1D PROFILE, ECHOS, CCSD, and/or PCA. Each of these methods highlight spectral differences, which can be assigned to a region in the protein.
Physiological Conditions
NMR acquisition methods have recently been enhanced enabling the study of intact molecules (150 kDa) at natural abundance in physiologically relevant conditions.
U.S. FDA - Bruker collaboration: NMR-Based Structural Integrity Analysis of Therapeutic Monoclonal Antibodies: A Comparative Study of Humira and its Biosimilars
Download Now

The latest generation of NMR instrumentation, combined with newly developed NMR acquisition methods, means that intact molecules, including antibodies (150 kDa), can be characterized at natural abundance, in formulation buffer or other physiologically relevant conditions. Differences between batches are detected by comparing the spectrum of a batch with a reference, thus allowing rapid pass/fail decisions to be made.



Features

Easy acquisition: The latest generation of NMR instrumentation provides high spectral resolution and sensitivity. Combined with newly developed acquisition methods, this enables the study of intact antibodies (MW 150 kDa) at natural abundance, in formulation buffer, or under other physiologically relevant conditions.

Easy analysis: Easy-to-use NMR analysis software also makes this solution accessible to non-NMR experts.

Similarity assessment: Published & accepted methods are available

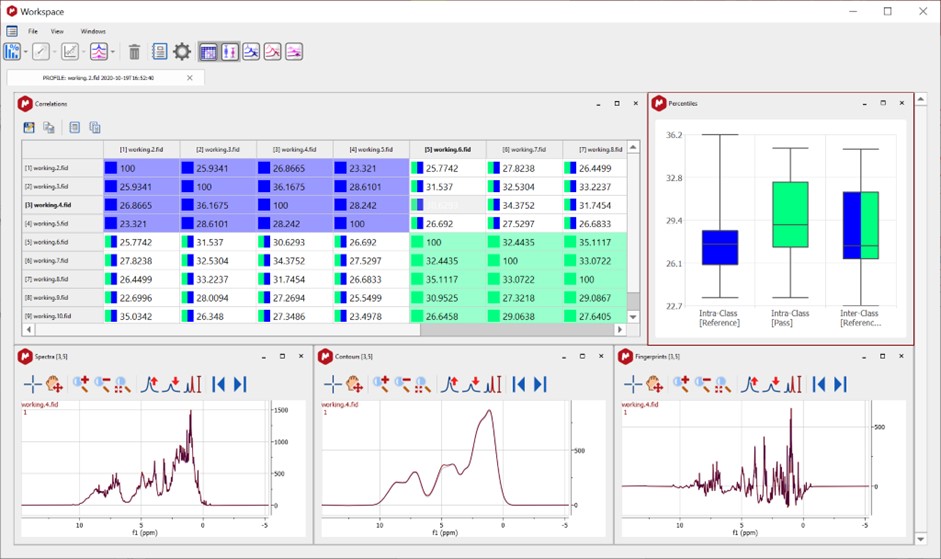

  • PROFILE 1D

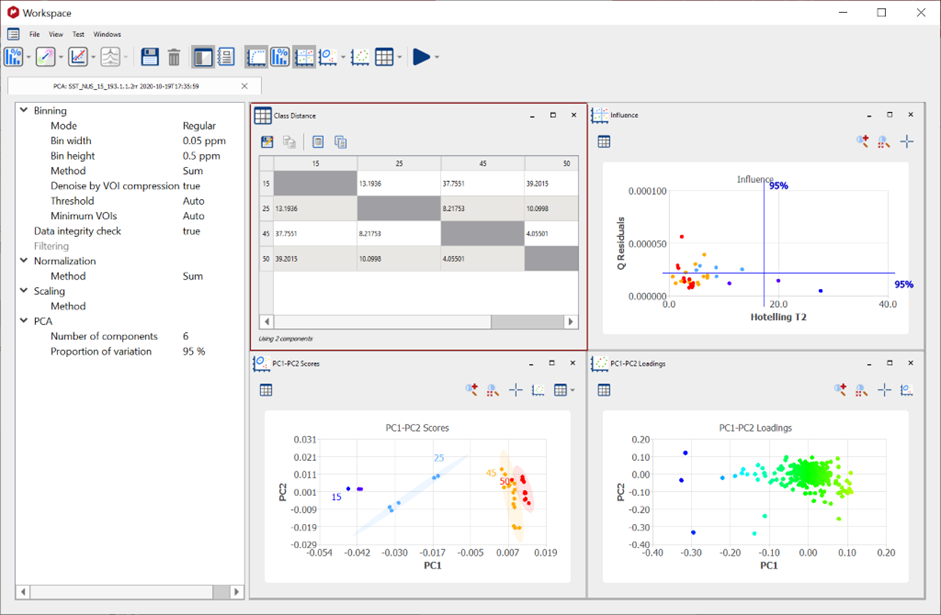

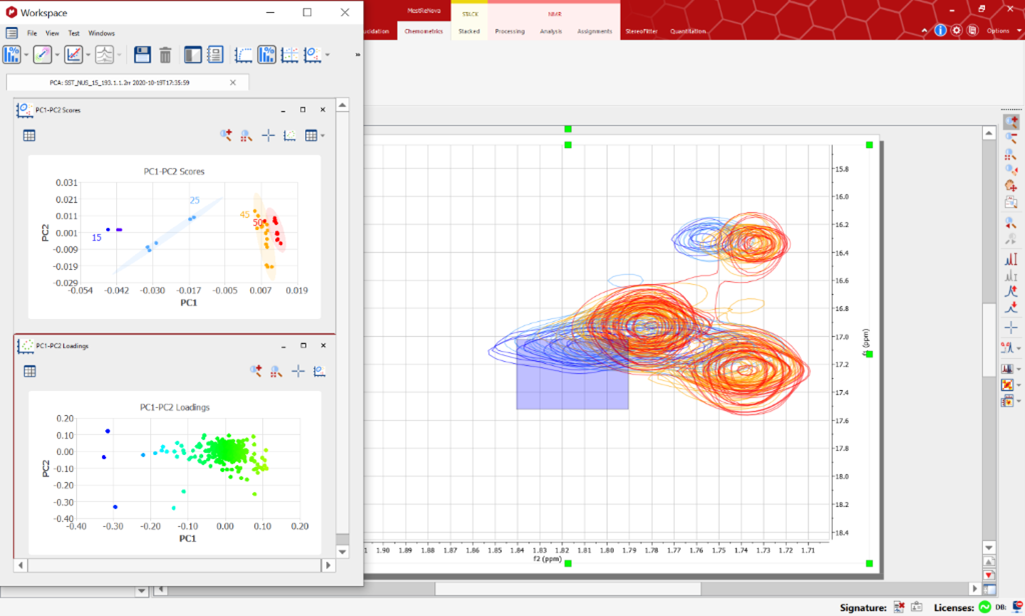

  • PCA – unsupervised chemometrics

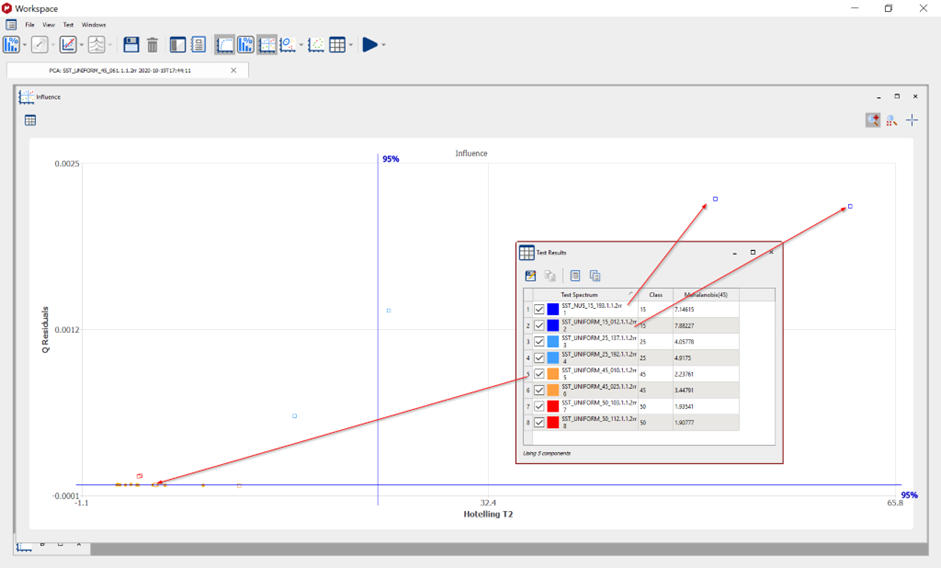

  • Multivariate statistic model building and distance calculations

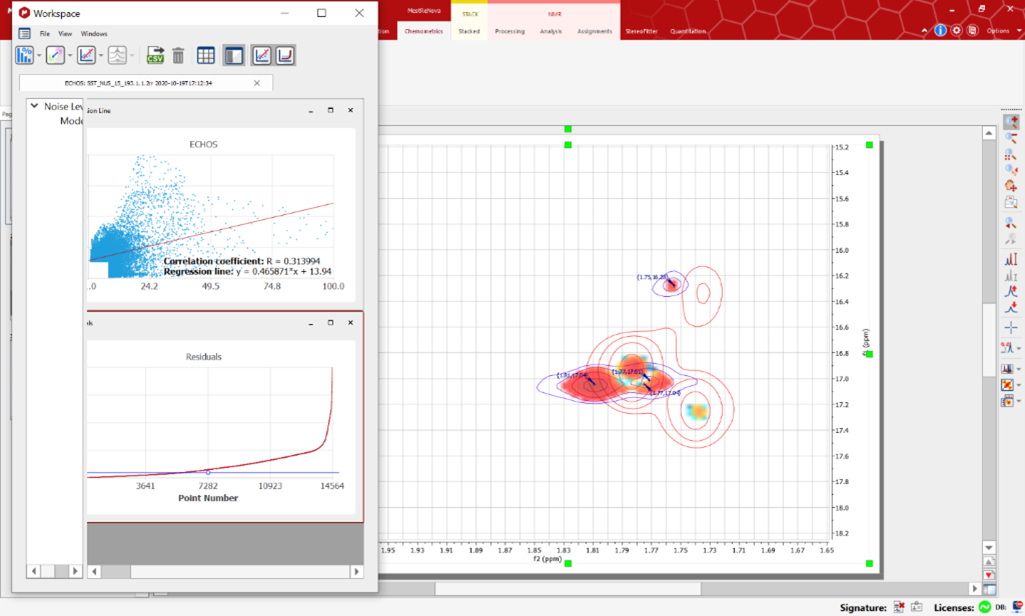

  • ECHOS – simple representation of spectral differences

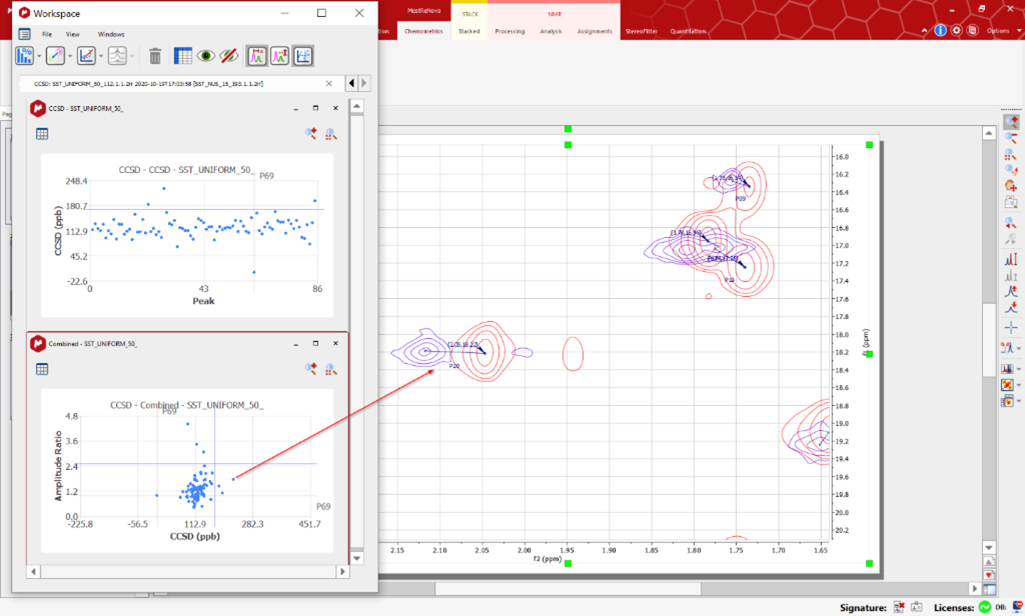

  • CCSD – represents shifts in peak positions.

Matrix analysis for the comparison of batches

Integrated solution: Data and results are linked, enabling the reason(s) for any observed spectral differences to be determined.

Software

Mnova BioHOS software features

  • Easy-to-use NMR analysis software makes this solution accessible to non-NMR experts
  • Similarity assessment. Published & accepted methods are available
    - PROFILE 1D
    - PCA – unsupervised chemometrics
    - Multivariate statistic model building and distance calculations
    - ECHOS – simple representation of spectral differences
    - CCSD – represents shifts in peak positions
  • Matrix analysis for the comparison of batches
  • Integrated solution: Data and results are linked, enabling the reason(s) for any observed spectral differences to be determined.

Testimonials

NMR lab visit at Health Canada
2D NMR Methods to Quantify Heparin Composition (Pharmaceutical Analysis
Quality assessment of biologics and biosimilars at atomic level

Dr. Fabio Baroni, Merck KGaA, Rome, Italy


The need for high-resolution techniques for the characterization of Higher Order Structure of biologics is regarded as being extremely urgent, especially in the case of application to biosimilar development.
NMR, besides assuring an atomic-level fingerprint of the molecule’s structure, grants a resolution and sensitivity to structural changes incomparable with any other spectroscopic technique. Bruker, has led multiple developments in NMR during the last decade in terms of improved instrumentation, clear workflows and enhanced data analysis and finally, has made the employment of the technique in biosimilar R&D.
