Handheld XRF Spectrometers


Portable Elemental Analysis From Mg - U

Shielded Detector- Guaranteed!

Wide Range of Applications

S1 TITAN Handheld XRF


Times Faster

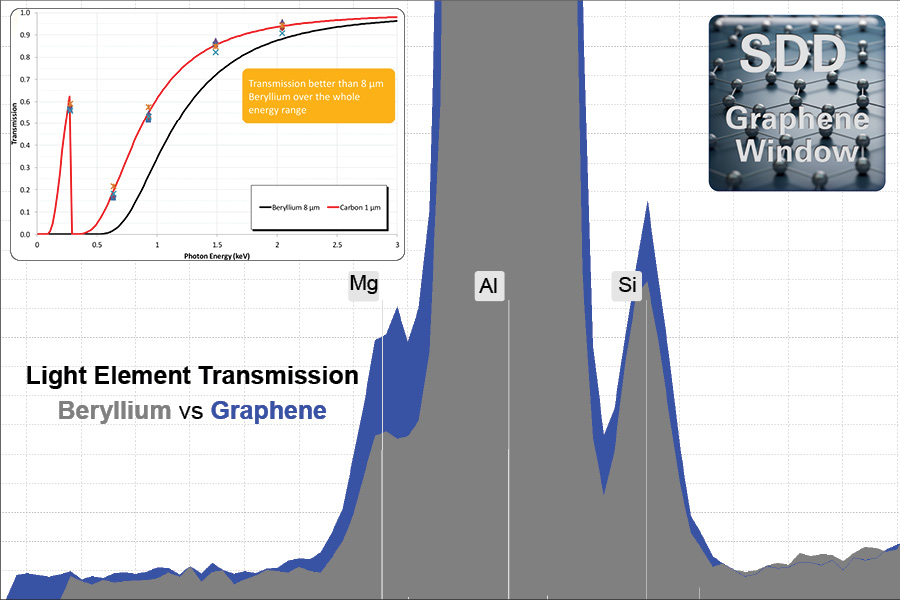

New graphene SDD detectors mean 2 times faster light element measurement!
Newton Force
Bruker proprietary detector shield is guaranteed protection to the detector, it can withstand more than 50 newtons force on the point of a dart tip.
Small Spot Collimator
Optional 3 mm collimator enables accurate measurement of small components and welds.

The S1 TITAN is lightweight (1.5 kg, including battery) and rugged handheld XRF analyzer. Fast analysis speed and exceptional accuracy are two key attributes that help define the S1 TITAN.

Other Innovative Features Include:

  • 50 kV X-ray tube
  • Latest graphene window detector technology
  • TITAN detector shield - guaranteed detector protection
  • SMART Grade timing for fast alloy grade ID
  • Wi-Fi and USB connectivity
  • An extremely tough housing that is sealed against humid and dusty environments


The S1 TITAN HHXRF series is available in three configurations: models 800, 500 and 500S. All models use the latest graphene window SDD detector technology which enables faster light element analysis. The S1 TITAN 800 use a large area detector to give you incredibly fast analysis times. The S1 TITAN 500 and 500S are configured with a fast and accurate standard SDD detector. All models are equipped with TITAN Detector Shield which provides a guaranteed detector protection. In addition, the S1 TITAN can be configured with calibrations that are optimized for a variety of sample materials- including a wide range of alloys, metal coatings, various mining & environmental samples, as well as restricted materials.

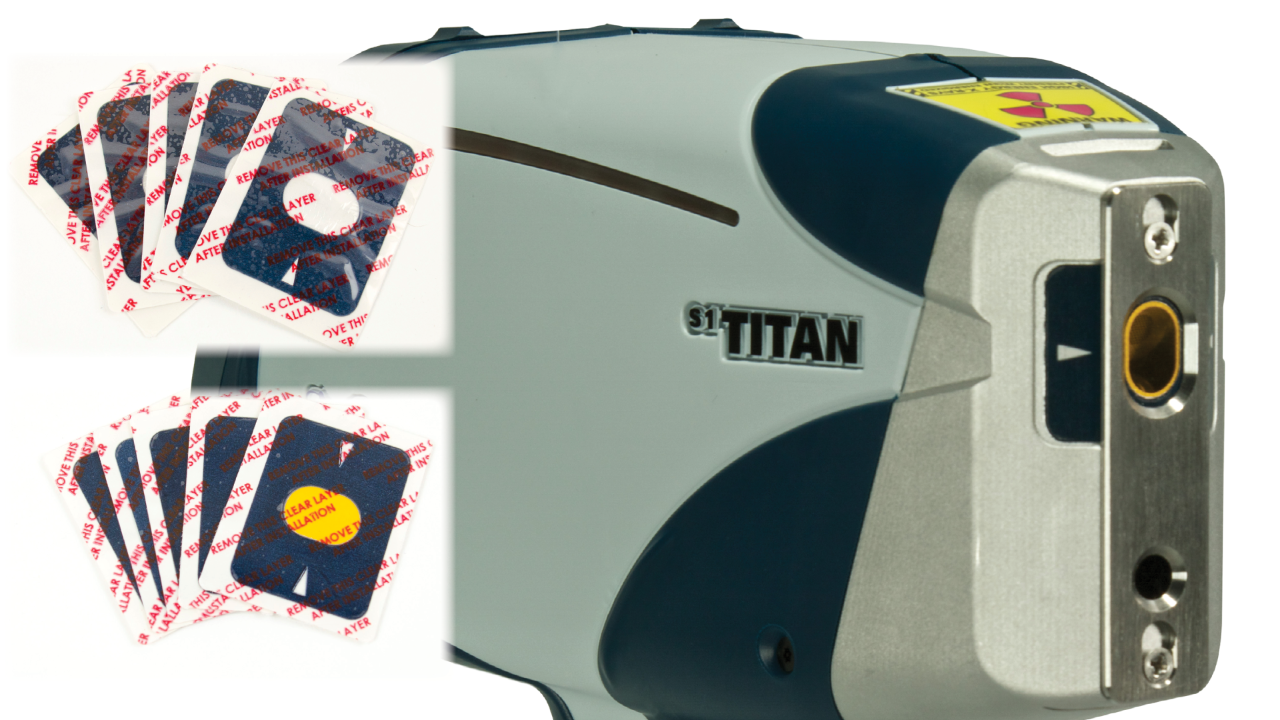

TITAN Detector Shield

The ultimate defense against punctured detectors, GUARANTEED!

  • Do you analyze metal turning or fine wires with your XRF gun?
  • Have you ever punctured your XRF gun’s detector?

Then you know that the cost to repair a detector can range from $7,000 to $10,000…plus potential down-time.

The TITAN Detector Shield can minimize these risks! Learn more about the TITAN Detector Shield and our exclusive GUARANTEE!


S1 TITAN Benefits at a Glance:

Available calibrations include: alloy, gold and precious metals, catalytic converters, soil, mining, restricted materials, metal coatings and customer specific

  • Latest graphene window SDD detector technology
  • Superior count rates and resolution
  • Faster than previous generations
  • Lower detection limits
  • Easy analysis of light elements, such as magnesium, aluminum and silicon, without the need for vacuum or helium atmosphere (S1 TITAN 800 and 500S)



S1 TITAN Specifications

Model 800
Model 500S
Model 500
Detector Graphene window SDD; 20mm2 active area; Typical resolution <145eV @450,000cps
TITAN Detector Shield (TM) Included on all models
Size / Weight 25 cm x 28 cm x 9 cm / 1.5 kg (with battery)
Integrated camera Optional on all models
Elemental Range
Mg - U
Mg - U
Ti - U
Collimator options

8mm standard.

5mm or 3mm optional.

8mm 8mm
