Shielded Detector- Guaranteed!
Wide Range of Applications
The S1 TITAN is lightweight (1.5 kg, including battery) and rugged handheld XRF analyzer. Fast analysis speed and exceptional accuracy are two key attributes that help define the S1 TITAN.

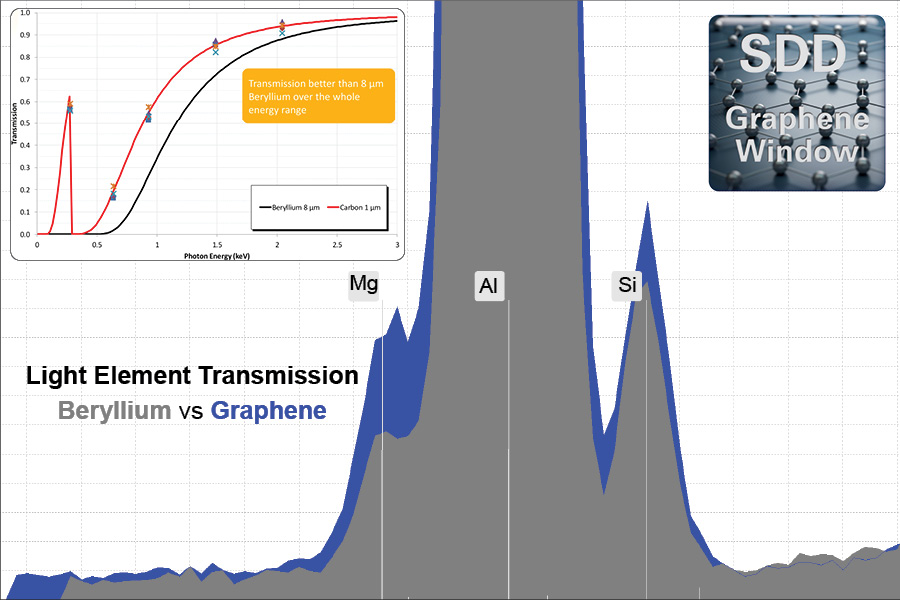

The S1 TITAN product line is entirely based on the latest detector technology. Every S1 TITAN model is equipped with a high-performance graphene window silicon drift detector (SDD). As a result, users can expect to have fast, precise analysis regardless of the chosen S1 TITAN model.
The S1 TITAN is available in three highperformance configurations, all sharing the same advanced detector technology: S1 TITAN 500, 500S, and 800
The ultimate defense against punctured detectors, GUARANTEED!
Then you know that the cost to repair a detector can range from $7,000 to $10,000…plus potential down-time.
The TITAN Detector Shield can minimize these risks!
S1 TITAN benefits at a glance:
S1 TITAN Model 800 |
S1 TITAN Model 500S |
S1 TITAN Model 500 |
|
---|---|---|---|
Detector | Graphene window SDD; 20mm2 active area; Typical resolution <145eV @450,000cps | ||
TITAN Detector Shield (TM) | Included on all models | ||
Size / Weight | 25 cm x 28 cm x 9 cm / 1.5 kg (with battery) | ||
Integrated camera | Optional on all models | ||
Elemental Range |
Mg - U |
Mg - U |
Ti - U |
Collimator options | 8mm standard. 5mm or 3mm optional. |
8mm | 8mm |
